Aruba AP-MNT-MP10-X Manuale utente
AP-MNT-MP10-X Mount Kit
Installation Guide
0512150-01 | October 2019 1
The AP-MNT-MP10-X is a low-profile mount kit for attaching AP-5xx series to existing W2/W3 wall mounts. This
mount kit is designed to work with the pre-assembled bracket on the back of the access points.
Installation
1. Route the Ethernet cable(s) through the opening on the new mount (see Figure 1).

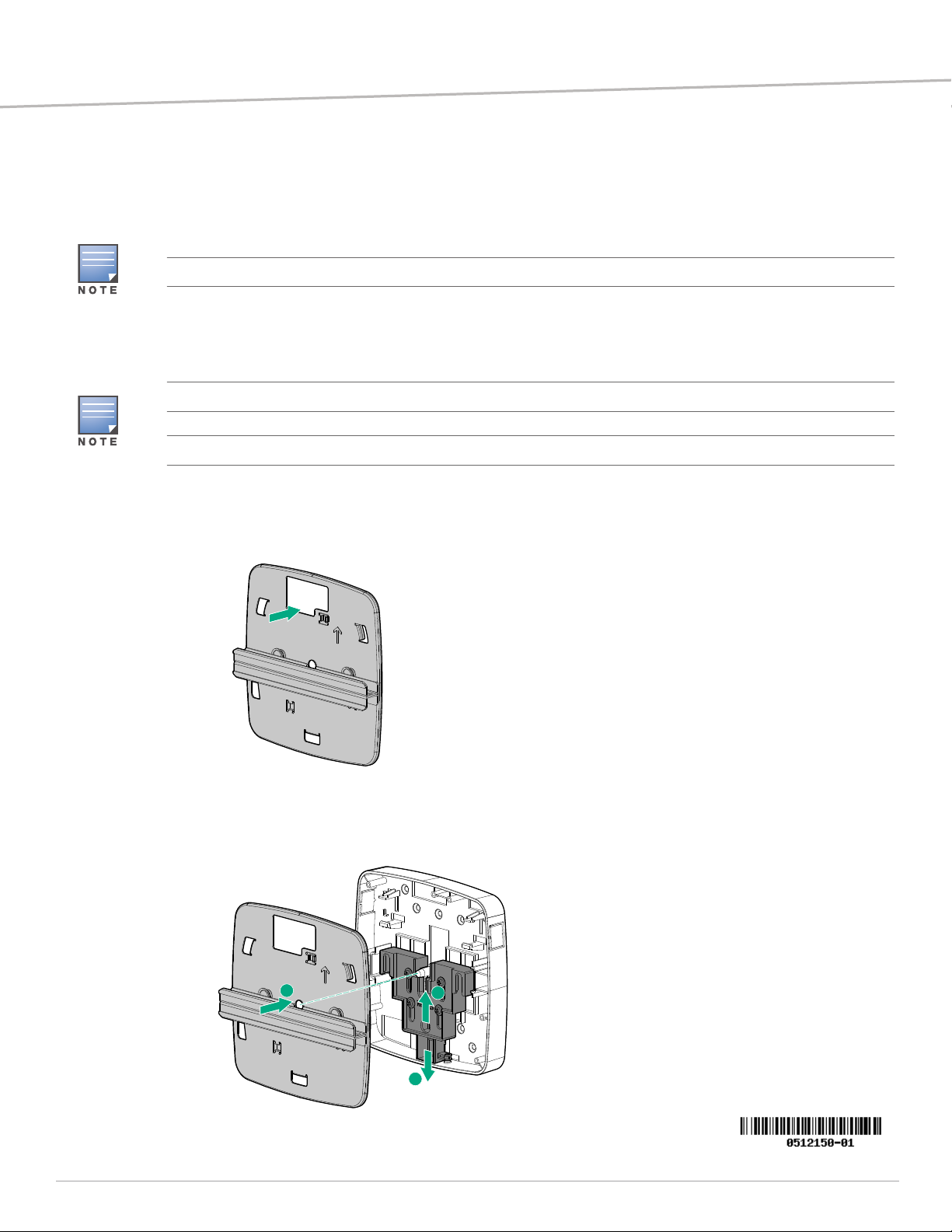

Figure 1 Route Ethernet Cables
2. Press on the spring loaded slider of the W2/W3 mount, making sure the center post of the existing mount fits
through the center hole of the new mount (see Figure 2).
Figure 2
A #1 Phillips Head screwdriver is required for installation.
This installation guide shows the AP-220-MNT-W3 mount instructions.
AP-MNT-MP10-X Mount Kit works with W2 and W3 mounts.
1
2
34
2AP-MNT-MP10-X Mount Kit | Installation Guide
3. Release the spring loaded slider so it slides back to its original position and holds the new mount in place.
4. Use a #1 Phillips Head screwdriver to tighten the security screw on the existing mount.

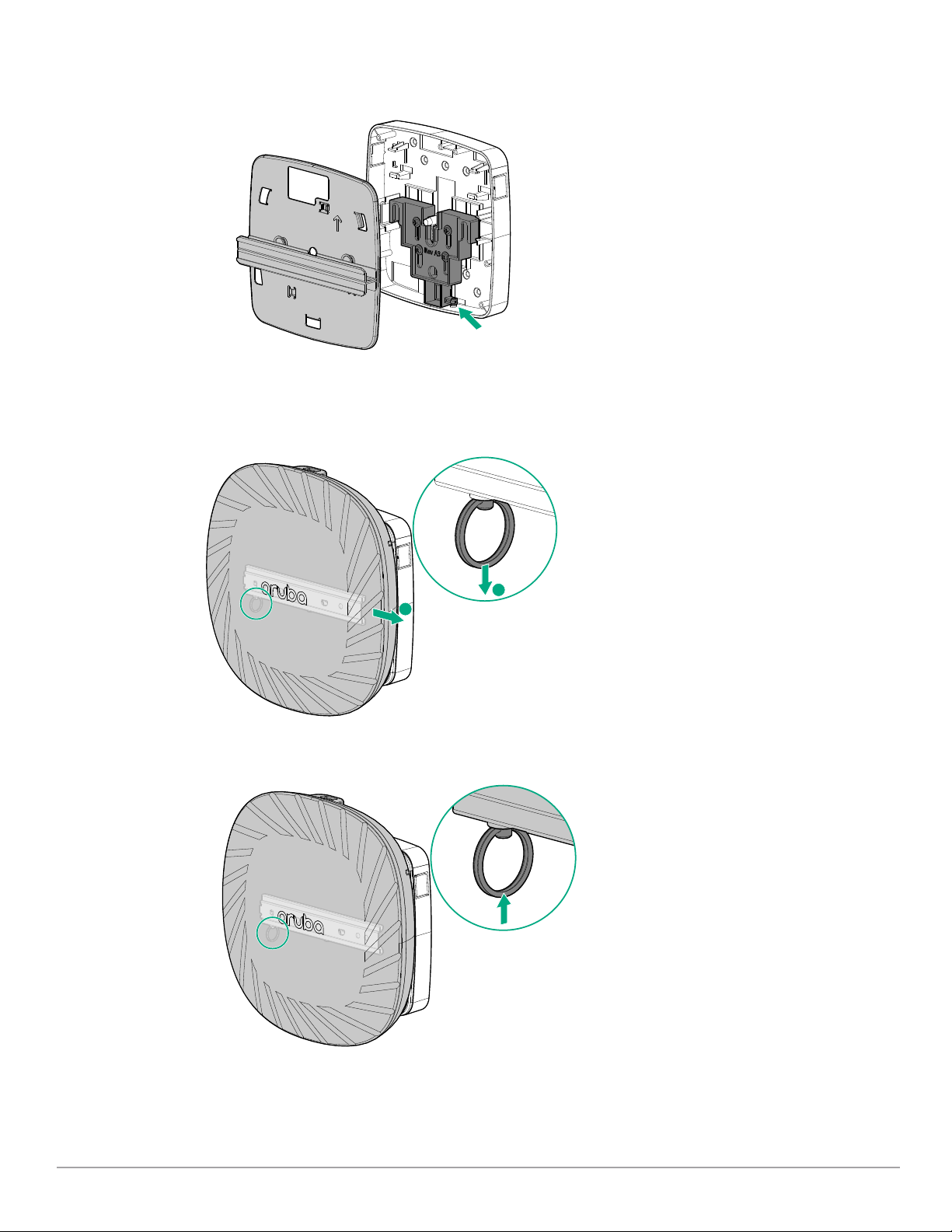

Figure 3 Tighten Security Screw
5. If needed, route and tie wrap Ethernet cables to cable lances.
6. Plug Ethernet connector(s) into port E0/E1 on the back of the AP.
7. Slide the AP-5xx onto the rail and use the included hook tool to pull the lock ring out.
Figure 4 Pull Lock Ring Out
8. Slide the AP bracket fully into place and release the lock ring.
Figure 5 Slide AP into Place
9. Use a #1 Phillips head screwdriver to tighten the screw securing the AP to the metal mount bracket.
1
2
1
