Product Introduction

Congratulations on your purchase of the Asanté FriendlyNET FS4016P.These switches were

designed to give you the ultimate in performance, ﬂexibility, ease-of-use, and reliability.

Your Asanté FriendlyNET FS4016P can increase performance on your network by bringing full Ether-

net bandwidth to individual workgroups, or straight to the desktop, instead of requiring all stations to

share the bandwidth of a single network.The switch’s 100Mbps Fast Ethernet capability can eliminate

bottlenecks in connections to servers, or can link 10Mbps workgroups to a 100Mbps Fast Ethernet net-

work backbone.

For straight-through 10Base-T/100Base-TX connection to servers and workstations, the switch sup-

ports full-duplex connection, effectively doubling the total throughput on individual links.The switch’s

store-and-forward switching architecture forwards packets to their destination with a minimum of delay.

The switches can be placed on a tabletop or wall-mounted, and provide the ideal solution for your

small, medium, or large Ethernet/Fast Ethernet network. It is designed to comply fully with the IEEE

802.3 Ethernet and 802.3u Fast Ethernet standards.

Asanté FriendlyNET FS4016P

16-port Dual-speed Fast Ethernet Switch

User’s Guide

FS40016P.fm Page 1 Tuesday, March 16, 1999 5:53 PM

Asanté FriendlyNET FS4016P Installation Guide

Page

Package Contents

1. Asanté FriendlyNET FS4016P 16-port 10/100M Switch

2. Self-adhesive rubber pads for desktop installation

3. AC Power cord

4. Rack Mounting kit for rack installation

5. Installation guide

If any of these items are missing, contact your dealer immediately

Installation

The Asanté FriendlyNET FS4016P switch is easy to install and requires no special training.You

should, however, read the following instructions carefully before proceeding to install your switch.The

diagram below shows the layout of the front and rear panels.

Front & Rear Panel of the Asanté FriendlyNET FS4016P

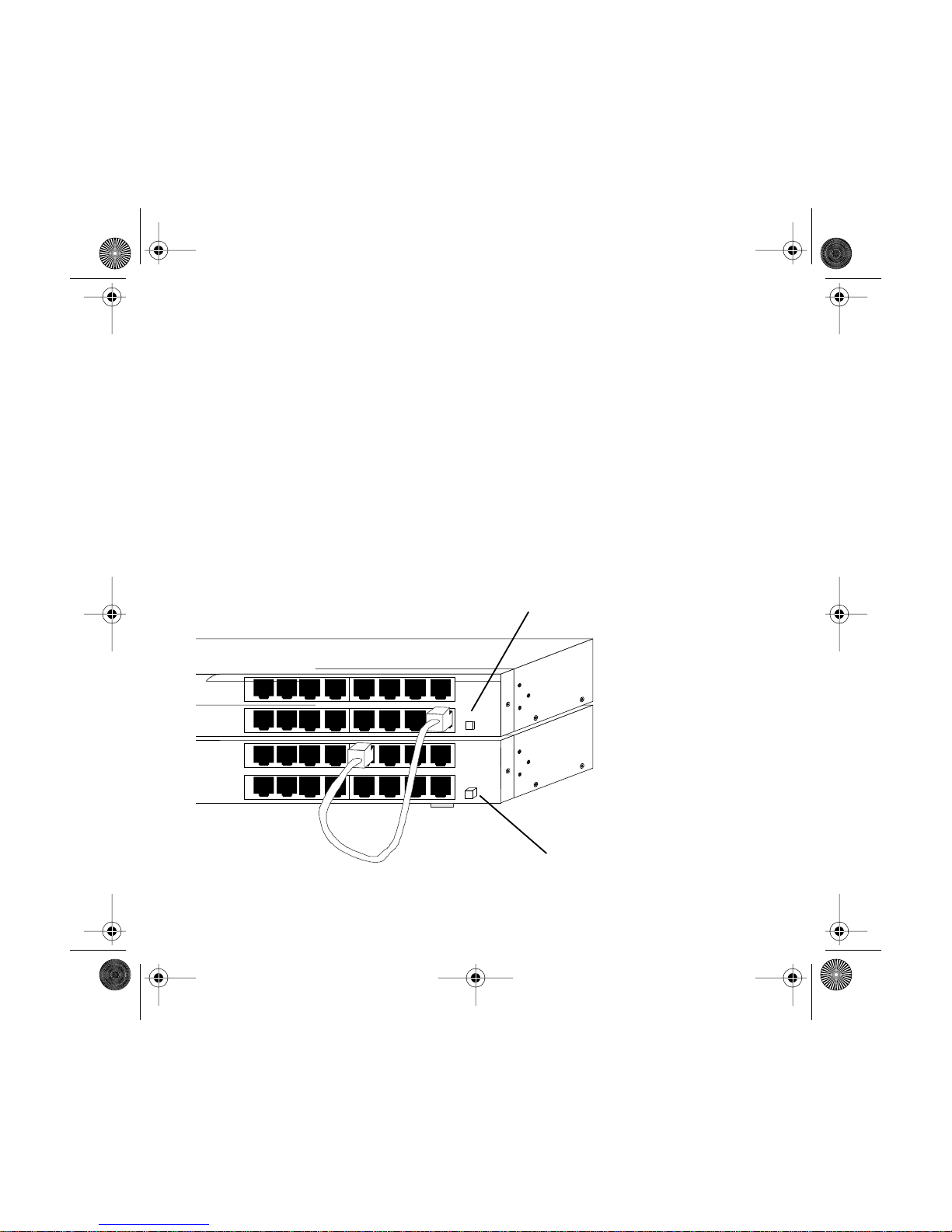

Normal/Uplink

168

Normal/Uplink

Full

Auto 81 169100-240VAC

Uplink Push Button

Full/Auto dip switches

LED display

FS40016P.fm Page 2 Tuesday, March 16, 1999 5:53 PM

Asanté FriendlyNET FS4016P Installation Guide

Page 3

The Asanté FriendlyNET FS4016P is designed for easy “plug and play” installation.Before you con-

nect your switch to other devices, there are several issues you should keep in mind:

∆

When connecting the switch to a workstation using unshielded twisted pair

cable, you must make sure that the cable length is not greater than 100 meters.

10Base-T twisted pair Ethernet cabling should be category 3 or better, and

100Base-TX twisted pair Fast Ethernet cabling should use tested category 5

cabling.

∆

Network cable segments can be connected to, or disconnected from the

switch while the power is on.Plugging in or removing network cables while your

switch is operating will not interrupt the operation of the switch.

∆

When placing your switch, you need to avoid dusty locations and electromag-

netically noisy areas.

Desktop Placement

You can place the switch on a table.In this case, use the four self-adhesive feet, which are provided

with the Asanté FriendlyNET FS4016P for cushioning purposes. Stick them on the four corners of the

bottom surface of the switch, as shown in diagram below to cushion it against vibration.

FriendlyNET

5-port Dual-speed Ethernet Switch

PWR

Collision/FullDuplex

Link/Activity

FS4005P

12345 Uplink

FS40016P.fm Page 3 Tuesday, March 16, 1999 5:53 PM

Asanté FriendlyNET FS4016P Installation Guide

Page

Connecting to Servers andWorkstations

Use the following procedure to connect a 10Base-T or 100Base-TX Ethernet server or worksta-

tion to the switch.

1. Make sure that the length of the straight-through cable between the switch and the station does

not exceed 100 meters, including all patch cables and cross-connect wires.

2. Connect one end of the cable to the RJ-45 connector on the switch, and the other end to the sta-

tion.

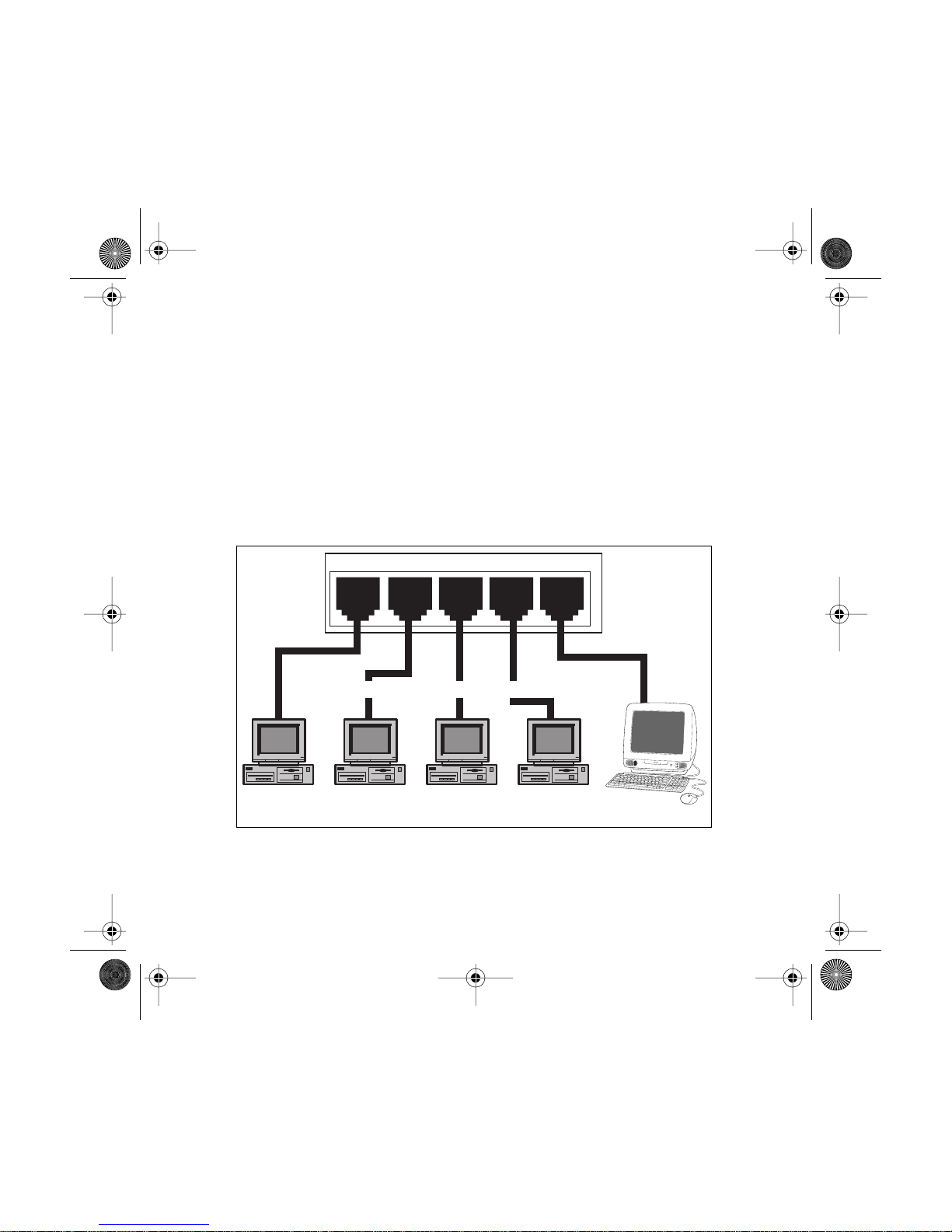

5 4 3 2 1

10Mbps

workstation 100Mbps

workstation 10Mbps

workstation 100Mbps

workstation

Connection cable may be up to 100 meters long

FS40016P.fm Page 4 Tuesday, March 16, 1999 5:53 PM

Asanté FriendlyNET FS4016P Installation Guide

Page 5

Using the Uplink connection

To connect a switch or hub, note the following:

1. One normal/uplink push button on the front panel allows users to select to connect to a PC or a

hub/switch. The default setting is in the Normal (MDI-X) position, i.e. the out position.The port is

conﬁgured to connect with a PC.When the push button is pressed in (MDI), it allows users to con-

nect with a hub or a switch using straight-through twisted pair cable.

∆

Use a straight-through cable to connect uplink port or use a crossover cable to

connect to any port except uplink port. (Do not connect both uplink ports

together, and do not use a crossover cable to connect with the uplink port).

Normal/Uplink

168

Normal/Uplink

Push button in the

OUT position

Push button in the

IN position

FS40016P.fm Page 5 Tuesday, March 16, 1999 5:53 PM

Asanté FriendlyNET FS4016P Installation Guide

Page

LED Indicators

Front Panel LED Indicators

Table 1: Power LED

Color Status

Green The switch is powered on and ready for use

OFF The switch is powered off.

Please check the following issues:

• Make sure the power adapter is properly inserted into

the power connector on the switch.

• Determine whether or not the power adapter is func-

tional by plugging another device into the receptacle

FS40016P.fm Page 6 Tuesday, March 16, 1999 5:53 PM

Asanté FriendlyNET FS4016P Installation Guide

Page 7

Table 2: Link/Activity

Color Status

Off No link is established on the port.

Green A 10Mbps Link is established on the

port.

Blinking green A 10Mbps Link is established and traf-

ﬁc is being received.

Yellow A 100Mbps link is established on the

port.

BlinkingYellow A 100Mbps link is established and traf-

ﬁc is being received.

Table 3: Full Duplex/Collision

Color Status

Off There is no link. Or the port is operat-

ing in half-duplex mode.

Yellow The port is operating in full-duplex

mode.

BlinkingYellow The port is in the half-duplex mode and

a collision has occured.

FS40016P.fm Page 7 Tuesday, March 16, 1999 5:53 PM

Asanté FriendlyNET FS4016P Installation Guide

Page

Full/Auto Dip Switch

By default each port is capable of full autonegotiation.In addition, each port may be manually conﬁg-

ured for full-duplex operation using the DIP switches on the rear panel of the switch.

∆

If a port is conﬁgured for full-duplex operation, you must ensure that the link

partner is also set for full duplex. Don’t connect a hub to a port that is set for full

duplex.

Full

Auto

81 169

FS40016P.fm Page 8 Tuesday, March 16, 1999 5:53 PM

Asanté FriendlyNET FS4016P Installation Guide

Page 9

MOUNTING KIT INSTRUCTION

Asanté FriendlyNET FS4016P 16-port 10/100M Switch is supplied with two mounting brackets and six

screws for mounting into a 19” rack.

Rack mounting in a 19”rack

1. Locate the mounting bracket over the mounting holes on each side of the switch.

2. Insert the screw through the bracket and into the bracket mounting holes in the switch.

3. Insert the unit into the 19-inch rack.

FS40016P.fm Page 9 Tuesday, March 16, 1999 5:53 PM

Asanté FriendlyNET FS4016P Installation Guide

Page

TECHNICAL INFORMATION

StandardsSupported

IEEE802.3, IEEE802.3u, IEEE 802.3x

10/100Base-TX UTP/STP Port

16 N-WAY ports

Uplink port

Port #16

Cabling

UTP/STP Category 3, 4, 5 (100 ohm impedance)

Input voltage

100–240 Vac, 50/60Hz

Operating temperature

0–40° C (32–122° F)

Operating humidity

10–95%

Certiﬁcation

FCC Class A and CE Class A

Dimensions

330mm (W) x 207mm (D) x 43mm (H)

13” (W) x8.1” (D) x 1.6” (H)

FS40016P.fm Page 10 Tuesday, March 16, 1999 5:53 PM
