ASCOM NIS RAIL Manuale utente

NIS RAIL the commuNIcAtIoN pLAtfoRm foR

Added SAfety

2NIS RAIL

Today, railway and subway organizations are facing very

challenging times in terms of operational telephony (r)evolution.

A lot of factors are contributing to the complexity of voice

communications in the railway industry like: COTS components, IP,

user friendly GUI, call recording, interoperability with GSM-R, legacy

analogue radio, PBXs and other third-party systems. To answer

such sensitive requirements, Ascom has developed the amazing

NIS Rail platform dedicated to railway customers. Additional

features like: stand-alone and full redundant architectures,

centralised conﬁguration and monitoring tools are all contributing

to your investment protection and cost control. Many Ascom and

3rd party end-devices using various communication technologies

can be connected to the intelligent NIS VoIP switch.

NIS Rail grants you with smooth migration scenarios, providing

highly reliable operational telephony networks based on IP-ready

components.

3NIS RAIL

NIS Rail integrates GSM-R, analogue radio, digital trunked radio and

public networks. The system allows the operator to communicate beyond

the system limits, converging the different networks into one.

NIS Rail supports most telecommunication interfaces (e.g. ISDN S0,

ISDN Uk0, GSM, GSM-R, analogue a/b and VoIP), allowing simple migration

with an existing infrastructure.

The ComNode is the core of NIS Rail. Several nodes can be networked

via IP, allowing scaling from medium-sized to large systems. NIS Rail also

supports Ascom system operating terminals as well as commercially

available terminals.

pRoduct hIghLIghtS At A gLANce

“With NIS Rail you know what you’ve got, particularly in

hectic situations. A reliable system not only supports our

employees, it also beneﬁts passengers.”

4NIS RAIL

Integrated: GSM-R

NIS-Rail integrates the GSM-R system specially developed for railway

operators into the company telecommunication system. The system

supports all the requirements deﬁned in EIRENE/Morane and offers all the

advantages of GSM-R. The NIS Rail workstation is therefore the ideal GSM-R

dispatcher, efﬁciently assisting the railway operator with his daily

processes.

By radio

Need a fully ﬂedged radio dispatcher workstation? No problem – with

its radio module NIS Rail can be expanded for digital trunk or analogue radio.

The terminals are then connected with the radio subscribers via an extended

radio room on the ﬁxed-line network side.

Integrated: announcements

Manual or automatic announcements can be output on loudspeakers,

loudspeaker groups or entire PA systems. For the operator the system is

not only easy to handle; it also allows him to output recorded gong melodies

and other audio ﬁles. Text to Speech can also be integrated.

5NIS RAIL

Recording

NIS supports recording of all calls on an external voice recorder. The

integrated central voice recording supports post-incident analysis of critical

operational situations.

Monitored and controlled

NIS Rail is conﬁgured in such a way that alarms are triggered when-

ever a change in status occurs. On this way the operator can simplify the

station management so that he can control lights, escalators, doors, etc.,

from his workstation. With the telecontroll module, operation can be

effected using the graphical user interface; alternatively it is signaled

directly to a higher-order control system.

Well managed

NIS Rail is run via a central management system. Commissioning and

maintenance are made all the more efﬁcient by the remote conﬁguration

and software distribution.

ComNodes, transmission paths and terminals are continuously

monitored, allowing rapid intervention if and when a fault occurs. Integrated

test modules check the audio path from the operating terminal to the

loudspeaker and the microphone of the call stations. NIS Rail generates

automatic messages to a control system or maintenance centre.

6NIS RAIL

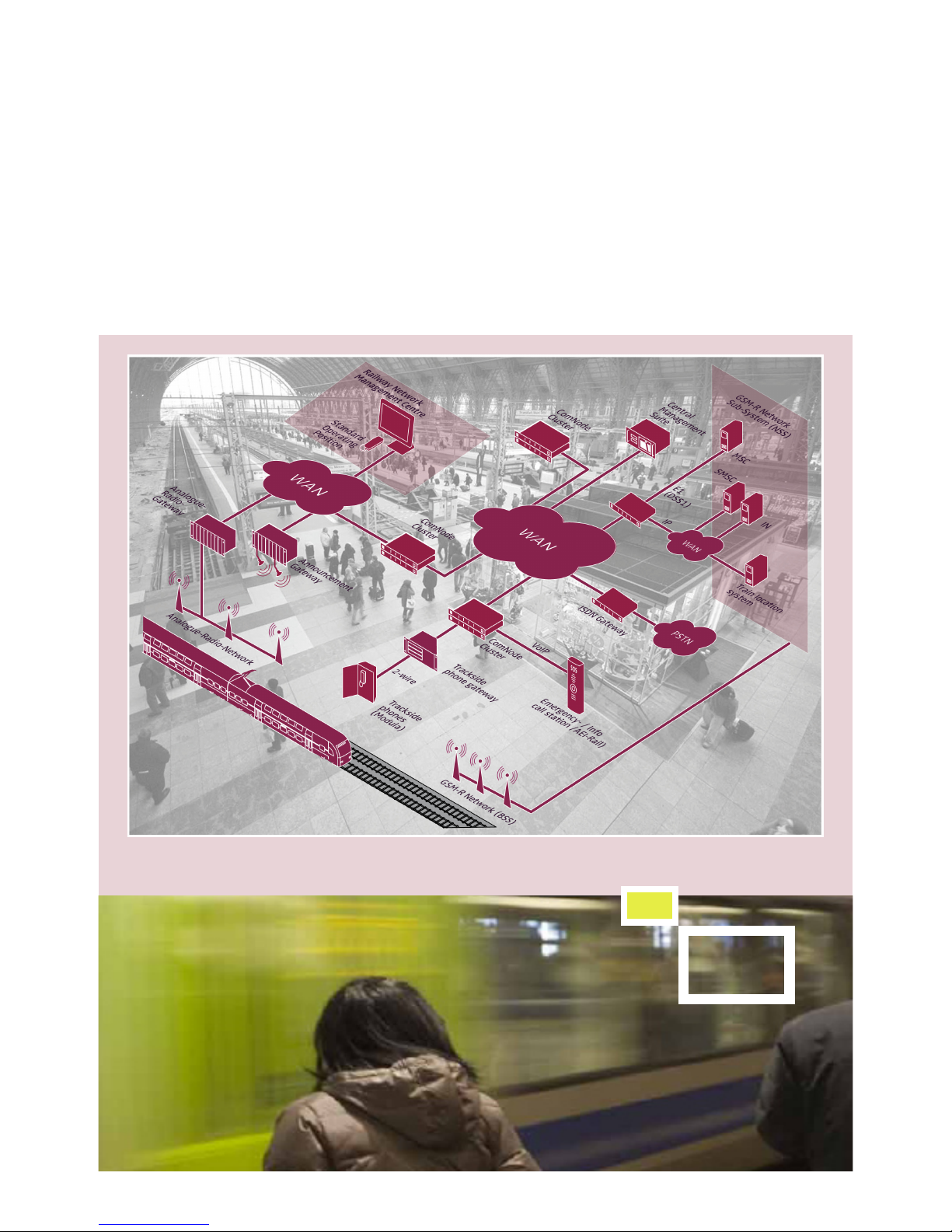

detAILed vIew At A gLANce

7NIS RAIL

NIS functions

Roaming proﬁles

Authentication and location autonomy

Net wide role management (Local operation, remote operation, parallel operation)

Logical destination dialling

Full meshed communication

Functional addressing

Multi-Level Precedence and Pre-emption service (MLPP)

Group and broadcast calls

Call priority handling

Net wide subscriber indication (online, busy, failure)

Call queue on the dispatcher (number of entry, sort sequence and position conﬁgurable)

Private and central phone book

Conference calls (up to 50 subscribers)

Call history (last incoming/outgoing calls)

Intelligent call management (load balancing)

Analogue radio integration

Listen in (allows to put active calls on the dispatcher speakers)

Digital radio integration (TETRA, Tetrapol)

Telecontrol (monitoring and controlling data points)

End-to-end system monitoring (Fekon)

SCADA, control system / third-party system link-up via OPC

CTI (enables to integrate telephony functionality into 3-party systems)

CCTV connection / control (allows to integrate 3-party video system)

Central call recording

Call playback (last 100 calls per user)

SMS – short message service

Voice mail

Integration and gateway function, private or public networks (primary or basic rate accesses),

ISDN or analogue telephony, VoIP (SIP based)

System can be implemented with a redundant conﬁguration

Management / maintenance components

NIS RAIL fuNctIoNS

NIS RAIL is modular in structure. The various

functional components can be compiled as

required and adapted precisely to suit customer

requirements.
