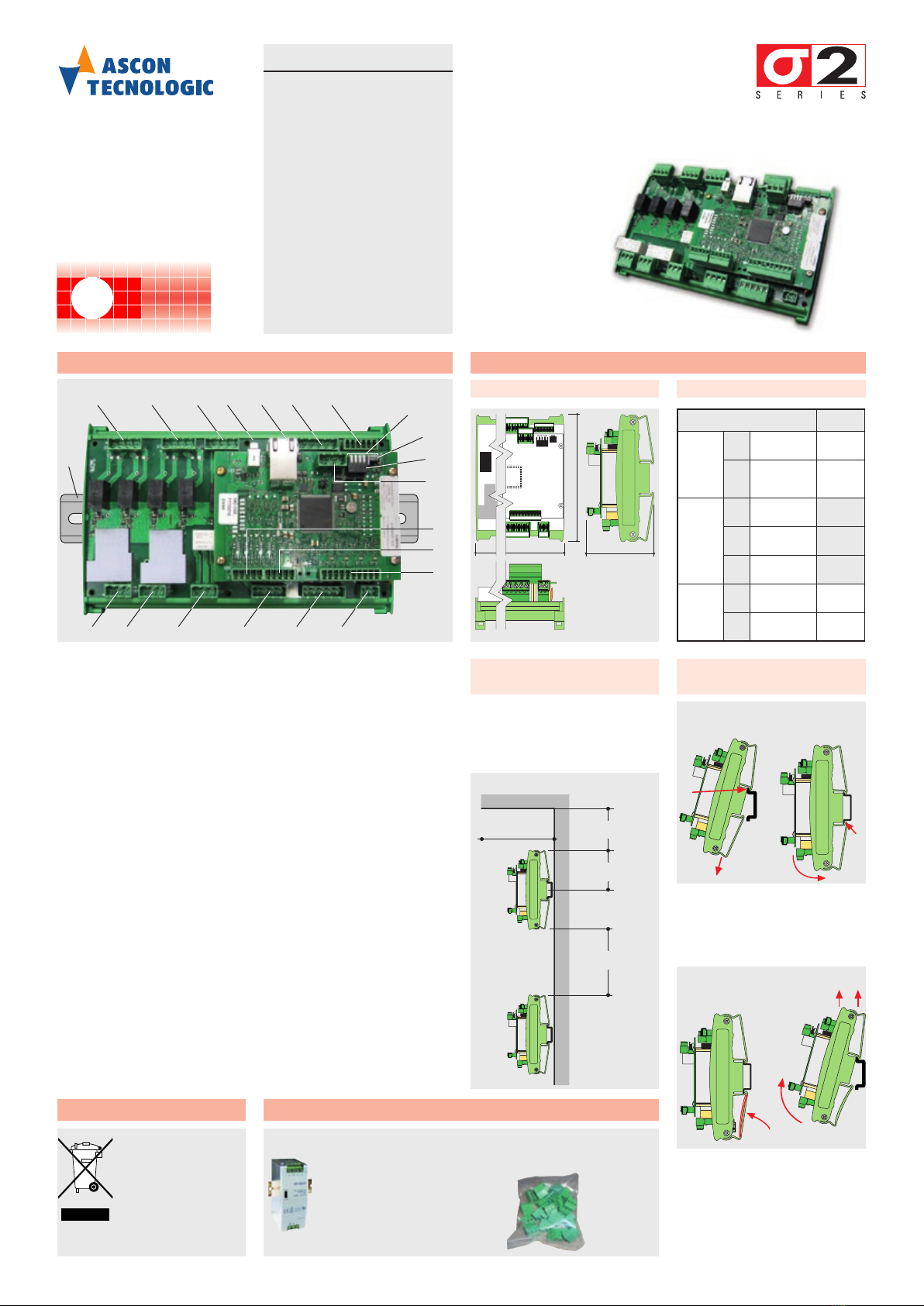

Ascon tecnologic D2 Series Manuale utente

min. 60

min. 100

min. 80

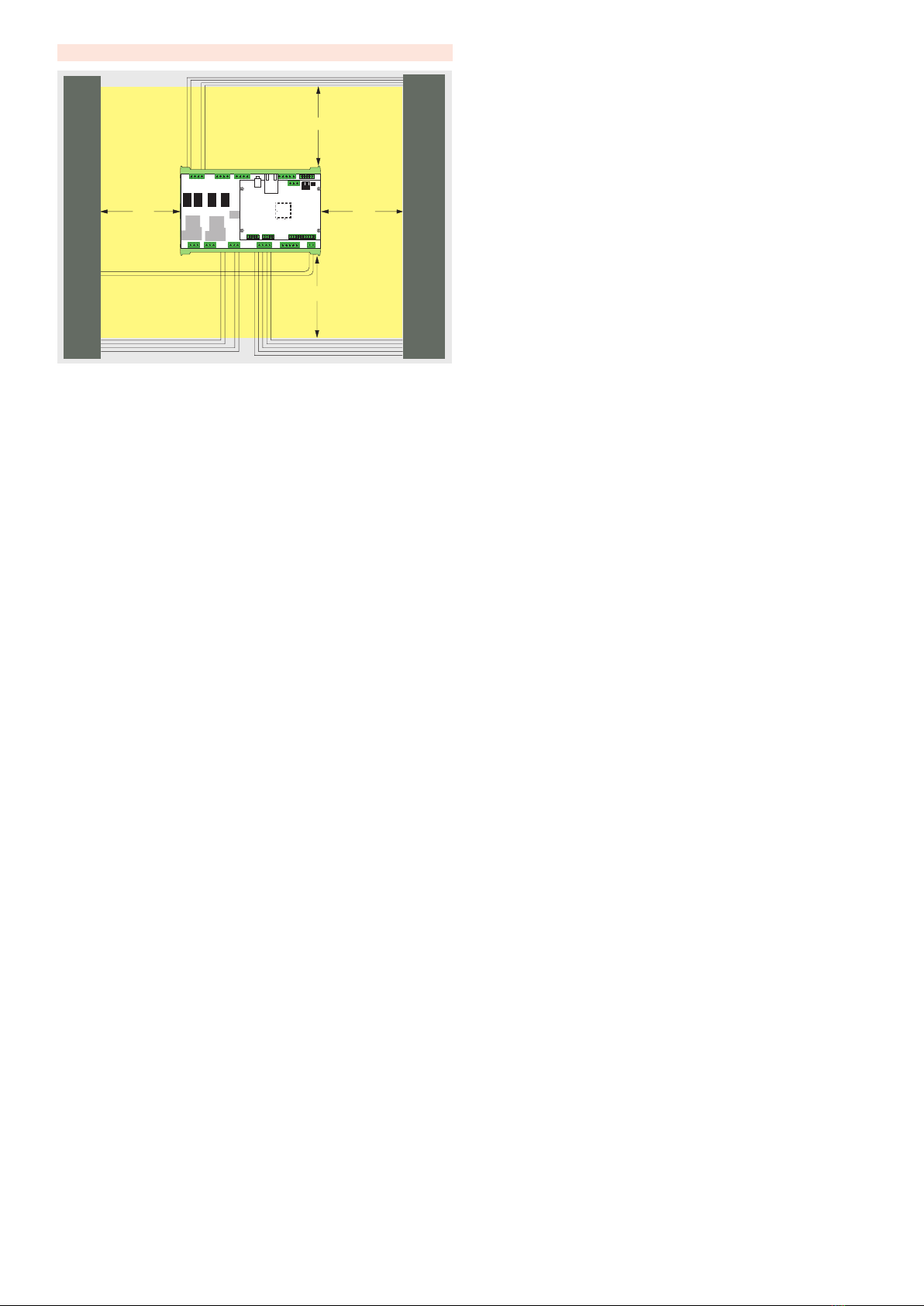

Mounting position (mm)

Ascon Tecnologic S.r.l. a socio unico

via Indipendenza 56,

27029 - Vigevano (PV)

Tel.: +39 0381 69871,

Fax: +39 0381 698730

www.ascontecnologic.com

Installation

Manual

Contents

- General description

- Accessories

- Installation

- Electrical connections

- Electric safety

1DIN RAIL 35 x 7.5 (EN50022);

2X1: 2 poles plug to connect the power supply;

3X2: 5 poles plug to connect DI5... DI8 High Voltage Digital Inputs;

4X3: 4 poles plug to connect OP9... OP11 SPST-NO 5 A output relays;

5X4: 6 poles plug to connect DI1... DI4 Digital Inputs;

6X5: 5 poles plug to connect OP4, OP5 (SPST-NO 5 A) and OP6 (SPDT 8 A)

output relays;

7X6: 5 poles plug to connect AO1... AO4 analogue outputs (0/4... 20 mA,

PWM and Hz);

8X7: 5 poles plug to connect CN1... CN4 High speed Digital Inputs;

X8: 10 poles plug to connect AI1... AI4 Analogue Inputs (mA, TC, PT100,

PT1000, NTC)

10 X10: USB type A receptacle to connect a flash drive;

11 X11: RJ45 plug to connect the Ethernet TCP/IP network for programming

purposes or for the MODBUS through the TCP port;

12 X12: 3 poles plug to connect COM1 serial port (RS485);

13 -4 mswitches to configure the serial port parameters;

14 -Reset button;

15 -Status/diagnostic LEDs: COM1 (green, COM1 traffic), USB (white, USB

activity), MSG (red, message), RUN (green, program status run/stop),

PWR (blue, power supply ON);

General description

Accessories

Installation

24 Vdc Power supply

APS2ALEDR12024 (120 W, 5.0 A),

APS2ALNDR75-24 (75 W, 3.2 A),

APS2ALMDR20-24 (20 W, 1.0 A)

1Clip the upper part of the module to

the rail;

2Rotate the module downwards until

the lower hook engages the DIN rail;

Dimensions (mm)

Mounting the module

- Mount the module vertically;

- In order to help the ventilation flow

of air, respect the distances betwe-

en modules and walls or other

modules.

Mounting position Mounting/removing the modules

on/from the DIN rail

Removing the module

Operating conditions

Integrated system,

CPU module

with on-board I/O

SAT1 model

mod. SAT1

24/02 - Code: ISTR_I_SAT1_E_01_--

130

203 70

X81

X41

X51

X121

X1X2 1

Environmental conditionBSuggestion

Operating

conditions

TTemperature

0...+50°C

%Rh

Umidity:

5... 95% Rh non

condensing

Special

conditions

TTemperature

> 50°C

Use forced

ventilation

%Rh

> 95% RH Warm up

PConducting

atmosphere Use filter

Forbidden

conditions

CCorrosive

atmosphere

EExplosive

atmosphere

341617

515

19 1020

21 11

16 X13: 3 poles plug to connect OP3 (SPDT 16 A) output relay;

X14: 3 poles plug to connect OP2 (SPDT 16 A or SPST-NO 30 A) output relay;

X15: 3 poles plug to connect OP1 (SPDT 16 A or SPST-NO 30 A) output relay;

19 X16: 4 poles plug to connect OP14... OP16 SPST-NO 5 A output relays;

20 X17: 4 poles plug to connect OP12... OP13 (SPST-NO 5 A output relays or

12 V outputs for SSR drives or 4 A/250 Vdc SSR outputs);

21 X18: 4 poles plug to connect OP7... OP8 (SPST-NO 5 A output relays or 12 V

outputs for SSR drives or 4 A/250 Vdc SSR outputs).

Screw Terminal Blocks

KIT_SAT1_00

Disposal

The appliance (or the

product) must be

disposed of separately in

compliance with the local

standards in force on

waste disposal.

3Switch OFF the Power Supply

With two fingers, press in the area

indicated by the arrow until the

hook is freed from the DIN guide;

4Turn and lift the module upwards to

remove the CPU from the DIN rail.

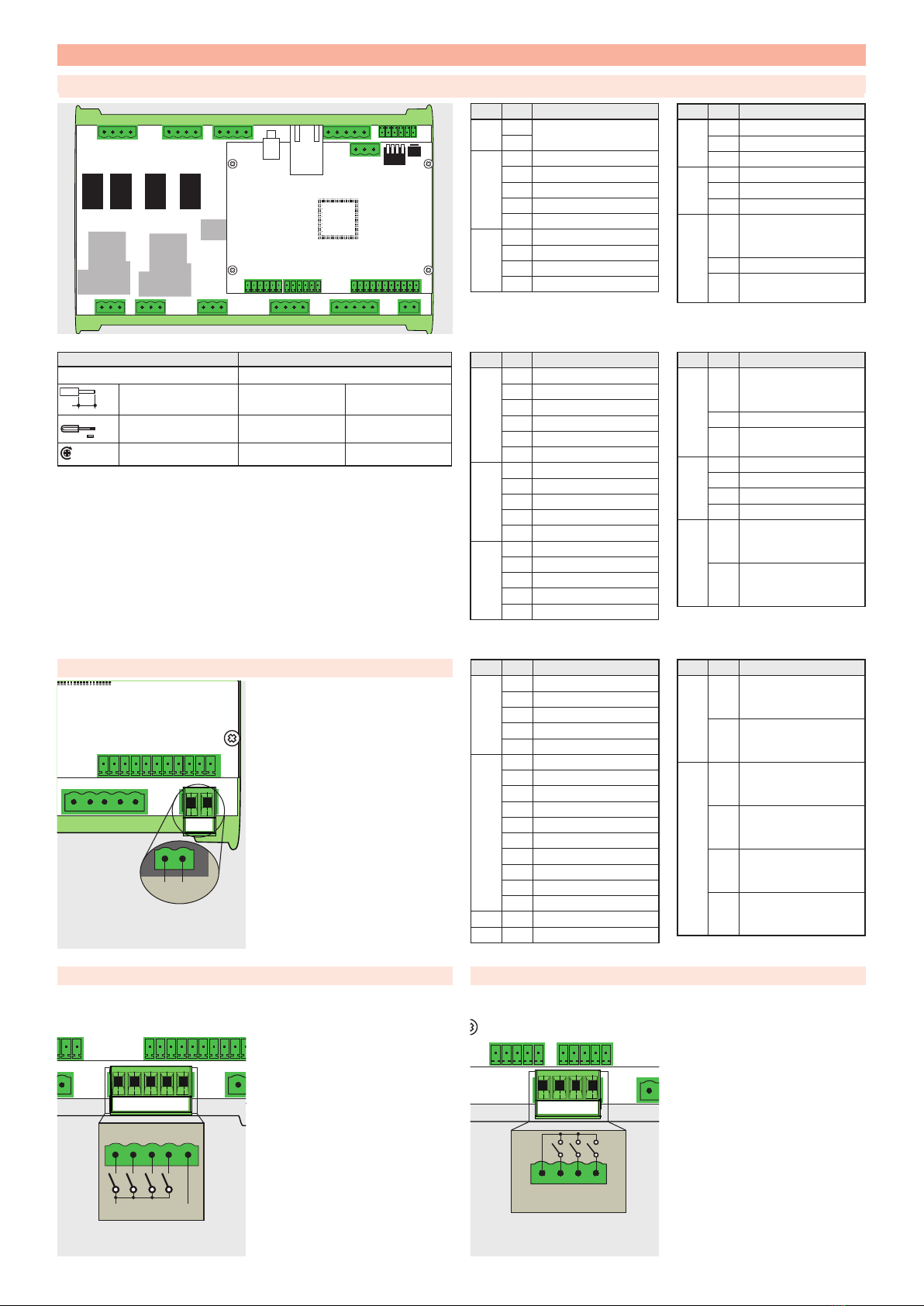

Electrical connections

X1X2X3X13X14X15

X8X7X6

X4X5X16X17X18

X11

X10 X12

Terminals connections and plugs

Conn. Label Signals

X1 124 Vac/dc Power Supply

1Neutral (high voltage input)

DI5 Line

(high voltage input)

3DI6

Line

(high voltage input)

4DI7

Line

(high voltage input)

5DI8

Line

(high voltage input)

1NO pole of OP9 relay

2NO pole of OP10 relay

3NO pole of OP11 relay

4Common pole of the relays

Conn. Label Signals

1Ground

2DI1

3DI2

4DI3

5DI4

624 V for Digital Inputs

Common pole of the relays

2NC pole of OP6 relay

3NO pole of OP6 relay

4NO pole of OP5 relay

5NO pole of OP4 relay

1AO4 Positive pole

2AO3 Positive pole

3AO2 Positive pole

4AO1 Positive pole

Common pole of the AOs

Conn. Label Signals

1CN4 Positive pole

2CN3 Positive pole

3CN2 Positive pole

4CN1 Positive pole

Ground

1Ground

2Transmitters PWS (12 V)

3AI1 Negative pole

4AI1 Positive pole (TC)

5AI2 Negative pole

6AI1 Positive pole (TC)

7AI3 Negative pole

8AI3 Positive pole (TC)

9AI4 Negative pole

10 AI4 Positive pole (TC)

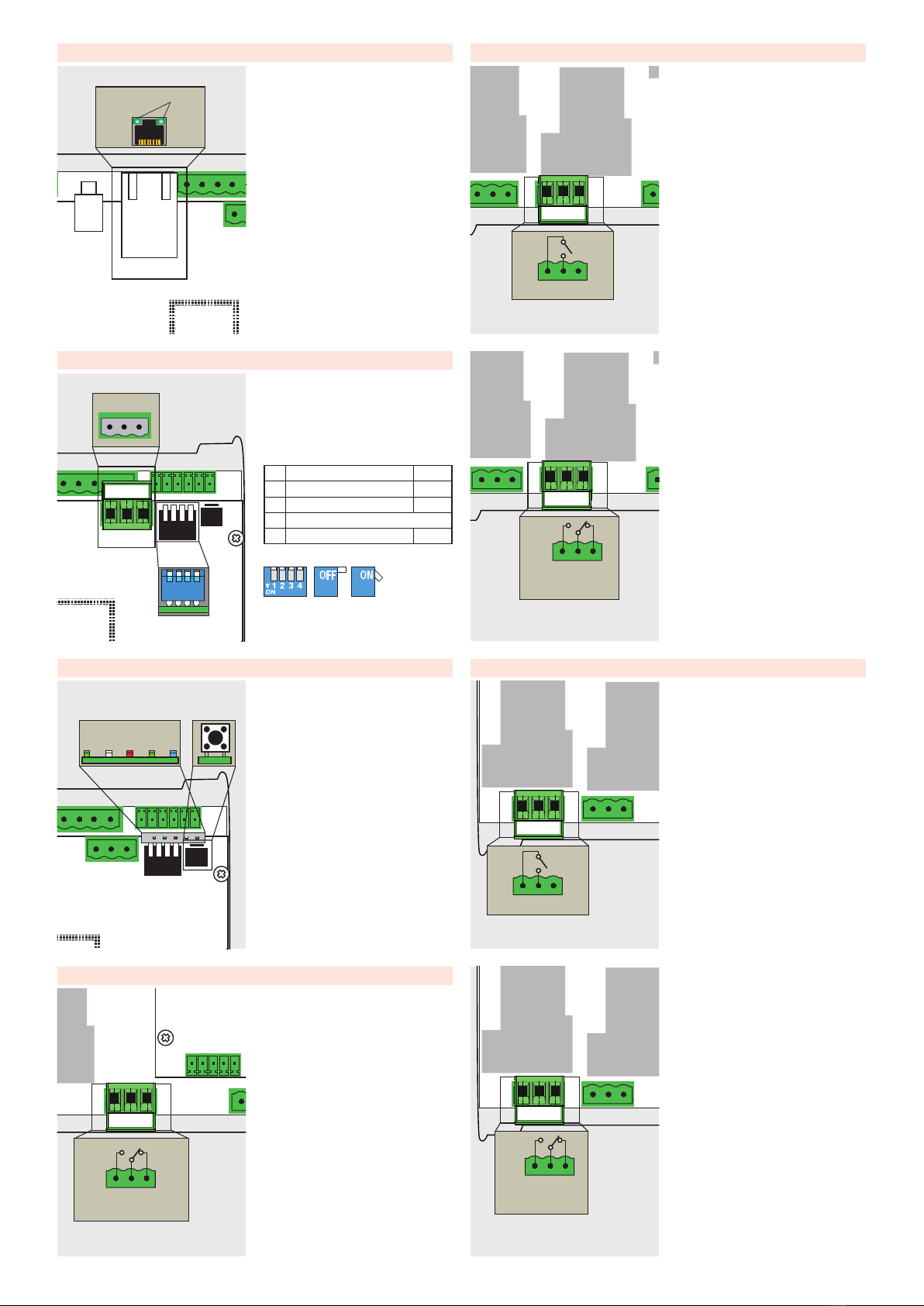

X10 USB USB Type A port

X11 ETH RJ45 Ethernet port

Conn. Label Signals

X12

1RS485 D+ connection

2RS485 D- connection

3RS485 Ground connection

X13

1NC pole of OP3 relay

2Common pole of OP3

3NO pole of OP3 relay

X14

NC pole of OP2 SPDT relay.

Not connected for SPST-NO

30 A relay

2Common pole of OP2

3NO pole of OP2 relay (SPDT

16 A or SPST-NO 30 A)

Description Plugs of all terminals

Flexible cable section: 0.2... 2.5 mm

(AWG24... AWG12)

LStripped wire Screw: 7mm Spring: 10mm

Flat blade screwdriver 0.6 x 3.5 mm 0.4 x 2.5 mm

Tightening torque 0.5... 0.6 Nm -

Technical data:

- The green terminals are male connectors (pitch 3.5 or 5 mm), the corre-

sponding female plugs are snap-on connectors with screw or spring termi-

nals for connecting the wires. The connectors terminals are labelled;

- Made with self extinguishing material as required by UL94 V0 standard;

- Overvoltage cathegory/pollution degree II/2;

- Max. load current/section 8 A/2.5mm

at 65°C;

- Test pulse voltage: 4 kVp.

Make sure that the overall current absorption (modules and field devices)

matches the power supply;

AIn order to avoid excessive voltage drops, install the most power consum-

ing modules closer to the power supply.

Conn. Label Signals

X15

NC pole of OP2 SPDT relay.

Not connected for SPST-NO

30 A relay

2Common pole of OP2

3NO pole of OP2 relay (SPDT

16 A or SPST-NO 30 A)

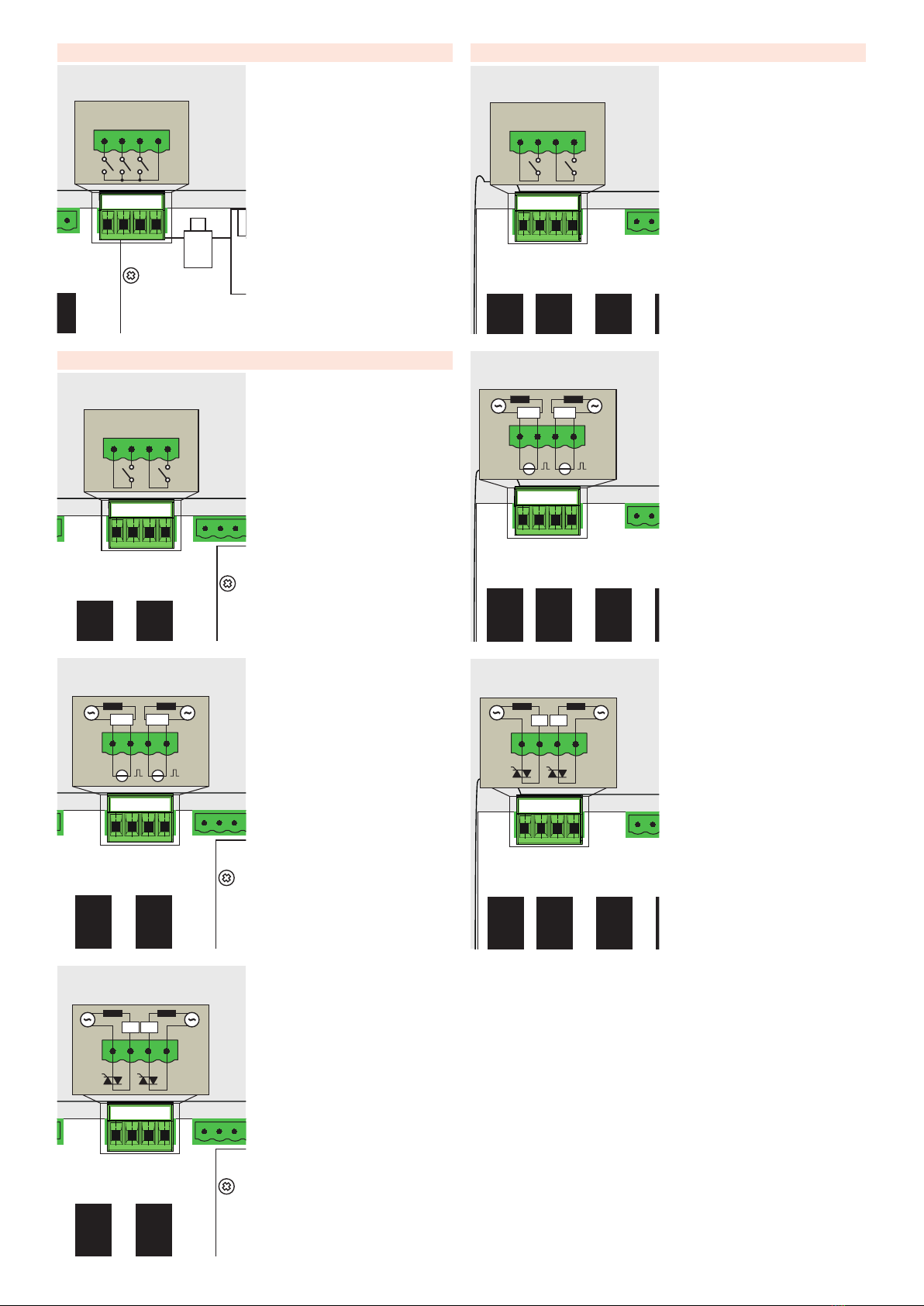

X16

1NO pole of OP14 relay

2NO pole of OP15 relay

3NO pole of OP16 relay

4Common pole of the relays

X17

OP12 5 A relay common

Negative pole of OP12 SSR

Pole of OP12 SSR Drive

OP12 5 A relay NO pole

Positive pole of OP12 SSR

Pole of OP12 SSR Drive

Conn. Label Signals

X17

(cnt.)

OP13 5 A relay common

Negative pole of OP13 SSR

Pole of OP13 SSR Drive

OP13 5 A relay NO pole

Positive pole of OP13 SSR

Pole of OP13 SSR Drive

X18

OP7 5 A relay common

Negative pole of OP7 SSR

Pole of OP7 SSR Drive

OP7 5 A relay NO pole

Positive pole of OP7 SSR

Pole of OP7 SSR Drive

OP8 5 A relay common

Negative pole of OP8 SSR

Pole of OP8 SSR Drive

OP8 5 A relay NO pole

Positive pole of OP8 SSR

Pole of OP8 SSR Drive

Power supply (X1 connector)

X1X2

X3X13X14X15

X7X6

X4X5X16X17X18

X11

X10 X12

X1 Power Supply

connector

Vac/Vdc

- Connector X1: 24 Vac/dc

(–10...+10%), 15W max.;

- The power supply terminals

(X1-1 and X1-2) are not polarized as

the CPU acceps both the 24 Vac

and 24 Vdc.

High Voltage (mains) Digital Inputs (X2 connector)

X1X3X13X14X15

X7X6

X4X5X16X17X18

X11

X10 X12

Line Neutral

X2 High voltage

Digital Inputs

DI8

DI7

DI6

DI5

X2 1

- Connector X2: DI5... DI8 High

Voltage Digital Inputs;

- Terminal 1 (CV) is the common (neu-

tral) terminal of the 100... 240 Vac

digital inputs DI5... DI8;

- Respect the connection shown, the

common terminal is shared by the

4 digital inputs.

k Danger!

High voltage inputs, remove

the mains and pay extreme at-

tention while performing these

input connections.

Digital outputs: SPST-NO Relays (X3 connector)

X1X2

X13X14X15

X7X6

X4X5X16X17X18

X11

X10 X12

X3 - SPST-NO 5A

relay terminals

OP11

OP10

OP9

X3 1

- Connector X3: OP9... OP11

SPST-NO relays outputs;

- Rate: Nominal 5 A (for resistive

loads);

- Max. common (C) current: 6 A;

- Insulation: 2500 V beween channel

and Power Supply and between

channel and main electronics.

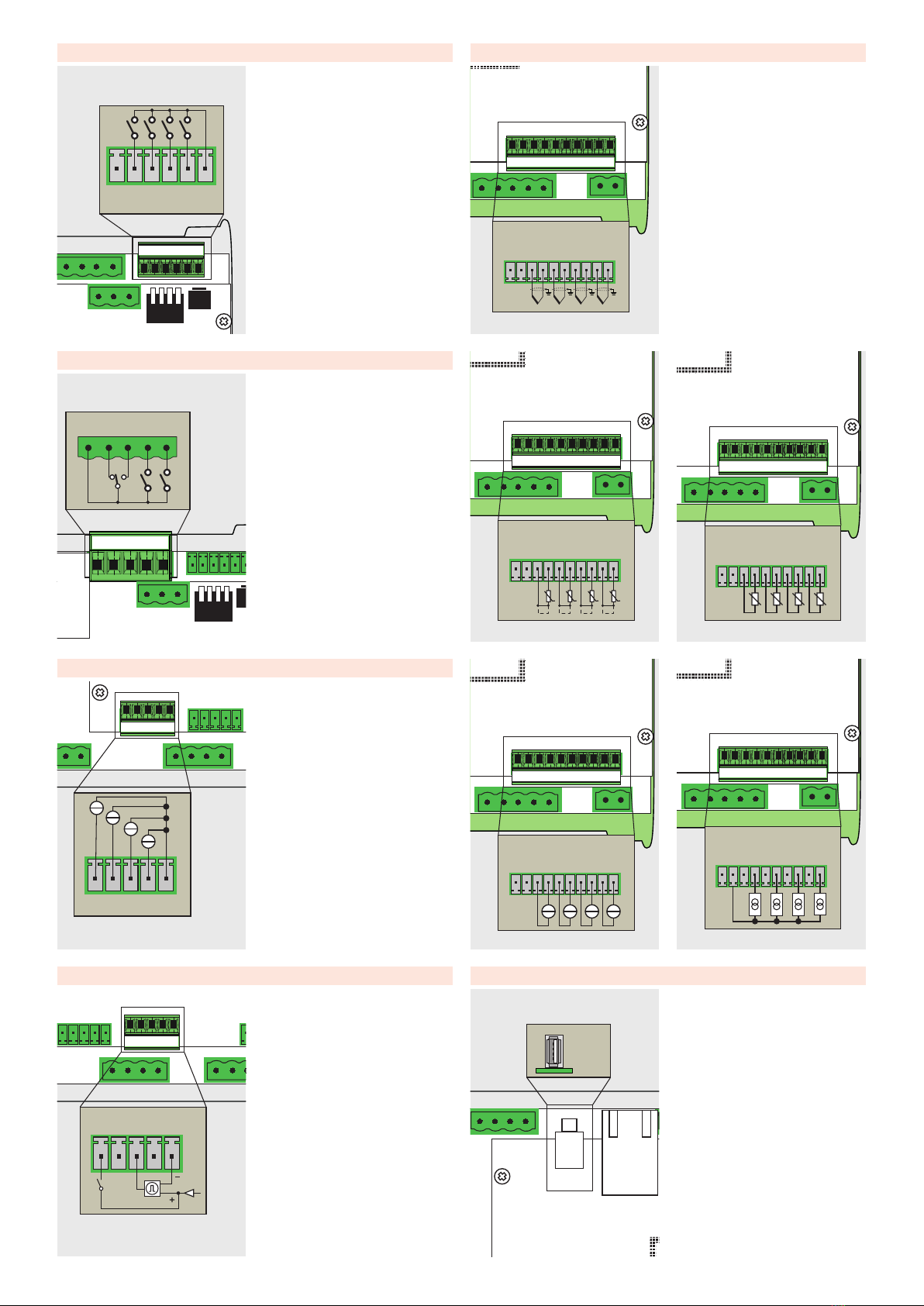

DI1... DI4 Digital Inputs (X4 connector)

X1X2X3X13X14X15

X8X7X6

X16X17X18

X11

X10 X12

X4 - DI1... DI4

terminals

24 V

DI1

DI2

DI3

DI4

X41

- Connector X4: DI1... DI4 digital

inputs;

- Insulation: 800 V between channel

ad Power Supply.

OP4... OP6 Digital Outputs (X5 connector)

X1X2X3X13X14X15

X8X7X6

X4X5

X16X17X18

X11

X10

X12

X5 - OP4... OP6

relay output terminals

OP6

OP5

OP4

X51

- Connector X5:

2 SPST NO relays (OP4, OP5) +

1 SPDT relay (OP6);

- Rate: Nominal 5 A for SPST relays,

8 A for SPDT relay (for resistive

loads);

- Max. common (C) current: 6A;

- Insulation: 2500 V beween channel

and Power Supply and between

channel and main electronics.

AO1... AO4 Analogue Output (X6 connector)

X1X2

X13X14X15

X4X5X16X17X18

X11

X10 X12

X6 - AO1... AO4

terminals

AO4

AO3

AO2

AO1

X61

- Connector X6: AO1... AO4 analoue

outputs;

- For the analogue output, respect the

polarity shown;

- Type: 0/4... 20 mA, O/10 V, PWM

and Hz;

- Load: > 1kΩ;

- Resolution: 16 bit;

- Accuracy: 0.5%;

- Insulation:

800 V Channel-Power supply,

50 V channel-main electronics;

m These outputs are ordered in

pairs (AO1/AO2 and AO3/AO4).

Verify the option ordered for

AO1/AO2 and AO3/AO4 Inputs.

Special (High Speed) Digital Inputs (X7 connector)

X1X2

X13X14X15

X4X5X16X17X18

X11

X10 X12

X7 - DI1... DI4 terminals

CN4

CN3

CN2

CN1

X71

24 Vdc

In the drawing are connected only 2

counter inputs as an example (CN2

and CN4).

Frequency meter input:

- The channels can manage up to 10

kHz signals having a duty-cycle that

guarantees minimum of ON signal

of 20 ms;

Impulse counter input:

- The minimum time of an impluse

must be 20 ms;

Digital input:

- The input circuit is internally closed

to System Ground.

m Verify the option ordered for

CN1... CN4 Inputs.

AI1... AI4 Analogue Input (X8 connector)

X1X2

X3X13X14X15

X7X6

X4X5X16X17X18

X11

X10 X12

X8 Analogue input terminals

AI1

AI2

AI3

AI4

12Vdc

X81

TCTCTCTC

- Connector X8: AI1... AI4 digital

inputs;

- Respect the polarity shown;

- Pay attention to correctly connect

the power source (12 Vdc);

- Type: 0/4... 20 mA, TC (J, K, L, N, R,

S, T) PT100 (2 wires), PT1000, NTC;

- Resolution: 16 bit;

- Accuracy: 0.5% of span (linear inputs),

0.5% (temp.) ±1°C (cold junction);

- Input impedance: 120 kΩ(V),

<200 Ω(mA).

m Verify the option ordered for

AI1... AI4 Inputs.

X1X2

X3X13X14X15

X7X6

X4X5X16X17X18

X11

X10 X12

X8 Analogue input terminals

AI1

AI2

AI3

AI4

12Vdc

Pt100/Pt1000

2 wires input

X81

X1X2

X3X13X14X15

X7X6

X4X5X16X17X18

X11

X10 X12

X8 Analogue input terminals

AI1

AI2

AI3

AI4

12Vdc

NPT inputs

X81

X1X2

X3X13X14X15

X7X6

X4X5X16X17X18

X11

X10 X12

X8 Analogue input terminals

AI1

AI2

AI3

AI4

12Vdc

0/4... 20 mA

active transmitter

X81

X1X2

X3X13X14X15

X7X6

X4X5X16X17X18

X11

X10 X12

X8 Analogue input terminals

AI1

AI2

AI3

AI4

12Vdc

0/4... 20 mA 2 wires

passive Transmitter

X81

USB port (X10 connector)

X1X2X3X13X14X15

X8X7X6

X4X5

X16

X17X18

X11

X10

X12

X10 - USB type A connector

USB

type A

- USB type A receptacle (X10) to

connect a flash drive (system files

upload or data logging download).

Ethernet connector (X11 connector)

X1X2X3X13X14X15

X8X7X6

X16X17X18

X11

X10

X12

X11 - Ethernet RJ45 connector

Status/traffic LEDs

- Connector X11: The Ethernet con-

nection is made through a standard

J45 connector;

- The 2 green LEDs near the Ethernet

connector show the port status and

the communication traffic.

Serial Communications Port (X12 connector)

X1X2X3X13X14X15

X8X7X6

X4X5

X16X17X18

X11

X10

X12

X12 - RS485 connector

D+ D- GND

X121

DIP switches

POL+

POL-

NONE

TERM

- Connector X12: RS485 port to con-

nect a fieldbus network using the

Modbus protocol (master/slave) or

serial ASCII;

- The line settings can be configured

using the specific DIP switches:

SW Description Default

1Line polarization Pull-Up OFF

2Line polarization Pull-Down OFF

3Not used

4110 Ωline termination OFF

DIP switch settings

- Insulation from other electronics:

1.6 kV.

Sytem Pushbutton and Status LEDs

X1X2X3X13X14X15

X8X7X6

X4X5

X16X17X18

X11

X10

X12

COM

USB

MSG

RUN

PWR

Status LEDs System

pushbutton

- The 5 Status LEDs are:

COM (green), USB (white),

MSG (RED), RUN (green) and

PWR (blue).

- The meaning of the various LEDs

behaviours are fully described in

the “SAT1 User Manual”.

m The system pushbutton per-

forms different operations ac-

corndingly to the system status

but does not restart the CPU or

the 1131 application.

Digital Output: SPDT 16 A Relay (X13 connector)

X1X2X3

X13

X14X15

X8X7

X4X5X16X17X18

X11

X10 X12

X13 - SPDT 16A

relay terminals

X13 1

OP3

- Connector X13: OP3 SPDT relay

output;

- Rate: Nominal 16 A (for resistive

loads);

- Max. common (C) current: 8 A;

- Insulation: 2500 V beween channel

and Power Supply and between

channel and main electronics.

OP1 Digital Output: SPST-NO 30 A or SPDT 16 A Relay (X14 connector)

X1X2X3X13

X14X15

X8X7X6

X4X5X16X17X18

X11

X10 X12

X14 - Configurable

relay terminals

X14 1

OP2

First option:

SPST-NO 30A

- Connector X14: OP2 first option

SPST-NO relay output;

- Rate: Nominal 30 A (for resistive

loads);

- Max. common (C) current: 8 A;

- Insulation: 2500 V beween channel

and Power Supply and between

channel and main electronics.

m Verify the option ordered for

OP2 output.

X1X2X3X13

X14X15

X8X7X6

X4X5X16X17X18

X11

X10 X12

X14 - Configurable

relay terminals

X14 1

OP2

SPDT 16A

Second option:

SPDT 16A

- Connector X14: OP2 second option

SPDT relay output.

- Rate: Nominal 16 A (for resistive

loads).

- Max. common (C) current: 8 A;

- Insulation: 2500 V beween channel

and Power Supply and between

channel and main electronics.

m Verify the option ordered for

OP2 output.

OP2 Digital output: SPST-NO 30 A or SPDT 16 A Relay (X15 connector)

X1X2X3X13

X14X15

X8X7X6

X4X5X16X17X18

X11

X10 X12

X15 - Configurable

relay terminals

X15 1

OP1

First option:

SPST-NO 30A

- Connector X15: OP1 first option

SPST-NO relay output.

- Rate: Nominal 30 A (for resistive

loads).

- Max. common (C) current: 8 A;

- Insulation: 2500 V beween channel

and Power Supply and between

channel and main electronics.

m Verify the option ordered for

OP1 output.

X1X2X3X13

X14X15

X8X7X6

X4X5X16X17X18

X11

X10 X12

X15 - Configurable

relay terminals

X15 1

OP1

SPDT 16A

Second option:

SPDT 16A

- Connector X15: OP1 second option

SPDT relay output;

- Rate: Nominal 16 A (for resistive

loads);

- Max. common (C) current: 8 A;

- Insulation: 2500 V beween channel

and Power Supply and between

channel and main electronics.

m Verify the option ordered for

OP1 output.

Digital outputs: SPST Relays (X16 connector)

X1X2X3X13X14X15

X8X7X6

X4X5

X16

X17X18

X11

X10

X12

X161

OP16

OP15

OP14

X16 - SPST-NO 5A

relay terminals

- Connector X16: OP14... OP16

SPST-NO relays outputs;

- Rate: Nominal 5 A (for resistive

loads);

- Max. common (C) current: 6 A;

- Insulation: 2500 V beween channel

and Power Supply and between

channel and main electronics.

Digital outputs: Configurable Outputs (X17 connector)

X1X2X3X13X14X15

X8X7X6

X4X5

X16X17

X18

X11

X10 X12

X171

OP13

OP12

X17 - Configurable

output terminals

First option:

2 SPST-NO 5A

- Connector X17: OP12, OP13 first

option 2 relays outputs;

Relays:

- 2 SPST-NO relays;

- Rate: Nominal 5 A (for resistive

loads);

- Max. common (C) current: 4 A;

- Insulation: 2500 V beween channel

and Power Supply and between

channel and main electronics.

m Verify the option ordered for

OP12 and OP13 outputs.

X1X2X3X13X14X15

X8X7X6

X4X5

X16X17

X18

X11

X10 X12

X171

OP13OP12

X17 - Configurable

output terminals

Second option:

12VDC for SSR

+ +

LOAD

SSR

LOAD

SSR

- Connector X17: OP12, OP13 sec-

ond option: 2 x 12 Vdc for SSR.

SSR drives:

- Voltage output 0/12 Vdc;

- Respect the polarity shown;

- Outputs not isolated.

m Verify the option ordered for

OP12 and OP13 outputs.

X1X2X3X13X14X15

X8X7X6

X4X5

X16X17

X18

X11

X10 X12

OP13OP12

LOAD

Fuse

LOAD

Fuse

X171

X17 - Configurable

output terminals

Third option:

SSR 4A/250V

NO NO

- Connector X17: OP12, OP13 third

option: Solid State Relays.

SSR:

- Rate: 4 A, 250 Vac;

- Zero Crossing Function;

- Insulation: 2500 V between channe-

land main electronics.

m Verify the option ordered for

OP12 and OP13 outputs.

Digital outputs: Configurable Outputs (X18 connector)

X1X2X3X13X14X15

X8X7X6

X4X5X16X17

X18

X11

X10 X12

X181

OP8

OP7

X18 - Configurable

output terminals

First option:

2 SPST-NO 5A

- Connector X18: OP7, OP8 first

option 2 relays outputs;

Relays:

- 2 SPST-NO relays;

- Rate: Nominal 5 A (for resistive

loads);

- Max. common (C) current: 4 A;

- Insulation: 2500 V beween channel

and Power Supply and between

channel and main electronics.

m Verify the option ordered for

OP7 and OP8 outputs.

X1X2X3X13X14X15

X8X7X6

X4X5X16X17

X18

X11

X10 X12

X181

OP8OP7

X18 - Configurable

output terminals

Second option:

12VDC for SSR

+ +

LOAD

SSR

LOAD

SSR

- Connector X18: OP7, OP8 second

option: 2 x 12 Vdc for SSR;

SSR drives:

- Voltage output 0/12 Vdc;

- Respect the polarity shown;

- Outputs not isolated.

m Verify the option ordered for

OP7 and OP8 outputs.

X1X2X3X13X14X15

X8X7X6

X4X5X16X17

X18

X11

X10 X12

OP8OP7

LOAD

Fuse

LOAD

Fuse

X181

X18 - Configurable

output terminals

Third option:

SSR 4A/250V

NO NO

- Connector X18: OP7, OP8 third

option: Solid State Relays.

SSR:

- Rate: 4 A, 250 Vac;

- Zero Crossing Function;

- Insulation: 2500 V between channe-

land main electronics.

m Verify the option ordered for

OP7 and OP8 outputs.

SUGGESTED WIRES ROUTING

100 100

100

Conduit for low level sensor cables

Conduit for supply and output cables

Output cables

Power cables

AI and DI cables

AI and DO cables

X1X3X13X14X15

X8X7X6

X4X5X16X17X18

X11

X10 X12

ADespite the fact that the instrument has been designed to work in an

harsh and noisy environment, it is strongly recommended to follow

the following suggestions.

All the wiring must comply with the local regulations.

The supply wiring should be routed away from the power cables. Avoid to use

electromagnetic contactors, power relays and high power motors nearby.

Avoid power units nearby, especially if controlled in phase angle. Keep the low

level sensor input wires away from the power lines and the output cables.

Power lines and output cables must also be at 100 mm (min.) away from the CPU.

If this is not achievable, use shielded cables on the sensor input, with the shield

connected to earth.

AWarning!

Whenever a failure or a malfunction of the device may cause dan-

gerous situations for persons, things or animals, please remember

that the plant must be equipped with additional devices which will

guarantee safety.

How to Order

SAT1

SAT1 = CPU of the Programmable Logic Controller with 24 Vac/Vdc Power Supply

AI1: Analogue Input 1 Pre-Configured

A = mA

C = Pt100

M = PT1000

N = NTC

T = TC

AI2: Analogue Input 2 Pre-Configured

- = Not provided

A = mA

C = Pt100

M = PT1000

N = NTC

T = TC

AI3: Analogue Input 3 Pre-Configured

- = Not provided

A = mA

C = Pt100

M = PT1000

N = NTC

T = TC

AI4: Analogue Input 4 Pre-Configured

- = Not provided

A = mA

C = Pt100

M = PT1000

N = NTC

T = TC

AO1O2: Analogue Outputs 1 and 2

- = Not provided

A = mA Outputs

D = Digital Outputs

F = PWM/Frequency Outputs

V = Voltage Outputs

AO3O4: Analogue Outputs 3 and 4

- = Not provided

A = mA Outputs

D = Digital Outputs

F = PWM/Frequency Outputs

V = Voltage Outputs

DIGFI: High Speed Digital Inputs CN1... CN4

- = Not provided

T = 4 High Speed Digital Inputs

ID: Free of Voltage Digital Inputs DI1... DI4

- = Not provided

L = 4 Free of Voltage Digital Inputs

DIGVI: Main Voltage Digital Inputs DI5... DI8

- = Not provided

V = 4 Main Voltage Digital Inputs

OO1: Digital Output OP1

H = Relay SPST-NO 30 A

S = Relay SPDT 16 A

OO2: Digital Output OP2

H = Relay SPST-NO 30 A

S = Relay SPDT 16 A

OO3: Digital Output OP3

S = Relay SPDT 16 A

OO456: Digital Outputs OP4... OP6

R = 2 relays SPST-NO 5 A + 1 relay SPDT 8 A

OO78: Digital Outputs OP7... OP8

O = 2 digital outputs 12 VDC for SSR drive

Q = 2 SSR digital outputs

R = 2 relays SPST-NO 5 A

OO9AB: Digital Outputs OP8... OP11

- = Not provided

R = 3 relays SPST-NO 5 A

OOCD: Digital Outputs OP12 and OP13

- = Not provided

O = 2 digital outputs 12 VDC for SSR drive

Q = 2 SSR digital outputs

R = 2 relays SPST-NO 5 A

OOEFG: Digital Outputs OP14... OP16

- = Not provided

R = 3 relays SPST-NO 5 A

SCM: Serial Communications Port

- = Not provided

I = Insulated RS485

S = Not Insulated RS485

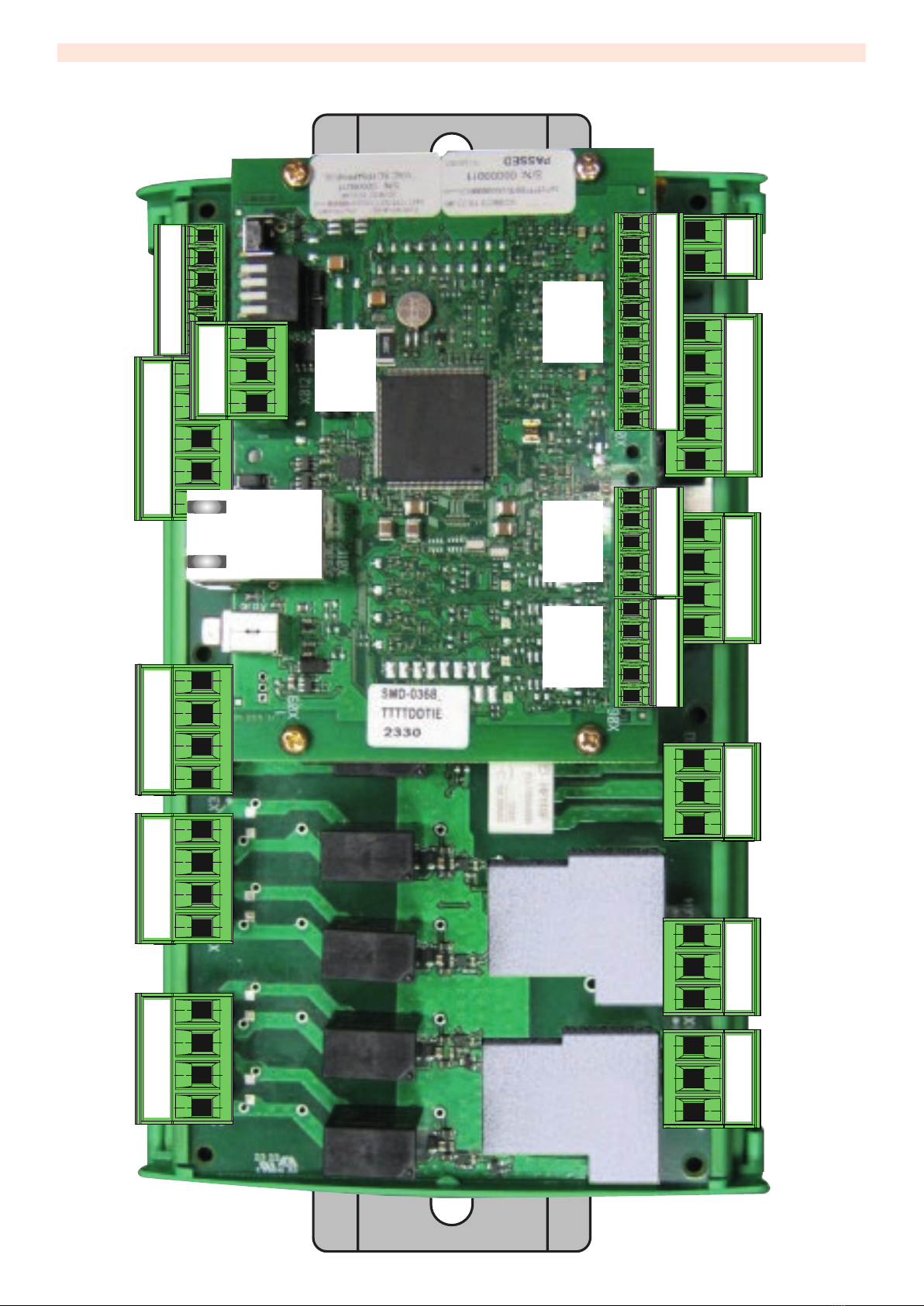

Connector map

m SAT1 is a complex instrument with a very limited space for the connection labels.

Refer to the image that follows to identify each connector and ﬁnd the position of terminal 1.

All the connections previously described are based on these 2 details

X41

X51

X1X2X3X13

X2 1

X3 1

X13 1

X14

X14 1

X15

X16X17 X4X5X18

X15 1

X121

X12

X161X171X181

X61 X71

X6 X7 X8

X81

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Ascon tecnologic Hardware per computer

Ascon tecnologic

Ascon tecnologic TLZ 20 Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
