ASHDOWN ENGINEERING - STUDIO RANGE USER GUIDE
PAGE
4-5 STUDIO JNR
6-7 STUDIO 8
8-9 STUDIO 10
INTRODUCTION
The all-new designs feature a new light-weight design using responsibly sourced poplar-ply
wood, providing a light but strong structure for our new combo enclosures.
Today people require our products to be portable yet practical, which in essence is a task of its
own. When designing our new studio line we discussed a number of different ideas, but the key
point what they needed to sound as good as they look...
So going back to basics we leaned upon one our tried and tested EQ sections by way of the 5
BAND EQ featured across our Rootmaster and OriginAL ranges, this EQ opens up everything
you need to establish a great tone straight out of the box, with everything at 12 O’clock the NEW
Ashdown Studio Range sounds as you would expect from a bass guitar warm yet articulate.
10-11 STUDIO 12
12-13 STUDIO 15
14-15 STUDIO 210
ASHDOWN ENGINEERING - STUDIO JNR
FEATURES
1. Input - a 1/4” Jack Socket for use with
your instrument
2. Volume - A rotary control to adjust the
overall output of the amp.
3. Bass - A rotary control to adjust the
amount of Bass +/- 15dB.
4. Middle - A rotary control to adjust the
amount of Middle +/- 15dB.
5. Treble - A rotary control to adjust the
amount of Treble +/- 15dB.
6. Headphones - 1/4” Headphone Jack
Output (this actively mutes the speaker
for silent practice).
7. Line In - For use with a line level
instrument or audio device such as an MP3
player
8. On - light indicates the amplier is
powered.
9. Power Switch - Turn your amp on or off
USER GUIDE
ASHDOWN ENGINEERING - STUDIO JNR
10. IEC Power input - a fused IEC power inlet
for use with the supplied cable
USER GUIDE
ASHDOWN ENGINEERING - STUDIO 8

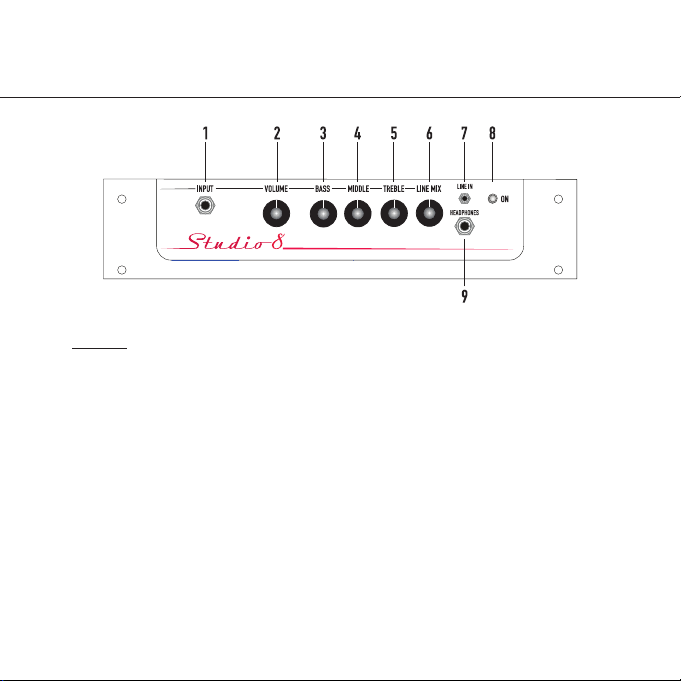

FEATURES
1. Input - a 1/4” Jack Socket for use with
your instrument
2. Volume - A rotary control to adjust the
overall output of the amp.
3. Bass - A rotary control to adjust the
amount of Bass +/- 15dB.
4. Middle - A rotary control to adjust the
amount of Middle +/- 15dB.
5. Treble - A rotary control to adjust the
amount of Treble +/- 15dB.
6. Line Mix - A rotary control to mix the
line level signal with your instrument
7. Line In - For use with a line level instrument
or audio device such as an MP3 player
8. On - light indicates the amplier is
powered.
9. Headphones - Mini Headphone Jack
Output.
USER GUIDE
ASHDOWN ENGINEERING - STUDIO 8
10. IEC Power input - a fused IEC power inlet
for use with the supplied cable
11. Power Switch - Turn your amp on or off
12. Speaker Mute - To mute the speaker for
use with headphones
USER GUIDE
ASHDOWN ENGINEERING - STUDIO 10
FEATURES
1. On - light indicates the amplier is
powered.
2. Shape - A switchable pre-shape EQ.
3. Pre-Gain - A rotary control to set
the input sensitivity of the amp in
conjunction with your instrument.
4. Drive - A rotary control to adjust the
amount of tube emulated overdrive.
5. Bass - A rotary control to adjust the
amount of Bass +/- 15dB.
6. Lo-Mid - A rotary control to adjust the
amount of Lo-Mid +/- 15dB.
7. Middle - A rotary control to adjust the
amount of Middle +/- 15dB.
8. Hi-Mid - A rotary control to adjust the
amount of Hi-Mid +/- 15dB.
9. Treble - A rotary control to adjust the
amount of Treble +/- 15dB.
10. Volume - A rotary control to adjust the
overall output of the amp.
11. Headphones - 1/4” Headphone Jack
Output (this actively mutes the speaker for
silent practice).
12. Line In - For use with a line level instrument
or audio device such as an MP3 player
13. Passive/Active - A -15dB input pad for use
with active instruments
14. Input - a 1/4” Jack Socket for use with your
instrument
USER GUIDE
ASHDOWN ENGINEERING - STUDIO 10
15. Power Switch - Turn your amp on or off
16. IEC Power input - a fused IEC power inlet
for use with the supplied cable
USER GUIDE
ASHDOWN ENGINEERING - STUDIO 12
STUDIO 12
12345678910111213
14151617
FEATURES
1. On - light indicates the amplier is
powered.
2. Shape - A switchable pre-shape EQ.
3. Pre-Gain - A rotary control to set
the input sensitivity of the amp in
conjunction with your instrument.
4. Drive - A rotary control to adjust the
amount of tube emulated overdrive.
5. Bass - A rotary control to adjust the
amount of Bass +/- 15dB.
6. Lo-Mid - A rotary control to adjust the
amount of Lo-Mid +/- 15dB.
7. Middle - A rotary control to adjust the
amount of Middle +/- 15dB.
8. Hi-Mid - A rotary control to adjust the
amount of Hi-Mid +/- 15dB.
9. Treble - A rotary control to adjust the
amount of Treble +/- 15dB.
10. Volume - A rotary control to adjust the
overall output of the amp.
11. FX Loop - a TSR Jack is provided for use
with a Y cable (tip send ring return).
12. Di - A balanced XLR Di Output.
13. Headphones - 1/4” Headphone Jack
Output (this actively mutes the speaker for
silent practice).
14. F/S - Footswitch out for use with an FS-
1single latching footswitch (sold separately)
to control the Drive in/out.
15. Line In - For use with a line level instrument
or audio device such as an MP3 player
16. Passive/Active - A -15dB input pad for use
with active instruments
17. Input - a 1/4” Jack Socket for use with your
instrument
USER GUIDE
