Asko D5634XXLHS Manuale utente

Asko Appliances, Inc

PO BOX 940609 • Plano • Texas • 75094

Phone 800.898.1879

www.askousa.com

MADE IN

SWEDEN

Type: Built-in

Colors: TouchProof™ stainless steel

performance

Capacity: 14 place settings

Noise level 48 dB(A)

7Spray™ system

PowerZone™ Pots & Pans, PowerZone™ Cutlery

proGramS

Heavy Super Quick Daily

Quick Rinse and Dry Delicate

Eco Rinse & Hold Normal

Super Quick program in 15 minutes!

feaTUreS

7 Temperatures, Turbo drying™,

Delayed start 1-24 h, Hidden control, LCD

display, Front LED display, Towel bar handle,

Uses as little at 2.6 gals of water in Quick wash,

Energy Star rated, 2 Plus 1 warranty

flexirackS™

Premium upper rack accommodates:

- 9” items

- Fold-down stemware shelves

Exclusive lower rack accommodates:

- 13 3/4” dishes

- Fold-down tines for storage flexibility

- Wide tine design for large bowls and platters

- Upper & lower rack handles

Cutlery basket

ASKO Logic Dishwasher

D5634XXLHS

Art no: 6301710

Speciﬁcations are subject to change without notice. See installation instructions for additional details.

Technical Data

Electricity 120V,60Hz,15Amp

Water pressure 18 – 176 psi

Heating element 1200 watt

Max loading 1300 watt

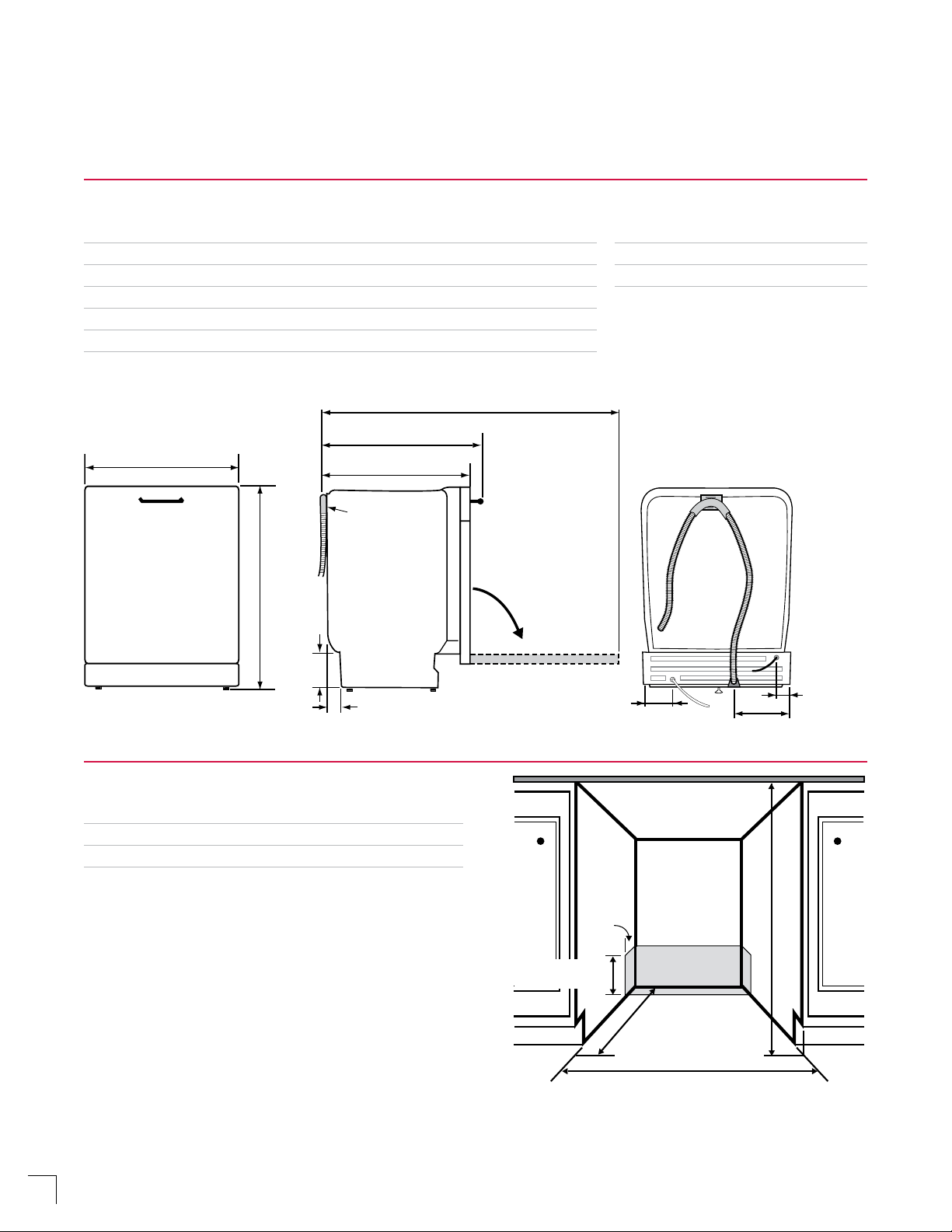

Cutout Dimensions

 US METRIC

HEIgHT:*34 3/8˝ – 36 ½˝ 873 – 927 mm

WIDTH: 24˝ 610 mm

DEPTH: 24˝ 610 mm

The electrical and water supplies should enter through the

area indicated by the shaded area. Preferably, they should

come through the right side of the machine. The access

hole must be round and smooth and no bigger than

2˝ (51 mm) in diameter.

*Total height can be reduced by ½˝ by removing upper trim.

34

3

/

8

˝ – 36 ½˝

(873 mm – 927 mm)

24 7/8˝ (632 mm)

HS Models

22 7/8˝ (581 mm)

49 ½˝

(1257 mm)

Door

BACKSIDEFRONT

High loop

drain hose

6 ¼˝ – 8 ¼˝

(159 mm – 210 mm)

2˝

(50 mm)

24˝

(610 mm)

3˝

(76 mm)

3 3/8˝

(86 mm) 9˝

(229 mm)

Unit Dimensions

US METRIC

HEIgHT:*34 3/8˝ – 36 ½˝ 873 – 927 mm

WIDTH: 24˝ 610 mm

DEPTH: 22 7/8˝ 581 mm

DEPTHW/HANDLE(HS): 24 7/8˝ 632 mm

DEPTHW/DOOROPEN: 49 ½˝ 1257 mm

WEIgHT: 106 lbs 48 kg

Planning & Design: XXL Dishwashers

D5434XXL, D5624XXL, D5634XXLHS, D5654XXLHS, D5894XXLHS

24˝

(610 mm)

24˝

(610 mm)

34 3/8˝ – 36 ½˝ minimum

(873 mm – 927 mm)

2˝

(51 mm)

6 ¼˝ – 8 ¼˝

(159 mm – 210 mm)

4˝

(102 mm)

XXL TALL TANK MODELS
