Asko Classic T208H Guida

8Customer Care Center, 1-800-898-1879, www.askousa.com

INSTALLATION AND CONNECTION

After installation, wait for 24 hours without moving

the appliance before using it for the ﬁrst time. If the

dryer has to be laid down on one of the sides during

transport or servicing, place it with its left side, viewing

from the appliance front, downwards.

90° 90°

DRYER PLACEMENT

The dryer can be either free standing or installed on

top of a washing machine.

The dryer emits heat. Therefore, do not place it in

a very small room, as the drying process may be

longer due to limited amount of ambient air.

Do not place the dryer in a room where

temperature can drop below 0 °C, as the machine

may not operate correctly at such low temperatures,

or freeze, which in turn can result in damage to the

machine.

For optimum dryer operation, install it in a room with

adequate ventilation and a temperature between

10 °C and 25 °C.

Do not place the dryer behind lockable or sliding

door, or door with a hinge on the opposite side of the

dryer door hinge. Install the dryer in such way that

the door can always be freely opened.

Never block the air vents.

At least two persons are required to install the

tumble dryer on top of a washing machine.

Do not place the dryer on a carpet with long

ﬁbres as this may impede air circulation.

Free-standing appliance

The dryer may be placed adjacent to a washing

machine.

If the friction between the dryer feet and the ﬂoor is

not suﬃcient, the dryer may move during operation.

To prevent sliding, use a non-slide mat or install the

supplied vacuum feet onto both front feet.

Place the dryer so that it is stable. Use a spirit

level to level the dryer in longitudinal and traverse

direction by rotating the adjustable feet using a No.

22 spanner (max. 15 mm). Then, ﬁrmly tighten the

jam nuts (counter nuts) by rotating them towards the

appliance bottom using a No. 17 spanner .

Customer Care Center, 1-800-898-1879, www.askousa.com

Clearance around the dryer for optimum

operation

50 mm

100 mm

The appliance shall not be in contact with a wall

or adjacent furniture. For optimum dryer operation,

observe the clearance from the wall as shown in Fig.

Opening the dryer door (top view)

480 mm

1074 mm

176°

Stacking on top of a washing machine

To stack the dryer on top of a washing machine, use

the extra vacuum feet and the tipping guard (A+B),

supplied in the cardboard box in the dryer drum.

Tipping guard part B is designed to ﬁt on ASKO

washing machines and it may be hard or impossible

to mount on appliances of other brands. If the

washing machine and dryer are not of matching

dimensions or if you have installed a hidden helper

between the two appliances, then binding plates

are available as optional accessories at the service

center (… available only for HH (acessory Hidden

Helpers)and TD75 stacked on top of WM80 or

WM85; not intended for any other combinations).

All ASKO washing machines can bear the weight of

the dryer.

Washing machine on which you wish to install

the dryer must be able to bear the weight of the dryer

(see washing machine’s rating plate or technical

information).

10 Customer Care Center, 1-800-898-1879, www.askousa.com

How to stack a dryer onto the washing machine (ASKO):

There is a cardboard box in the dryer drum, containing the vacuum feet and the tipping guard.

A B

1The tipping guard consists of two metal parts (A +

B).

Use two screws to attach the A part to the back of the

dryer.

2Undo the screw on the back side of the washing

machine.

3Use the screw to attach the tipping guard (B part)

to the back of the washing machine.

4Level the washing machine so that it is stable.

1. Level the washing machine by rotating the

adjustable feet using a No. 32 spanner.

The feet allow levelling by +/- 1 cm.

2. After adjusting the height of the feet, ﬁrmly

tighten the jam nuts using a spanner No 17, by

turning them towards the bottom of the washing

machine .

3. Tighten the jam nuts.

5 mm

5Set the dryer feet:

1. Tighten the front two feet all the way in.

2. Undo the back feet by 3.5 turns or 5 mm; then,

fasten the jam nuts towards the bottom of the

appliance .

6Place the dryer onto the washing machine:

1. Lift the front part of the dryer by 5 to 10 cm.

2. Attach the vacuum feet onto the front feet of the

dryer.

3. Push the dryer into the tipping guard (so that

the B part is inserted into the A part) and

release it (See ﬁgure on previous page).

Make sure the tipping guard is "locked"!

Customer Care Center, 1-800-898-1879, www.askousa.com

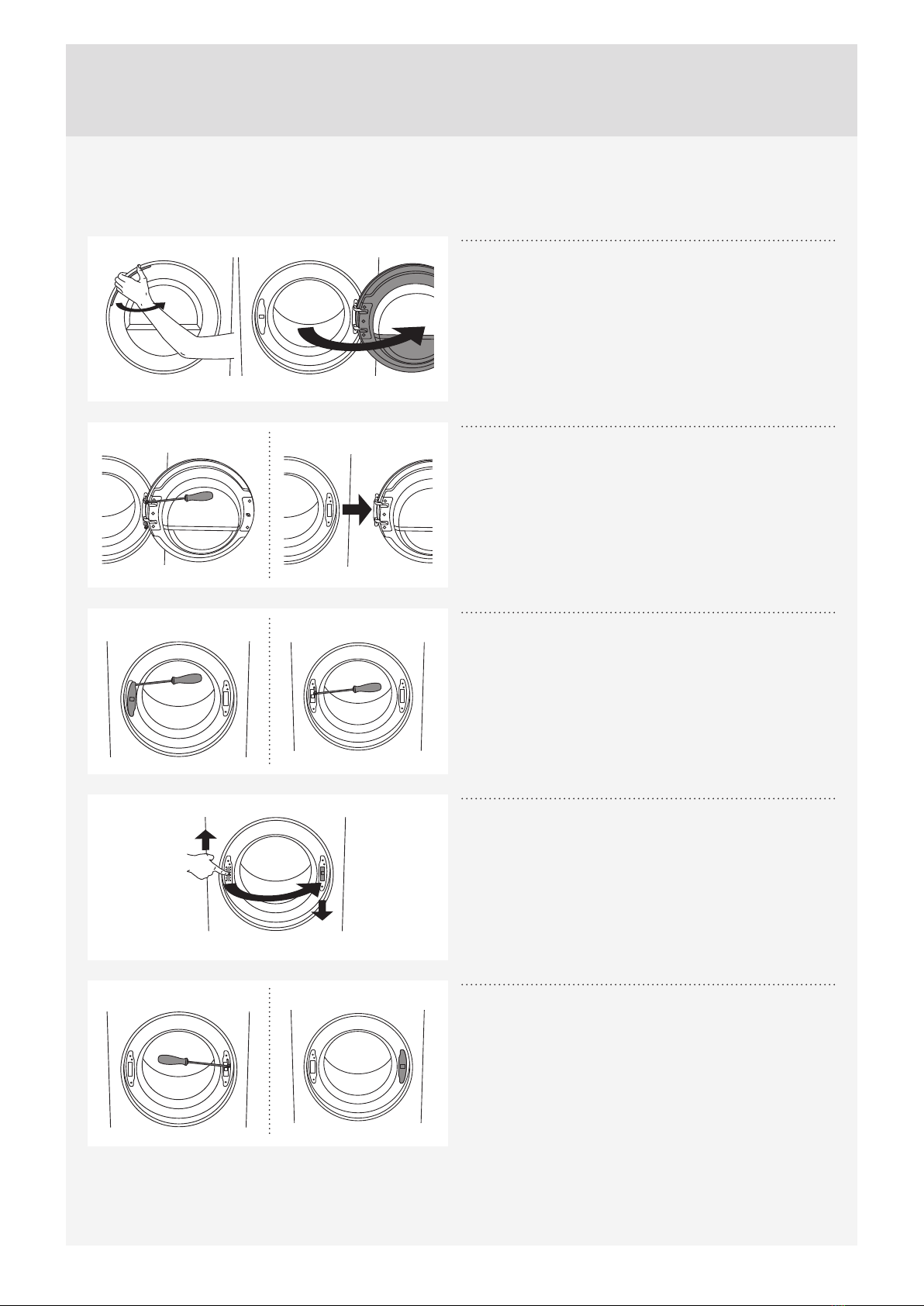

CHANGING THE DOOR OPENING DIRECTION

To change the direction of door opening, proceed as follows.

1Open the door fully.

2Undo the screws and remove the door.

3Use the screwdriver to remove the door lock cover

and undo the screw on the door lock.

4Push the door lock upwards and remove it. Move

it to the other side and push it downwards.

5Fasten the screw on the door lock. Replace the

door lock cover.

12 Customer Care Center, 1-800-898-1879, www.askousa.com

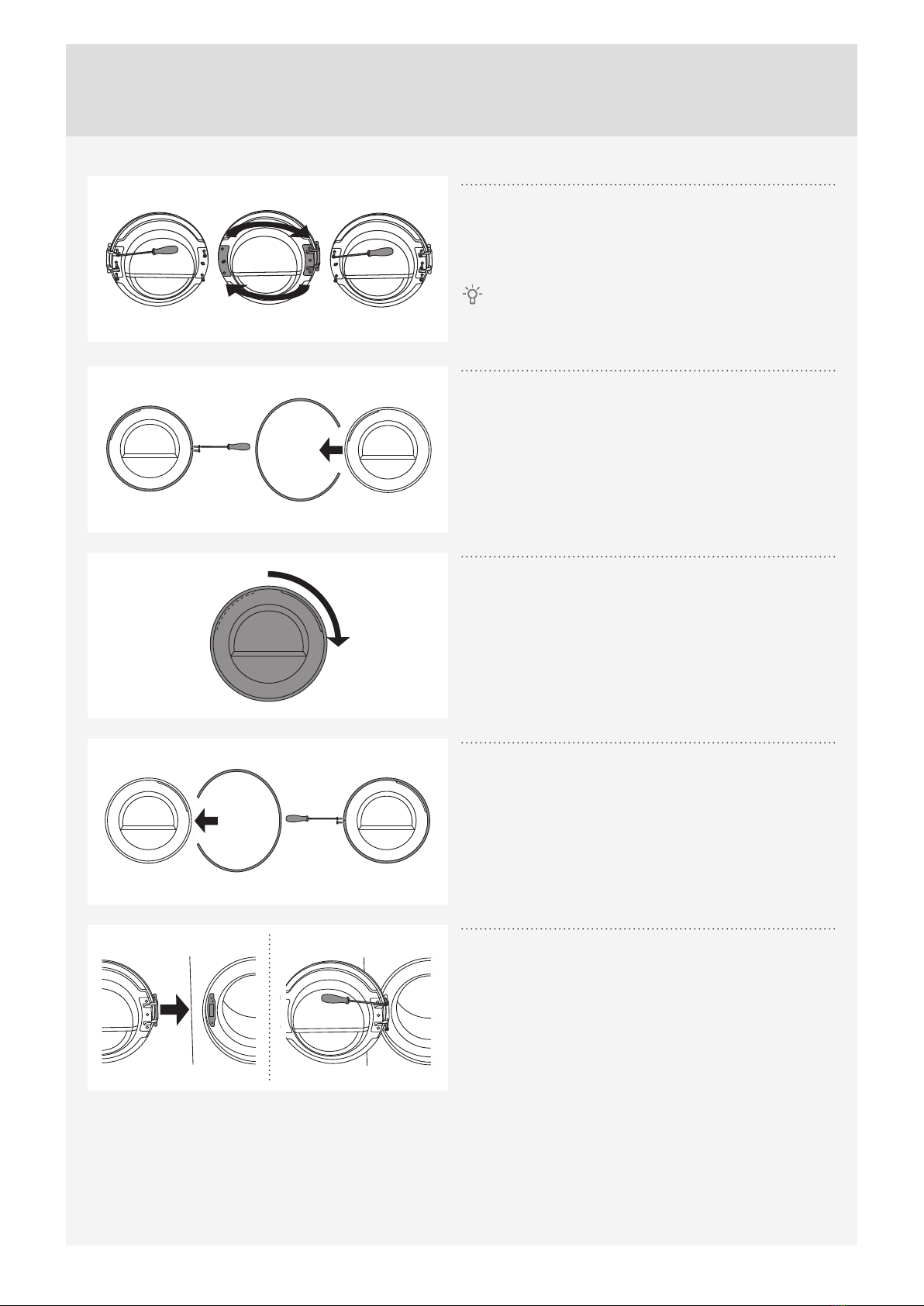

6Undo the door hinge assembly (left) and the door

latch assembly (right), switch their positions, and

replace the screws (door hinge assembly to the right-

hand side, door latch assembly to the left-hand side).

Use the screwdriver to remove the plastic part

more easily.

7Undo the door ring and remove it temporarily.

8Rotate the door glass cover by 90°so that the sign

indicating the opening of the door is on the other

side.

9Rotate the door ring by 180°, install it onto the

door, and fasten it with screws.

10 Replace the door on the door hinge and fasten

the screws.

Customer Care Center, 1-800-898-1879, www.askousa.com

DRAINING THE CONDENSATE

The moisture from the laundry is extracted in the condenser unit and accumulated in the condensate tank.

Condensate tank has to be emptied regularly (see chapter "CLEANING AND MAINTENANCE").

To simpliﬁed and avoid emptying and interruption of the drying cycle due to full condensate tank, run the

condensate discharge tube located at the back of the appliance directly into a drain.

A1Remove the small short hose from the attachment

(A).

max 1000 mm

max 300 mm

2Connect the supplied drain hose to the same

attachment (A).

Run the condensate drain hose into a drain. Tie the

hose onto a tap (B) so that it cannot slip during use.

The drain hose can also be fed into the washbasin

siphon (C) or directly into the ﬂoor drain (D).

Then, the water is pumped directly into a washbasin, a

siphon, or a ﬂoor drain.

Do not pull the drain hose, and make sure it is not

under tension, clamped, or bent.

If you decide to run the condensate drain hose into a drain, siphon, or washbasin, make sure the hose is

securely fastened. This will prevent any water spillage that could result in unexpected damage.

Always use hoses that are supplied with the appliance.

If the dryer is connected to an air exhaust system already used for another appliance, a non-return valve

must be installed. Return ﬂow into the dryer could damage the appliance and the non-return valve prevents

such ﬂow.

14 Customer Care Center, 1-800-898-1879, www.askousa.com

See the separate installation instructions

included in the set of documents.

CONNECTING TO THE POWER MAINS

After installation, the dryer should stand still for

two hours before it is connected to the power mains.

Connect the appliance to a grounded power outlet.

After installation, the wall outlet should be freely

accessible. The outlet should be ﬁtted with an earth

contact (in compliance with the relevant regulations).

The receptacle on the rear of the machine is

designed to accommodate ASKO washers ONLY

(rated 208–240 V.) To use this receptacle, you must

use the readyﬁtted plug supplied with the washing

machine or anequivalent. ASKO washers rated

208–240 V have two internal fuses of 15 A each. The

machine should only be connected to a grounded

wall socket.

This appliance must be properly grounded.

Refer to the “Important Safety Instructions” for

grounding instructions. The power supply cord must

be grounded. If the machine is to be used in a wet

area, the supply must be protected by a residual

current device. Connection to a permanently wired

supply point must be made only by a qualiﬁed

electrician.

Connection upon delivery

TYPE: TDXX.XXXXX

Art.No.: XXXXXX/XX Ser.No.: XXXXXXXX

MODEL: XXXXXX.X

XXXX W

XXA

IPX4

X kg

XXX V ~

XX Hz Refrigerant: X XXXX Volume: XXXX

Information about your dryer is indicated on the

rating (type) plate.

Use the type A diﬀerential current protection switch.

The dryer shall not be connected to the power

mains using an extension cord.

Do not connect the tumble dryer to an electrical

outlet intended for an electric shaver or hair dryer.

Any repair and maintenance pertaining to safety

or performance should be done by trained experts.
