Asko DC 7171 Manuale utente

SERVICE MANUAL

DRYING CABINET

Contents

Servicing………………………………………………………...

3

Presentation of the different models…………………………….

4

Setting the temperature selector knob…………………………...

5

Control panel…………………………………………………….

6

Placing the door the other way round…………………………...

7

Changing the casing unit………………………………………...

8

Changing the panel………………………………………………

9

Changing the selector knob……………………………………...

10

Changing the fan/motor and the protection against overheating..

11

Changing the element……………………………………………

12

Changing the thermostat………………………………………...

13

Changing the timer………………………………………………

14

Changing the start button (exterior)……………………………..

15

Changing the start button (interior)……………………………..

16

Changing the contactor………………………………………….

17

Changing the door contact breaker……………………………...

18

Changing the hangers……………………………………………

19

Technical information 120V…………………………………….

20

Circuit diagram DC7171 with start button, 120V……………….

21

Trouble shooting...........................................................................

22

Servicing

Before you contact customer service,

you should find out the designation of the model, its

type and its serial number. The designation of the

model is inscribed on the cabinet control panel. The

type and the serial number are inscribed on the iden-

tification plate which is placed on the inside of the

cabinet.

DC XXXX

?????????????????????

????????????????

????????????????

1

2

3

4

5

Typskylt

1. Model

2.

3. Article number

4. Serial number (12 figures)

5. Type

3

Identification plate (inside)

Presentation of the different models

ASKO DC7171 with start button, with text

ASKO DC7171 without start button, with text

ASKO DC7171 without start button, with symbols

ASKO DC7171 with start buttons, with symbols

4

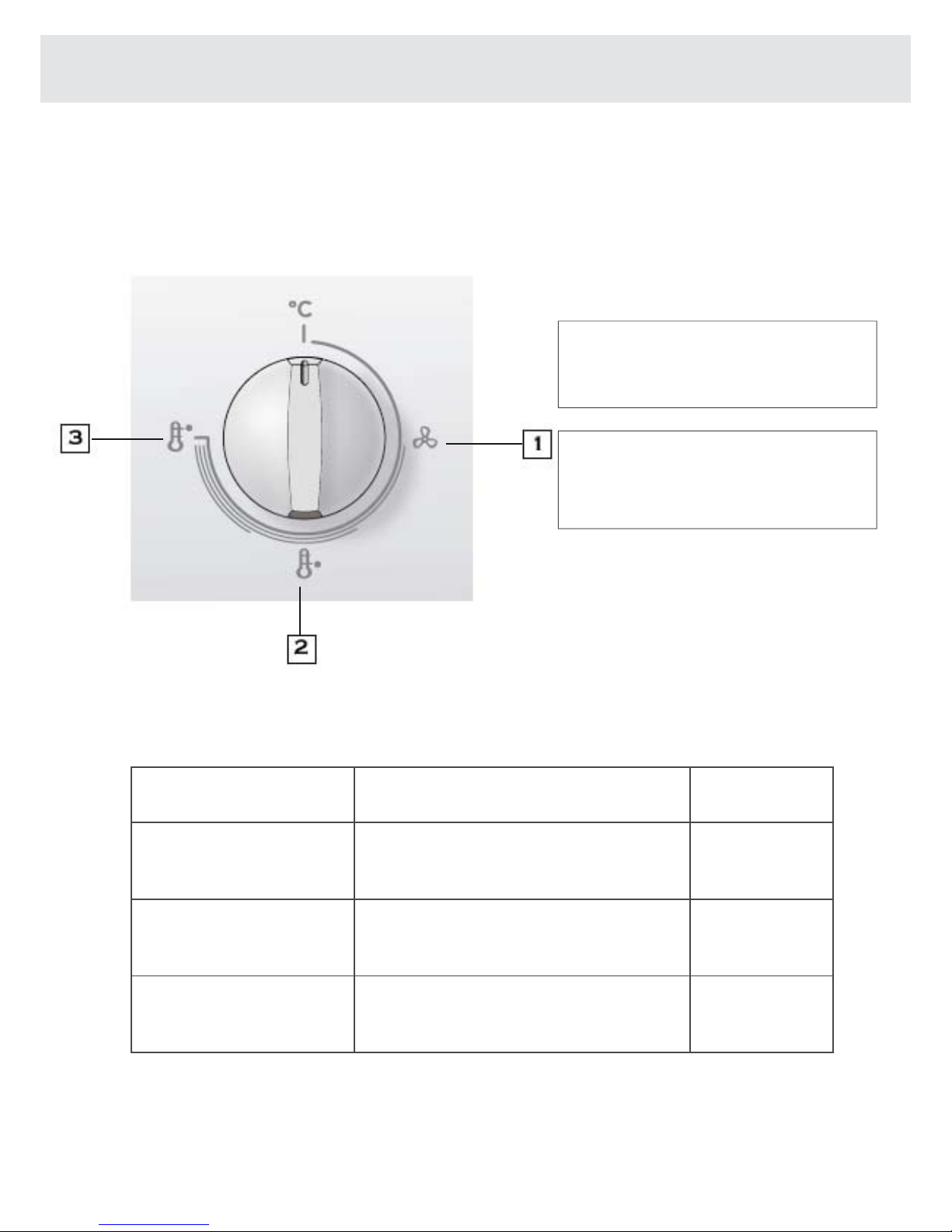

Setting the temperature selector knob

5

Setting Articles to be dried Temperature

1

Air ﬂuff

Foam-rubber products, plastics,

heat-sensitive items

Fan only

2

Low

Sports clothing, underwear, shirts,

blouses, silk goods, machine-

washable knit products

Low

3

Normal

Heavy work clothing, denim, cotton

garments, cotton sweatshirts

Normal

Do not use heat when drying

foam-rubber lined clothing or

similar articles

The cycle control regulates the

temperature on a stepless scale,

from no heat to the normal position

with full temperature.

Control panel

1. Temperature setting

2. Timer

3. START-button (only certain markets)

6

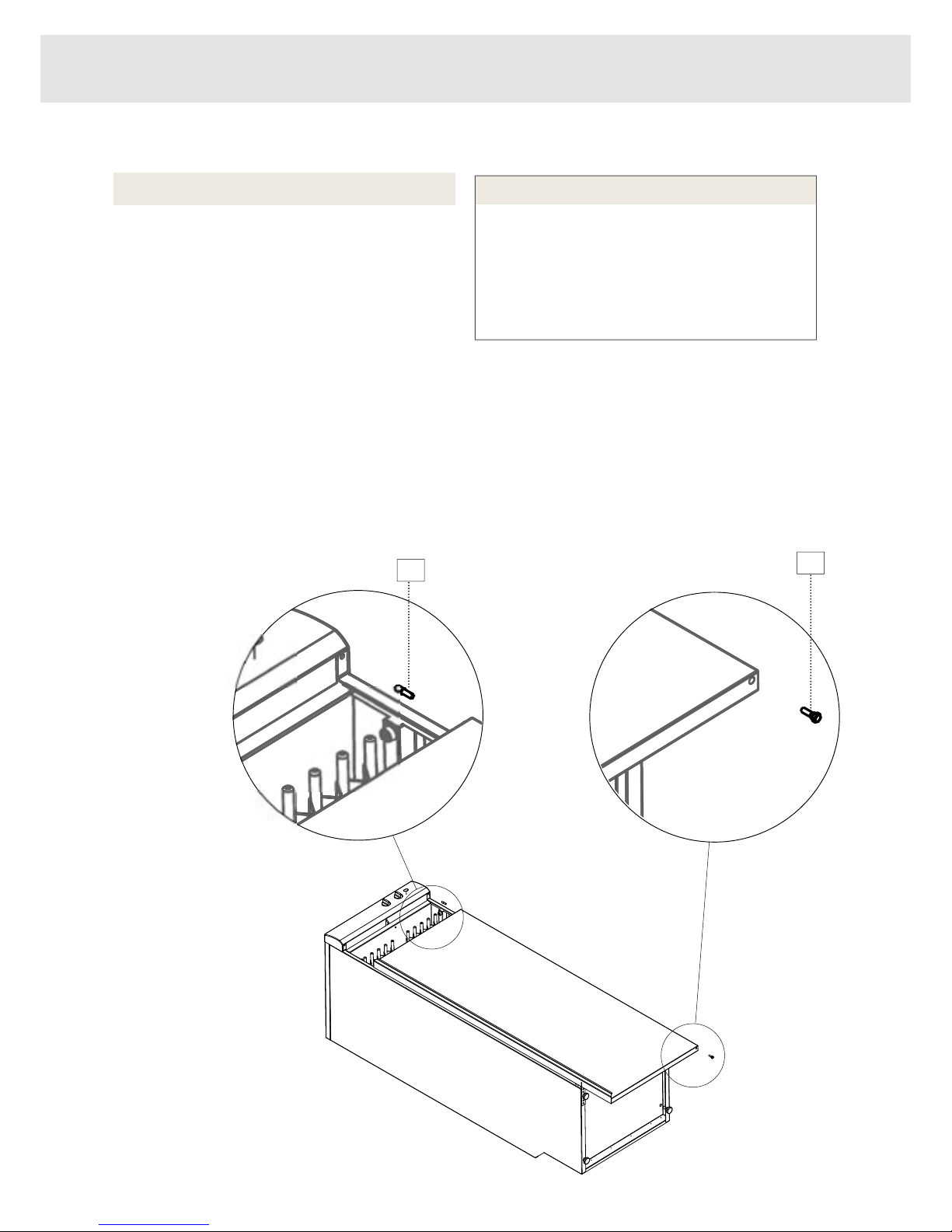

Placing the door the other way round

7

1

2

Excessive Weight Hazard

Use two or more people to handle the

drying cabinet.

Failure to do so can result in back or

other injury.

Warning!

You can change your door swing from a

right-side opening to a left-side opening, if

desired.

1. Place the drying cabinet on its back.

2. Remove the hinge pin at the lower hinge

(1) and lift off the door.

3. Remove the plastic plug and press it in

place on the lower hinge on the opposite

site.

4. Remove the hinge pin from the upper hinge

(2) and ﬁt it to the opposite side.

5. Unscrew the glove hanger on the inside

of the door and turn it completely around.

The glove hanger is secured with four

screws.

6. Rotate the door, position it and secure it

with the lower hinge pin (1).

Reverse door swing

Changing the casing unit

Disengage the cabinet from the wall and pull it forward!

1- Loosen two screws at the rear edge of the

cabinet

2- Draw the cover backwards

3- Lift off the cover 4- Unscrew four screws on the inside of the

top cover plate

5- Unscrew two screws on the side of the casing unit, draw it backwards and lift it off.

8

Changing the panel

Disengage the cabinet from the wall and pull it forward!

1- Loosen two screws at the rear edge

of the cabinet

2- Draw the cover backwards

3- Lift off the cover 4- Unscrew three screws behind the panel

5- Stand in front of the cabinet, slanting the upper part of the panel outwards and care-

fully draw it upwards (to release the catches) and then outwards.

9

Changing the selector knob

Disengage the cabinet from the wall and pull it forward!

1- Loosen two screws at the rear edge

of the cabinet

2- Draw the cover backwards

3- Lift off the cover 4- Unscrew three screws behind the panel

5- Stand in front of the cabinet, slanting the upper

part of the panel outwards and carefully draw it

upwards (to release the catches) and then outwards.

PRESS IN

6. On the back side of the panel the selector

knobs are held firmly in place with two catches.

Press in the catches to release the selector

knob and draw it out.

When installing, press in the selector knob so that the catches snap into place.

(This is done when the panel is mounted on the cabinet) 10
