USER MANUAL

Tumble dryer

TD85.C38X

TDC148XH

Carefully read the instructions for use before using the dryer.

3Introduction ................................................

4Safety precautions .....................................

4.....................................................................

9Dryer description .......................................

9.....................................................................

Before using the appliance for the first

time ..............................................................

10.....................................................................

11Installation and connection ......................

11.....................................................................

23Advices before drying ...............................

23.....................................................................

26Drying process, step by step ....................

26.....................................................................

31Settings .......................................................

31.....................................................................

33Cleaning and maintenance .......................

33.....................................................................

40Errors –what to do? ..................................

40.....................................................................

44Service ........................................................

44.....................................................................

45Technical information ................................

45.....................................................................

47Program chart ............................................

47.....................................................................

48Removal ......................................................

48Disposal / recycling of packaging ............

49Quick guide ................................................

49.....................................................................

Contents

Dear Customer,

We thank you for purchasing this quality ASKO product.

We hope it meets all your expectations. Scandinavian design combines pure lines, everyday

functionality, and high quality. These are the key characteristics of all our products, and the reason

why they are highly appreciated across the globe.

We kindly recommend you to read these instructions before using the appliance for the first time.

The instruction manual also includes information on how you can help protect the environment.

The following symbols are used throughout the manual and they have the following meanings:

INFORMATION!

Information, advice, tip, or recommendation

WARNING!

Warning –general danger

ELECTRIC SHOCK!

Warning –danger of electric shock

HOT SURFACE!

Warning –danger of hot surface

DANGER OF FIRE!

Warning –danger of fire

Original instructions

See Quick guide on the last page.

Introduction

General

Please read the instruction manual and save it for future

reference.

•Please do not use the tumble dryer if you have not read and

understood these instructions or use first.

•Failure to observe the instructions for use or inappropriate use of

the tumble dryer may result in damage to the laundry or appliance,

or injury to the user.

•Instructions for use are available on our website at www.asko.com.

•Appliance is intended to be used in an area open to the public.

•Before connecting the dryer to the power mains, please read

carefully the instructions for use that describe the dryer and its

correct and safe use. The instructions apply to several appliance

types or models; thus, settings or equipment may be described

herein which is not available in your dryer.

•Leave any repairs and similar tasks on the dryer to an expert.

Unprofessional repair may result in an accident or major

malfunction.

•After installation, the dryer should stand still for two hours before

it is connected to the power mains.

•At least two persons are required to install the tumble dryer on

top of a washing machine.

•The dryer shall not be connected to the power mains using an

extension cord.

•Do not connect the tumble dryer to an electrical outlet intended

for an electric shaver or hair dryer.

WARNING!

If the power cord is damaged, it has to be replaced by the

manufacturer, an authorized service technician, or a similarly

qualified person, in order to avoid any hazards.

Safety precautions

•WARNING!

The appliance shall not be supplied through an external

switching device, such as a timer, or connected to a circuit that

is regularly switched on and off by a utility.

•After the drying process, unplug the dryer power cord from

the power outlet.

If you have a tumble dryer with a 3-phase connection, do not pull

the plug out of the power outlet.

•The appliance shall be disconnected from the power source

during servicing and replacement of parts. Removal of the plug

has to be such, that an operator can check, from any of the points

to which he has access that the plug remains removed.

•In case of incorrect appliance connection, incorrect use, or

servicing by an unauthorized person, the user shall bear the cost

of any damage.

•Air in the dryer environment should not contain dust particles. The

air where the dryer is installed should be thoroughly ventilated to

prevent reverse flow of gases released from the gas appliances

with open fire (e.g. fireplaces).

•Do not evacuate the air from the dryer through channels used for

appliances or devices that use natural gas or other fuels for their

operation (only applies to the evacuation dryer).

•Clean the door net filter after each drying cycle.

•Do not dry unwashed laundry in the dryer.

•Laundry stained with oil, acetone, alcohol, oil derivatives, stain

removers, turpentine, wax, and wax removers should be washed

in a washing machine with hot water and detergent before it is

dried in the dryer.

•Clothing that includes latex, rubber parts, shower and bathing

caps, and laundry or covers with rubber foam shall not be dried

in the dryer.

•Use laundry conditioners or similar products in compliance with

manufacturer's instructions.

Safety precautions

•Do not use any solvents, abrasive cleaners, glass cleaners, or

all-purpose cleaners.

•Do not place the dryer behind lockable or sliding door, or door

with a hinge on the opposite side of the dryer door hinge. Install

the dryer in such way that the door can always be freely opened.

•Never block the air vents.

•Do not place the dryer on a carpet with long fibres as this may

impede air circulation.

•The air in the room where the dryer is installed may not contain

dust particles.

•Make sure the fibres do not accumulate around the dryer.

•DANGER OF FIRE!

Remove all objects such as lighters and matches from the

pockets.

•After installation, wait for 24 hours before using the appliance. If

the dryer has to be laid down on one of the sides during transport

or servicing, place it with its left side, viewing from the appliance

front, downwards (only applies to dryers with a heat pump).

•The appliance shall not be in contact with a wall or adjacent

furniture.

•If the dryer is connected to an air exhaust system already used

for another appliance, a non-return valve must be installed.

Reverse flow into the dryer could damage the appliance, and the

non-return valve prevents such reverse flow (only applies to the

evacuation dryer).

•A float will switch off the appliance if the condensed water pipe

is clogged or if there is a risk of overflowing of the condensed

water accumulated in the condensed water tank (only applies to

the evacuation dryer).

•If you wish to move the dryer or store it in a non-heated room

during winter, it is essential that you first empty the condensed

water tank (only applies to the condenser dryers and dryers with

a heat pump).

Safety precautions

•Maximum drying capacity in kg is indicated on the rating plate.

Safety

•DANGER OF FIRE!

Only use the dryer to dry laundry that was washed with water.

Do not dry any laundry that was washed or cleaned with

flammable cleaners or substances (such as gasoline,

trichloroethylene etc.) as this may result in an explosion.

•If you have cleaned your clothes with industrial cleaners or

chemical substances, do not dry them in the dryer.

•If the air exhaust hose is connected to an opening in the wall,

influx of cool air may be prevented by installing a ventilation grille.

(Only applies to evacuation dryer.) .

•The air exhaust hose shall not be connected to an active chimney

used to evacuate smoke or waste gases; into a shaft intended for

ventilating rooms with combustion equipment; or into a chimney

used by third parties. If smoke or waste gases return to the room

where the dryer is installed, there is a danger of poisoning (only

applies to evacuation dryer).

•The dryer is protected with an automatic switch-off system in case

of overheating. The system switches off the heater if the

temperature is too high (only applies to evacuation and condenser

dryer).

•If the net filter is clogged, the automatic heater switch-off device

can be triggered. See chapter "CLEANING AND MAINTENANCE"

(only applies to evacuation and condenser dryer).

•HOT SURFACE!

WARNING! The back of the dryer may get very hot during

operation. Wait for the dryer to cool down completely before

touching its back side. (Observe the instructions in the

chapter "INSTALLATION AND CONNECTION")

Safety precautions

•HOT SURFACE!

Never stop a drying cycle or do not open the door before the

end of the program. If you do so for any reason, be careful when

taking the laundry from the drum as it can still be very hot and

there is a risk of burning.

Quickly remove the laundry from the drum and spread it to allow

it to cool down as quickly as possible.

Child safety

•Do not allow the children to play with the dryer.

•Prevent your children and pets from entering the dryer drum.

•Before closing the dryer door and running the program, make

sure there is nothing except laundry in the drum (e.g. if a child

climbed into the dryer drum and closed the door from the inside).

•Activate the child lock. See chapter: SETTINGS

•Do not let children younger than three years to come near the

dryer, unless they are under constant supervision.

•The dryer is made in compliance with all relevant safety standards.

This dryer may be used by children aged 8 years and above and

by persons with reduced physical, sensory or mental capabilities

or lack of experience and knowledge, but only if they are

supervised during the use of the appliance, if they have been

provided relevant instructions regarding safe use of the dryer,

and if they understand the hazards of inappropriate use. Make

sure children do not play with the appliance. Make sure the

children do not clean the dryer or perform any maintenance tasks

without supervision.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!

Safety precautions

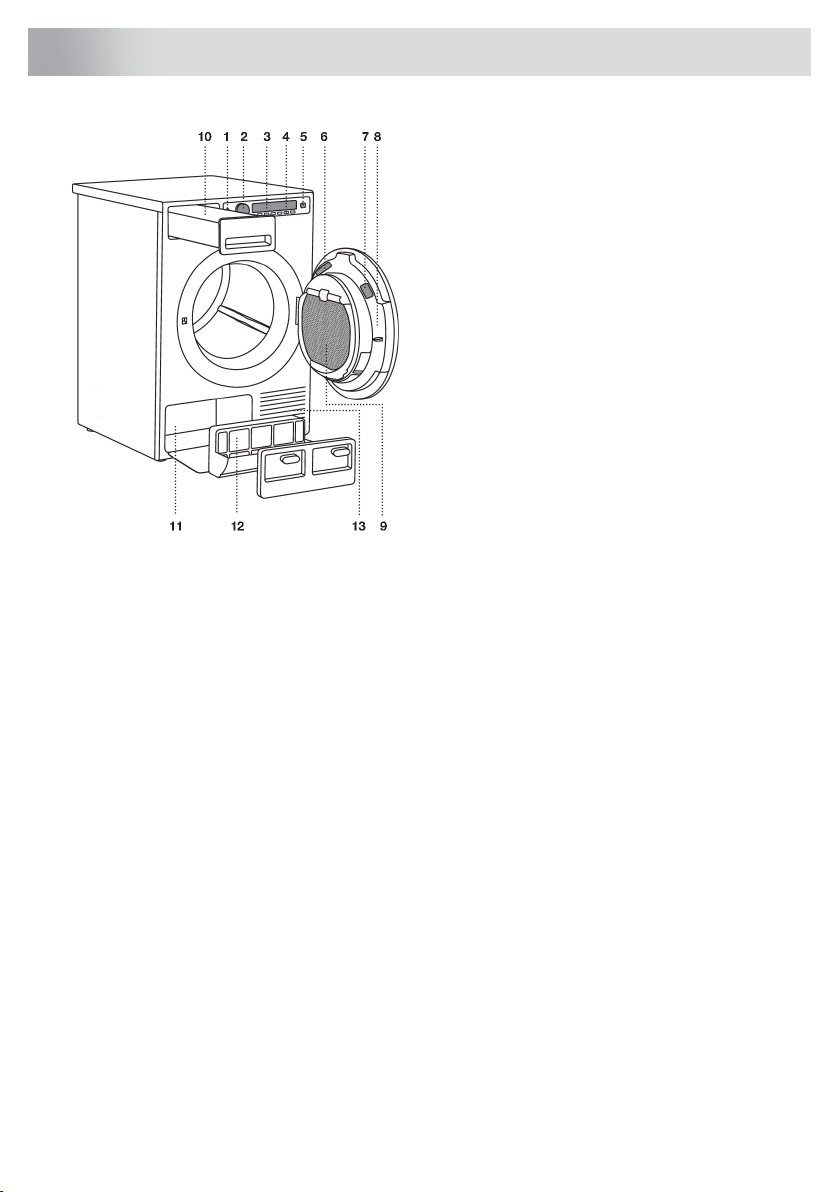

1. Main switch (ON/OFF)

2. Program selector knob

3. Display unit

4. Program settings buttons

5. Button (start/pause)

6. Rating plate with information about the dryer

(on the inside of the drying machine door)

7. QR and AUID code (on the inside of the

drying machine door)

8. Dryer door

9. Door net filter

10. Condensate tank (depending on the model)

11. Heat pump

12. Heat pump filter

13. Air vents

Dryer description

Packaging

Remove all packaging.

Please sort the materials in compliance with local recommendations (see chapter "Disposal").

Cleaning

Disconnect the dryer from the power mains and open the door towards you. Before using the dryer

for the first time, clean the dryer drum using a soft damp cotton cloth and water.

In the case of a 3 phase connection of the appliance, switch off the main socket switch.

INFORMATION!

No program can be started while the door is open.

Choosing the language

When the dryer is connected (see chapter "Installation and connection") and switched on for the first

time, choose the preferred language.

For further drying process, see chapter "DRYING PROCESS, STEP BY STEP".

INFORMATION!

When you run the dryer for the first time, or if the dryer has been out of use for a long time, slight

hitting noise may appear. This is normal and it will disappear after a few drying cycles.

Before using the appliance for the first time

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Asko Asciugatrice

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario

Bosch

Bosch WTX8HKM9SN Manuale utente
