Service Manual Professional Washing Machine
Type: WM70.C
Service manual WM70.C
2
Type: WM70.C
Service manual
Contents
Updates ..................................................................................................................................................................................................................................................4
Introduction .........................................................................................................................................................................................................................................5
General product information.....................................................................................................................................................................................................6
Troubleshooting strategy ..............................................................................................................................................................................................................8
Faults and measures .....................................................................................................................................................................................................................10
Panel ......................................................................................................................................................................................................................................................11
Knob and button descriptions ................................................................................................................................................................................................11
Display description ........................................................................................................................................................................................................................11
Programme tables ........................................................................................................................................................................................................................12
Programme descriptions ........................................................................................................................................................................................................... 16
Settings.................................................................................................................................................................................................................................................17
Service menu ...................................................................................................................................................................................................................................18
Service menu content ................................................................................................................................................................................................................. 19
Notes for custom programmes ............................................................................................................................................................................................ 21
Making a custom programme .................................................................................................................................................................................................22
Fault indicators ................................................................................................................................................................................................................................24
Components and measurement values ............................................................................................................................................................................ 25
Thermistor measurement values ..........................................................................................................................................................................................25
Technical data ................................................................................................................................................................................................................................... 26
Tools ......................................................................................................................................................................................................................................................26
Wiring diagram ...............................................................................................................................................................................................................................27
Panel and control card replacement...................................................................................................................................................................................28
Wash agitator removal ...............................................................................................................................................................................................................30
Service manual WM70.C
4
Updates
Rev Date Description Initials
01 2010-07-12 First version developed BPA
Service manual WM70.C
5
Introduction
You are holding the service manual for WM70.C washing machines.
It should be easy to service a washing machine. It is important that you, as a service technician,
are provided the necessary conditions to work in an efficient and satisfactory manner. Our hope is
that this service manual will prove a useful tool in your daily work.
The type plate is located on the inside of the front door (see image below).
Asko Appliances AB
SE-534 82 Vara
Sweden
WM 70.C
Type designation
Product number Serial number
Year Week
Service manual WM70.C
6
General product information
In conjunction with the introduction of the WM70.C (August 2010), our washing machines have
been altered in a number of areas. Here we present the changes to the wash drum and wash
agitators.
• Larger wash drum:
- 60 litres (previously 50 litres)
- 23 mm deeper, the drum is now 343 mm deep in total (previously 320 mm)
- 30 mm larger diameter, 480 mm in total (previously 450 mm)
• New drum hole pattern to cause as little wear as possible on clothing.
• New agitators that improve the wash process.
All cylinder holes flanged to reduce wear on
textiles.
Area with large holes (3.7 mm) to remove
larger objects, such as grit.
Area with smaller holes (2.2 mm) to reduce
wear on textiles.
The angle of the edge of the cylinder, combined
with the shape of the agitators, moves the load
towards the middle of the drum. This improves
drum balance and reduces wear on textiles.
Hourglass-shaped agitators:
• Move the load towards the smaller, gentler holes
in the middle of the drum.
• Move larger objects, such as grit, towards the
larger holes at the edges of the drum.
Service manual WM70.C
7
General product information (cont.)
• Automatic detergent compartment cleaning
- Cleaned after every ten wash cycles between the main wash and the first rinse.
• Ready for automatic dosing
Service manual WM70.C
8

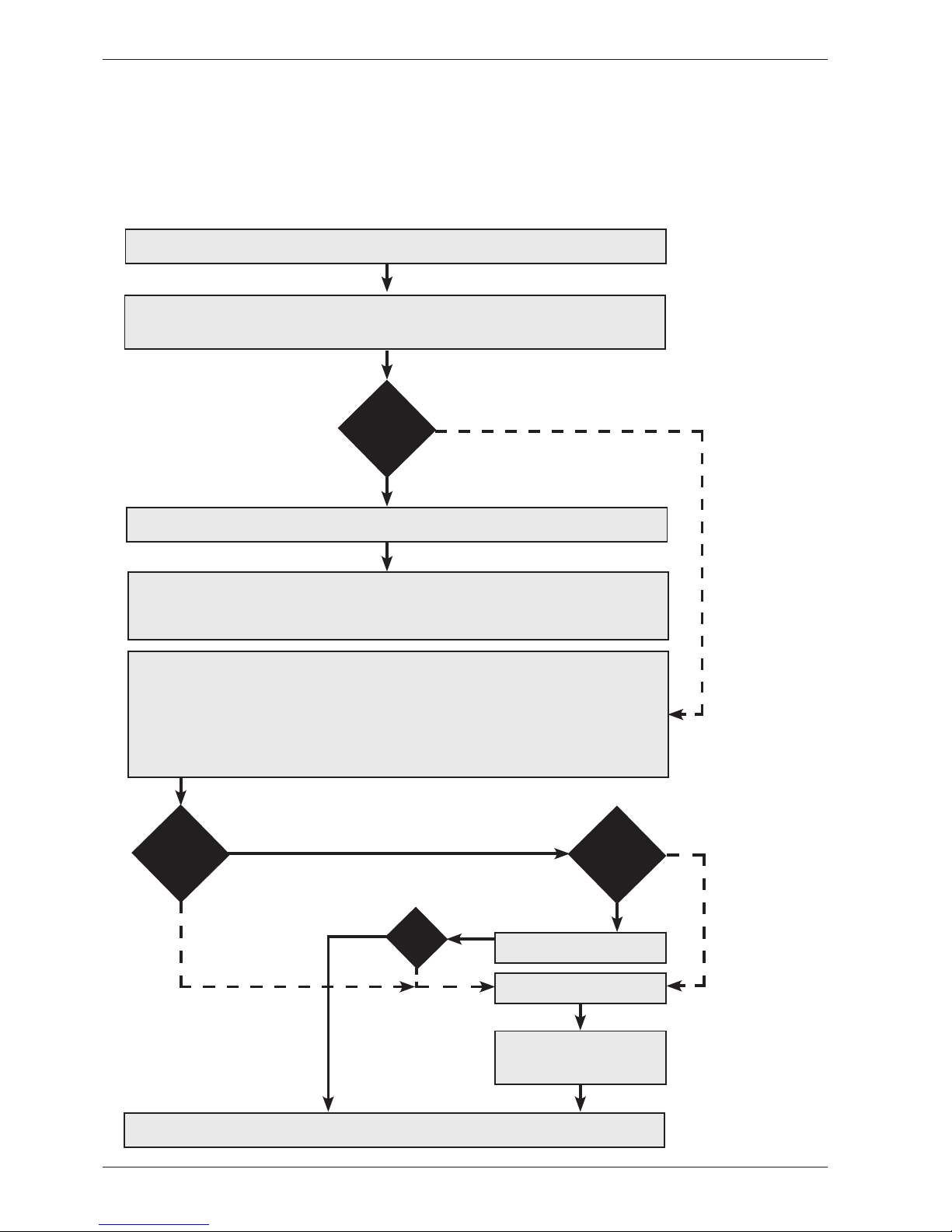

Troubleshooting strategy
At Asko, we believe in always remaining focused on the customer, and as an ASKO service
technician, you are one of the most important ambassadors of our brand. As such, it is important
that the customer finds the service callout a pleasant experience. Troubleshooting is an important
part of the service callout, and as such we have drawn up a troubleshooting strategy that
describes, in broad terms and step by step, what you need to do to find and diagnose faults.
• Ask the customer to describe the problem.
• Check whether the customer’s description matches any service code.
• Check that the machine is correctly installed:
- Electrical connection - Drainage
- Water connection - Machine correctly levelled
Fault found?
Incorrect installation or external factors that affect performance and functionality (for
example, water pressure, electrical supply, drainage).
The machine operates normally. No deviations can be found. The customer probably needs
to be informed about proper use of the machine. If necessary, also inform the customer
about the guarantee conditions and the fact that the customer will be charged for the
callout.
Yes
Open the service menu:
1. Check the settings
2. Run a test cycle
3. Note any fault codes
If the above actions do not uncover the fault:
• Conduct general troubleshooting. Use the documentation available at ServiceSaver
(service manuals, service memos, wiring diagrams and other documents).
Yes
No
Fault found?
No
Fault diagnosed?
Repair and check function/
safety.
Contact technical support
for assistance.
Carry out the actions
suggested by technical
support.
Satisfied customer!
OK?
No
Yes
No
Yes
Service manual WM70.C
9

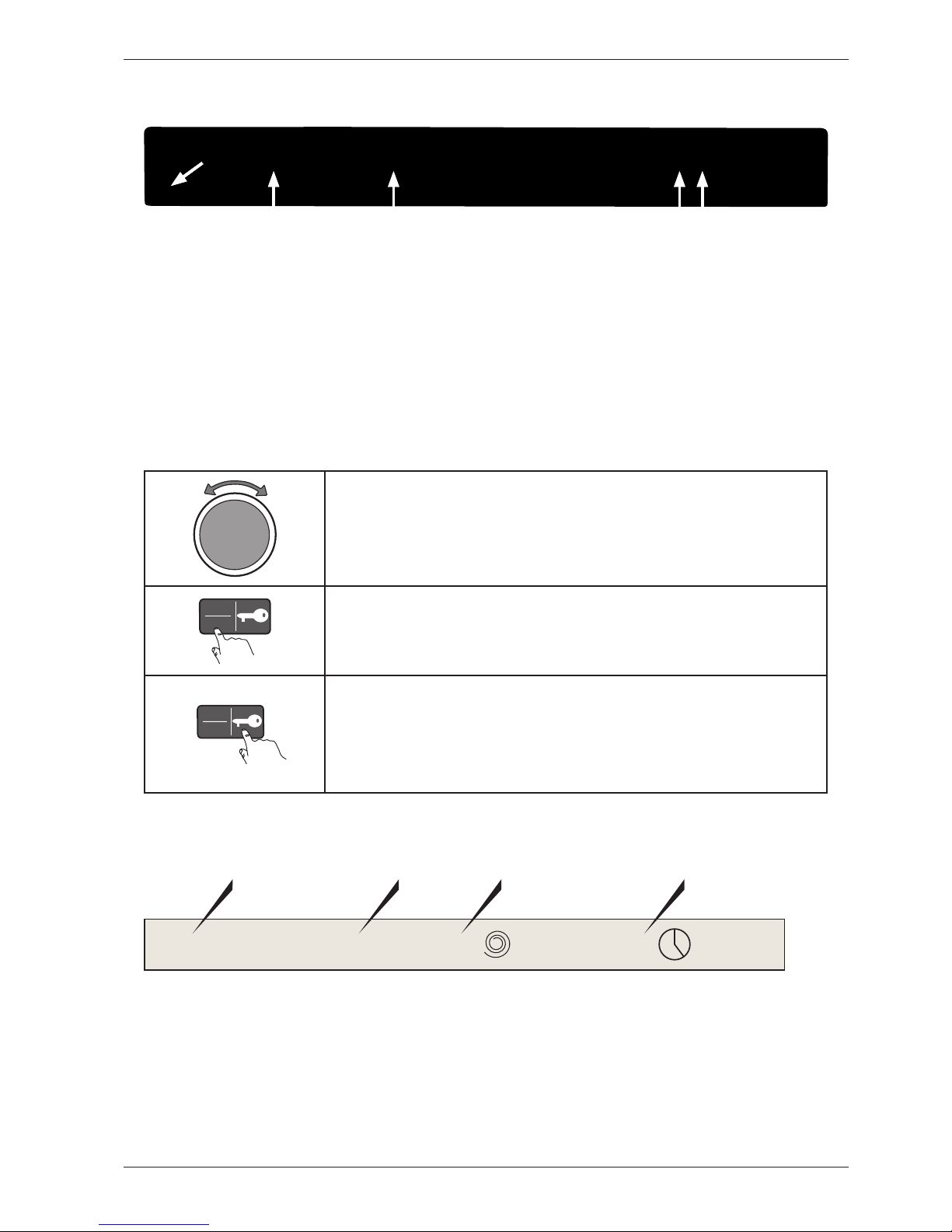

Panel WM70.C
Programmes: A total of twenty-two programmes, three of which can be customised via the
service menu. A maximum of ten programmes can be activated/available to the
end user at the same time.
Settings: Four (Language, Child-safe start, Automatic door opening, Temperature)
Knob and button descriptions
Programme selector
Turn clockwise or anti-clockwise to cycle through the different
programmes and options in the various menus.
Start
Stop
Start/Stop button
• Start programme
• Stop programme. Press and hold for 3 seconds.
Start
Stop
Key button
• Opens the door once the programme has ended.
• Opens the door during a programme to add more laundry.
• Confirm selection in the settings and service menus.
LCD description
Normal wash 60°C 1600 2:20
Programme name Temperature Spin speed Estimated
remaining time
J1 LCD S4 S5
S1
Service manual WM70.C
10
Programme tables
Machine connected to cold water, 6 kg
Programme Degree of
filling (kg)
Spin (rpm) Time
(min)
Energy
consumption
(kWh)
Water
consumption
Rinses
1. Normal wash 60°C *
Programme for labelling (also
standard programme for
Swan-labelled machines)
6 kg cotton Max. 158 1.14 80 5
2. Normal wash 40°C
Programme for labelling (also
standard programme for
Swan-labelled machines)
6 kg cotton Max. 150 0.65 80 5
3. Heavy wash 90°C 6 kg cotton Max. 85 2.05 75 3
4. Heavy wash 60°C 6 kg cotton Max. 65 1.20 65 3
5. White wash 90°C 6 kg cotton Max. 70 1.70 65 3
6. White/Colour wash 60°C 6 kg cotton Max. 60 0.80 60 3
7. White/Colour wash 40°C 6 kg cotton Max. 55 0.50 60 3
8. Super quick wash 60°C 3 kg cotton 800 30 0.60 40 3
9. Super quick wash 40°C 3 kg cotton 800 25 0.35 40 3
10. Synthetics 40°C 3 kg
synthetics
800 25 0.30 40 3
11. Wool/hand 30°C 2 kg wool 800 30 0.35 60 3
12. Rinse programme 3 kg cotton Max. 15 0.10 15 1
13. MOP wash 90°C 6 kg cotton Max. 65 1.70 50 2
14. MOP wash 60°C 6 kg cotton Max. 45 0.85 45 2
15. Micro fibre wash 60°C 6 kg cotton Max. 50 0.80 50 3
16. Micro fibre wash 40°C 6 kg cotton Max. 45 0.45 50 3
17. Disinfection 40°C 6 kg cotton Max. 70 0.75 70 3
18. Disinfection 60°C 6 kg cotton Max. 80 1.35 70 3
19. Disinfection 90°C 6 kg cotton Max. 100 2.30 80 3
20. Programme A Custom
21. Programme B Custom
22. Programme C Custom
*Programme tested in accordance with EN 60456/A11/A12/.
The tables present a few examples of the energy, water and time consumption of a few different
programmes. Consumption can vary depending on water pressure, water hardness, water supply
temperature, room temperature, the type and amount of laundry, and variations in the power
supply. The stated times are approximate.
