Network Camera

CAM417 / CAM417-PoE

User’s Manual

Date: 7/02/2010

Firmware Version: V3.2.70

Content

Content ........................................................................................................................................1

1. Preface .................................................................................................................................2

2. Product Specifications...........................................................................................................2

3. Product Installation ...............................................................................................................4

A. Hardware Installation.........................................................................................................4

B. Monitor Setting..................................................................................................................7

C. IP Assignment ...................................................................................................................8

4. Live Video...........................................................................................................................10

5. Configuration ......................................................................................................................15

A. System............................................................................................................................15

B. Video/Audio Setting.........................................................................................................22

C. Network Setting...............................................................................................................29

D. Event Handling................................................................................................................35

6. Network Configuration ........................................................................................................46

A. Intranet Only....................................................................................................................46

B. Internet Only....................................................................................................................48

C. Intranet + Internet............................................................................................................51

7. Factory Default ...................................................................................................................54

1. Preface

This camera is a professional CCD network camera which builds in web server. User

views real-time video via IE browser. It supports MPEG-4 & M-JPEG video compression

which provides smooth and high quality video. The recorded video file can be can be

playback remotely using Microsoft Media Player.

The PoE model built-in support for Power over Ethernet allows the camera to receive both

data and power over a single Ethernet cable.

This camera is an easy-to-use IP camera which is designed for security application.

2. Product Specifications

MPEG-4 / MJPEG compression formats. Supports resolution up to 30/25 fps @ Full

D1 (720x480 / 720x576)

MPEG-4 / MJPEG dual streaming.

Self-Contained HTTP Web Server providing Internet capability for remote access

Built-in PoE splitter, support for Power over Ethernet (PoE model)

2-way audio

Online firmware upgrade

Recorded files compatible with Microsoft Windows Media Player

Hardware

CPU / RAM / ROM ARM 9, 32 bit RISC / 64MB RAM / 8MB ROM

Image Sensor 1/3" Sony CCD

Lens Fixed Lens, Focal length 6 mm, F1.6

Illumination 0.05 lux

Lens Changeable Yes, CS Mount

Support DC IRIS Yes

Video Out 1 Analog video out (BNC connector)

Audio In Built-in microphone

Audio Out 1 Line out (RCA connector)

Digital I/O 2 In / 2 Out

Power Supply Normal model: DC 12V, 1A

PoE model (built-in PoE Splitter):

Use PoE: PoE Injector (IEEE 802.3af)

Or, use Power Adaptor: DC 12V, 1A

Power Consumption Max. 5 Watt

Dimensions W69 x H60 x D151 mm

Network

Ethernet 10/ 100 Base-T

Network Protocol HTTP, TCP/IP, RTP/RTSP, 3GPP, NTP, SMTP, FTP, PPPoE, DHCP, DDNS, UPnP

System

Video Resolution NTSC: 720x480, 704x480, 352x240, 176x120

PAL: 720x576, 704x576, 352x288, 176x144

Compression Format MPEG-4, MJPEG

Frame Rate Up to 30 FPS

Dual Streaming Yes

3GPP Yes, Live view with 3G mobile phone

Video Bitrate Adjustment CBR, VBR

Video Adjustment Brightness, Contrast, Saturation, Hue, AES, BLC, AGC

Image Snapshot Yes

Motion Detection Yes, 3 different areas

Event Trigger Motion Detection, Digital In

Triggered Action Send Email, Send to FTP, Digital Out

Pre/ Post Alarm Yes, configurable

Security Password protection

Firmware Upgrade HTTP mode, can be upgraded remotely

Connection Up to 10 clients simultaneously

Audio Yes, 2-way

Web browsing requirement

OS Windows 2000, XP, Vista, Windows 7

Web Browser Microsoft IE V7.0 or above, Mozilla Firefox V5.0 or above, Opera V10 or

above, Safari V4.0.5 or above, Google Chrome V5.0 or above

Suggested Hardware Intel-C 2.0G, RAM: 512MB

Graphic card: 64MB onboard RAM

* Specifications are subject to change without notice

3. Product Installation

A. Hardware Installation

Cable Connections

Network Connector: The RJ-45 connector allows connect the Ethernet cable.



Power Jack:

To connect the included power adapter.

Audio Out: The RCA connector allows connect to an amplified speaker,

you can hear the voice of the remote site from the speaker.

Video Out: The BNC connector allows connect to the analog display to

output analog video for locally monitoring.

Digital I/O: Digital In and Digital Out.

Video Level: To adjust the video level.

1. Connect the cable of Digital I/O, Video output, and Audio output if you want to use

these functionalities.

2. Connect Ethernet cable for network connection.

3. Connect power adapter to turn on the camera.













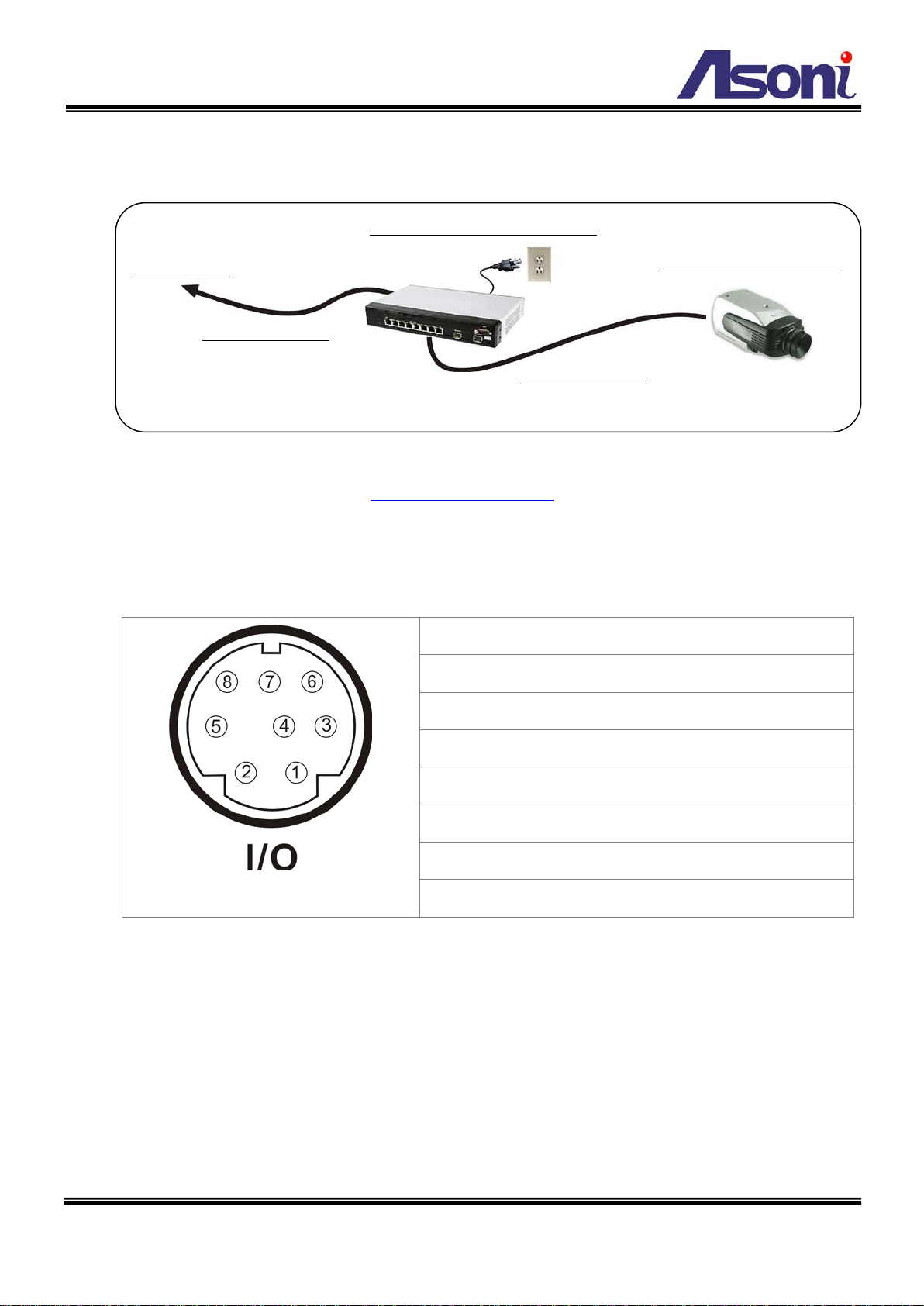

4. If the camera is PoE model, the power adapter is not necessary. The camera will get

the power from the Ethernet cable. Please follow the below figure for the connection.

5. Set up the network configurations according to the network environment. For further

explanation, please refer to Network Configuration chapter.

I/O Connections

12V

GND



Digital Input 1



Digital Input 2

Digital Output 1

Digital Output 2

D-



D+

I/O connector – used in application, for e.g., motion detection, event triggering, alarm

notifications. It provides the interface to:

2 sets of Digital Input (Digital In + GND) – The digital inputs for connecting devices

that can toggle between an open and closed circuit, such as PIRs, door/window

contacts, glass break detectors, etc. When a signal is received the status changes

and the input becomes active.

2 sets of Digital Output (Digital Out + GND) – The output to Relay Box or Relay

Board, and switch on the alarm device such as LEDs, Sirens, etc.

PoE Switch or PoE Injector

Ethernet Cable

Data only

Ethernet Cable

Mixed data and power

PoE Network Camera

To Network

Digital Input (Alarm Input)

GND (Ground): Initial status is LOW.

Digital In:Max. 50mA, 12VDC.

Digital Output (Alarm Output)

Door/Window

Contacts

Relay Board

Relay Box

Digital IN 1

Digital IN 2

Digital OUT 2

Digital OUT 1

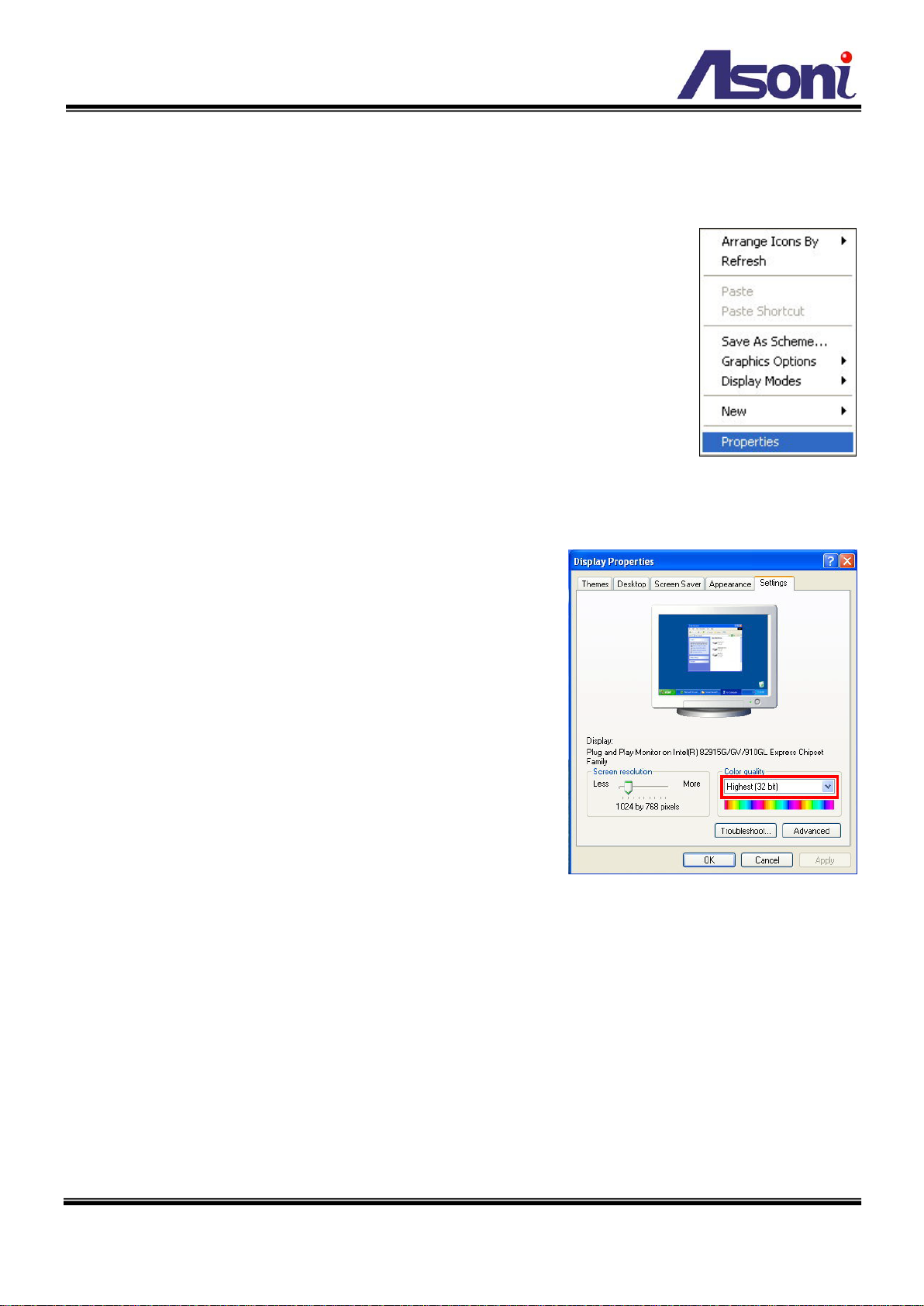

B. Monitor Setting

1. Right-Click on the desktop. Select “Properties”

2. Change color quality to “Highest (32bit)”.

C. IP Assignment

Always consult your network administrator before assigning an IP address to your

camera in order to avoid using a previously assigned IP address.

MACAddress: Each network camera has a unique Ethernet address (MAC address)

shown on the sticker of the camera.

One final note, although the IP Search is able to find and configure any network

camera on the LAN except those that are behind a router, it is a good idea to set the

host PC to the same subnet. In order to connect to the Web-based user interface of

the network camera, the host PC must be in the same subnet. For more information

about subnets, please consult your network administrator.

There are 3 kinds of IP configuration:

Fixed IP (Public IP or Virtual IP)

DHCP (Dynamic IP)

Dial-up (PPPoE)

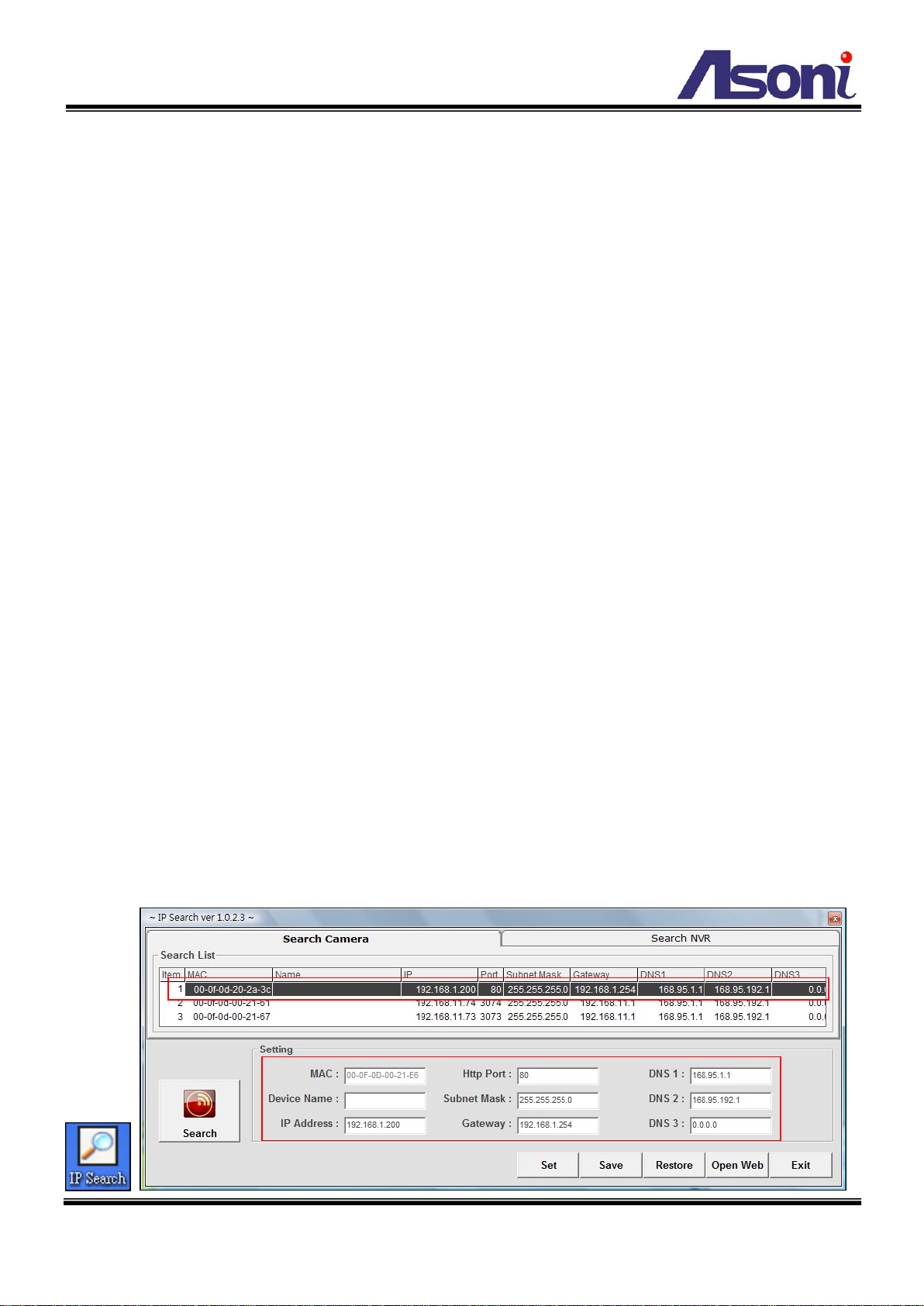

IP Search is a utility that provides an easier, more efficient way to configure the IP

address and network settings of the network camera in Local Network (LAN). It even

provides a convenient way to set the network settings for multiple devices simultaneously.

Moreover, IP Search can save the network settings for all devices as a backup and

restore them when necessary.

The software can be installed from the attached software CD.

1. Once IP Search has been successfully installed on the computer, double click the

“IP Search” icon on the desktop.















2. IP Search searches all the network devices which connect to the intranet and lists

on the window. Click [Search] button to search again.

3. From the list, select the device with the MACAddress that corresponds to the

device that is to be configured.

4. Click and select one of the network devices, the network configuration of this device

will show on the bottom, filling in the IPAddress, Subnet Mask, Gateway and the

others.

5. Click [Set] button to complete the configuration settings and save into the device.

6. Wait for 1 minute to let the device update the settings, and then click [Search]

button again to re-search the network devices.

7. Click and select the network device listed on the window and click [Open Web]

button. It will open an IE browser and connect to this device directly.

8. You can assign a name to identify the device. Type the name in “Device Name” field,

click [Save] and then click [Search] button, the name will be displayed in the list.
