Aspira TWLWP50 Manuale utente

- 18 -

Specifications

Type Fully Automatic Washing Machine

Model TWLWP50 TWLWP60

Rated voltage / frequency 220-240V~ 50Hz 220-240V~ 50Hz

Rated washing power 380W 390W

Rated spinning power 340W 350W

Net weight About 32.5kg About 36.5kg

Gross weight About 37.5kg About 41.5kg

Dimensions (mm) L 520 W 530 H 900 L 550 W 560 H 955

1/14L 2/18L 3/22L 1/18L 2/24L 3/30L

4/26L 5/30L 6/34L 4/36L 5/42L 6/48L

7/38L 8/43L 9/47L 7/54L 8/60L 9/65L

Water level / water

quantity (approx) 10/52L 10/70L

Water inlet pressure 0.03MPa-1.0MPa (when water temperature is 65oC, the

water inlet pressure of hot water shall not exceed

0.4MPa.

Note: Default settings when you choose this program after power on.

Item

Cycle Wash Rinse Spin

Water

level Temp Time

97 min

(TWLWP50)

Normal Long 1 rinse 7 min 10 Warm / cold 107 min

(TWLWP60)

Heavy Long 2 rinses 7 min 6 Warm / cold 76 min

Delicate Rapid 2 rinses 5 min 6 Warm / cold 34 min

Quick Express 1 rinse 3 min 3 Warm / cold 10 min

Memory This cycle setting remembers the last wash, rinse and spin settings.

Synthetic Medium 1 rinse 5 min 6 Warm / cold

Wool Express 2 rinses 3 min 6 Cold / cold 25 min

Tub dry 53 min

AUTOMATIC WASHING MACHINE USER MANUAL

This manual is for:

TWLWP50

TWLWP60

Please read this

manual carefully

before using.

Retain for future

reference.

0030509798A

- 17 -

Contents

Product overview.................................................................................1

Safety precautions............................................................................2-3

Installation and adjustment..................................................................4

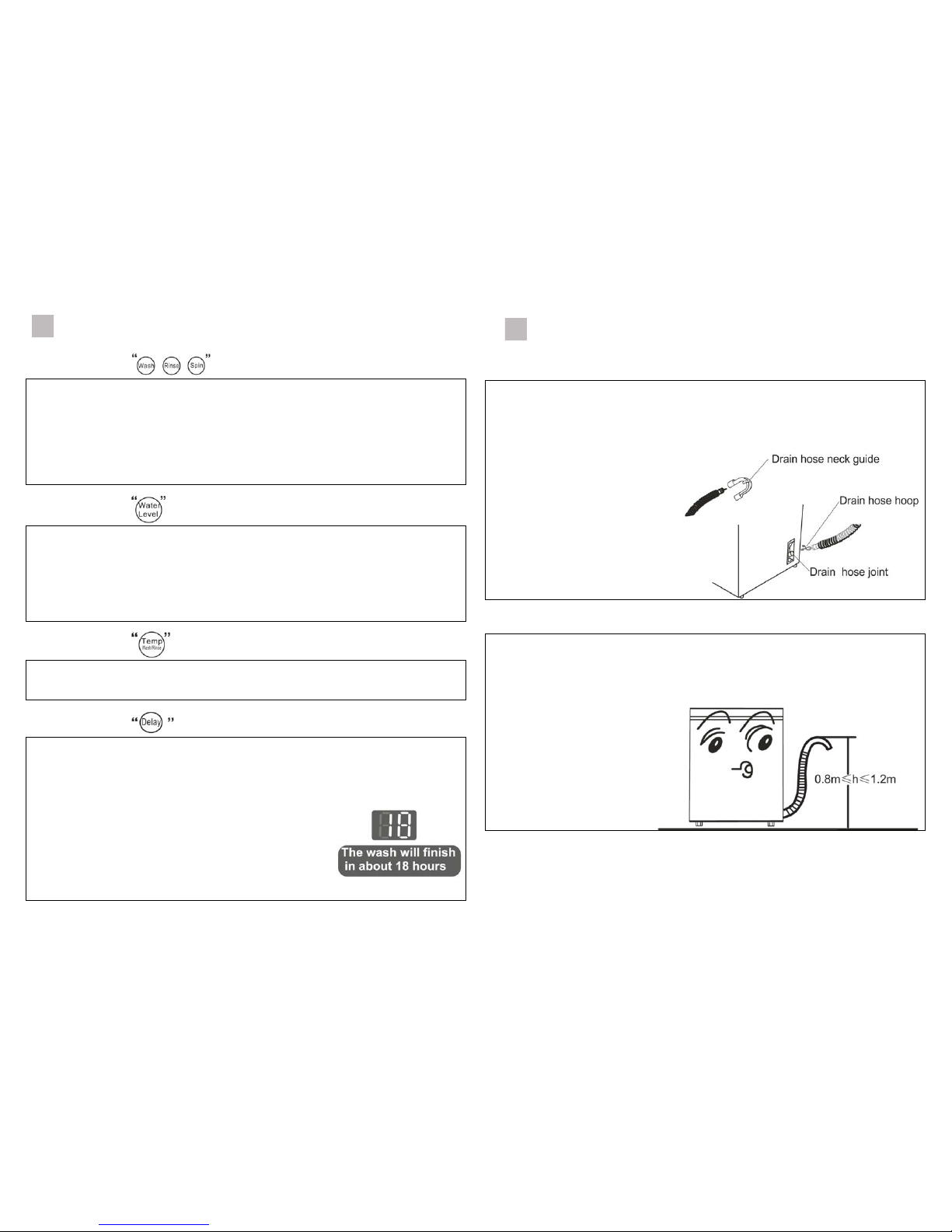

Installation of drainage hose ...............................................................5

Installation of water inlet hose.............................................................6

Before washing....................................................................................7

Loading your laundry...........................................................................8

Detergent usage guide........................................................................8

Operation & wash cycles................................................................9-13

Maintenance......................................................................................14

Troubleshooting............................................................................15-16

Packing list........................................................................................17

Specifications....................................................................................18

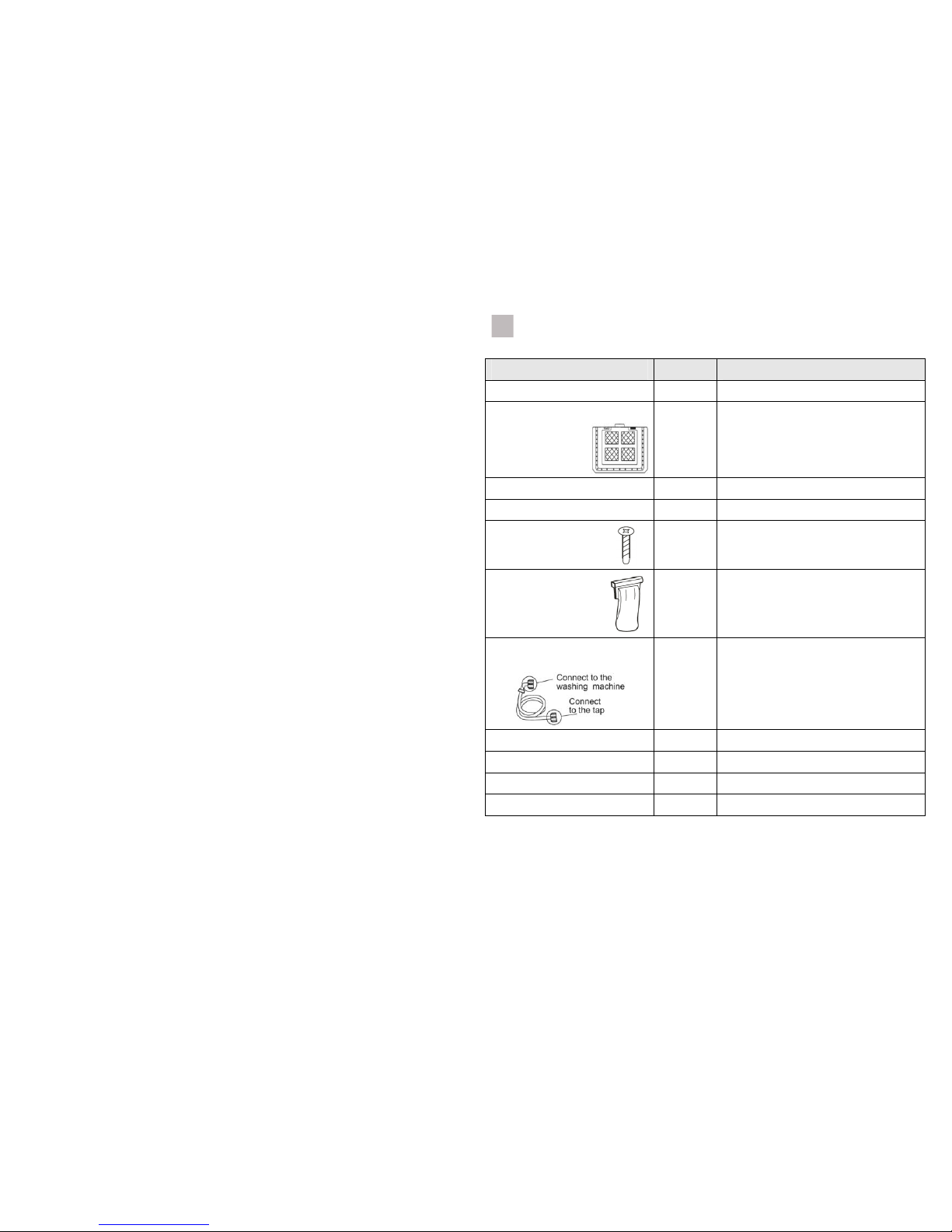

Packing list

Name Quantity Storage position

Automatic washing machine One

Bottom plate One Between the upper cushion of the

washing machine package and the

upper seal of the package carton

User manual One Inside the document bag

Warranty card One Inside the document bag

Tapping screws

One Inside the accessory bag

Lint filter

(TWLWP50)

One Inside the document bag

Components of the water

inlet hose

Two Inside the accessory bag

Drain hose One Inside the accessory bag

Drain hose clamp One Inside the accessory bag

Drain hose hoop One Inside the accessory bag

Drain hose neck guide One On the drain hose

- 16 - - 1 -

Common occurrences

Situation Cause

The spinning is intermittent after it

starts Redistribute the load evenly.

Close the top lid.

The wash procedure pauses. The clothes sensor is detecting

and it will add water after about

48 seconds.

Select spin program, but it does

not work. The program is setting the drain

time. There will be a pause before

the spin program starts.

There may be water in the drain

hose when first used It may be residual water after

performance inspection by the

factory.

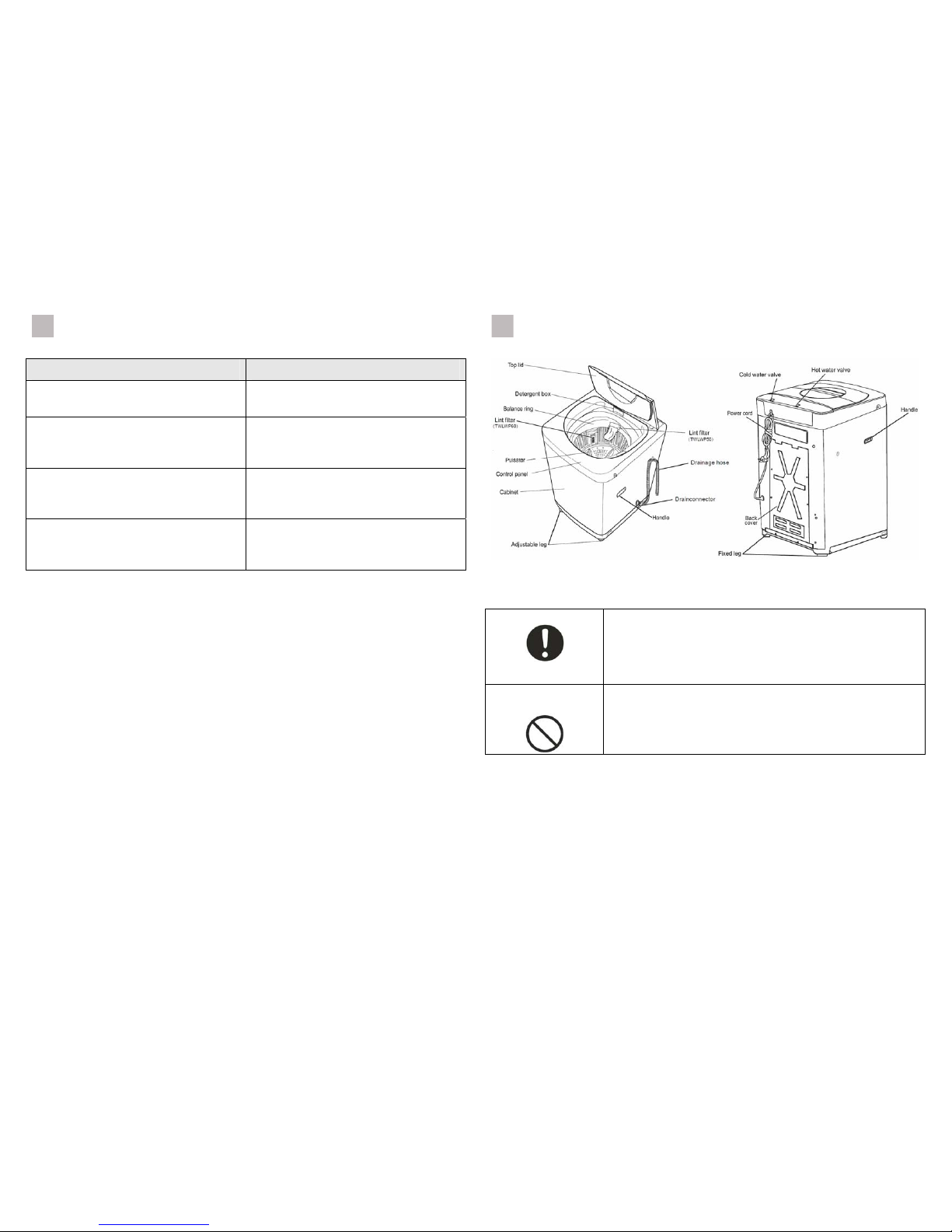

Product Overview

Description of symbols

Warning sign

Contents marked with this symbol are related to the

safe use of the product and the personal safety of the

user. Please operate in accordance with the contents

of this manual to avoid harm to the user or damage to

the machine itself.

Forbidden sign

Contents marked with this symbol indicate operations or

actions that should not be undertaken by the user.

Performing such actions may result in injury to the user

or damage to machine itself, and void warranty.

SAFETY WARNING

Please check power socket condition to ensure it has been earthed correctly

prior to installation to ensure your safety.

- 2 - - 15 -

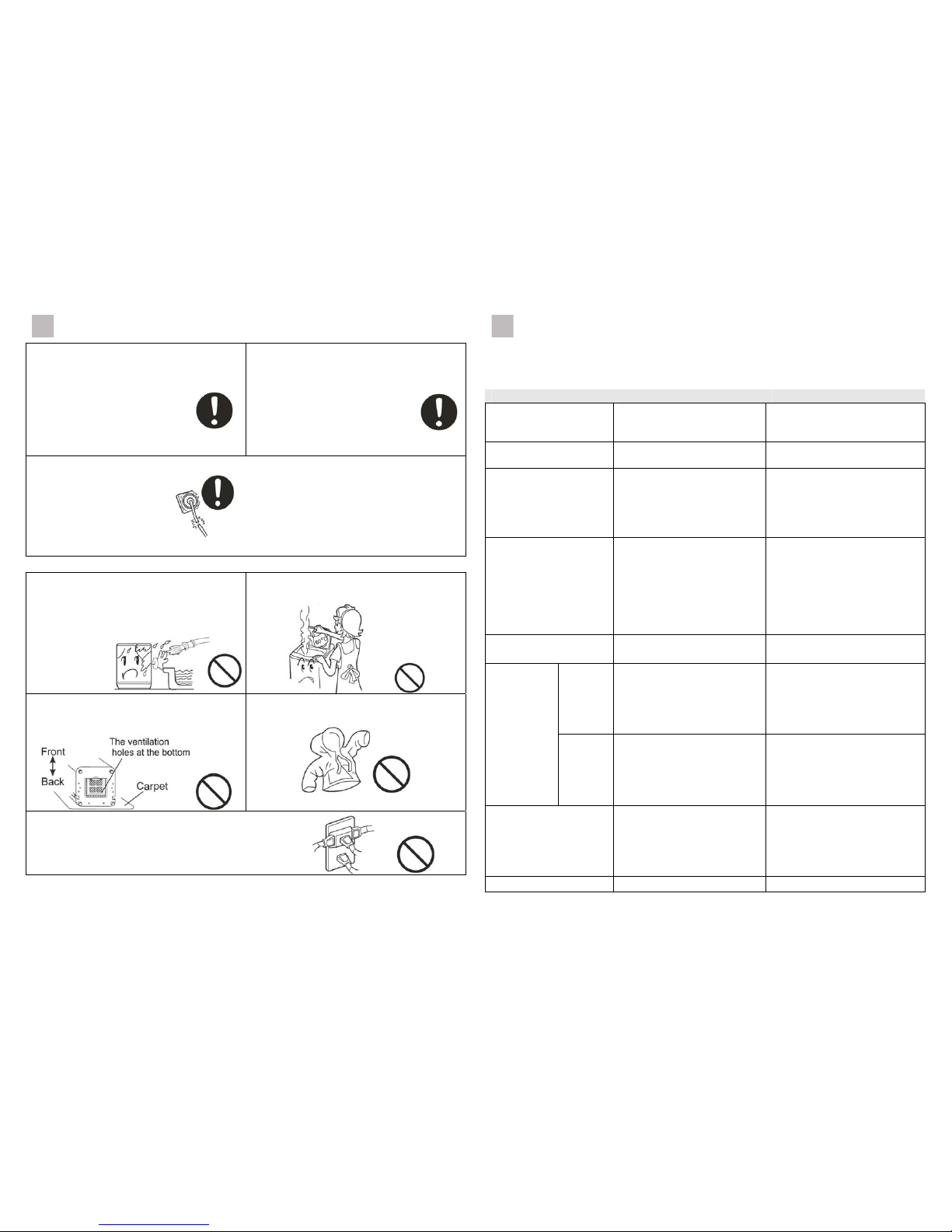

Safety Precautions

A separate, earthed power socket is required

for the power supply. Hold the plug – NOT

the electric cable – when unplugging the

washing machine. Do not insert

or remove the power plug with

wet hands. After installation of

the washing machine, the power

plug should be accessible.

Ensure the plug is removed and the taps

turned off in the following cases:

Power failure, cleaning, moving,

installation and when not in use.

If power cord or other parts of this machine

become damaged or faulty,

please contact a technician

to have it repaired. DO NOT

attempt repairs yourself as

this may cause personal

harm or void warranty.

CAUTION: If this appliance is

supplied from a cord extension set or

electrical portable outlet device, the

cord extension set or electrical

portable outlet device must be

positioned so that it is not subject to

splashing or ingress of moisture.

Do not install this appliance in a damp or wet

environment. Do not leave wet laundry on the

control panel or spray water directly on to this

appliance, as this may cause the washer to

malfunction or cause an electrical fault.

Do not connect to hot water higher than 65oC

temperature.

Do not block the ventilation holes with carpet.

Ensure carpet does not obstruct the opening

under the base of the cabinet.

Do not wash water-proof clothing as this may

affect load balance during spin cycle(s).

If you are using an extension cord or a portable electrical

outlet device (not recommended), ensure that it is

positioned so that it does not come into contact with water

or moisture.

Troubleshooting

If there is a fault or the machine does not operate correctly, remove the power plug before

checking the machine. Using diagnostic list below, please check if the machine requires

repair. If a repair is required, please contact our Customer Care Team. Do not try to fix it

yourself.

Problem Possible causes What to do

The machine does not drain

or drains slowly.

The display shows E1.

Is the drain hose blocked ? Remove the blockage. Open

and close the top lid once.

The machine stops running.

The display shows E2. The top lid is not closed. Close the top lid

The machine does not spin.

The display shows E3.

Has the laundry been placed

unevenly in the machine ?

Is the machine level ?

Redistribute the load evenly.

Close the top lid.

Level the machine. The

machine will start 10 seconds

after being levelled correctly.

The display shows E4.

Is the water tap closed or has

the water supply been

interrupted ?

Is the water inlet valve

blocked ?

Is the water pressure too

low ?

Open the water tap. Push the

Start / Pause button once.

Clean the water inlet valve then

push the Start / Pause button

once.

Use after the water pressure is

normal.

The display shows E6 The water level sensor has

failed. Please contact Customer Care.

Will not

wash

Is there a power failure ?

Is the power plug inserted

tightly ?

Has the water level reached

preset position ?

Wait for the power supply to be

restored.

Insert the power plug tightly.

Wait for water to fill to the

preset level.

The machine

does not work.

Will not

spin

Is the power plug inserted

tightly ?

Is the top lid closed ?

Is the laundry distributed

unevenly in the machine ?

Insert the power plug tightly.

Close the top lid.

Redistribute the laundry.

There are abnormal sounds

inside the machine.

Is the machine level ?

Has the laundry been placed

unevenly in the machine ?

Are there any foreign objects

inside the bowl ?

Redistribute the load evenly.

Close the top lid.

Level the machine.

Remove the foreign object.

The water tap leaks. Is the water inlet hose loose ? Fasten the inlet hose.

- 14 - - 3 -

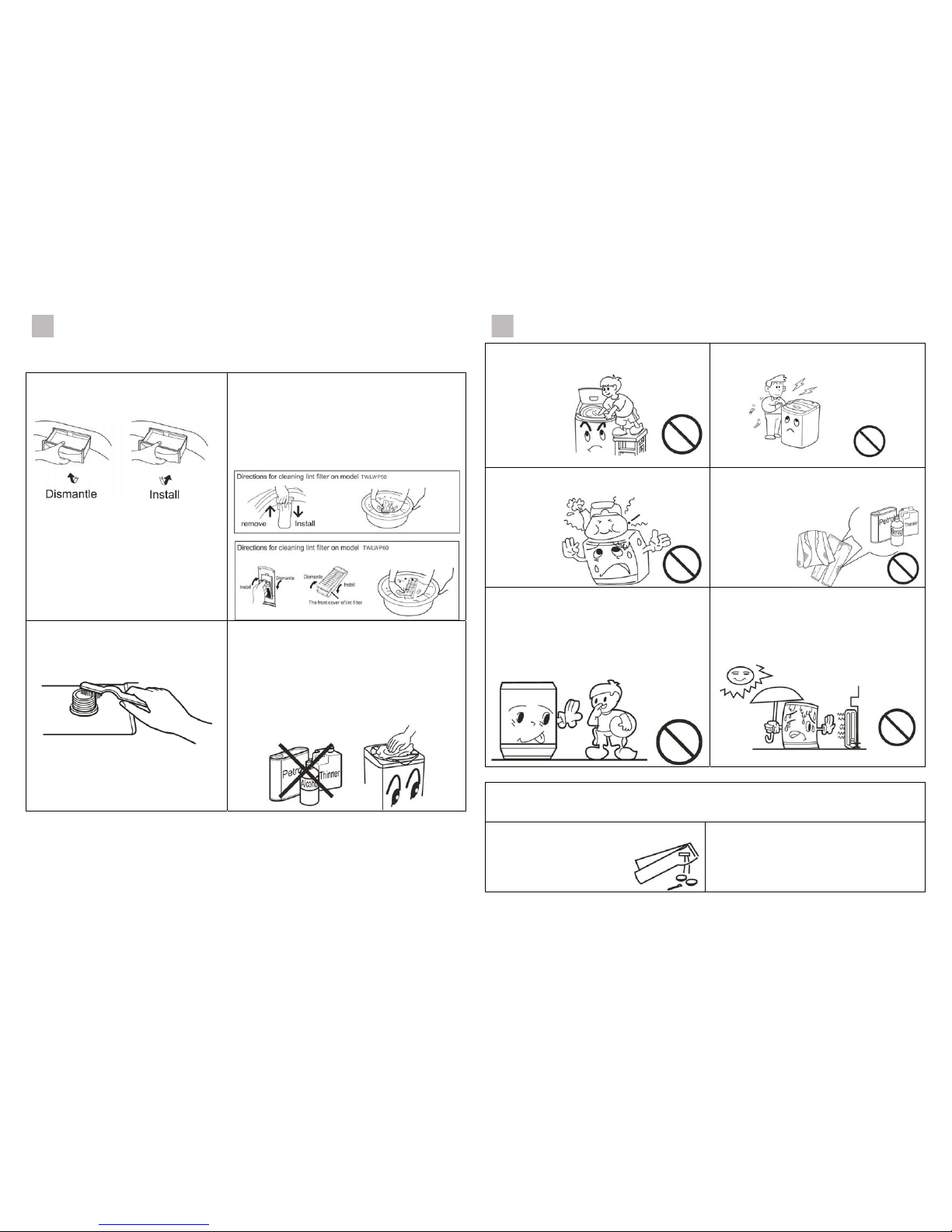

Maintenance

Remove the power plug before carrying out any cleaning or maintenance.

Clean the lint filter(s) and detergent box after each wash.

Remove and clean the detergent box,

replace after cleaning.

The lint filter must be used during

washing.

It must be cleaned after each use.

LINT FILTER:

1. Slide upwards to remove.

2. Gently push it down to install ensuring it

is in place before next wash.

The filter at the water inlet valve may

become blocked by impurities in the

water supply. Clean it with a plastic

bristled brush every two months.

If the cabinet is dirty, wipe it with a damp

cloth.

Do not wash directly with water.

Wipe with a neutral detergent (please

check directions on detergent bottle first).

Do not wipe machine with thinners, petrol,

alcohol or other harsh solvents.

1. After washing cycle has finished, turn off the water faucet. (If needed, you can remove the

water inlet hose).

2. Do not store water in the washing machine for a long period without completing a wash

cycle. Drain the water completely after each wash.

3. Hang up the power cord and drain hose

4. Wipe up any drops of water on the surface of the machine and inside the tub. Leave the

lid open for about 1 hour after each wash to evaporate any residual water.

Safety precautions

Do not attempt to move washing or place

hands inside washing machine while in

operation.

Please ensure

children are

supervised

around

machine to

avoid harm.

Do not take apart, repair or alter the machine

by yourself.

Do not leave hot or heavy items on lid or

control panel as this may cause damage to the

washer or

make the

washer

unsafe to

operate.

Do not wash laundry with chemicals or other

volatile materials (such as petrol, solvents or

thinners) as

this may cause

damage to the

machine.

This clothes washer is not intended for use by

children and persons with reduced physical,

sensory or mental capabilities, or lack of

experience and knowledge, unless they have

been given supervision or instruction

concerning use of the appliance by a person

responsible for their safety.

Keep washer away from heat sources such

as heaters, stoves or direct sunlight.

If the power cord or other parts of this machine become damaged or faulty, please contact a

technician to have it repaired. DO NOT attempt repairs yourself as this may cause personal

harm or void warranty.

Please remove items such as coins, buttons,

sand and other solid

materials from clothing

before washing.

Check that water faucets are open after

connection to machine, prior to operation and

that pipes are connected correctly.

Please use low suds / high efficiency washing

powder.

- 4 - - 13 -

Installation & Adjustment

Please install and adjust the machine according to the directions contained in this

manual. It is very important to follow these directions for the safe operation of the

machine, and to ensure your machine operates correctly.

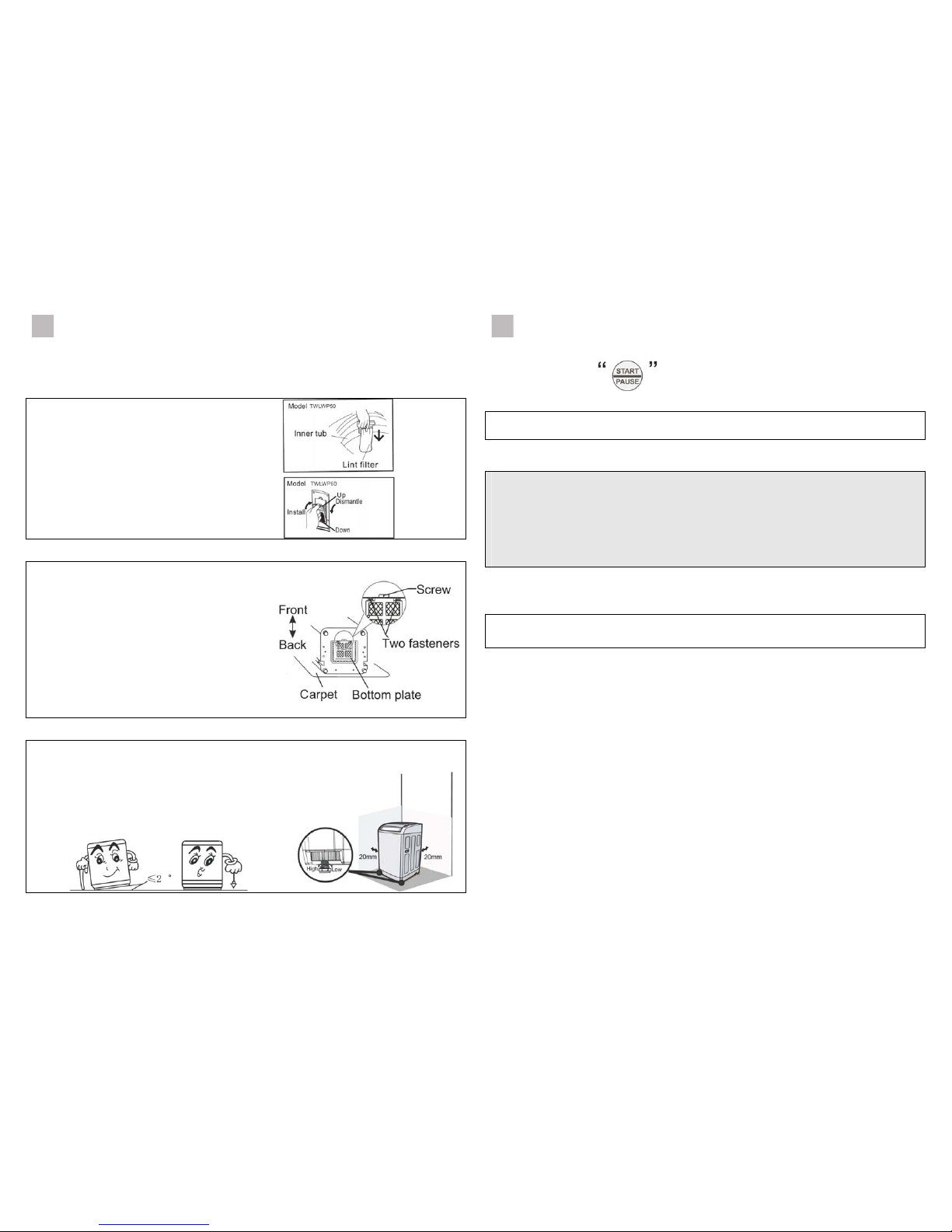

INSTALL THE LINT FILTER

After removing washer from outer packaging, take

out the lint filter from the document bag and install it

to the inner tub. See the figure opposite.

Please ensure the lint filter is installed correctly

and maintained in good condition to ensure the

water outlet is not blocked or the flow altered. If

the lint filter is lost or damaged, contact

Customer Care.

INSTALL THE BOTTOM PLATE

The purpose of the bottom plate is to suppress

noise from the washing machine during operation.

Steps:

1. Lay the washer on its back, on a non-abrasive

surface.

2. Place the plate on to the bottom of the

machine.

3. Use a screwdriver to tighten the screws (in

accessory bag) securing the panel to bottom of

the washer.

4. Once all screws are tight and the panel is

secure, return the washer to its standing

position.

BALANCE WASHING MACHINE

Do not install this machine on an incline greater than 2 degrees. Installing machine on an

angle or on rough ground will result in unstable running or stoppage of the machine. Please

adjust it by the following method:

1. Confirm it is level.

2. Lift up the side of the leg slightly and twist the

adjustable leg.

Note: The distance between the washing machine and

wall should be at least 20mm.

Operation & Wash Cycles

7 Press the button to start the cycle

If the top lid is opened while machine is in SPIN cycle, the machine will stop and

an audible alarm will sound.

NOTE

The energy test program was performed using the “Normal” cycle default

setting of:

Wash: Long

Rinse: 1 rinse

Spin: 7 mins

Water level: 10

Please use low suds / high efficiency detergent.

CYCLE COMPLETED

When the machine has completed the selected / current wash cycle an audible alarm

will sound and the machine will switch off automatically.

- 12 - - 5 -

Operation & Wash Cycles

3 Press the buttons to customise the pre-set options.

Even when there is no water in the tub, a certain period is required before

spinning.

Separate colour fast clothes before loading the washing machine.

During Rinse cycle, only SPIN times can be set. All other wash functions are

locked.

During Wool and Tub Dry cycles, the settings cannot be changed and buttons will

not function as machine will only follow pre-programmed settings.

4. Press the button to change the water level

For the “Synthetic” and “Memory” cycles the machine will run a FUZZY LOGIC

program that automatically detects the type of laundry in the tub. After detection it

will set the water level automatically.

The water level can only be changed once the machine has started by pushing

the “Start / Pause” button, then push the “Water Level” button to reset the water

level.

Press the “Start / Pause” button to resume the wash cycle.

5. Press the button to select the wash and rinse temperature

Set the wash and rinse temperatures in accordance with the requirements of each

load. The wash and rinse temperatures will be the same (ie. If “Warm / Cold” is

selected, both wash and rinse cycles will be warm / cold).

6. Press the button to select the delay wash program

The delay time program is automatically off, and wash cycles will start as soon as “Start /

Pause” button is pushed.

Confirm the operation of “Delay” program

To set a delay time, first select the Cycle and options required and push the “Delay” button.

The cycle indicator lights will go off and the “Delay (hours) indicator light will be on.

During the delay program, press the “Delay” button to display

the time remaining. The delay time indicator shows the time

remaining till the wash ends.

To cancel the delay program, switch the power off and back

on, then make a new selection.

Delay start (2-24hr) option.

Delay time is to the end of the washing cycle.

Installation of drainage hose

Install drainage hose

First connect the drainage hose to the connection point on the lower left side of

the cabinet, and fasten with drain hose hoop (provided).

Connect drain hose guide on to the outside of drainage hose. To guide the drain

hose over the tub or standpipe the hose guide MUST be fitted to the drain hose.

Placement of drainage hose

The height of the standpipe or tub should be between 850-1200mm. To avoid

siphoning, the drain hose should not extend more than 20mm from the end of the

guide.

Ensure drainage hose is held in place to avoid leaks or spills.

- 6 - - 11 -

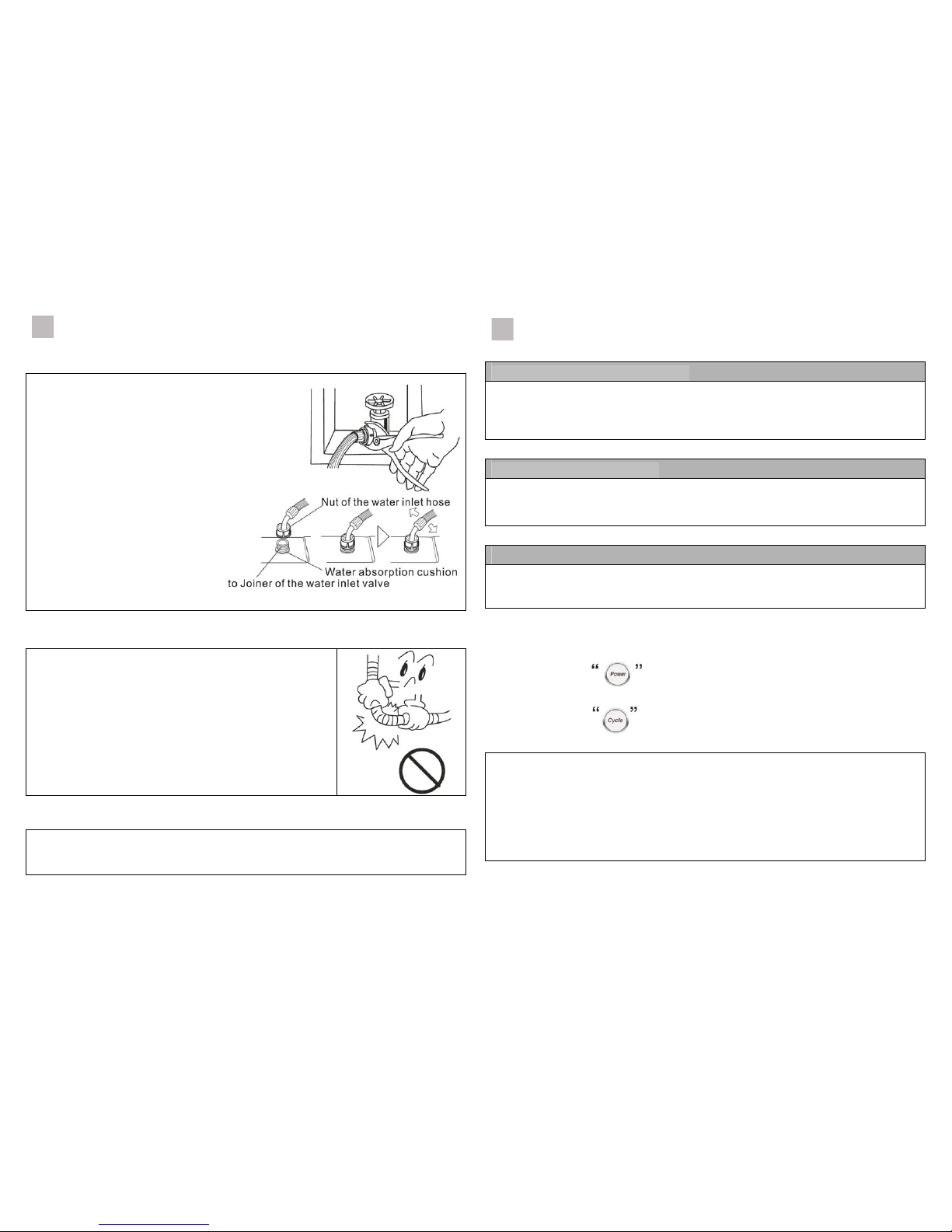

Installation of water inlet hoses

NOTE: Use the new inlet hoses supplied. Do not re-use old hoses.

1. Insert a new flat washer into each end of the

inlet hose.

2. Connect the water inlet hose to the water faucet.

You may have to use pliers to tighten the

coupling. Do not over tighten as this may cause

damage to the valve or hose fittings.

3. Connect the other ends to their respective cold

and hot water inlet valves

located on the top of the

washer.

4. Fasten each hose on the

washing machine and ensure a

tight connection.

Check the inlet hose connections

1. Swing the hose gently to confirm that the hose is

securely fastened.

2. After installation, open the tap to check for leaks.

3. Do not bend the hose unduly.

4. Periodically check the hose connections are firm at

both ends. This is to ensure the connections remain

watertight over time.

Removing the water inlet hoses

1. Turn off the water taps.

2. Loosen each connection at faucet and washer.

3. Carefully remove each hose separately, as they may contain residual water.

Operation & Wash Cycles

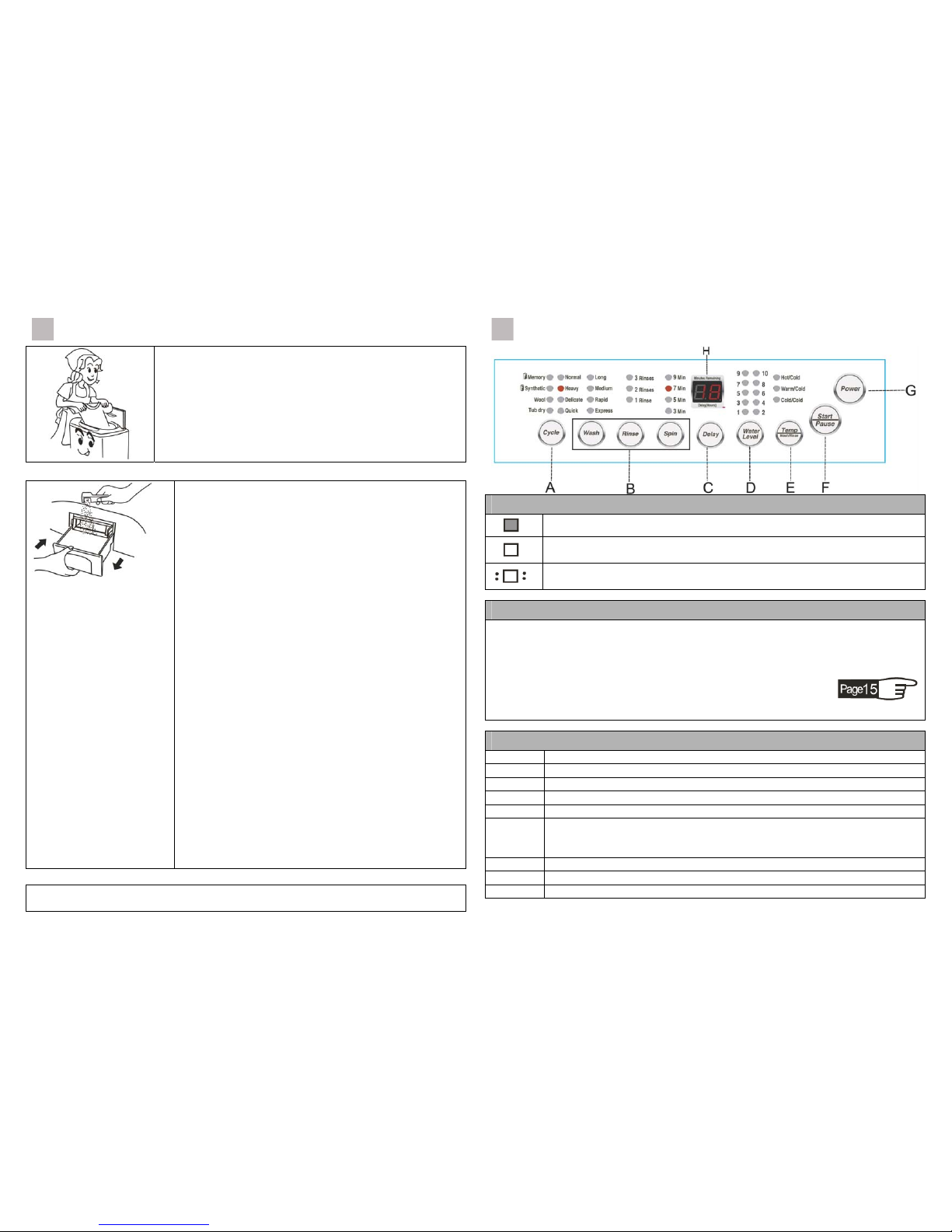

E “Temp (Wash/Rinse)” button

Press the “Temp (Wash/Rinse)” button to select your wash temperature.

During “Quick” cycle, the water temperature is preset. Temp button does not

work.

During wool cycle, the “hot / cold” water temperature cannot be chosen.

F “START/PAUSE” button

After the power is switched on press the “Start/Pause” button to start the machine.

During operation, push the Start/Pause button to pause the machine.

Push the Start/Pause button again to restart the machine.

G “POWER” button

To turn on/off the power, press the power button.

If the start pause button is not pushed within 5 minutes, the washing machine will

automatically switch off the power.

Button Operation and Descriptions

1. Press the button to switch power on/off

2. Press the button to select automatic program

When the power is switched on “Normal” cycle is automatically set. To select a

different automatic cycle, press the “Cycle” button till the corresponding indicator is

on. Refer to the section on the “Cycle” button above.

Eg choose “Quick” cycle for a small load of lightly soiled laundry. When the

“Synthetic” or “Memory” cycles are selected the Fuzzy Logic program is run. The

washing cycle is automatically set while the water level and wash time can be

selected according to the texture and size of the load.

- 10 - - 7 -

Operation & Wash Cycles

B “Wash” “Rinse” “Spin” buttons

You may change the Wash, Rinse and Spin times when Memory, Heavy, Normal

and Synthetic cycles are selected.

When the Wool cycle has been selected you cannot change the Wash, Rinse and

Spin times.

You cannot change the Wash, Rinse and Spin times when Tub dry and Quick

cycles are selected.

C “Delay” button

The display shows the time remaining (in minutes) before the cycle will finish.

Push the “Delay” button and the display will show the remaining time for the cycle

to finish (in hours). The indicator flashes to indicate that the delay function is

operating.

Delay start can be set for 2-24hr operation.

NOTE: The delay time is until the selected wash program finishes (you will need to

deduct wash time from this delay time to calculate when the wash will start).

D “Water Level” button

During the Memory and Synthetic programs the washing machine will detect the

size of the laundry and automatically select the water level between levels 4, 6, 8

or 10.

To change the water level, press the Start/Pause button and make your selection

by pressing the “Water Level” button until desired level is shown (1-10).

If there is water inside the tub and the machine cannot detect the laundry load, it

will display water level “6”. If wet laundry is put in the machine, it will display level

“3”. You can then manually adjust to the desired water level.

If Quick program is selected it will display water level “3”. You can then manually

adjust to the desired water level.

If Tub Dry program is selected the water level cannot be manually overridden.

During operation of the wash, or rinse program, you can adjust the water level by

pressing the Water Level button.

The water level may vary due to the different moisture level of the laundry items.

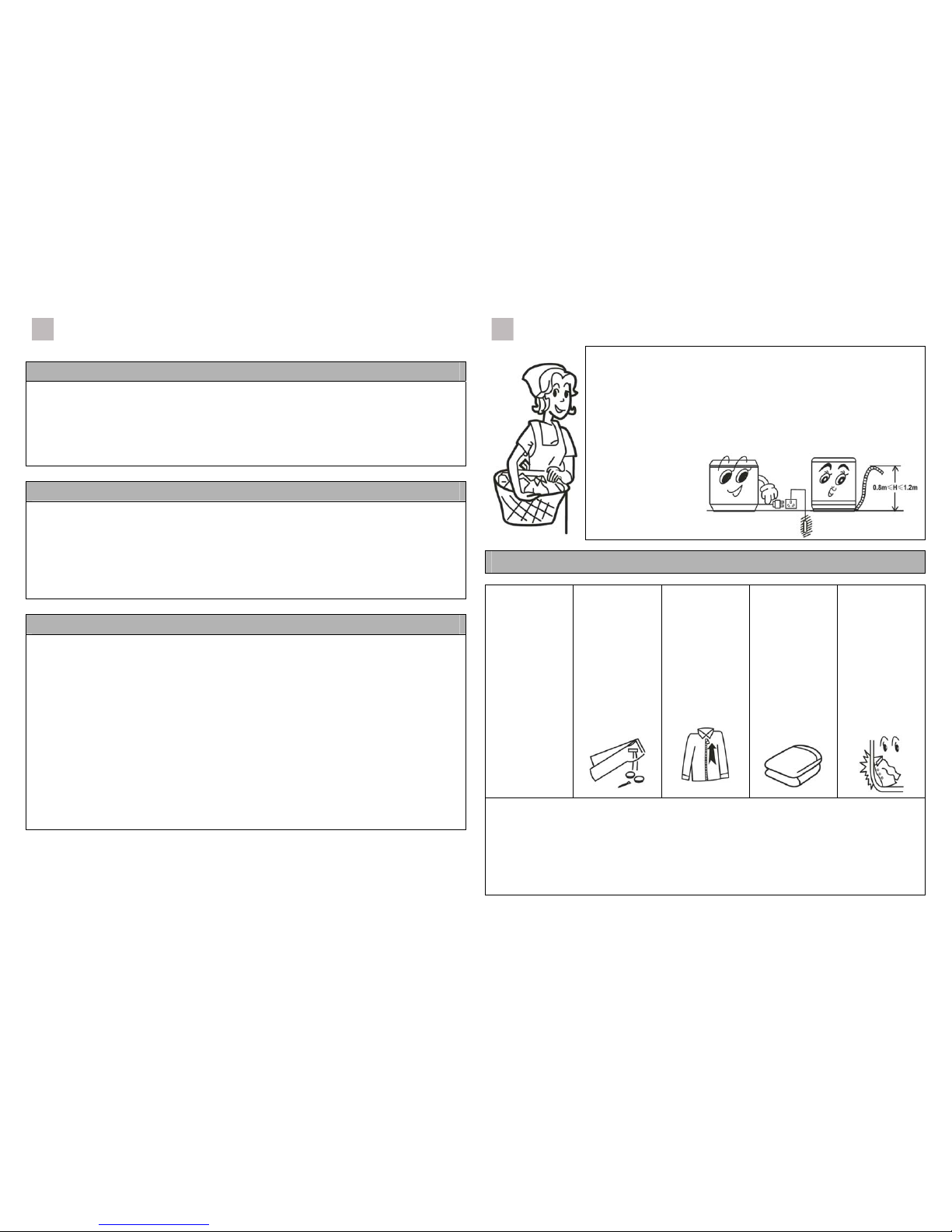

Before washing

Preparation

1. Ensure the water inlet hoses are correctly installed and faucets are

turned on.

2. Insert the power plug into the electrical socket.

3. Ensure the drain hose is mounted at the correct height.

4. Select a suitable location for the washer on a hard, even surface,

away from direct sunlight or heat sources, eg radiators / heaters,

cooking appliances etc.

5. Any floor

unevenness may

result in unstable

working or

abnormal noise.

Please ensure the

machine is level.

Check the following before washing

Check if the

laundry has any

special washing

instructions

Clear the

pockets, and

take out loose

items such as

coins, sand,

hairpins etc.

Tie any long

straps or strings,

fasten buttons

and close

zippers.

The weight of

the laundry shall

not exceed the

rated capacity of

your machine.

Loosen the

laundry before

placing it evenly

in the tub.

When the

machine is

running, buttons

may cause

noise. To

reduce the

noise, turn

clothes inside

out or place

them in a

laundry bag.

a) Check if the laundry is suitable for machine washing.

b) Divide the laundry into colour fast and non-colour fast items.

c) Separate items that do not absorb water easily and was by hand.

d) For heavily soiled items, please first remove loose dirt, then apply detergent directly (as

per instructions on pack) to the stain before washing.

e) For those items that may attract lint or are furry or fluffy, please turn inside out before

washing.

f) Do not put laundry soiled with chemicals or solvents into the washing machine.

- 8 - - 9 -

Loading your laundry

The rated washing capacity refers to the largest dry

weight of a load that can be washed.

The thickness, size and type of clothes will influence the

actual capacity.

Do not select more than Water Level “4” for clothes less

than 1.0kg, to avoid splashing of water.

It is recommended that low suds / high efficiency

washing powder is used.

Detergent Usage Guide

How to use bleach /

whitener

Always refer to the

bleach / whitener

instructions prior to

usage.

Fill with water to

desired level.

Dilute the bleach /

whitener in a container.

Pour it slowly into the

washing tub.

Avoid using whitener on

laundry with colour or

patterns as they are

prone to losing colour.

The bleach / whitener

should NOT be applied

directly to laundry.

Adding washing powder

It is suggested to dissolve detergent before adding to the

tub, see as below:

1. Prepare warm water (<35oC) in a container.

2. Add washing powder, stirring to dissolve it completely

Adding washing powder Fuzzy Logic programs

Add washing powder / liquid into the detergent box directly

for “Fuzzy logic” programs and “Delay” program.

Adding washing powder Normal Wash.

It is recommended that washing powder/liquid is dissolved

with water and then emptied directly into the washing

machine:

1. Add some water (select the “1” water level).

2. Add washing powder / liquid. Run for about

30 seconds to fully dissolve the detergent. Then

push the “Start / Pause” button to pause the wash

cycle.

3. Load laundry. Select suitable water level. Push the

“Start / Pause” button again to recommence washing

cycle.

If you select “Quick” program, it is recommended to use

liquid detergent instead of washing powder to ensure the

most effective wash results.

Old or poor quality washing powder may cause caking in

the tub or detergent dispenser.

Clean the detergent box periodically to ensure washing

power is evenly distributed and remove any detergent

build up.

Note: For best wash performance, use low suds / high

efficiency washing powder and dissolve the detergent in <1L

warm water prior to mixing with laundry.

CLOSE THE LID

If you open the lid during spin cycle the machine will stop and an audible alarm will

sound.

Operation and Wash Cycles

Indicator display H

Off

On: Indicates the program is about to run and indicates the selected

cycle and options.

Flashing: Indicates the program is running and indicates the selected

cycle and options.

Remaining time display H

Displays “-“ during Fuzzy Logic detection cycle until level is determined.

Displays total time remaining during current, in progress wash cycle.

Displays remaining time when the “Delay” program is used

(hours).

Displays error codes (see page 15).

A “Cycle” button

Program Recommend

Normal Recommended for mixed fabrics and general clothing items.

Heavy Items that are soiled or items that are heavy / big.

Delicate Delicate items that are machine washable.

Quick Lightly soiled or small laundry loads less than 1.5kg

Memory This cycle setting remembers the last wash, rinse and spin settings

(Water level will not be remembered as it is determined by fuzzy logic

function).

Synthetic Ideal for synthetic fabrics

Wool Machine washable woollen items

Tub dry Dries the inner and outer tub to avoid the growth of mildew.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Aspira Rondella

Aspira

Aspira TWLWF70 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
