ASROCK IBOX-220 Manuale utente

Inside View

Front View

Rear View

iBOX-220

Quick Installation

Guide

P/N: 15G06M034000AK V1.0

Front Panel

Rear Panel

SO-DIMM socket

M/B

mini-SATA slot

mini-PCIe slot

2 x USB 2.0 Ports2 x COM Ports

HDD LED

Power LEDOn-/oﬀ Switch

DC IN2 x LAN RJ-45 PortsLine out

Kenshington Lock

Antenna Port Microphone Antenna Port

HDMI

VGA 2 x USB 3.0 Ports

*15G06M034000AK*

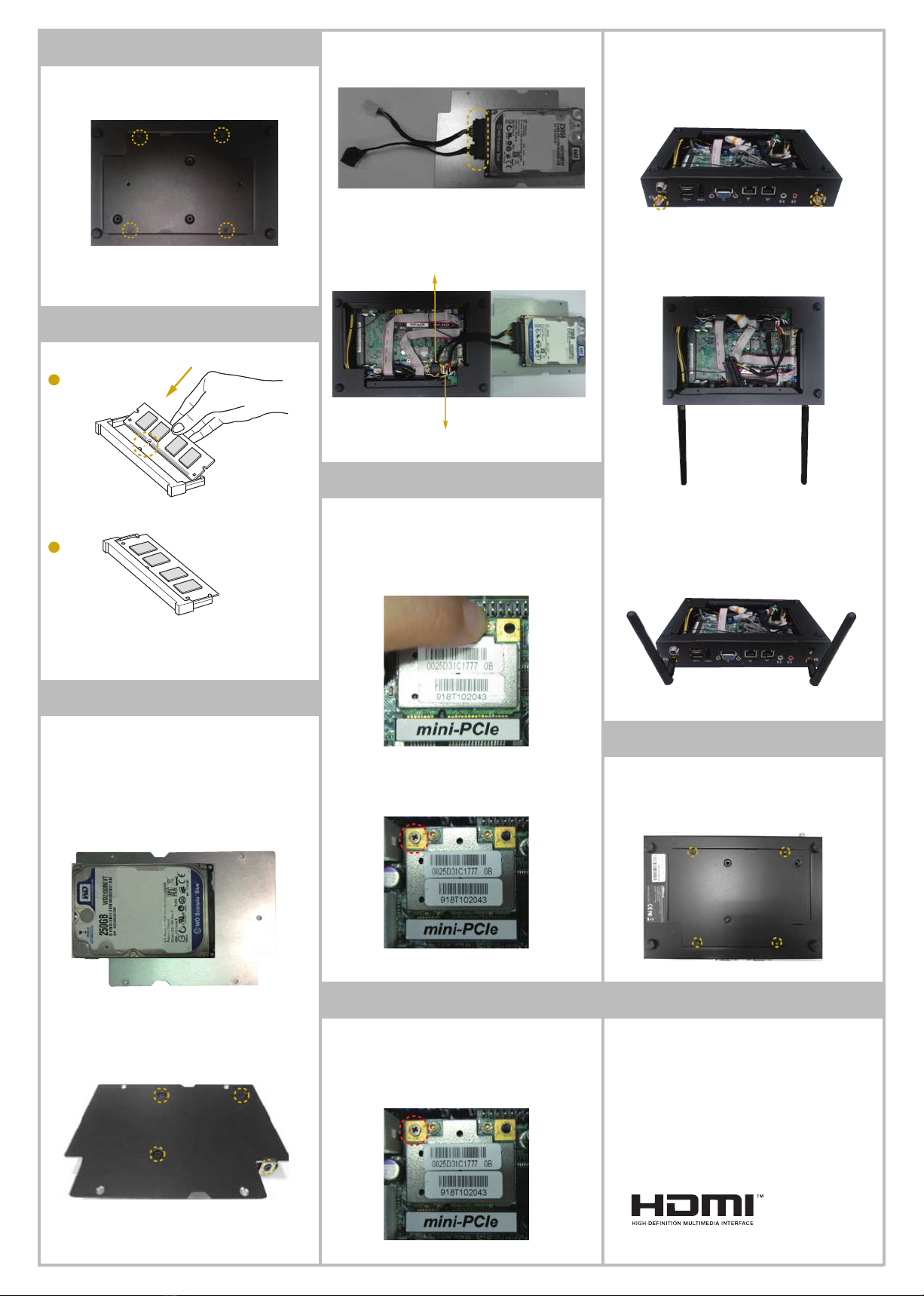

1. Removing the Bottom Cover

6. Replacing the Bottom Cover

2. Installing the SO-DIMM

3. Installing the Hard Drive

4. Installing the WiFi module

Note

1. Remove the four screws on the boom case.

2. Li up and remove the top cover.

3. Aach one end of the SATA 1 to 1 Power Cable

to the hard drive.

4. Aach the SATA data cable and power cable

to the motherboard.

1. Aach the HDD onto the boom cover with

the printed circuit board side facing down.

Carefully align the mounting holes in the hard

drive and the boom cover.

2. Secure the hard drive into the place using the

four screws.

2. Insert the RP-SMA Wi-Fi Antenna Connectors

to the antenna ports on the rear panel.

en fasten the screw nuts to secure the antenna

connectors.

2. Connect the two WiFi 2.4/5 GHz Antennas to

the antenna connectors. Turn the antenna

clockwise until it is securely connected.

3. Set the WiFi 2.4/5 GHz Antenna at 90-degree

angle.

*You may need to adjust the direction of the

antenna for a stronger signal.

1. Replace the top cover.

2. Secure the four screws at the boom.

For more details on the hardware installation,

please refer to the User Manual in the support CD.

*is step is optional.

5. Installing the WiFi antennas

*is step is optional.

1. Insert the WiFi Module Card into the mini

PCI Express slot (MINI_PCIE1).

2. Tighten the screw that holds the card in place.

1 Aach the SMA Wi-Fi Antenna Cables to the

WiFi Module.

SATAII_1

SATA Power Output Connector

e terms HDMI™ and HDMI High-Denition

Multimedia Interface, and the HDMI logo are

trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other

countries.
