iBOX-420-DL
iBOX-345-DL
User Manual
Version 1.0
Published March 2021
Important Safety Instructions
Pay close attention to the following safety instructions before performing any of
the operation. Basic safety precautions should be followed to protect yourself from
harm and the product from damage:
• Operation of the product should be carried out by suitably trained, qualied, and
certied personnel only to avoid risk of injury from electrical shock or energy hazard.
• Disconnect the power cord from the wall outlet when installing or removing main
system components, such as the motherboard and power supply unit.
• Place the system on a stable and at surface.
• Use extreme caution when working with high-voltage components.
• When handling parts, use a grounded wrist strap designed to prevent static discharge.
• Keep the area around the system clean and clutter-free.
• Keep all components and printed circuit boards (PCBs) in their antistatic bags when
not in use.
• Handle a board by its edges only; do not touch its components, peripheral chips,
memory modules or contacts.
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Product Specications 2
Chapter 2 Product Overview 4
2.1 Front View 4
2.2 Rear View 5
2.3 Inside View 6
Chapter 3 Hardware Installation 7
3.1 How to Remove the Bottom Case 7
3.2 How to Install the WiFi Module (Optional) 8
3.3 How to Install the mSATA SSD 9
3.4 How to Install the 2.5-inch Hard Drive 10
3.5 How to Install the Memory Modules
(DDR3 Low Voltage (1.35V)) 12
3.6 How to Install the VESA Bracket 13
3.7 Positions of the iBOX-420-DL / iBOX-345-DL 14
Chapter 4 Motherboard 15
4.1 Motherboard Layout 15
4.2 Motherboard Specications 16
4.3 Jumpers Setup 18
4.4 Onboard Headers and Connectors 19
4.5 Expansion Slots (M.2 Sockets) 21
Chapter 5 UEFI SETUP UTILITY 22
5.1 Introduction 22
5.1.1 UEFI Menu Bar 22
5.1.2 Navigation Keys 23
5.2 Main Screen 24
5.3 Advanced Screen 25
5.3.1 CPU Conguration 26
5.3.2 Chipset Conguration 28
5.3.3 Storage Conguration 30
5.3.4 Super IO Conguration 31
5.3.5 ACPI Conguration 32
5.3.6 Trusted Computing 33
5.4 Hardware Health Event Monitoring Screen 34
5.5 Security Screen 35
5.6 Boot Screen 36
5.7 Exit Screen 38
Chapter 6 Software Support 39
6.1 Install Operating System 39
6.2 Support CD Information 39
iBOX-420-DL / iBOX-345-DL
PB 1
English
Chapter 1 Introduction
1.1 Package Contents
• iBOX-420-DL / iBOX-345-DL Barebone System with:
iBOX-420-DL / iBOX-345-DL Chassis
Motherboard (pre-installed)
*e barebone system does not include memory, hard drive and mSATA SSD.
• Power Adapter (36W/12V) & Power Plug
• SATA Data and Power Cable
• mSATA Screw
• VESA Mount Bracket & Screw Package
• Support CD
• Quick Installation Guide
Because the hardware specications might be updated, the content of this documentation
will be subject to change without notice.
If any items are missing or appear damaged, contact your authorized dealer.
2 3
English
1.2 Product Specications
iBOX-420-DL
iBOX-345-DL Barebone
CPU Intel® Apollo Lake N4200/N3350/J3455 Processor
OS N/A
Chipset Intel® N4200/N3350/J3455 SoC
Memory Supports DDR3L, 2 x SO-DIMM slots, Max. 8GB
HDD
N/A
Optional
Supports 1 x 2.5" SATA HDD*
LAN Gigabit LAN
WiFi Optional
Front I/O 1 x USB 3.0, 1 x Audio-out with MIC-In
Rear I/O 1 x HDMI, 2 x DP, 2 x USB 3.0, 2 x LAN, 1 x Kensington lock
Power Unit 36W/12V Adapter
Dimension 135mm (W) x 44.5mm (H) x 110mm (D)
VESA Bracket included , supports 75 x 75 and 100 x 100 mm
eMMC
mSATA
slot
2.5”HDD
iBOX-420-DL / iBOX-345-DL
2 3
English
* For iBOX-420-DL/iBOX-345-DL, it is not recommended to install 2.5” HDD. If you install the 2.5” HDD, please
keep the iBOX-420-DL/iBOX-345-DL in a vertical position to ensure better cooling performance.
Volume
(Liters) 0.6L
Operating
Temperature 0°C~50°C
4 5
English
Chapter 2 Product Overview
is chapter provides diagrams showing the location of important components of
the iBOX-420-DL/iBOX-345-DL.
2.1 Front View
No. Description
1Headphone & Microphone
2 USB 3.0 (Type A)
12
iBOX-420-DL / iBOX-345-DL
4 5
English

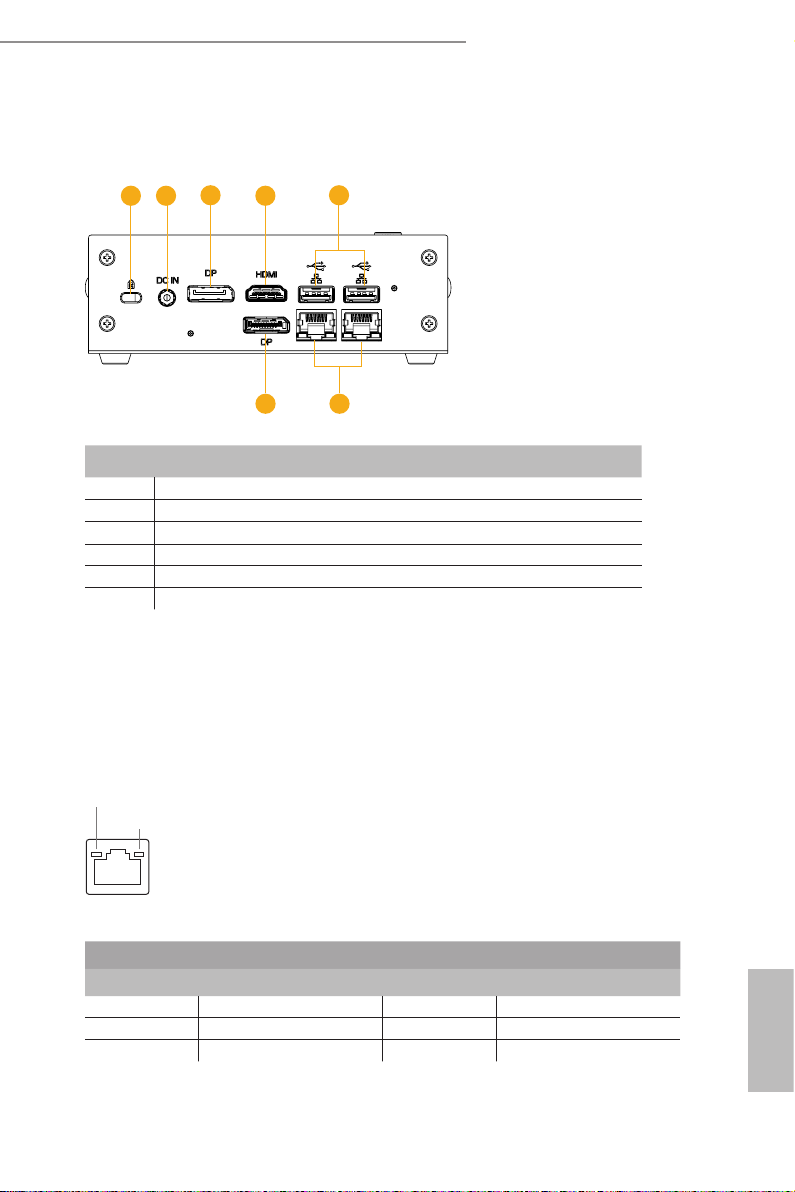

2.2 Rear View
No. Description
1 Kensington Lock Slot
2DC-In
3*DisplayPort
4HDMI
5 USB 3.0 (Type A)
6RJ-45
*To use DisplayPort as a display output, please connect your monitor/display to
HDMI Port when installing OS system.
is DisplayPort only supports DP to D-Sub dongle and does not support DP to
HDMI dongle and DP to DVI dongle.
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2 345
63
6 PB
English

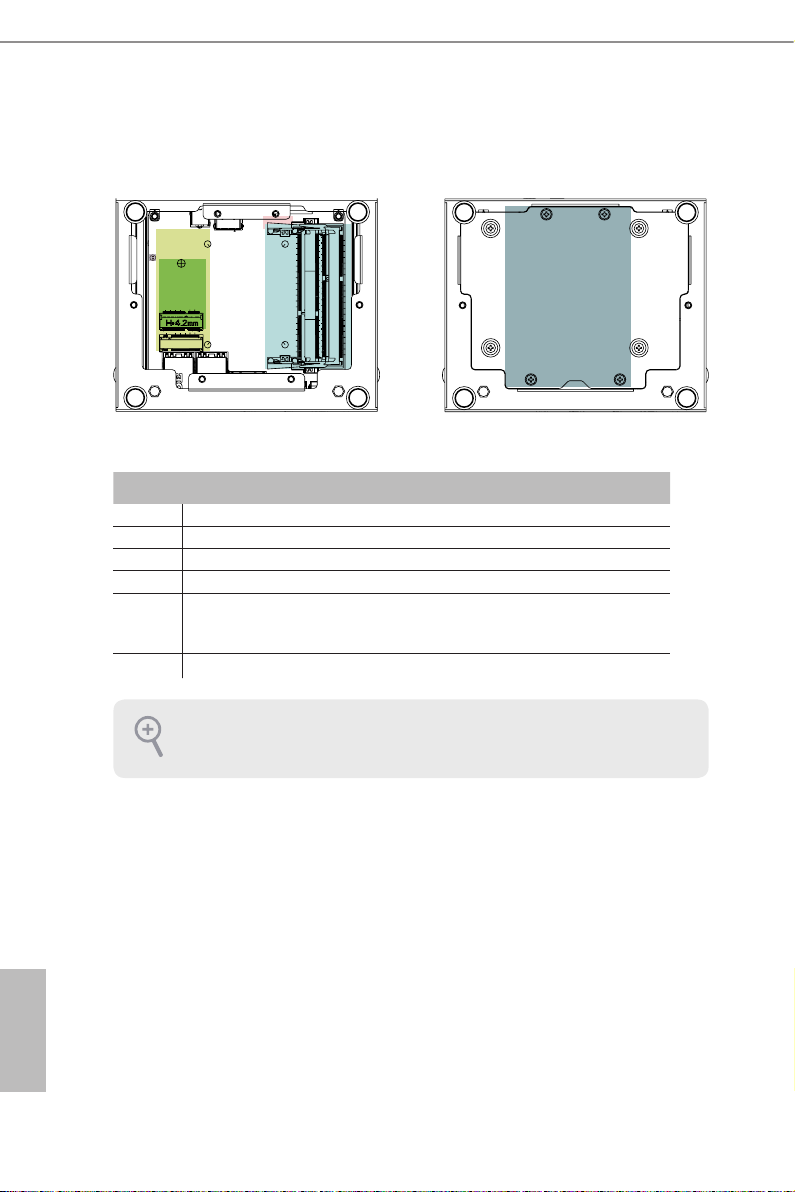

2.3 Inside View
No. Description
1 WiFi Module Slot
2mSATA Slot
3SO-DIMM Slots
4 SATA 3.0 Connector
5 Clear CMOS Pad
*Clear CMOS Pad allows you to clear the data in CMOS. To clear CMOS, disconnect the
power supply and short the Clear CMOS Pad.
6 Hard disk drive tray (compatible with 2.5" SATA HDD)
SO-DIMM memory, hard drive and mSATA SSD are not included with this system.
2
1
5
3
4
6
