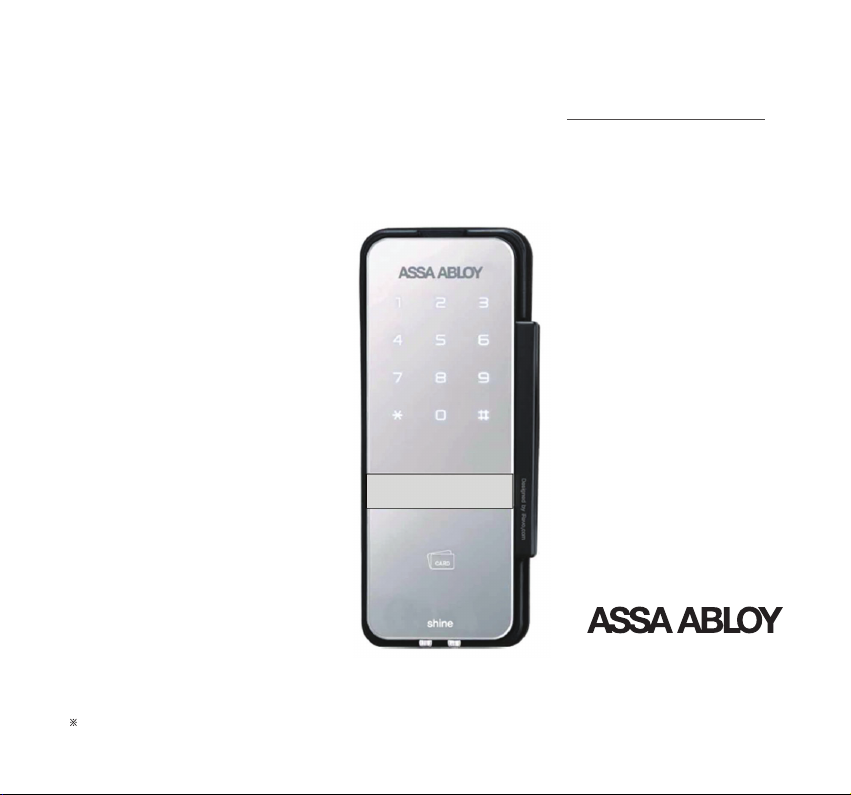

Assa Abloy shine Manuale utente
User Guide
SHINE
The functions and design of this product can be changed without
prior notice for quality improvement.
2
x
x
Dry
Cloth
Do not attempt to
disassemble the unit
by yourself. That can
cause an electronic shock
and product damage.
Do not install the product in
the outdoor environment.
Be careful not to let any
unauthorized users discover
your PIN Code.
Please keep your PIN Code safe.
Make sure the door is securely
locked whenever you leave
your house, especially in the
manual lock mode.
Do not force with a tool.
Keep foreign materials away
from the Card Key Sensor to
maintain it cleanly and do not
use it with wet ngers.
If the sheet is already papered,
the product's adhesive strength
lessens Please remove the sheet
completely before installing.
When a double-opening door
l
ock is installed, one of the doors
must be closed.
Do not spray water directly to
the product or wipe it with
chemical substances such as
benzene, thinner, or alcohol
when cleanig the product.
Safety Feature
3
Product Features
Safety Mode
Safety Mode can be used for professional and high secure
management.
Magic Mirror
A magic Mirror function is applied, which the keypad number appears on the
Mirror as soon as a user touches the product. The user can chech the rear
through the Magic Mirror, so that security can be enhanced.
Safe Thumb-turn
Only if a user pushes the two safe buttons simultaneously axed to the thumb-turn
knob, the user can turn the thumb-turn knob. Its security is improved compared to
normal knob.
Modern & Thin design
It is the Solid and thin design using digital keypad on a solid base.
High Temperature Alarm
When there’s re, it detects the temperature of the inside.
It not only goes o an alarm but also releases the lock status automatically.
4
The durability depends on the battery life and the frequency of use.
The color of the product may change if it is under the direct light for a long time, and it is not a defect.
Optional Accessory (purchase separately)
Specications
Remote Control
Remote Control Module
Parts
Front Body 14(D) x 72.8(W) x 186(H)
48.8(D) x 77.5(W) x 190.5(H)
4EA 1.5 AA alkaline batteries
(Operating voltage: 4.5 ~ 6V)
Operating temperature :
Last up to 1 year
(10 times used a day)
Back Body
Battery
Specications Remarks
Basic Contents
Magnet for
a single door
Extension
type deadbolt
10mm door
thickness gasket
Front Body Back Body
Screws
Card Keys (4EA)
User Guide
Installation Template
Components Overview
5
Specications
Front Body Back Body
Keypad
Lowbatt.
Card key
Reader
Emergency Power
Supply Terminal
Battery
Cover
Slot for Remote
Control module
(optional extra)
Manual
Thumb Turn
Safe Knob
Open/Close
Button
Registration
button
Dead Bolt
6
Registering User PIN Code
Registering Card Keys
Open Door with User PIN Code
Open Door with Card key
To Use Card Key
Contact Card Key.
To Use User PIN Code
Caution
How to Use
Press
(Registration) button
Press
(Registration) button
Enter User PIN Code
(4 to 12 digits)
Press
(Registration) button
Press
(Registration) button
Contact all the keys
you wish to register
on one by one
User PIN Code should be set Within 4 to 12 digits. [ ] and [ ] are not allowed.
Touch with palm
Enter User PIN Code
(4 to 12 digits)
Touch with palm or
Press button to end
Keep the door open while you register Card Key to prevent yourself from accidentally getting locked out.
The previously registered Card Key will automatically be deleted when the new Card Key is registered.
Please use the only provided RF Cards in the package for security.
7
To Close Door from Outside
To Close Door from Inside
Lock Door
Step Icon Description
Step Icon Description
Auto Lock status
Touch the keypad in the front body gently with your
palm to lock a door.
Manual Lock status
- Please check the deadbolt as it turns to standby mode and stop when closing a door.
- If the door is twisted, the auto-lock feature will not function properly. Please check before use.
The built-in Auto Lock sensor automatically locks
a door within 5 seconds after closing the door.
Turn the manual thumb turn to
unlock pressing buttons together.
Press open / Close button.
The built-in Auto Lock sensor automatically locks
a door within 5 seconds after closing the door.
(If an auto-lock magnetic is not installed, you cannot
enable the auto-lock feature.)
Manual Lock status
(The default setting)
Auto Lock status
How to Use
8
Set
Release

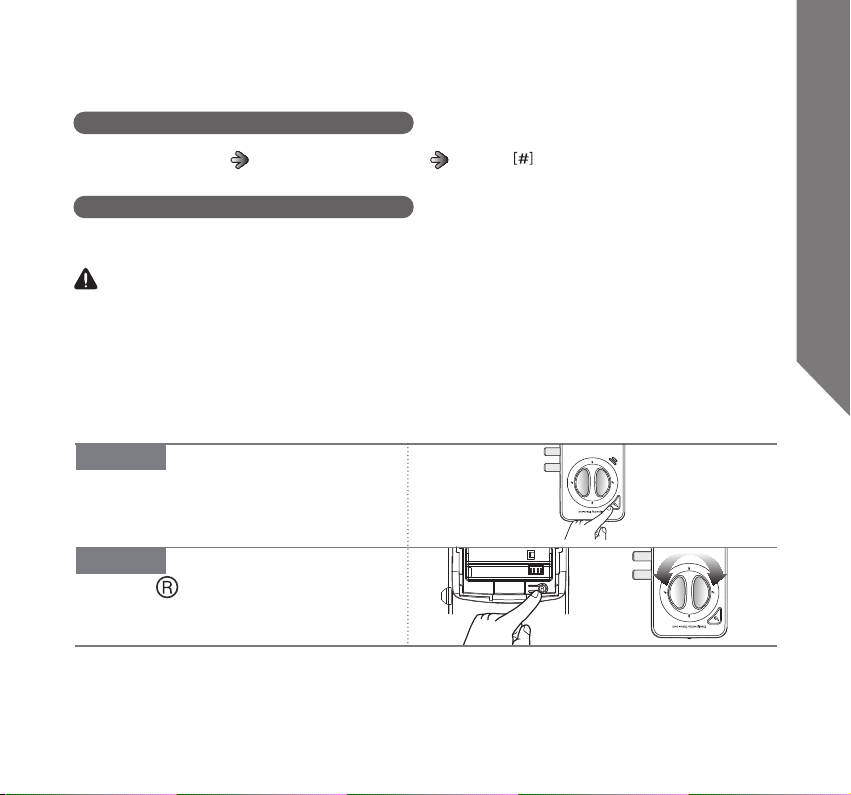

Outside Forced Lock Setting - PIN Code
Forced Lock
Inside Forced Lock Setting
Outside Forced Lock Setting - Card Key
- If compulsory external lock is setup, the door open/close button will not function.
The alarm will go o if one tries to open the door through the manual opening/closing unit.
- To open the door with the manual opening/closing unit under compulsory external lock setting,
one must completely turn the knob within one second. Or else, the door will lock itself again.
Set
Press the Registration button or,
Turn the manual thumb turn to pressing
buttons together.
Release
Press the Open / Close button
for 5 seconds.
Touch with palm
Enter User PIN Code
Enter button
for 3 sconds
Contact Card Key for 3 seconds until you hear 3 beeps.
How to Use
9
To Set Auto Locking Mode
To Set Manual Locking Mode * The default setting
Auto / Manual Locking Mode
Auto lock setting locks a door in 5 second after the door was closed.
Even after a door was locked by the Auto Lock function, please check again
if the door was completely locked.
Press (Registration)
button
Press (Registration)
button
Enter
button
Enter number and
on the keypad
Be careful not to leave the door open at manual lock mode.
MUTE
* The default setting : High
Volume Setting Feature
It enables you adjust the sound volume.
LOW
HIGH
,
,
,
How to Use
Press (Registration)
button
Press (Registration)
button
Enter
button
Enter number and
on the keypad
Press (Registration)
button
Press (Registration)
button
Enter
button
10
Open / Close Button Setting Feature
It enable you set the Open / Close button .
* The on/o of the function changes every time one sets the setting.
* When the system is set to o, the open/close button does not function.
Press
(Registration) button
Press
(Registration) button
Enter button Enter number and
on the keypad
How to Use
