Installation instructions
ASSA Entré d12-K1
Accessory kit ASSA Entrance d12-B1,
d12-B2, d12-B3, d12-S1
A
S
S
A
d
1
2
c
y
l
i
n
d
e
r
R
e
s
t
r
i
c
t
e
d
”
d
o
n
o
t
d
u
p
l
i
c
a
t
e
”
k
e
y
2
All parts
Cylinder ring Knob protection
Knob square pin Stop washers Handle Handle square pin
Handle screw O-ring Barrel nut Drill
Lock case Pillar asym striking plate Screw to lock
case and security
striking plate
Screw for inclined installation
of security striking plate
Cylinder Cylinder extender High strength screw
Cylinder plug Cylinder sleeve
Check that your package
contains all parts using the
color codes.
Entrance d12-K1
Entrance d12-B1, B2, B3
Entrance d12-S1
3
Installation
1
2
1
2

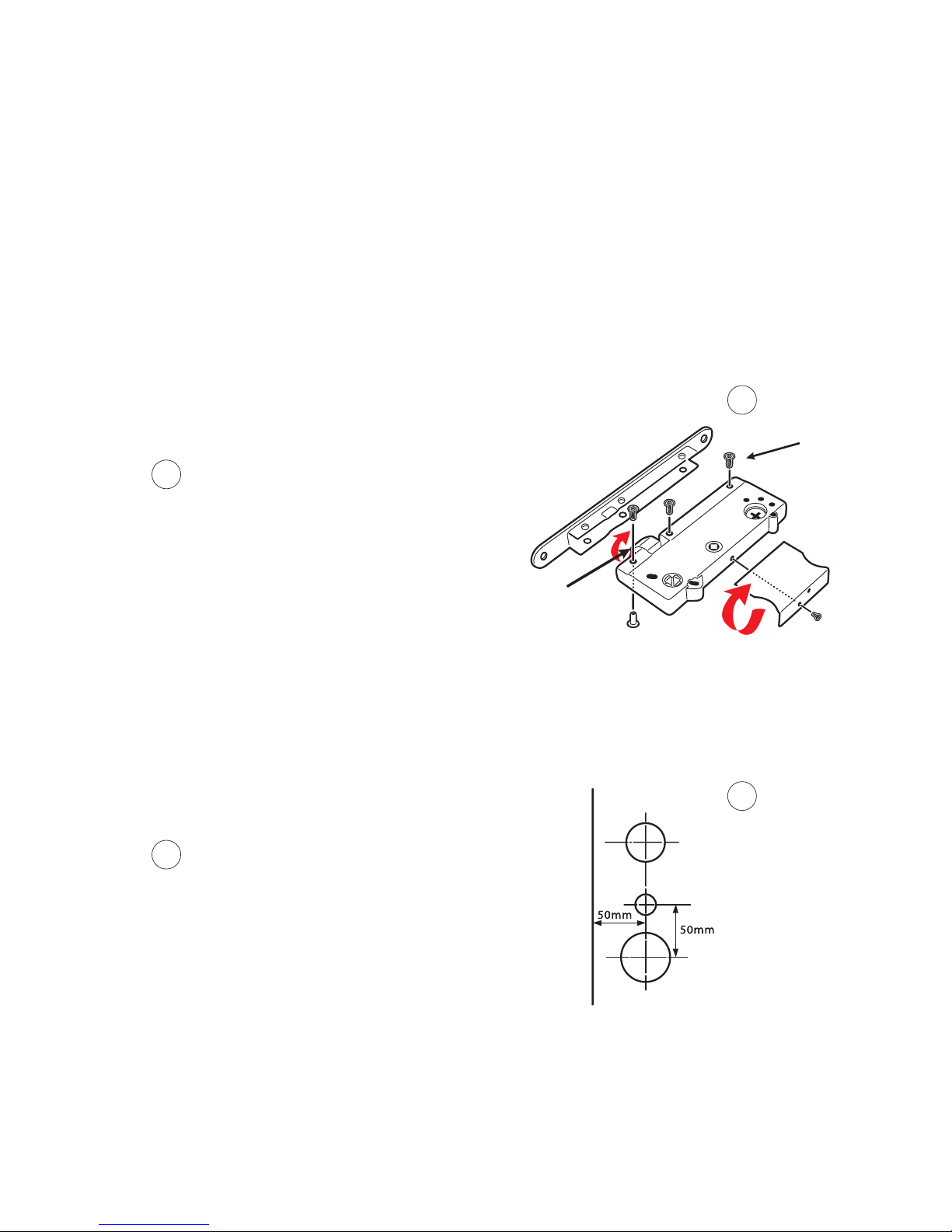

To turn the lock from right to left and vice
versa, loosen the three screws (A) and
pull out the cases (B) and turn. Then press
the cases in and tighten the screws. If you
make this change the lock shield (C) must
also be turned 180°.
Doors manufactured before 1980 usually
have an asymmetrical opening; switch to
accompanying lock pillar.
Add a ø 24 mm extra hole to the opening
inside the door, see drilling template in
the box. Insert and screw in the lock case.
A
C
B
For accessory kit ASSA Entrance d12-S1, skip diagrams 2, 9, and 10.
If you do not have openings in the door for the lock case or striking plate, use the extra
installation instructions in the package.
4
4
5
6
Remove the cylinder sleeve on the inside
cylinder by pushing in the locking pin.
Note that the cylinder sleeve on the
outside cylinder must be fitted during
assembly.
Doors where the B and/or C dimension
exceeds 27 mm must be supplemented
with a 10 mm cylinder extender, at 37
mm with two cylinder extenders, etc.
Attach the cylinders from the inside
with the enclosed four screws.
4
5
6
3
3Check that arrows in the lock case point
downwards on both sides.
Point
downwards
5
7Block the screws with cylinder plugs. Turn the
key first to “ten o’clock” and push a plug into
the opening between the screws on the right
side of the cylinder. Then turn the key to the
“two o’clock” to mount the plug on the left
side. This is done to prevent removal of the
lock by someone who is unauthorized.
7
Slide on and snap in place the inside
cylinder sleeve.
8
9
10
Place the square peg for the knob in the
appropriate place and fasten it between
the lock case and handle plate with plastic
stop washers. Make sure the stop washers
do not jam in the hole. For extremely
thin or thick doors it may be necessary
to saw the square peg or replace it with a
longer one.
Put handle plate in place with the thumb
turn knob positioned vertically.
8
9
10
6
12
13
Slide the o-rings on the handle screws.
Install the door handle with the through-
handle screws from the inside of the door.
Install the barrel nuts from the outside. If
necessary, tighten the screws so that the
door handle hangs loosely and does not
rub against the door.
If the door is in poor condition or if
the insurance company has specific
requirements for approved lock units,
you can supplement with door
reinforcement accessory ASSA 4292 *
(green) and cover plate 4291* and
knob plate 4294*.
* Not included in the package.
12
13
11 Slide the cylinder rings on the outside
and the inside and secure with the screw
on the bottom of the cylinder ring.
11
7
A restricted “do not duplicate” key means that as owner and holder of the blue
code token, you are the only one who can have extra keys made. The purpose of
restricted keys is to give you control over your keys.
The front door lock must be safe, secure and convenient, and with the restric-
ted key, we have made the lock even better.
The blue code token should be considered and treated as a valuable
document.
Registration of ownership certificate
You can register the ownership certificate for your ASSA d12 cylinder and
key online at ASSA’s website www.assa.se. You can use the ownership cer-
tificate to have extra keys and cylinders made at a licensed ASSA service station
even if you lose the blue code token.
To register your ownership certificate you will need the 7-digit code from the
blue code token and a 3-digit security code that is enclosed in the package.
The keys to the d12 high-security cylinder are legally protected against illegal
copying under Swedish law. Contact a licensed ASSA service station if you need
additional keys or cylinders. You can find your nearest licensed ASSA service
station at www.assa.se.
• If you want your key to fit all doors in the
house (storage room, garage, etc.), you can
order extra cylinders and use the same key for
all locks. Use the code token in the same way
as when you order keys.
• If you are sure you do not need any additional
keys or cylinders, you can cut up and destroy
the blue code token. You will then be certain
that no new keys can be made.
• Test the key in the cylinder before installing
the lock.
Restricted “do not duplicate” key
Tips and advice
Care
Clean cylinders once or twice a year using ASSA cleaner and lube with ASSA
lock spray for optimum performance and long life. Never use oil, grease or
graphite.
8
ASSA ABLOY, the global
leader in door opening
solutions, dedicated
to satisfying end-user
needs for security, safety
and convenience.
ASSA AB
P.O. Box 371
SE-631 05 Eskilstuna
Sweden
phone +46 (0)16 17 70 00
fax +46 (0)16 17 70 49
Customer support:
phone intl. +46 16 17 71 00
phone nat. 0771 640 640
fax +46 (0)16 17 73 72
e-mail: helpdesk@assa.se
www.assa.se
M3124.1509
