Assa Abloy RIXSON FM9930 Manuale utente

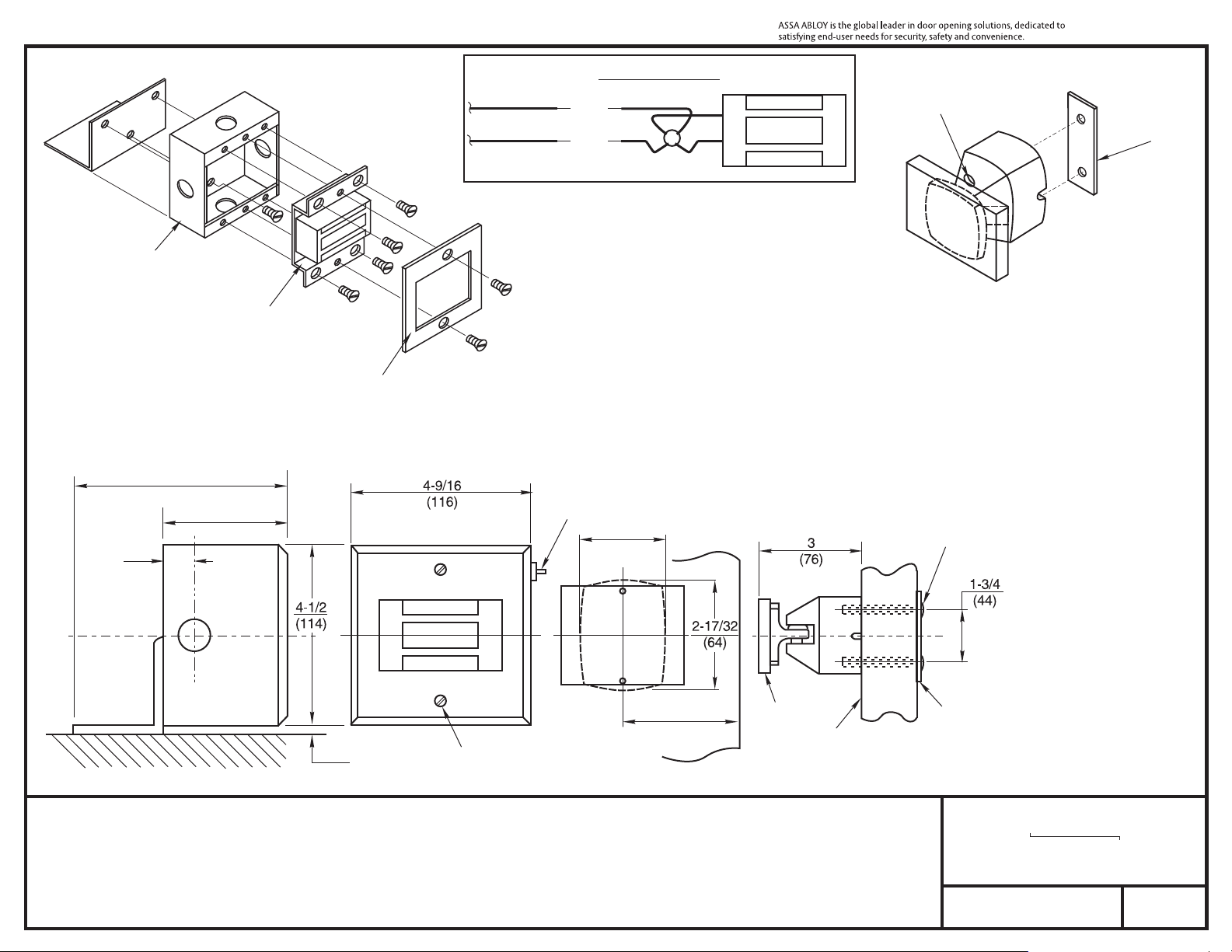

FM9930 Floor Mounted Door Release

DR100240A

Contact Plate

Adjusting Screw

Location

THRU BOLT MOUNTING

Notes:

1. Do not scale drawing.

2. Total projection 8-3/16". (Includes Electromagnet, Armature Assembly and Floor Bracket.)

3. Power requirements: 24VAC/DC, .25 amp.

4. See Step 1 on DR100240B for switch box location. Anchor switch box to withstand a

minimum 300 lb. pull.

5. Door closing mechanism should have a 3 lb. closing force at the degree of door opening

where door armature and electromagnet engage.

6. All dimensions given in inches (mm).

7. Holding Force is 3 to 235 Pounds.

WIRING DIAGRAM

24 VAC

24 VDC

Wall Plate

Electromagnet and

Mounting Bracket

Assembly

Switch

Box

Momentary

Release Switch

(Optional)

Contact

Plate Pull Side

of Door

Door

Plate

6-32 x 5/16" OHMS

(2 Places)

1/4-20 x 2-1/16"

THMS

(2 Places)

1-13/16

(46)

Approx. 3" (76.2)

To Door Edge

2-3/16

(55.6)

3/16

(4.8)

5-3/16

(131.8)

LConduit

3/4

(19)

Door

Plate

DR100240A

www.rixson.com

ASSA ABLOY

RIXSON®

DATE

TEMPLATE NUMBER

03-09

FM9930 Floor Mounted Door Release

Mounting Floor Portion

1. Locate angle bracket.

2. Attach bracket to floor with three (3) 1/4-20x1-1/2" FHPMS and three (3) 1/4-20

cement anchors.

3. Mount switch box to bracket using three (3) 1/4-20x1/2" RHMS.

4. Connect wire leads from power source to wire leads from magnet, and push wires

back into switch box.

5. Mount magnet assembly to switch box using four (4) 6-32x5/16" FHMS.

6. Mount cover to magn t assembly using two (2) 6-32x5/16" OHMS.e

Mounting Door Portion

1. IMPORTANT: Door portion must be installed with mounting holes in vertical

position.

2. Contact plate adjusting screw must be loose to allow contact plate to swing freely.

3. Remove paper liner on adhesive surface exposing marking template beneath.

NOTE: Template must remain on armature.

4. With electromagnet energized, position contact plate to cover entire magn t surface.

If magnet can not be energized, hold contact plate against magnet nually. Open

door to engage door armature and exert pr ssure. Release door to close. Marking

template will transfer to door. If necessary, align template securely to door.

5. Mark hole locations o door using centerlines on marking template. Drill two (2) 5/16"

dia. holes through door on 1-1/4" centers.

6. Install door armature assembly to door. Must be mounted on pull side of door. Slot in

contact plate adjusting screw must be accessible after mounting.

DR100240B

www.rixson.com

ASSA ABLOY

RIXSON®

DATE

TEMPLATE NUMBER

03-09
