Associated Electrics PRO4 SC10 Manuale utente

:: Introduction

:: Pro4 SC10 RTR Features

:: Additional

:: Other Helpful Items

Thank you for purchasing this Team Associated product. This assembly manual contains instructions and tips for building and

maintaining your new vehicle. Please take a moment to read through the manual and familiarize yourself with the steps.

We are continually changing and improving our designs; therefore, actual parts may appear slightly different than the illustrations.

New parts will be noted on supplementary sheets located in the appropriate parts bags. Check each bag for these sheets before

you start to build.

• 2.4GHz 2-channel radio system

• High-Torque Digital Servo with spring-style servo saver

• Reedy Sport 550 15T Brushed Motor

• Reedy Water-resistant brushed ESC with T-plug connector and LiPo low-voltage cutoff

• Three sealed gear differentials

• Fifteen52 Turbomac HD wheels

• Threaded Oil-filled coil over shock absorbers

• 4mm heavy-duty adjustable alloy steel turnbuckles

• Durable slider type drive shafts

• Factory-finished Contender short course body

• High-grip General Tire GT(R) Grabbers all terrain tires

• Steel center drive shaft

• Four-wheel independent suspension

• Durable, impact-absorbing front and rear bumpers.

Associated Electrics, Inc.

21062 Bake Pkwy.

Lake Forest, CA 92630

http://www.RC10.com · http://twitter.com/Team_Associated · http://www.instagram.com/teamassociatedrc/ · http://www.facebook.com/TeamAssociated/

Customer Service

Tel: 949.544.7500

Fax: 949.544.7501

Your new Pro4 SC10 comes assembled. The following items are needed for completion.

• (4) AA batteries

Tools included: • 1.5mm, 2.0mm, 2.5mm Wrenches

• Silicone Shock Fluid (Refer to catalog for complete listings) • Silicone Diff Fluid (Refer to catalog for complete listings)

• Body Scissors (AE Part # 1737) • Reamer / Hole Punch (#1499) • Shock Pliers (#1675) • Wire Cutters

• FT Hex/Nut Wrenches (AE Part # 1650)• Needle Nose Pliers • Hobby Knife • Soldering Iron

• Calipers or a Precision Ruler • Green Slime shock lube (AE Part # 1105)

• FT Turnbuckle Wrench (#1114) • FT Universal Tire Balancer (#1498)

:: Table of Contents

1................... Cover

2................... Introduction

3...................1:1 Hardware “Fold Out”

4 - 5............. Quick Start Guide

6 - 19............Steps 1- 41

20.................Tuning Tips

21.................Catalog/Notes

22................Back Cover

:: Notes

This symbol indicates a special note or instruction in the manual.

There is a 1:1 hardware foldout page in the front of the manual. To check

the size of a part, line up your hardware with the correct drawing until you

find the exact size. Each part in the foldout has a number assigned to it

for ordering replacement parts.

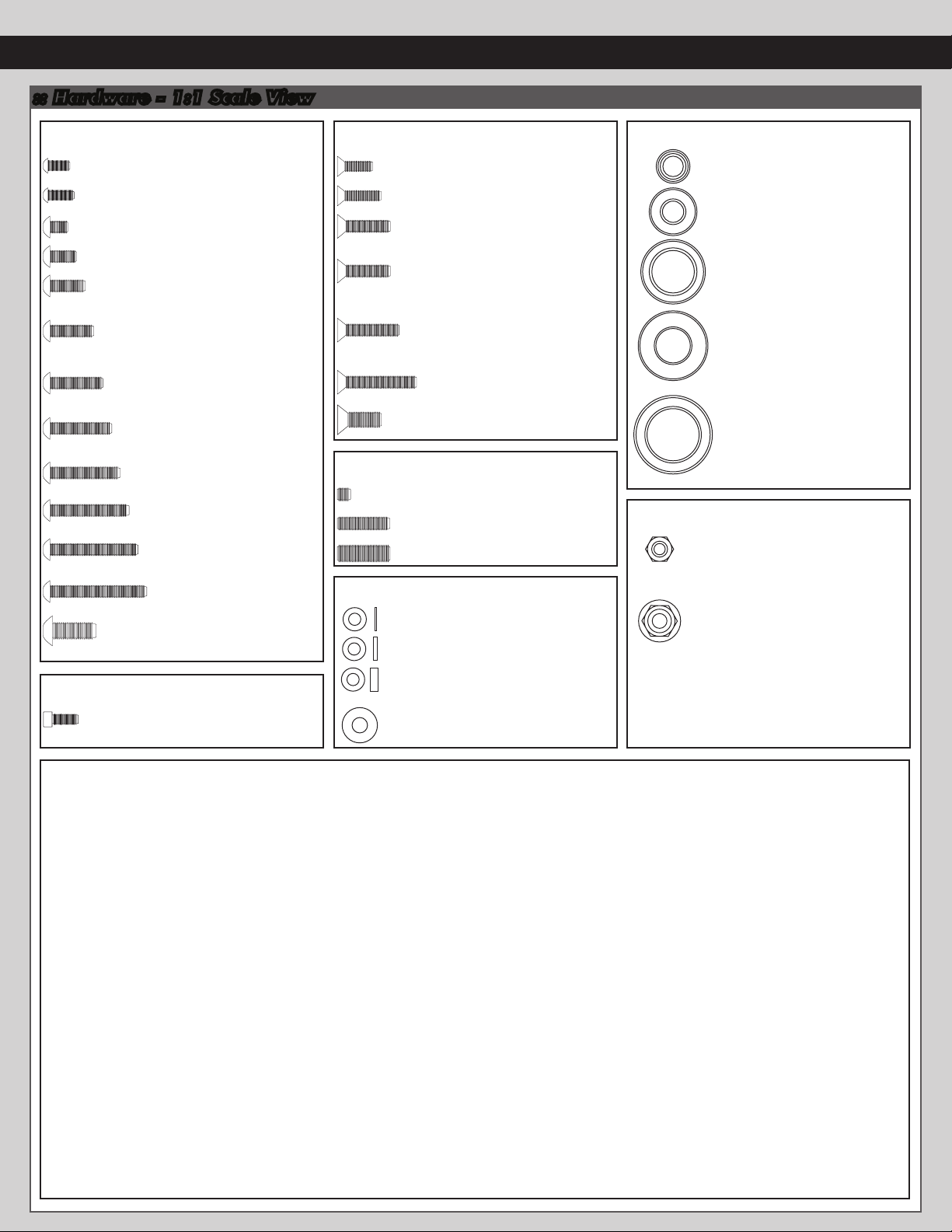

:: Hardware - 1:1 Scale View

3x3mm (25225)

3x12mm (81258)

4x12mm (25824)

Set Screws

Notes:

2.5x8mm (31448)

2.5x10mm (31350)

3x6mm (31541)

3x12mm (25203)

Aluminum (8556)

Titanium (91594)

3x14mm (89208)

Aluminum (8567)

Titanium (91595)

3x18mm (89209)

Titanium (91597)

4x10mm (81262)

Flat Head (fhcs)

Plain M3 Nut (91477)

M3 Alum. Locknut, Blue (31550)

M3 Locknut, Black (25215)

M4 Locknuts:

Serrated Steel (Silver)(91826)

FT Aluminum (Blue) (31551)

Serrated Aluminum (Black) (91738)

Nuts (lock/plain)

2.5x6mm (41079)

Socket Head (shcs)

2.5x5mm (31519)

2.5x6mm (31520)

3x4mm (91158)

3x6mm (31531)

3x8mm (31532)

3x10mm (25211)

Aluminum (8554)

Titanium (91582)

3x12mm (89202)

Titanium (91583)

3x14mm (25187)

Titanium (91584)

3x16mm (89203)

Titanium (91585)

3x18mm (2308)

3x20mm (25188)

Titanium (91587)

3x22mm (25189)

Titanium (91588)

4x10mm (89206)

Button Head (bhcs)

5.5x0.5mm (31381)

5.5x1.0mm (31382)

5.5x2.0mm (31383)

3x8mm Washer (89218)

Shims and Washers

Ball Bearings

5x8x2.5mm (8680)

5x11x4mm (25618)

10x15x4mm (91563)

8x16x5mm (91564)

12x18x4mm (25843)

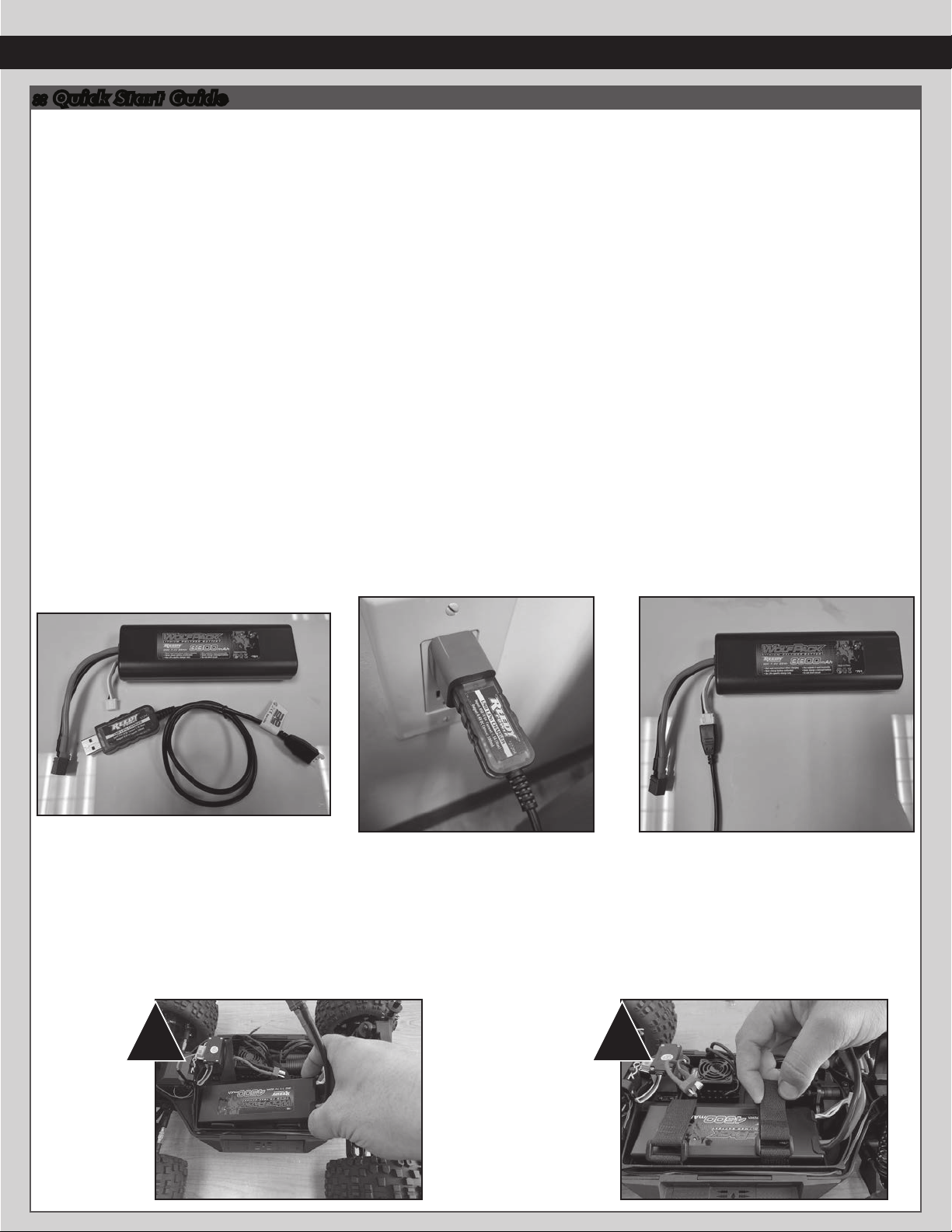

:: Quick Start Guide

Battery Charging and Safety:

Before charging your battery for the first time, please read the document Important Safety Instructions and Warnings

found in the documents bad included with your vehicle.

Charging

1. To prepare the battery for charging, remove the battery from the vehicle and place it on a fire-proof surface

[image 1] free from moisture and the potential for contact with water or any other liquids.

2. Plug the USB end of the charge cable into a 5V USB port [image 2].

Flashing red/green LED lights indicate the the charger is powered and is ready to use.

3. Plug the battery’s 3-pin male connector into the charge cable’s 3-pin female connector [image 3].

The red LED light will remain on to indicate that the battery is successfully charging.

4. The charge is complete when the red LED light goes out and the green LED illuminates.

5. Unplug the battery from the charger cable and then unplug the USB plug from USB port.

6. Your battery is now ready to use!

CAUTION! Failure to abide by the following may result in fire, property damage, and/or loss of life.

• Never leave the battery unattended while charging.

• Always remove the LiPo battery from the vehicle and place it on a fireproof surface while charging.

• Always disconnect the battery from the charge cord, and the charge cord from the USB port, when finished charging

and when the charge cable is not in use.

• Always disconnect the battery from the vehicle when you are finished driving the vehicle and whenever the vehicle is

not in use.

• Always store LiPo batteries in a fireproof container when not being used.

• Always use a charger specifically designed and engineered to charge LiPo batteries.

Battery Installation:

1. Install the battery with the battery wires directed towards

the rear of the vehicle.

2. Secure the battery strap using two hook and loop straps.

1 2

Image 1 Image 2 Image 3

1/23

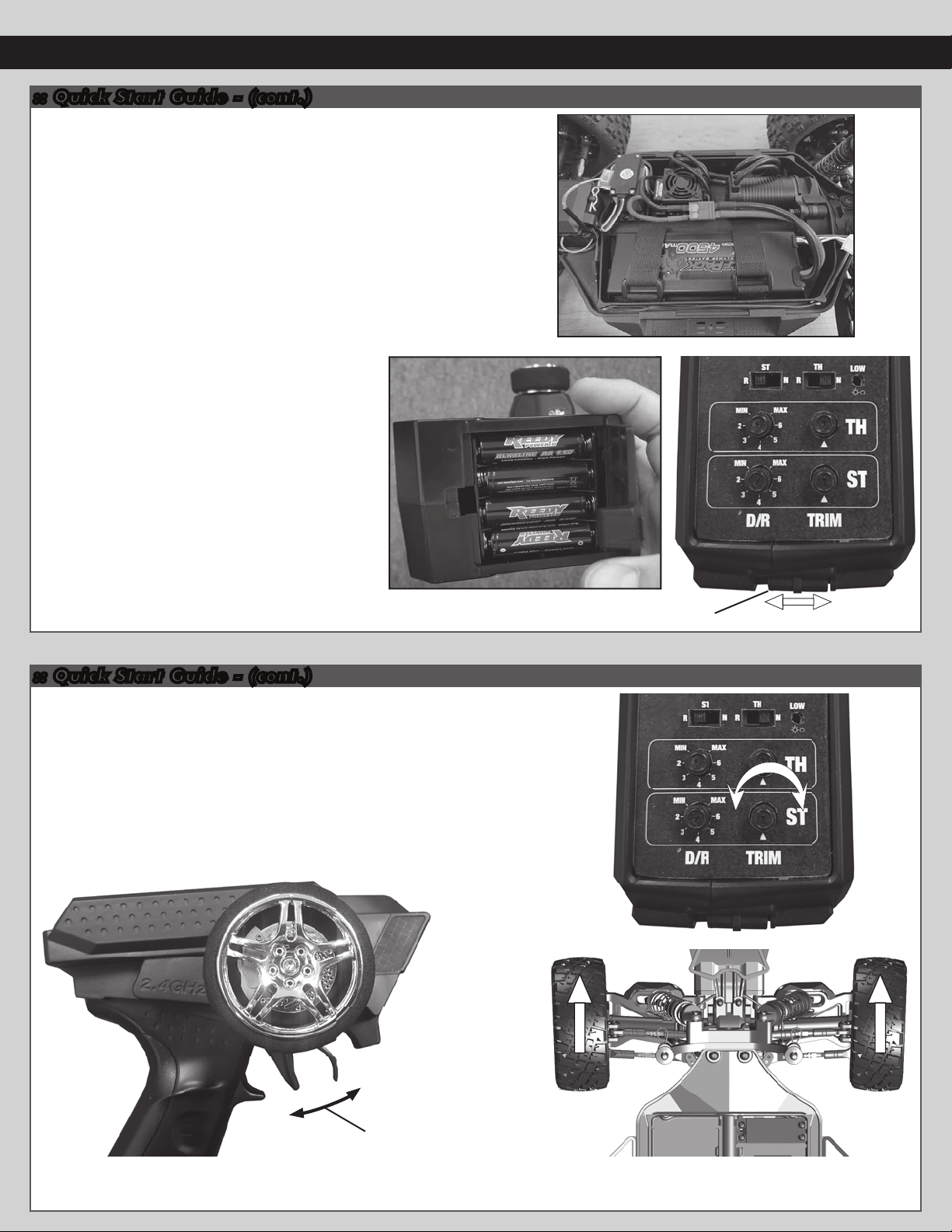

:: Quick Start Guide - (cont.)

On/Off Switch

Radio System Tuning and Controls:

DO NOT hold the trigger when turning on the radio.

Refer to Radio owners manual for more in-depth

instructions on radio operation and functions.

Throttle set to Neutral!

Neutral

Push trigger

for Brake

Pull trigger

for Throttle

Adjust steering

trim so front

wheels point

straight. Install body and body clips.

Ready to go!

Radio System Tuning and Controls:

RULE:

Transmitter on First/Vehicle on Seond,

Vehicle off First/ Transmitter off Last!

1. Slide the battery cover to remove cover.

2. Install alkaline or rechargeable AA size

batteries into the battery holder.

3. Slide the battery cover back into place

making sure it is completely closed and

secure.

4. Turn the power ON. If the power indicator

LED fails to light, check the batteries for

insufficient contact or incorrect polarity.

Battery Notes and Tip:

Connect the battery as shown.

Disconnect the battery when not in use!

LiPo: LiPo batteries (lithium polymer) are high current

rechargeable batteries. LiPo batteries offer extended run time

and peak performance over NiMH batteries. They require a

peak detection charger designed specifically for LiPo batteries.

These batteries require special care and handling.

LiPo batteries are recommended for advanced users only!

ALWAYS charge a LiPo battery in LiPo mode.

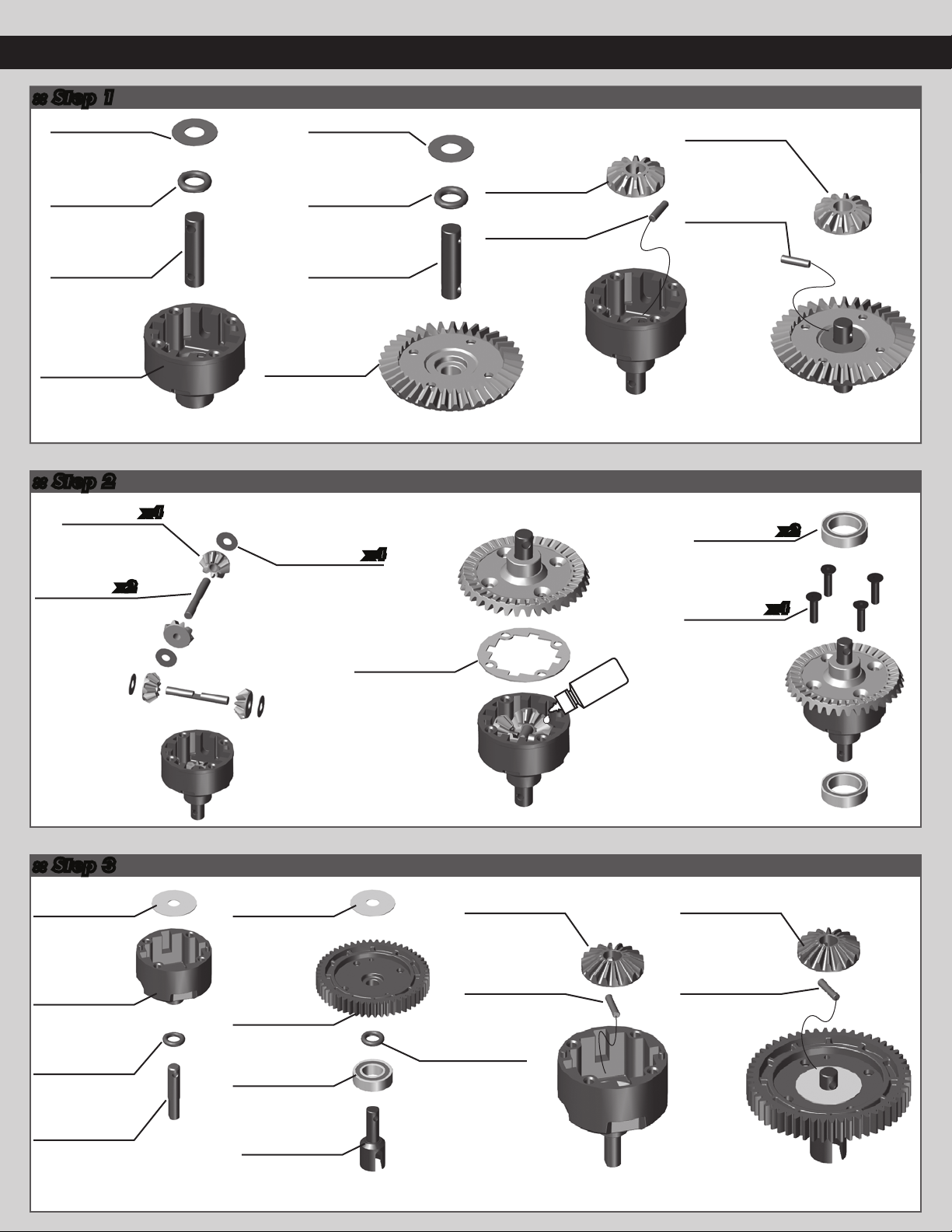

:: Step 3

:: Step 2

:: Step 1

25810

Sun Gear

Shim

25810

Sun Gear

Shim

25810

Sun Gear

25810

Diff

O-Ring

25810

Diff

O-Ring 25810

Input Pin

25810

Sun Gear

25810

Input Pin

31350

2.5x10mm

FHCS

91563

10x15x4mm

Bearing

25808

Diff Gasket

25812

Sun Gear

Shim

25812

Sun Gear

Shim

25812

Input Pin

25812

Input Pin

25812

Center Diff

Sun Gear

25812

Center Diff

Sun Gear

25811

Spur Gear

(54T, 32P)

25807

Diff Case

(Center)

25812

Diff

O-Ring

25812

Center Diff

Shaft

25812

Center Diff

Outdrive

91564

8x16x5mm

Bearing

25810

Planetary

Gear

25810

Diff Cross

25810

Diff Output

Shaft

25810

Diff Output

Shaft

25807

Diff Case

(Front/Rear)

25808

Ring Gear,

37T

25810

Planetary

Gear Shim

25812

Diff O-Ring

diff

fluid

Front Diff Fluid:

60k cst #5458

Rear Diff Fluid:

3k cst #5452

Build 2 (1 front, 1 rear)

Build 1 (1 center)

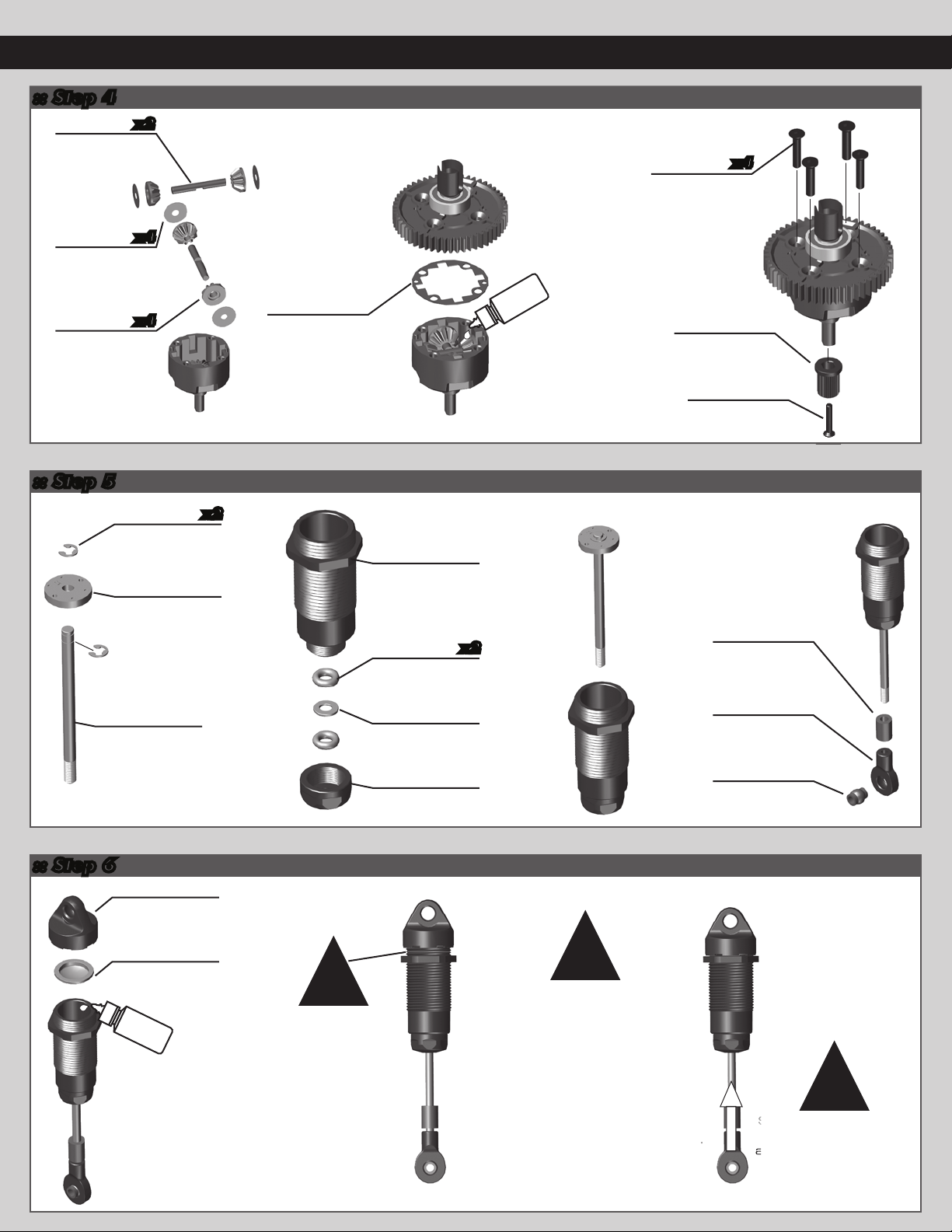

:: Step 6

:: Step 5

:: Step 4

Some residual shock

fluid may appear

around the shock cap

after the first few

runs as a result of

bleeding.

Leave a gap when

installing the

shock cap.

Compress shock shaft half way.

Let shock fluid bleed from cap,

then tighten cap.

For less rebound, compress

shock shaft farther before

tightening the shock cap.

For more rebound, do not

compress shock shaft as far

before tightening the shock cap.

shock

fluid

Front Shock Fluid:

40wt #5423

Rear Shock Fluid:

40wt #5423

Some residual shock

around the shock cap

before tightening the shock cap.

25831

E-Clip,

2.5mm

25831

Shock

O-Ring

25831

Shock Seal

Bushing

25825

Shock Bottom

Cap

25825

Shock Cap

25831

Shock

Bladder

25825

Shock Body

25825

Shock Piston

25826

Shock Shaft

(Front - Short)

(Rear - Long)

25812

Center Diff

Cross Pin

25812

PLanetary

Gear Shim

25812

Center Diff

Planetary

Gear

25811

Center Diff

Gasket

25812

Input Shaft

Spline

31448

2.5x8mm

FHCS

25828

Pivot Ball,

Long

25825

Shock

Eyelet

25825

Uptravel

Spacer

89208

3x14mm

FHCS

diff

fluid

Center Diff Fluid:

100k cst #5459

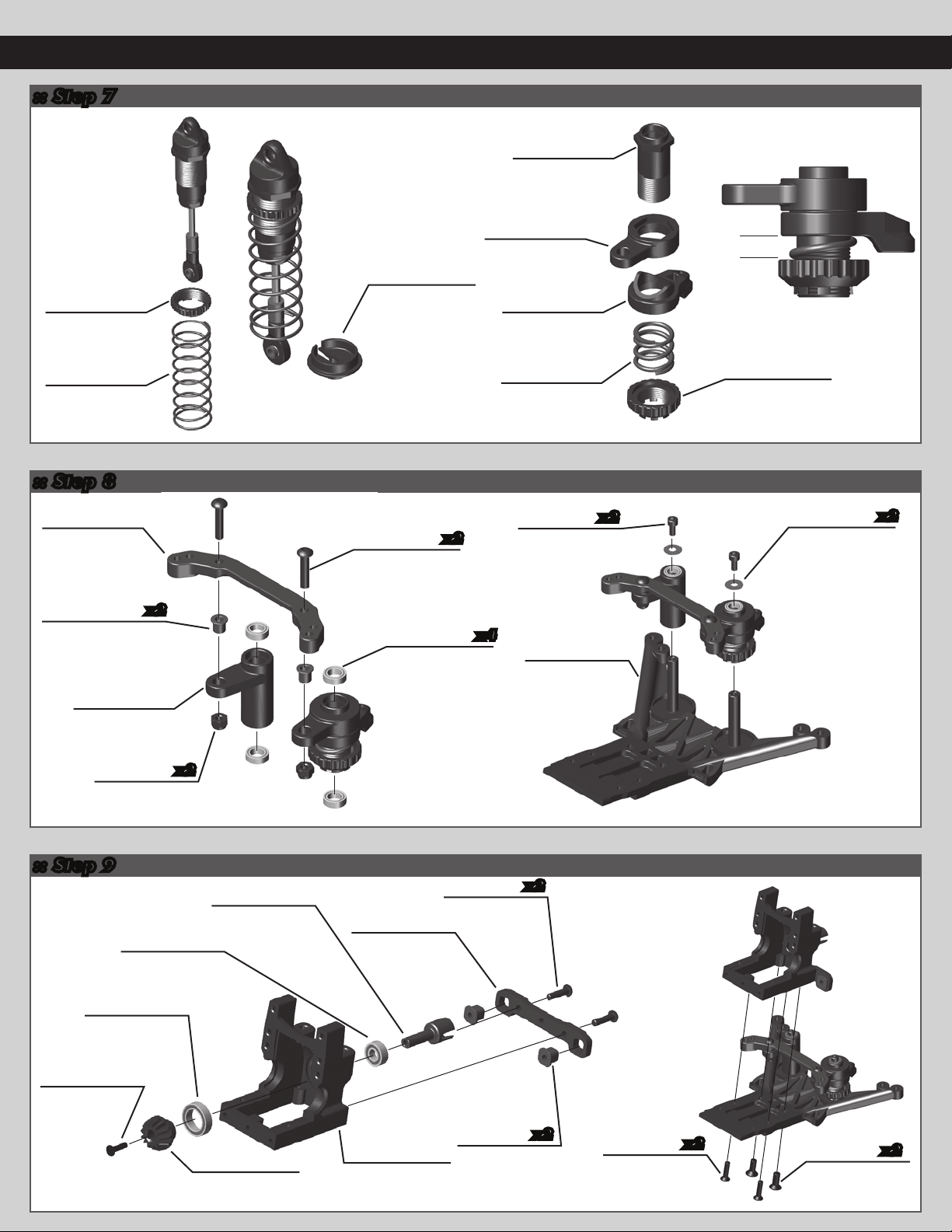

:: Step 9

:: Step 8

:: Step 7

25187

3x14mm

BHCS

8680

5x8x2.5mm

Bearing

25805

2.6mm

Washer

25809

Input Pinion,

Grooved

25806

Gearbox,

Front

25805

Servo Saver

Spring Collar

25825

Spring Cup

25819

Steering Block

Hat Bushing

25215

M3 Locknut

41079

2.5x6mm

SHCS

89202

3x12mm

BHCS

25802

Arm Mount

Insert

25802

Arm Mount

25809

Outdrive

Shaft

25618

5x11x4mm

Bearing

91563

10x15x4mm

Bearing

25801

Skid Plate,

Front

31350

2.5x10mm

FHCS

25805

Servo

Saver Tube

25805

Upper Servo

Saver Arm

25805

Lower Servo

Saver Arm

25805

Servo Saver

Spring

25805

Steering

Rack

25805

Bellcrank

Arm

25825

Spring

Collar

25832

Shock

Spring

x2 x2

25203

3x12mm

FHCS

81262

4x10mm

FHCS

2.5mm

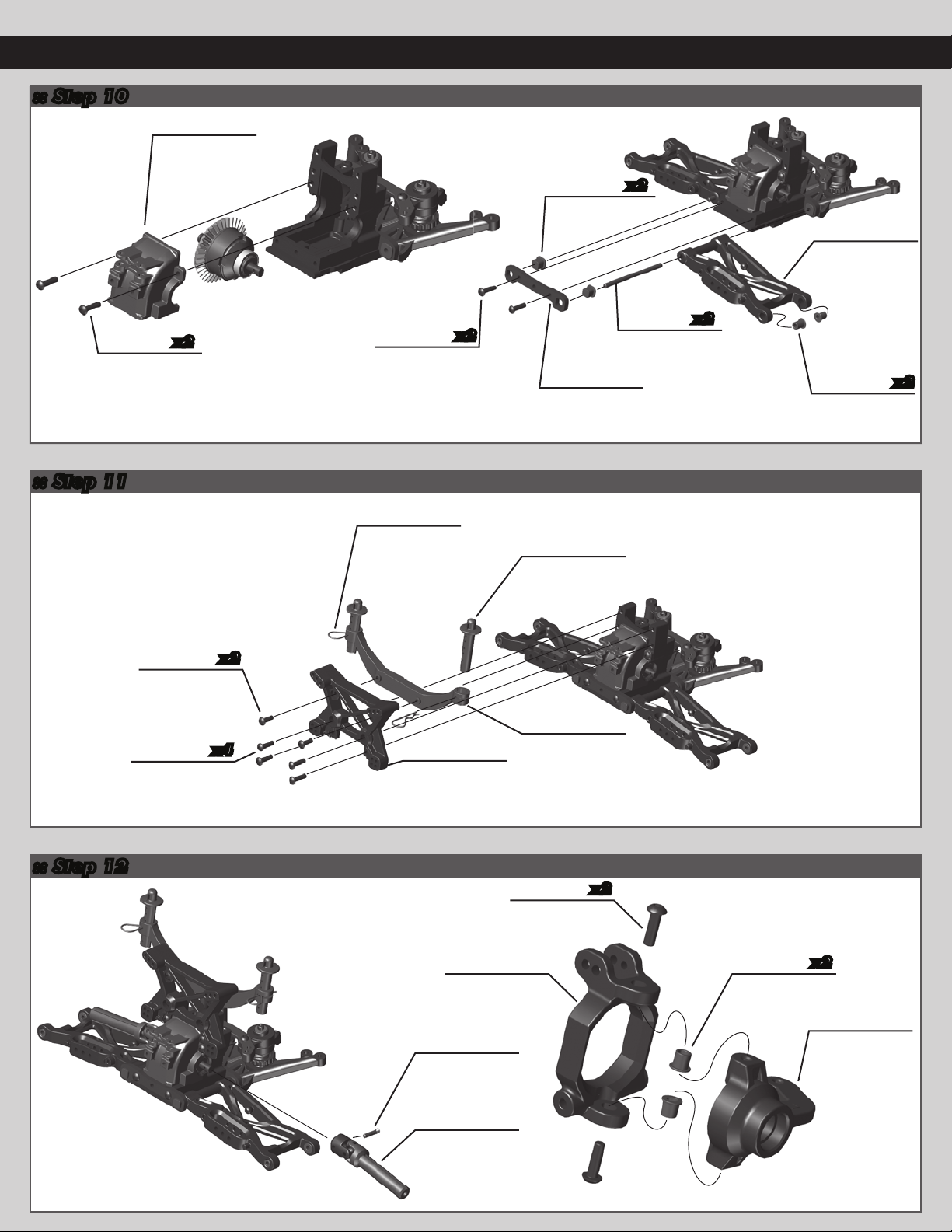

:: Step 12

:: Step 11

:: Step 10

x2 x2

25819

Caster Block

Hat Bushing

25819

Hat

Bushing

25818

Steering

Block

25821

Pin Screw

25821

Slider Drive

Shaft, Male

89202

3x12mm

BHCS

25211

3x10mm

BHCS

25211

3x10mm

BHCS

25818

Caster

Block

89202

3x12mm

BHCS

25804

Front Arm

25816

Front Shock

Tower

25817

Body

Mount

25817

Body Post

6332

Body Clip

25211

3x10mm

BHCS

25803

Inner

Hinge Pin

25802

Arm Mount

Insert

25802

Arm Mount

25806

Gearbox

Cap

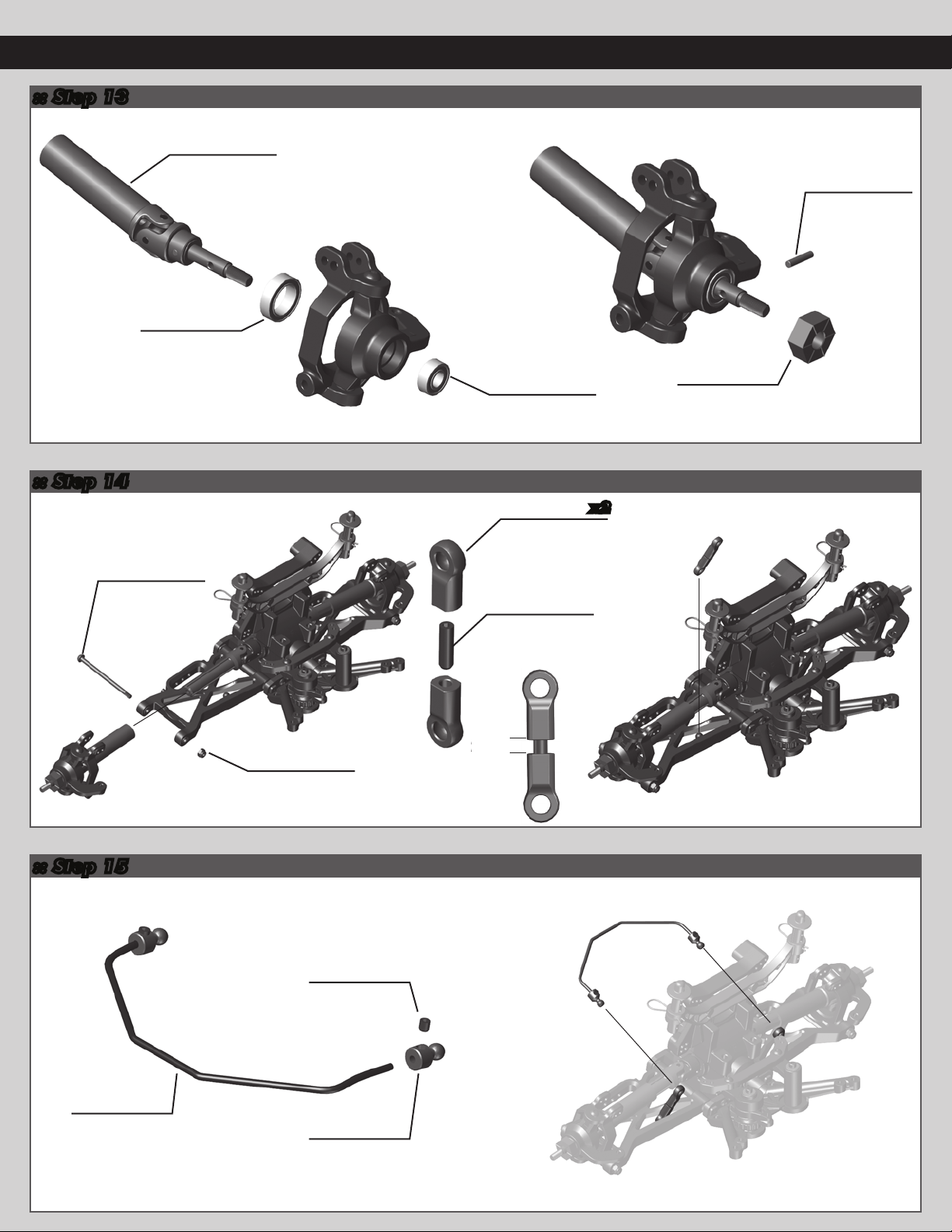

:: Step 15

:: Step 14

:: Step 13

1mm

25215

M3 Locknut

25803

Outer Hinge

25618

5x11x4mm

Bearing

25820

2x9.8mm

25821

Slider Drive

Shaft, Female

91563

10x15x4mm

Bearing

25820

12mm Hex

1mm

25835

Anti-Roll Bar

Eyelet

81258

3x12mm

Set Screw

25835

Anti-Roll

Bar, Front 25835

Anti-Roll

Bar Pivot

Ball

25225

3x3mm

Set Screw

Indice

Altri manuali Associated Electrics Auto giocattolo motorizzata

Associated Electrics

Associated Electrics Element RC Enduro Bushido RTR Manuale

Associated Electrics

Associated Electrics SC10 4x4 Manuale utente

Associated Electrics

Associated Electrics RC18T Manuale utente

Associated Electrics

Associated Electrics RC8B3.1 Manuale utente

Associated Electrics

Associated Electrics RC8B4 Manuale utente

Associated Electrics

Associated Electrics SC10GT Manuale utente

Associated Electrics

Associated Electrics SC18 Manuale utente

Associated Electrics

Associated Electrics RC10B6.2 KIT Manuale utente

Associated Electrics

Associated Electrics RC10B5M Factory Lite Team Kit Manuale utente

Associated Electrics

Associated Electrics RC10T Manuale utente

Associated Electrics

Associated Electrics RC10 SC64 TEAM KIT Manuale utente

Associated Electrics

Associated Electrics MGT 8.0 Manuale utente

Associated Electrics

Associated Electrics RC18 Manuale utente

Associated Electrics

Associated Electrics R10 Manuale utente

Associated Electrics

Associated Electrics HOONIGAN APEX2 HOONITRUCK Manuale utente

Associated Electrics

Associated Electrics RC10B64D Manuale utente

Associated Electrics

Associated Electrics SC10 7034 Manuale utente

Associated Electrics

Associated Electrics RC10 Worlds Car Kit Manuale utente

Associated Electrics

Associated Electrics RC10TC6 Factory Team Manuale utente

Associated Electrics

Associated Electrics TEAM ASSOCIATED RC10B4 B4 Manuale utente

Associated Electrics

Associated Electrics REEDY POWER RC10 T6.4 TEAM KIT Manuale utente

Associated Electrics

Associated Electrics RC8B3.2e Manuale utente

Associated Electrics

Associated Electrics RC10 B4.2 Manuale utente

Associated Electrics

Associated Electrics RC18T Manuale utente

Manuali Auto giocattolo motorizzata popolari di altre marche

Eduard

Eduard Humber Scout Car Mk.I exterior Manuale utente

Traxxas

Traxxas 4995X Manuale utente

Jamara

Jamara VW T1 Bus Manuale utente

REVELL

REVELL 68 CHEVY CHEVELLE SS 396 Manuale utente

Schumacher

Schumacher Pro Cat Manuale utente

Tamiya

Tamiya TT-01 TYPE E Manuale utente

Eduard

Eduard Krupp Protze 6x4 1/48 Manuale utente

New Bright

New Bright 61072UEP Manuale utente

Team Durango

Team Durango DEX410v5 Manuale utente

Jamara

Jamara Mercedes Actros Muldenkipper 2,4 GHz Manuale utente

PLAYMOBIL

PLAYMOBIL 9536 Manuale utente

Atomic

Atomic BZ3 Manuale utente

Aiyaplay

Aiyaplay 370-290V00 Manuale utente

Power Wheels

Power Wheels GRJ53 Manuale utente

ZEROTRIBE

ZEROTRIBE Zetricks ZT1144 Manuale utente

INJUSA

INJUSA 412 Manuale utente

Maverick

Maverick MSC-30BR-WP Manuale utente

Land of B.

Land of B. Rollin' Riders Manuale utente
