Installation and Quick Start Guide

AW12

USB LTE MODEM

HIGH POWER USER EQUIPMENT

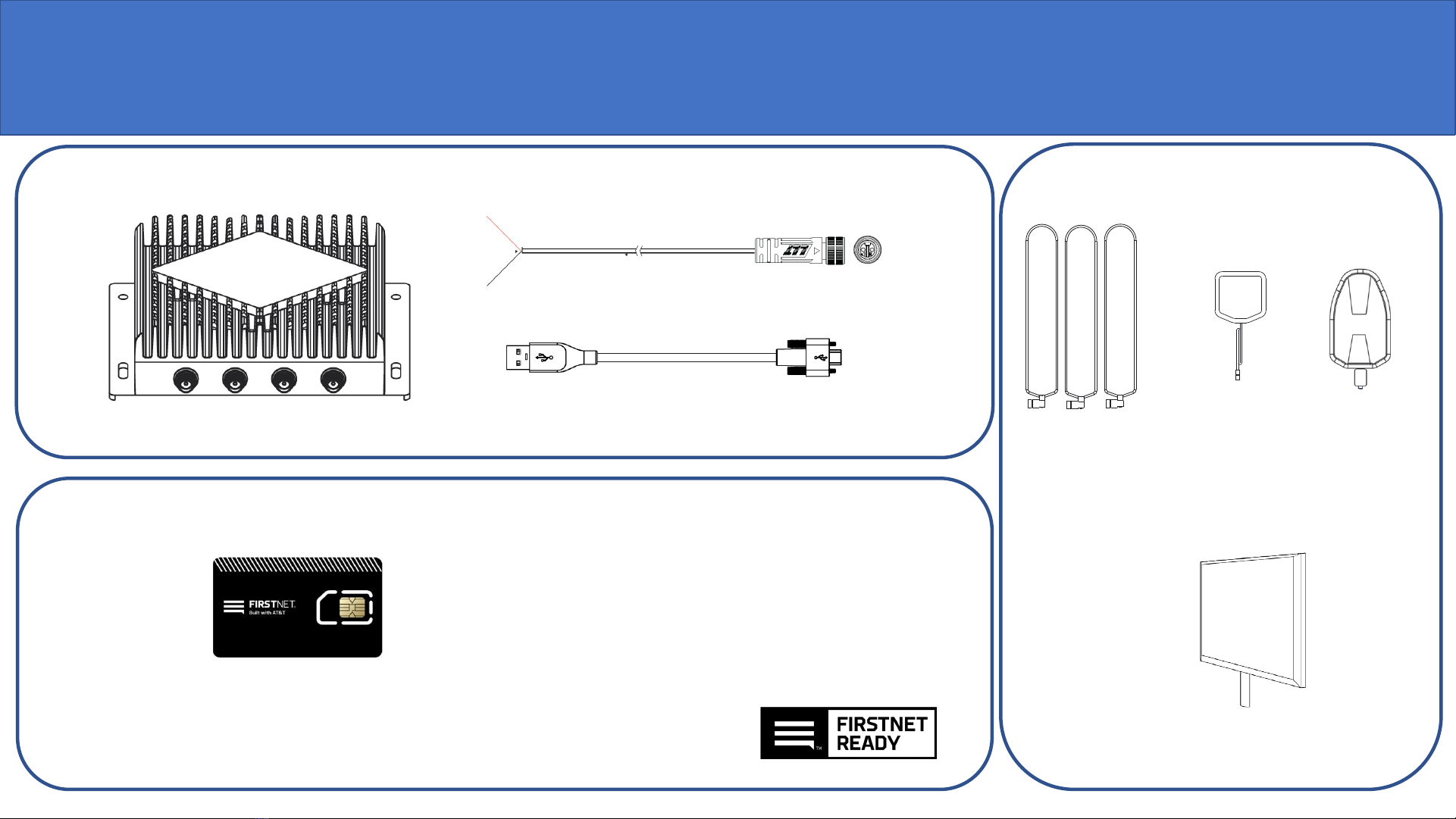

Contents and Options

USB-A to USB-C Cable with Thumbscrews

AW12-DE Modem

Page 2

Paddle

Antennas (3)

GPS Antenna Vehicular

Antenna

FIRSTNET SIM

Not Included

Antenna Options

Fixed & Vehicular

The AW12 operates on the FirstNet® network.

SIMs must be properly provisioned on AT&T FirstNet to

camp on Band 14 and enable HPUE mode.

Please contact AT&T, or an AT&T Authorized Reseller

for plan details, and the process for provisioning SIMs.

Panel Antenna

DC power cable to vehicle power pigtail

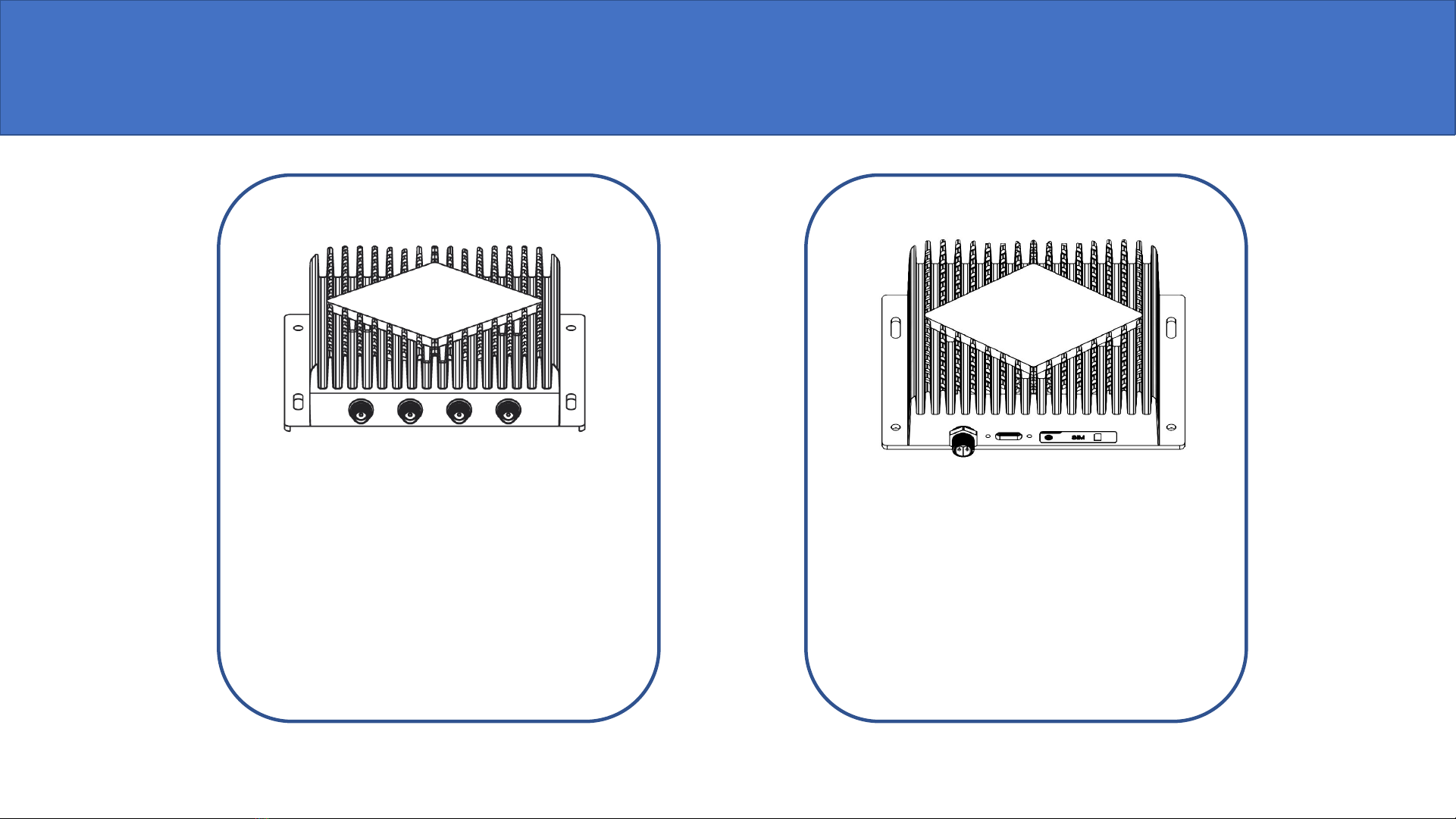

Hardware

REAR PANEL: Power and Data Ports

A B C D

FRONT PANEL: Antenna Ports

A Port Primary LTE Antenna

B Port Band 14 Antenna

C Port Diversity Antenna

D Port GNSS Antenna

Page 3

A Power Connection

B USB-C Connection

C SIM Tray Slot

A B C

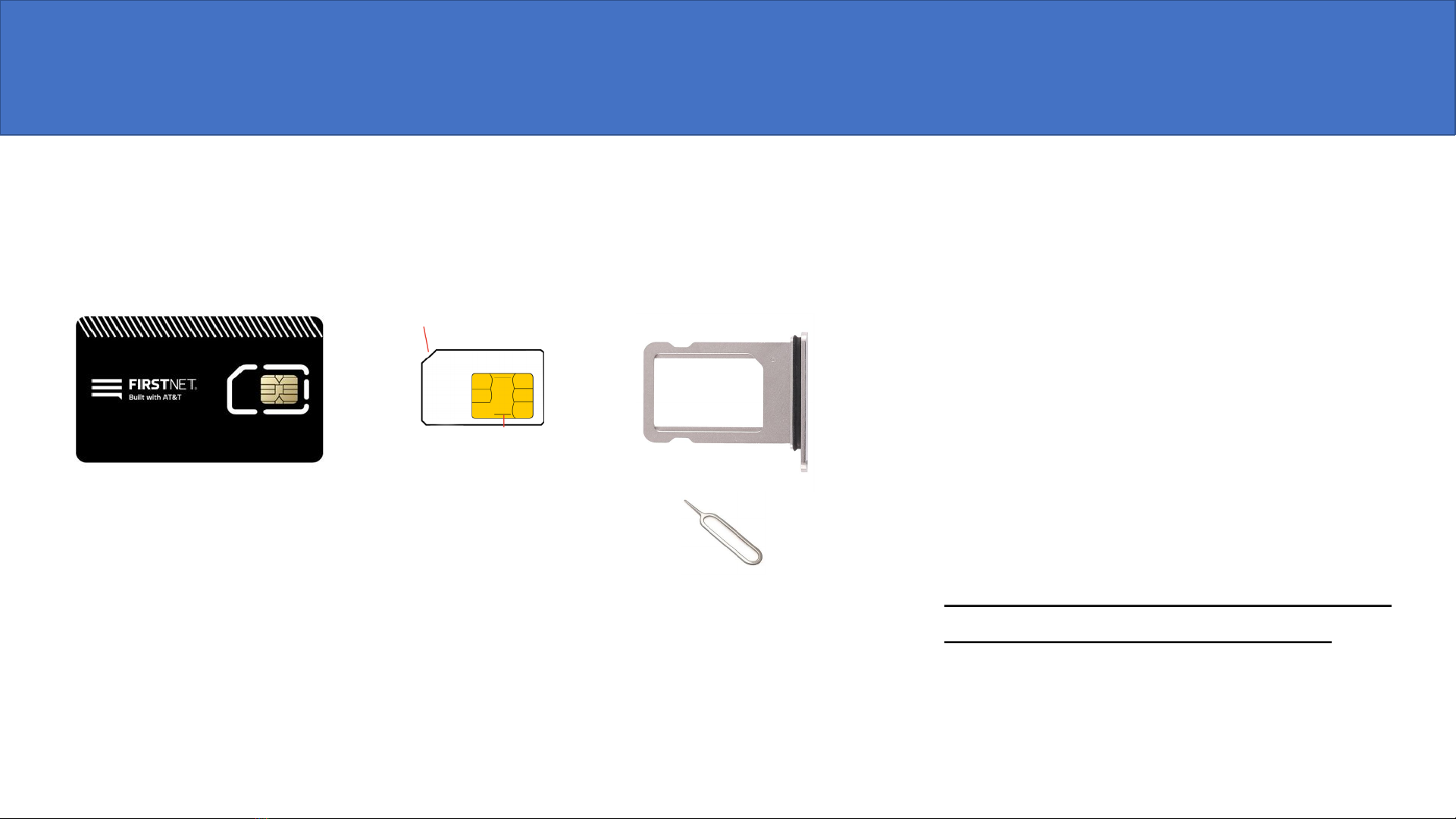

Insert Activated SIM

AW12 operates on AT&T

FIRSTNET. Obtain activated

FIRSTNET SIMs from your AT&T

Sales Provider.

Insert activated SIM into AW12

using SIM tray. Insert the card with

the notch-end aligned to tray

notch, and the gold contacts facing

down –it will click into place.

Note: AW12s are only compatible

with data-only FirstNet SIMs.

Page 4

Activated

SIM Card

Gold contacts must

be face down.

Notch-end

Align notch and

insert tray.

SIM tool

Connection

Overview

•The AW12 enables PCs and selected routers

to connect over a USB port to the FirstNet

network.

•For Windows 10, a driver is available for the

AW12 if the driver is not already installed on

the PC.

•For the download driver or support, visit:

https://www.assured-wireless.com/support

Page 4

Installation

Fixed Installation

See Pages 7 through 9

Page 6

Vehicle Installation

See Pages 10 through 11

Choose Your Installation Configuration

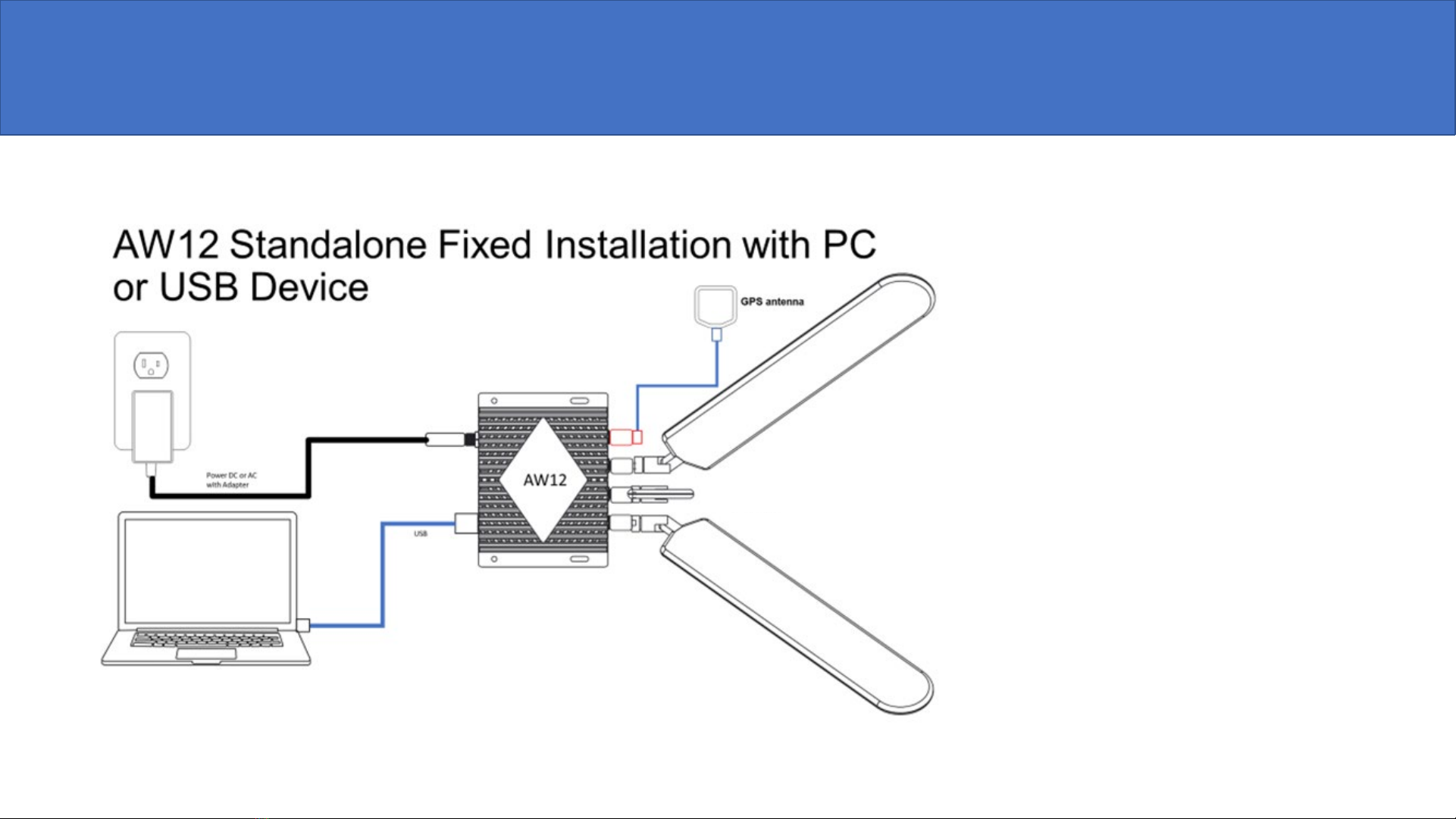

Fixed Location Connect Page 7

Install the USB cable as shown,

tightening the thumbscrews on the

USB Type C connector to the AW12

using a small flathead screwdriver.

Connect the USB Type A connector to

your laptop as shown.

Shown with the optional

AC Power Adapter (SKU# AW12-DE-

AWA-ACOUT) and paddle antennas

(see dealer for antenna choices).

Connect the power cable with the

barrel connector to the AW12 and then

connect the cable to your power

source.

Connecting Paddle Antennas Page 8

Connect the Paddle antennas following the shown

numerical sequence, your location may require

different orientation for maximum performance.

DIV

PRI

B14

45°45°

54.7°

GPS antenna

GNSS port

NOTE: Once the PRI and the DIV antennas are assembled, rotate them away from each other to

ensure you have enough clearance to install the B14 antenna. Then adjust the angles as shown.

45°

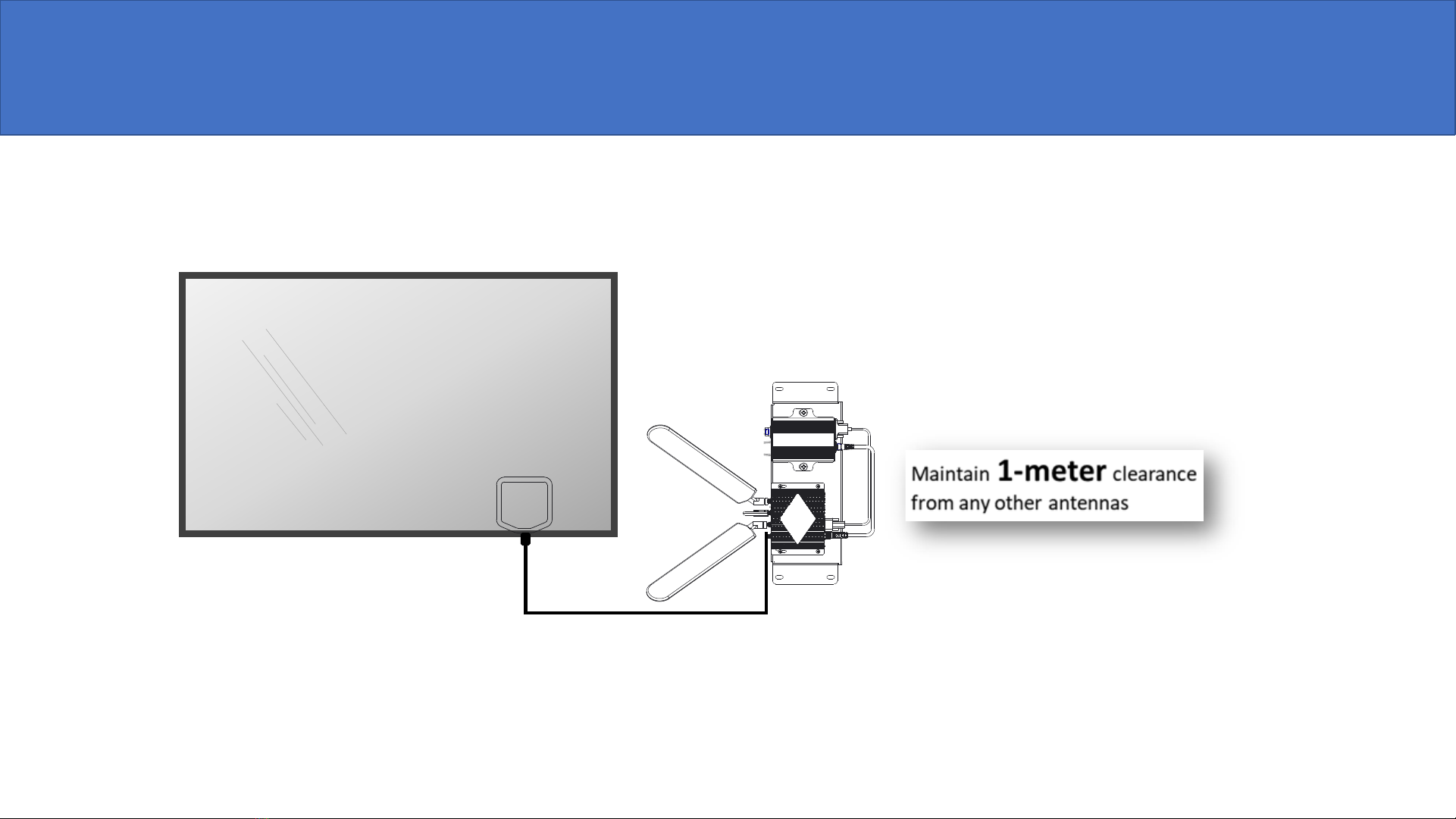

Connecting GPS Antenna

Provide 1 meter of separation between the AW12 and other

wireless antennas for best performance. Moving the unit to

an alternate location within your environment may enhance

connectivity and throughput.

Page 9

GPS antenna

CAUTION: Maintain 20 cm (approximately 8”) distance from

antenna to humans when the AW12 is transmitting.

The GPS antenna will ideally be positioned on a flat

surface with a clear view of the southern sky. The

unit will still function without a GPS signal however,

some enhanced features may not be enabled.

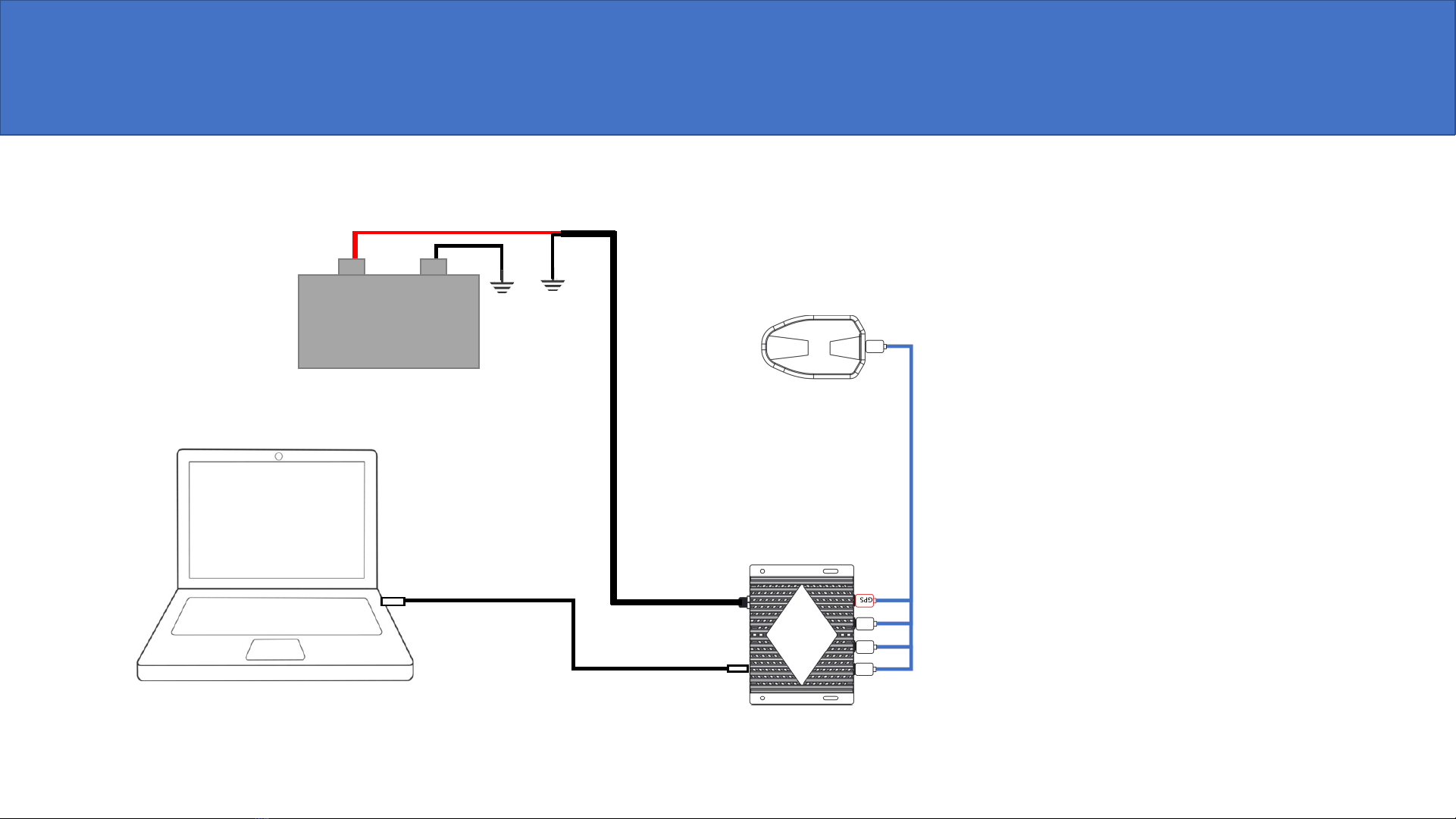

Vehicle Connection Page 10

Connect the DC power cable with the barrel

connector to the AW12 and then connect

the cable to your automotive power source.

Install the USB cable as shown, tightening

the thumbscrews on the USB Type C

connector to the AW12 using a small

flathead screwdriver and connecting the

USB Type A connector to your laptop as

shown.

Connect the GPS antenna to the GNSS

port and connect the three LTE cables to

the three LTE ports (PRI, B14, DIV).

Tighten with 5/16" open

end SMA torque wrench.

Any of the three LTE cables can go to any

LTE port on the AW12 Modem.

+ -

Battery

(12V Automotive)

AW12 Standalone In-Vehicle with PC or USB Device

Chassis Ground

DC Power

Cable

USB

Cable

AW 12

Vehicular Roof

Mount Antenna
