Quick Start Guide

Contents

Safety

Quick Start Guide

Introduction

System Overview

How the Robotic Cleaner Cleans Your Pool

Operating Conditions

Components

Cleaner And The Main Parts

Power and Control Unit

Operation

Before First Use

Placing Cleaner Unit into the Water

Starting the Robotic Cleaner

Cleaning Cycle

Stopping Robotic Cleaner Operation

Pulling Cleaner Unit out of the Water

Maintenance

Cleaning Filter

Storing the Robotic Cleaner

Checking Water Outlet Propeller

Model 400 - Aquacontrol Super Remote

Remote Control

Trolley

Warranty Terms and Conditions

Warranty Claims

Exclusions and Limitations

roubleshooting

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL THE INSTRUCTIONS

CAUTION: Do not plug the power supply into a grounded outlet or do not switch the

pool cleaner “ON” if it is not fully immersed in water. Operating the cleaner out of water

will cause severe damage immediately and will result in loss of warranty.

Allow the cleaner to remain in the pool for 15 to 20 minutes following the end of its

cleaning cycle. This will allow the motors to cool adequately. Do not leave the cleaner

in the pool all the time.Always remember to turn the power supply “OFF” and unplug it

from the power outlet before removing the cleaner from the pool.

WARNING: The cleaner must not be used when people are in the water. For use

with swimming pool only

Safety Note

- The unit must be supplied through a residual current device (RCD) having a rated

residual operating current not exceeding 30 mA

- The connection to the branch circuit should be consistent with the local and national

wiring rules (electrical code).

- Mishandling of the unit can result in leakage of lubricants.

- If the supply cord is damaged, it must be replaced by the manufacturer’s service

agent or a qualified and trained person in order to avoid hazards.

WARNING: A Ground Fault Current Interrupter (GFCI-USA) or a Residual Current

Device (RCD-EUROPE) must be installed to protect your electric outlet and prevent

any possible electric shock.

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that they do not

play with the appliance.

SAVE THESE INSTRUCTIONS

Introduction Components

System Overview

The robotic cleaner sweeps the pool floor and walls to collect dirt and debris

into its internal filters. This user manual explains how to operate the robotic

cleaner, including cleaning, maintenance and storage procedures.

Note:

This manual reviews several robotic cleaner models. There are some

variations in components according to specific model.

How the Robotic Cleaner Cleans Your Pool

After the robotic cleaner is placed in the pool and activated, it operates

according to the program set via the power and control unit. The robotic cleaner

moves along the floor and walls of the pool, covering the entire area of the pool

floor and walls. When the robotic cleaner has finished its program, it remains

inactive on the pool floor.

Note:

Wall climbing is an optional feature. When the wall climbing feature is enabled,

the robotic cleaner climbs the wall at intervals according to its internal program.

The robotic cleaner ability to climb over stairs in swimming pool is subject to

stair geometry and material.

Operating Conditions

The robotic cleaner is intended for use in swimming pools in the following

conditions:

- Temperatures ranging from 13°C-35°C , recommended temperature

is between 22°C-32°C.

- Water pH : 7.2 - 7.6

- Chlorine level: pool is maintained according to the pool manufacturer’s

instructions. (recommended 2-5 ppm)

Note:

Failure to maintain the pool according to the recommended operating

conditions could prevent the robotic cleaner from functioning properly.

Remove the cleaner out of water when performing "Chemical Shock

Treatment" to the pool water.

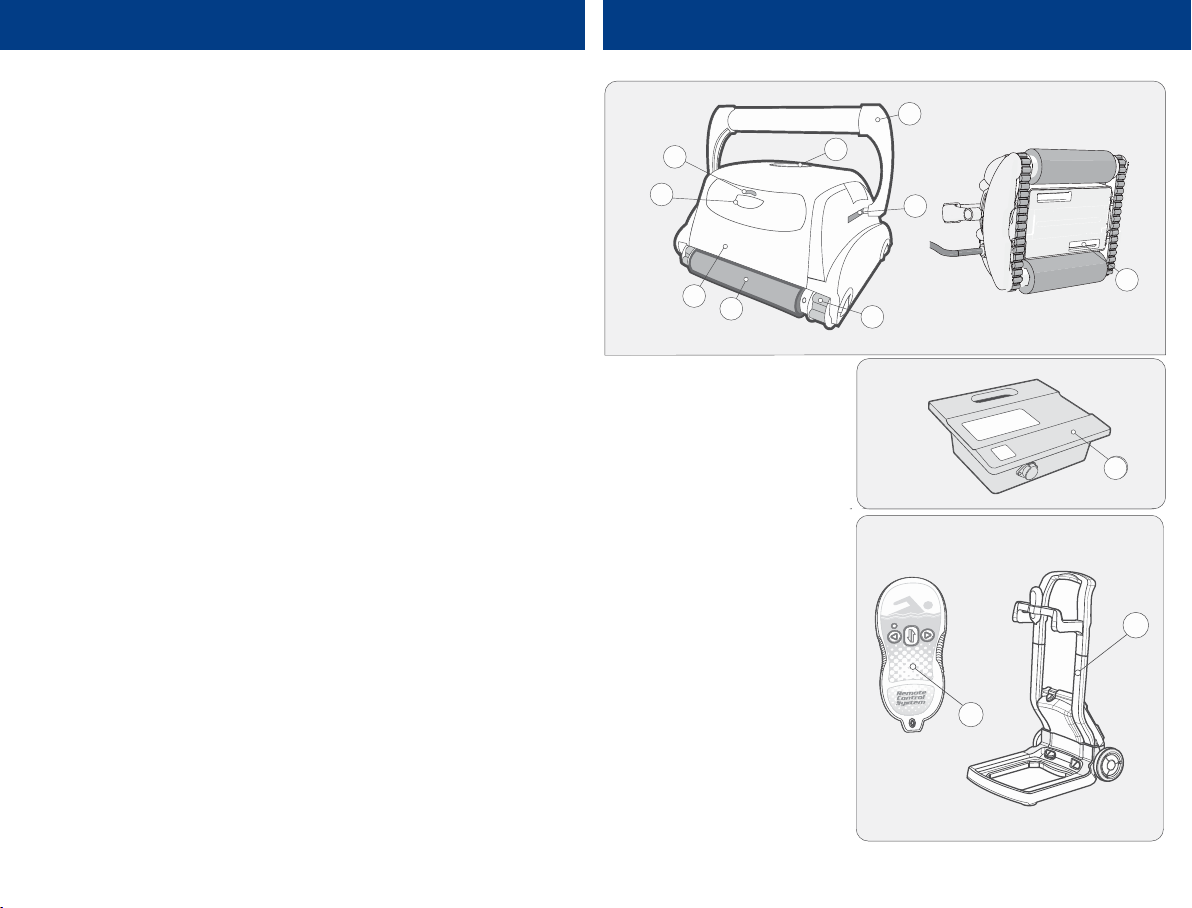

1) Handle

2) Outlet Top

3) Filter Lock Release

4) Filter Lid

5) Handle Lock Mechanism

6) Drive Track

7) Scrubbing Brush

8) Unit Body

9) Water Inlet

10) Power Supply

11) Remote Control

12) Trolley

112

1) Handle

2) Outlet Top

3) Filter Lock Release

4) Filter Lid

5) Handle Lock Mechanism

6) Drive Track

7) Scrubbing Brush

8) Unit Body

9) Water Inlet

10) Power Supply

11) Remote Control

12) “Trolley” Cart

876

Power and Control Unit

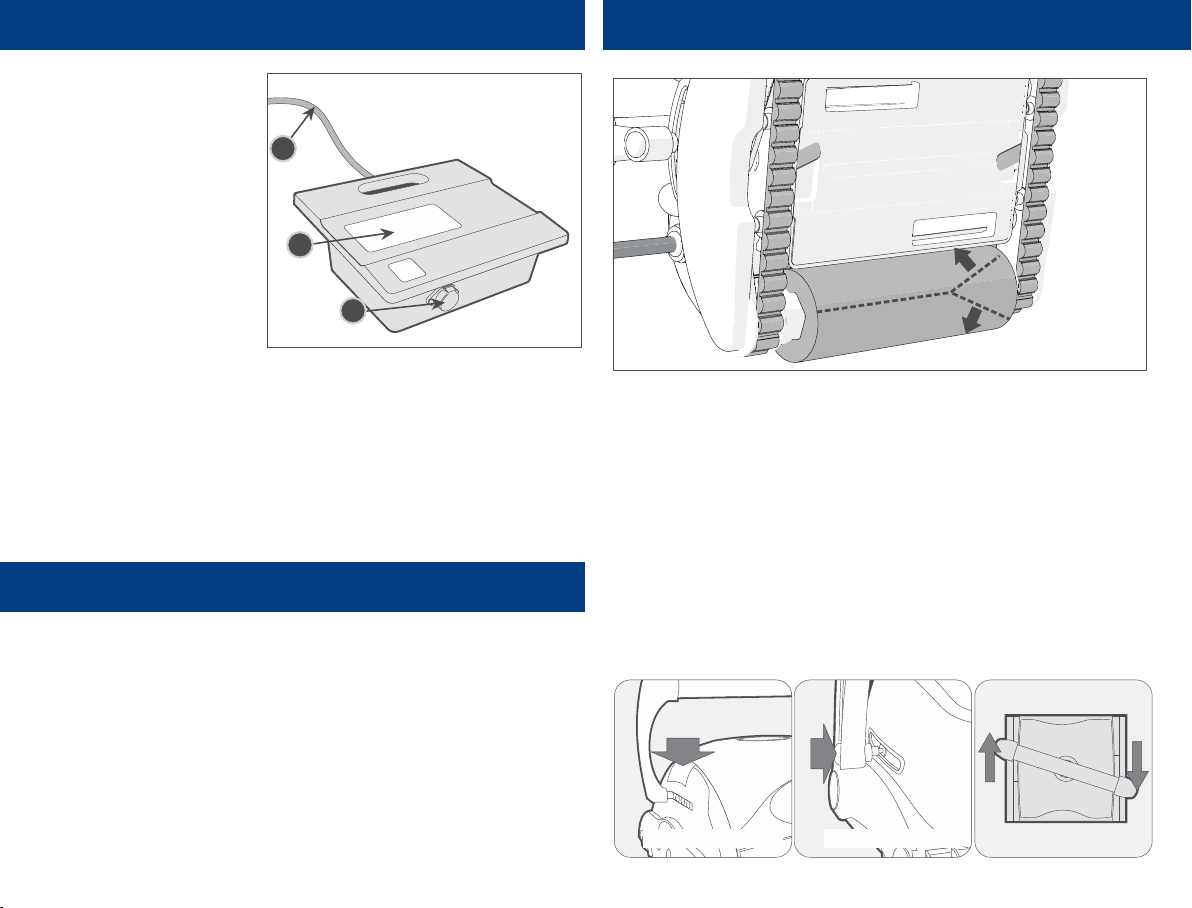

The power and control unit is

connected to the robotic

cleaner via the floating cable.

The unit is powered by AC

power (1) and supplies low

voltage and commands to the

cleaner unit through the outlet

socket (2).

The unit features a control

panel (3) with various controls

to operate the robotic cleaner.

Contents of Packing Box

The robotic cleaner is packed in a box containing:

- Robotic cleaner and floating cable

- Power and control unit

- User

- Remote Control

- Trolley

manual

Components Operation

Removing Brush Covers

The robotic cleaner is shipped with a protective cover over the scrubbing

brushes. Carefully remove the nylon covers from the scrubbing brushes.

CAUTION: Do not use a sharp tool to remove the cover as it could harm

the brushes.

Physical

Dimensions (W * D * H)

Weight

Electrical

Input rating

Output rating

Storage temperature

Operating temperature

Ingress protection

273mm * 242mm * 90mm

1.9 Kg

100-240V~, 50/60Hz, 210W

29V ,6.3A.

-10° C - 60° C

0° C - 45 ° C

IP54

Aquacontrol Power Supply Specifications

Adjusting Floating Handle

On wall climbing models, set the floating handle:

1. Press the lock button (1 or 2 according to the model) to release the handle

lock.

2. Place the handle (3) diagonally at maximum position.

3. Repeat steps 1 and 2 on the other side of the cleaner unit.

2 31 Handle lock vertical Handle lock horizontal

Placing Cleaner Unit into the Water

1. Unroll the floating cable. It is recommended to extend a length of

cable that is equal to the pool diagonal size plus an additional two

meters.

2. Place the cleaner unit in the pool.

3. Let the robotic cleaner sink to the bottom of the pool.

Do not start operation before the robotic cleaner is settled on the

pool floor.

4. Spread the floating cable across the pool. Make sure that only the

required length of cable is spread across the pool. Smooth out

coils or twists in the cable. Roll extra cable outside the pool near

the power and control unit.

5. Connect the floating cable (A) to the socket (B) located on the

power and control unit.

CAUTION: Operating the cleaner out of water causes

immediate severe damage and results in loss of warranty.

12 cm

Operation

Chlorine

2-5 ppm

7.2-7.6

Temp

13°C-35°C NO

SWIM

3.6m

Socket (B)

Cable plug (A)

Placing the Power and Control Unit

4. Place the power and control unit at least 3.6 meters/11.8 feet from

the pool and at least 12 cm/4 inches above the surface.

CAUTION: The power and control unit must not be exposed to

water or to direct sunlight.

5. Release floating cable plastic ties, which are used to secure the

cables during shipping, by pressing plastic snap on the tie.

Before placing the cleaner unit in the water

1. Make sure there are no people in the pool.

2. Make sure that the filters are clean.

3. Make sure the pool conditions are met; (see “Operating

Conditions” ).

Starting the Robotic Cleaner

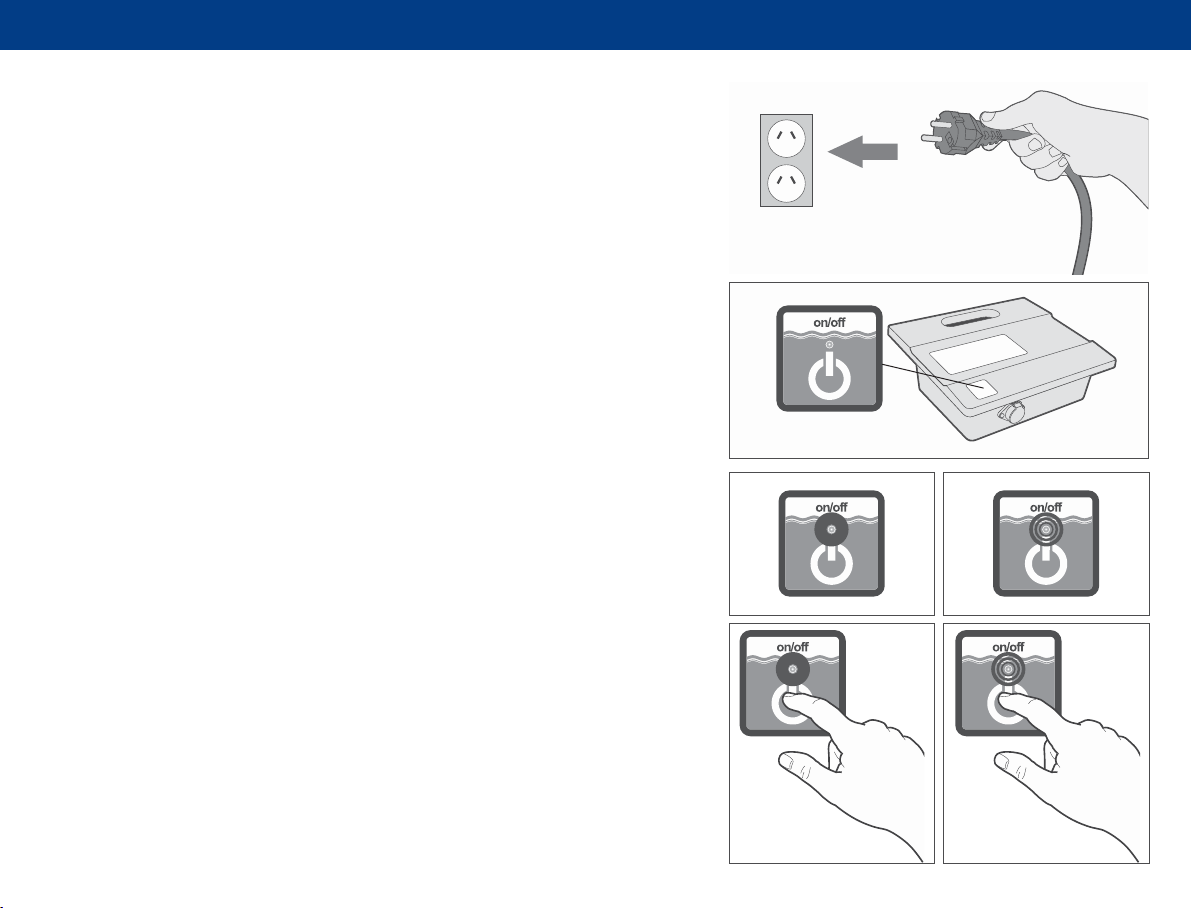

Connect the power and control unit to the wall socket (1). The Operation LED is lit (4) and the

robotic cleaner starts its cleaning program.

If the power and control unit is already connected to the AC socket, the Operation LED flashes

(5) to indicate that the robotic cleaner is in standby mode.

Press the Operation button (6). The Operation LED turns on (6) and the robotic cleaner starts

the cleaning program.

Cleaning Cycle

During the cleaning cycle, the robotic cleaner:

- Moves across the pool floor picking up dirt and debris.

- Changes direction and rotates automatically.

Note: The robotic cleaner might occasionally stop moving for a few seconds. This is

part of normal operation, not a malfunction.

Stopping Robotic Cleaner Operation

The robotic cleaner moves automatically to STANDBY after every cleaning cycle and the

operation LED starts flashing (5).

To stop the cleaner operation during a cleaning cycle, press the operation button (7) once. The

operation LED starts flushing (7) and the cleaner is in standby mode.

Pulling Cleaner Unit out of the Water

1. Unplug the floating cable from the power and control unit.

2. Pull up on the floating cable to pull the cleaner unit closer until it is possible to take hold of the

handle.

3. Using the handle, lift the cleaner unit out of the pool.

CAUTION: Do not use the floating cable to lift the cleaner unit out of the water.

Operation

4 5

6 7

Note: When the Check Filter LED (3) is lit, the robotic cleaner filters must be cleaned

before placing the cleaner unit in the pool.

Maintenance

Storing the Robotic Cleaner

Follow these instructions to store the robotic cleaner when not in

use:

1. Disconnect the power cord from the wall outlet.

2. Disconnect the floating cable from the power and control unit.

3. Spread out the floating cable and release any twists in the

cable.

4. Wash the cleaner unit interior space with fresh water and let it

dry.

5. Roll the floating cable and place it ON THE CLEANER unit.

Caution: DO NOT ROLL the floating cable ON THE HANDLE

of the cleaner unit.

6. Store the robotic cleaner components in a dry, closed location.

7. Verify that the power and control unit is not exposed to water.

Checking Water Outlet Propeller

It is recommended to periodically clean debris

and hair from the propeller of the water outlet:

1. Remove the screws (3) that holds water outlet

cover(2).

2. Remove the water outlet cover (2).

3. Clean any hairs, dirt, or debris.

4. Verify that the propeller (1) is not broken.

5. Return the cover (2) and fasten it with the

screws (3).

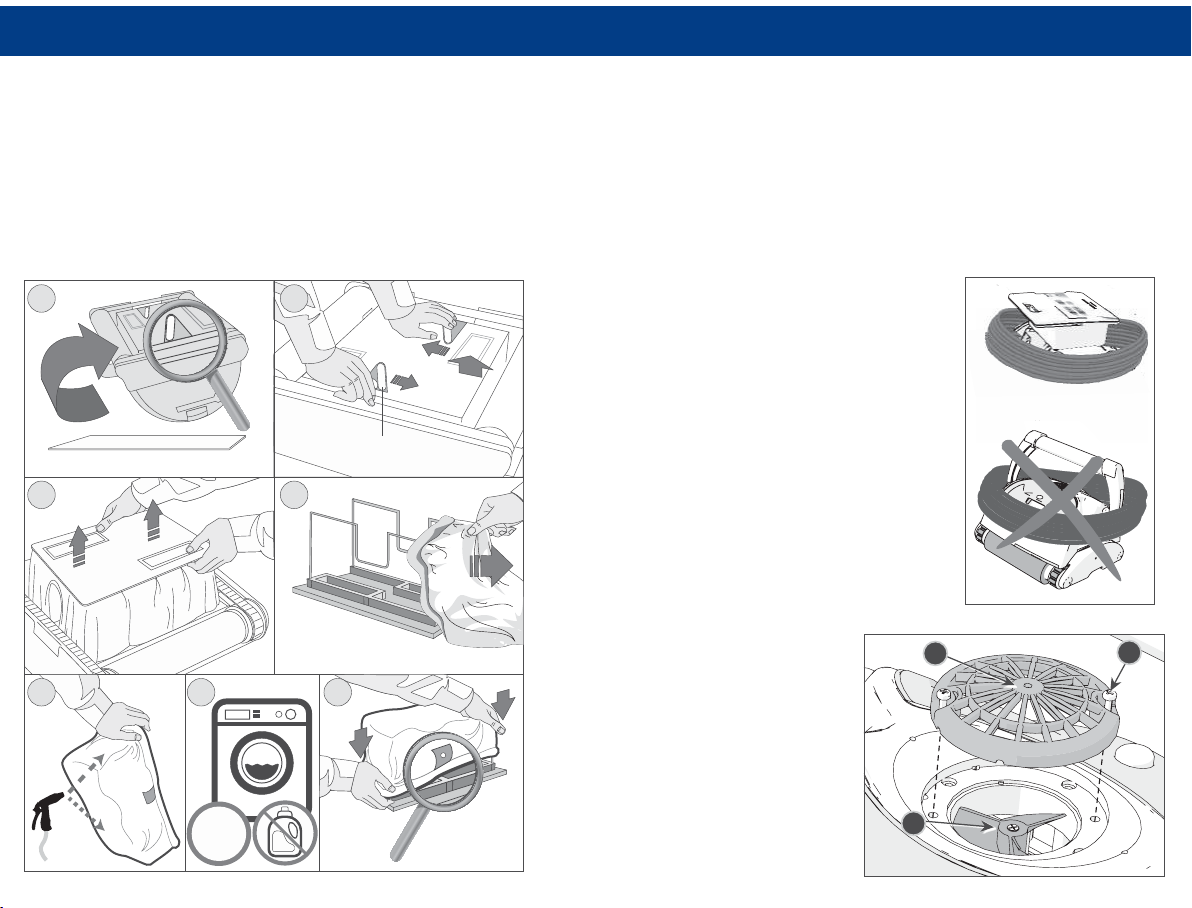

CLEAN THE FILTER BAG AFTER EVERY CLEANING CYCLE

a. Unplug the power supply. (Please keep the plug away from contact with

water).

b. If the unit is in the pool, gently pull the cleaner toward you using the cable until

the handle is within reach. Use the handle (not the cable) to pull the cleaner

out of the pool after allowing most of the water to drain from the unit.

c. Lay the unit on its back on a smooth surface (in order to prevent scratches on

the machine body), release the lock tabs and remove the bottom lid

assembly.

d. Remove the filter bag from the support bars, turn it inside out and wash off all the dirt with a

garden hose or in a sink. Squeeze the bag gently until the rinse water is clear. If necessary,

machine wash the bag using only cold water with NO DETERGENT!

e. Re-install the bag on the support bars with the label in the center of one of the long sides of the

bottom lid.

f. Re-install the bottom lid assembly in the body. Push down on it until lock tabs will snap into

place properly.

Smooth Surface

Swivel Tab

Filter Bag

30°C

label

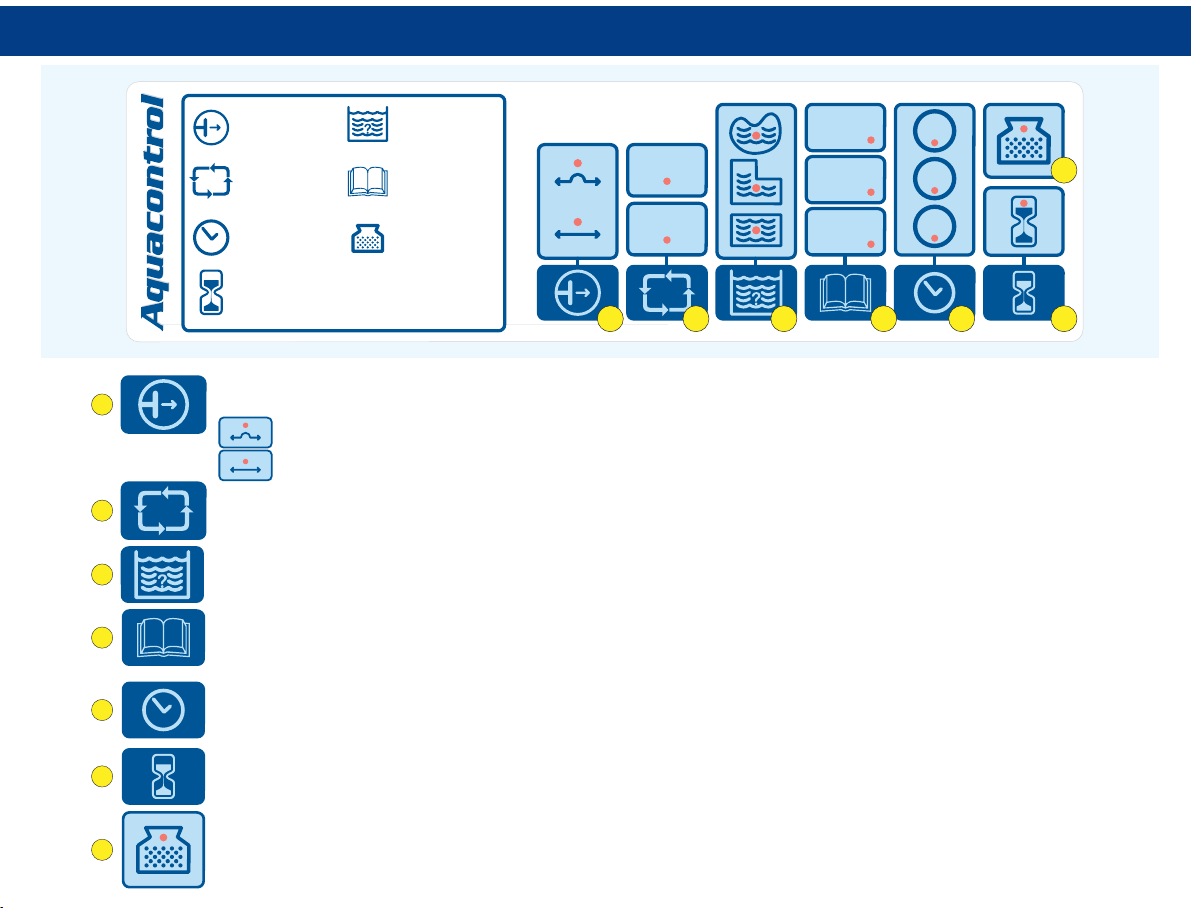

Model 400 - Aquacontrol Super Remote

PROGRAM

HIGH

NORMAL

96h

48h

72h

)"+&+$

.,$.*

+0".+)0&*".

40".+)0&*".

3&2")

10,!"0" 0 ,,)/%-"

%" (#&)0".

)"+&+$-.,$.*/")" 0&,+

.,$.*6%,1.#),,.,+)5 )"+&+$-.,$.*

.,$.*6%,1.#),,.+!3)) )"+&+$

.,$.*6%,1.#),,.+!3)) )"+&+$

+0".+)0&*".10,*0& ,-".0&,+,-0&,+

2".5%,1./

2".5%,1./

2".5%,1./

3&2")6!'1/00%".,,0/.0",#01.+/&+0%"-,,)

 ,.*)60+!.!,-".0&,+

 &$%6&##"."+0.0",#01.+/

10,"0" 0%&/,-0&,+/%,1)!"/")" 0"!&#5,1/""5,1.-,,) )"+". %+$&+$!&." 0&,+&+0%"*&!!)",#0%"-,,)3&0%,10*(&+$ ,+0 03&0%+5,/0 )"/

10,"0" 0%"-,,) )"+"./%,1)! %+$"!&." 0&,+3%"+*(&+$ ,+0 03&0% ".0&+,/0 )"/%,,/"0%&/,-0&,+3%"+0%"-,,)%/,/0 )"//1 %/&+

#),,. )"+&+$/5/0"*/*&+!.&+/+!)!!"./

10,!"0" 00%&/#"01."-."2"+0/0%".,,0#.,*$"00&+$/01 (,+,/0 )"/&+0%"-,,)/1 %/*&+!.&+//0"-/)!!"./"0 ."//0%&/100,+0, %,,/",+",#0%"

#,)),3&+$,-0&,+/

,,)/%-"

)),3/0%".,,00, ) 1)0"0%"*,/0"##& &"+0 )"+&+$-00".+#,.0%"-,,)/%-" %,/"+."//0%"100,+0,/")" 00%"!.3&+$*,/0/1&0)"0,0%"/%-",#0%"-,,)

."!)&$%03&))&+!& 0"5,1./")" 0&,+

%" (#&)0".

6))1*&+0"!)&$%0*"+/0%"#&)0".$*1/0"."*,2"! )"+"!+!-.,-".)5&+/0))"! (&+0,0%".,,00,3,.("##& &"+0)5



 





















40".+)0&*".6

%&/#"01."$&2"/0%",-0&,+0,0%""+!1/".0,-.,$.*0%" )"+&+$/ %"!1)"0%.,1$%+"40".+)0&*"./,)!/"-.0")5."//&+$0%&/100,+"+)"/+!!&/)"/0%&/

#"01."

1. CLEANER DOES NOT TURN ON.

There is no electricity in the wall socket.

a) Disconnect cleaner from the power and control unit.

b) Disconnect power supply from the wall socket, wait 30 seconds and

reconnect.

c) Turn power ON. If not activated, connect the unit to a different wall

socket.

Floating cable not connected properly to the power and control unit.

Reconnect the floating cable to the power and control unit.

Obstacle in the drive system of the cleaner unit.

a) Turn the cleaner unit carefully to view the underside.

b) Rotate the tracks and scrubbing brushes by hand. It should rotate but it

should not rotate freely.

c) Clean and remove obstacles and debris if necessary.

Propeller is seized due to accumulation of hair.

Check if the propeller is broken or needs to be cleaned (see “Checking

Water Outlet Propeller”).

2. CLEANER MOVES BUT DOES NOT PUMP WATER.

Filter is dirty.

a) Open the bottom-lid, remove the filter-bag, and close the lid without the

bag

b) Run the robotic cleaner in the pool without the filters. If working properly,

clean the filter well or replace the filter.

Propeller is broken or seized due to accumulation of hair.

Check if the propeller is broken or needs cleaning (see “Checking Water

Outlet Propeller”).

3. CLEANER PUMPS WATER BUT DOES NOT MOVE.

Obstacle in the drive system of the cleaner unit.

a) Turn the cleaner unit carefully to view the underside.

b) Rotate the tracks and scrubbing brushes by hand. It should rotate but it

should not rotate freely.

c) Clean and remove obstacles and debris if necessary.

4. CLEANER STARTS AND SHUTS OFF AFTER A SHORT TIME.

Filter is dirty.

a) Remove the filter.

b) Run the robotic cleaner without the filters. If working properly, clean the

filters well or replace the filters..

Propeller is broken or seized due to accumulation of hair.

a) Remove the top screws on the top outlet.

b) Check if the propeller is broken or needs to be cleaned.

Obstacle in the drive system of the cleaner unit.

a) Turn the cleaner unit carefully to view the underside.

b) Rotate the tracks and scrubbing brushes by hand. It should rotate but it

should not rotate freely.

c) Clean and remove obstacles and debris if necessary.

5. CLEANER DOES NOT PICK UPDIRT.

Filter is dirty or has holes.

Clean as needed and verify that there no holes in the filter.

Propeller is broken or seized due to accumulation of hair.

Check if the propeller is broken or needs cleaning (see “Checking Water

Outlet Propeller”).

The suction inlet is not close enough to the pool floor.

Move the suction inlet OUT (see “Adjusting Suction Height”).

6. DIRT COMES OUT OF THE CLEANER WHEN REMOVING IT FROM

POOL.

Filter shutter is broken or missing.

The filter shutter is located on the bottom lid. Check that both shutters are

not broken and function properly.

Holes in the filter.

Verify that there are no holes in the filter (see “Cleaning Filters”)

Bottom lid is not properly closed.

Make sure that the bottom lid is properly closed.

Troubleshooting

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Astral Pool Aspirapolvere per piscina

Astral Pool

Astral Pool RF Manuale utente

Astral Pool

Astral Pool QB800 Manuale utente

Astral Pool

Astral Pool RF Robotic Manuale utente

Astral Pool

Astral Pool Pulit E90 Manuale utente

Astral Pool

Astral Pool OPTIMA 7 Manuale utente

Astral Pool

Astral Pool QB600 Manuale utente

Astral Pool

Astral Pool Splasher Manuale utente

Astral Pool

Astral Pool S5 Manuale utente

Astral Pool

Astral Pool BOLERO.ND Manuale

Astral Pool

Astral Pool RB Robotic Manuale utente

Astral Pool

Astral Pool MAX 1 Manuale utente

Astral Pool

Astral Pool Max 3 Manuale utente

Astral Pool

Astral Pool VALS 53789 Manuale

Astral Pool

Astral Pool QG50 Manuale utente

Astral Pool

Astral Pool RPX 11714 Manuale utente

Astral Pool

Astral Pool H3 DUO Manuale utente

Astral Pool

Astral Pool S10 Manuale utente

Astral Pool

Astral Pool Dolphin Ultrakleen Manuale utente

Astral Pool

Astral Pool Jetstream Manuale utente

Astral Pool

Astral Pool Robotic Poll Cleaner Manuale utente

Manuali Aspirapolvere per piscina popolari di altre marche

POOLGOODS

POOLGOODS PoolGobbler Pro Manuale utente

AREBOS

AREBOS AR-HE-BSR Scheda informativa del prodotto

Maytronics

Maytronics Dolphin POOL UP Manuale utente

iRobot

iRobot Verro 600 Manuale utente

Kokido

Kokido SKOOBA K535CBX/18/EU Manuale utente

Dolphin

Dolphin 2x2 Gyro Manuale utente

SmartPool

SmartPool Robo-Kleen PLUS Manuale utente

Brilix

Brilix BARACUDA Manuale utente

Aiper

Aiper Orca 1200 Pro Manuale utente

Hayward

Hayward Navigator Pro Manuale utente

Polaris

Polaris Vac-Sweep 380 Manuale utente

Pentair

Pentair Prowler 710 Manuale utente

BWT

BWT D500 Manuale utente

Kokido

Kokido xtrovac 70 Manuale utente

Pentair

Pentair RACER Manuale utente

Pentair

Pentair REBEL 2 Manuale utente

Zodiac

Zodiac VX55 4WD Manuale utente

SmartPool

SmartPool Robo Kleen Plus Manuale utente
