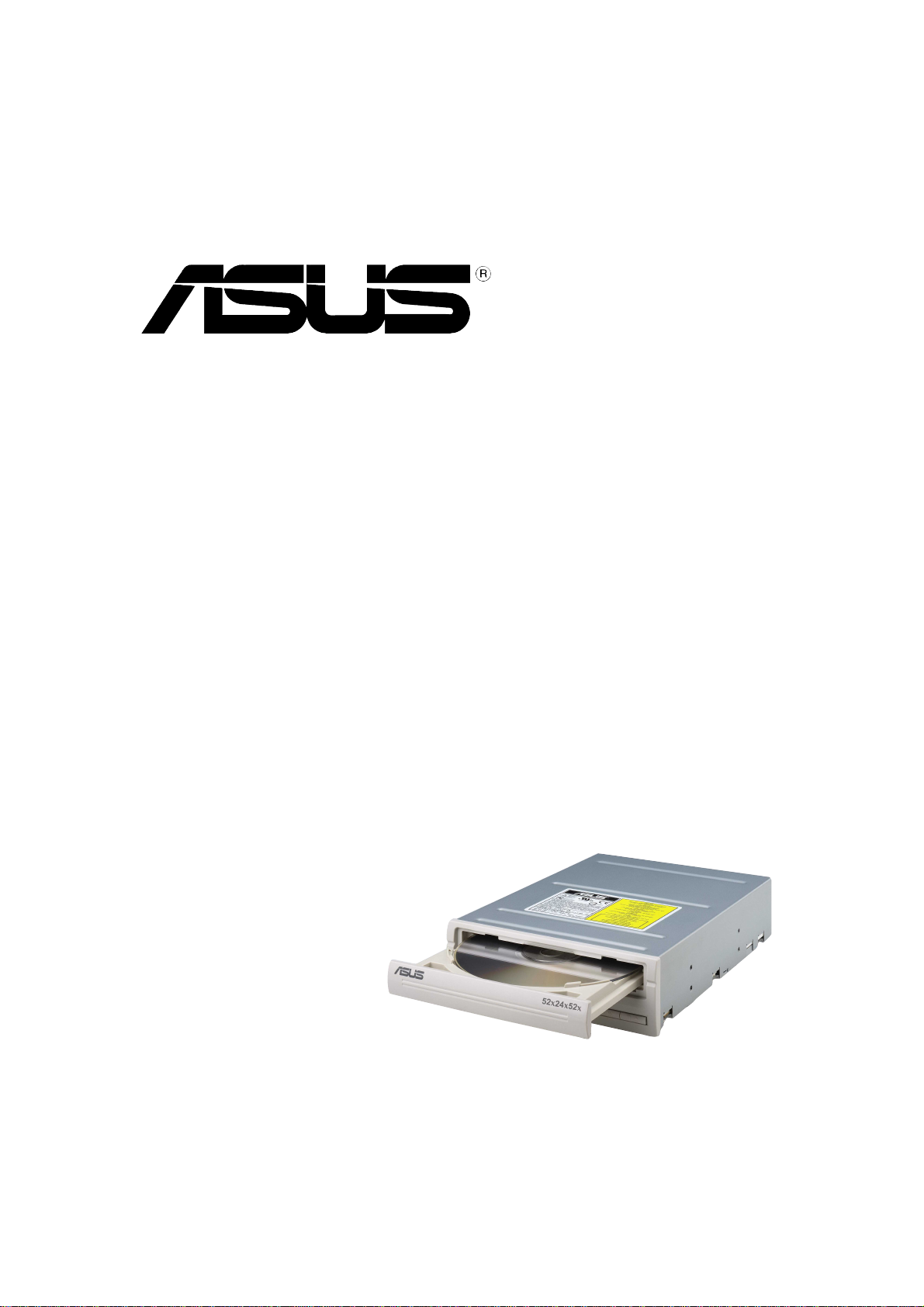

Asus CRW-5224A Manuale utente

52x/24x/52x CD-RW Drive

CRW-5224A

User’s Manual

ASUS CRW-5224A User’s Manual

Copyrights/Disclaimer

No part of this manual, including the products and software described in it, may be

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language in any form or by any means, except documentation kept by the purchaser for

backup purposes, without the express written permission of ASUSTeK COMPUTER INC.

(“ASUS”).

ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES

OR CONDITIONS OF MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE.

IN NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE

LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE

OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR

ERROR IN THIS MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired, modified or

altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)

the serial number of the product is defaced or missing.

The product name and revision number are both printed on the product itself. Manual

revisions are released for each product design represented by the digit before and after the

period of the manual revision number. Manual updates are represented by the third digit in

the manual revision number.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUALARE FURNISHED

FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGEATANY TIME

WITHOUT NOTICE,AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BYASUS.

ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR

INACCURACIES THAT MAYAPPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS

AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identification or

explanation and to the owners’benefit, without intent to infringe.

Product Name: ASUS CRW-5224A

Manual Revision: 1.00 E1103

Release Date: October 2002

ASUS CRW-5224A User’s Manual

Contents

Copyrights/Disclaimer....................................................... 2

FCC/CDC Statements ........................................................ 4

ASUS Contact Information ................................................ 5

Safety Information ............................................................. 6

Installation Notices....................................................... 6

Using the Device.......................................................... 7

Package Contents.............................................................. 8

Welcome! ............................................................................ 9

Product Introduction ......................................................... 9

Specifications............................................................... 9

Features..................................................................... 10

Front Panel ................................................................ 14

Rear Panel................................................................. 15

Installation ........................................................................ 16

System Requirements ............................................... 16

Setting the Jumper Terminals .................................... 17

Installing the CD-RW Drive........................................ 18

Connecting the Drive Cables ..................................... 20

CD-RW Drive Basics ........................................................ 21

Placing a Disc into the Drive...................................... 21

Ejecting a Disc from the Drive ................................... 22

Using the Emergency Eject Pinhole .......................... 23

Using Compact Discs ...................................................... 24

Cleaning a Disc.......................................................... 24

Handling a Disc.......................................................... 24

Technical Information ...................................................... 25

Environmental Specifications..................................... 25

Electrical and Audio Specifications ............................ 25

ASUS CRW-5224A User’s Manual

FCC/CDC Statements

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following

two conditions:

•This device may not cause harmful interference, and

•This device must accept any interference received including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with manufacturer’s

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

WARNING! The use of shielded cables for connection of the

monitor to the graphics card is required to assure compliance with

FCC regulations. Changes or modifications to this unit not

expressly approved by the party responsible for compliance could

void the user’s authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions

from digital apparatus set out in the Radio Interference Regulations of the

Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

ASUS CRW-5224A User’s Manual

ASUS Contact Information

ASUSTeK COMPUTER INC. (Asia-Pacific)

Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112

General Tel: +886-2-2894-3447

General Fax: +886-2-2894-3449

General Email: [email protected]

Technical Support

MB/Optical Drives (Tel):+886-2-2890-7121 (English)

Notebook (Tel): +886-2-2890-7122 (English)

Desktop/Server (Tel): +886-2-2890-7123 (English)

Support Fax: +886-2-2890-7698

Support Email: [email protected]

Web Site: www.asus.com

Newsgroup: cscnews.asus.com.tw

ASUS COMPUTER INTERNATIONAL (America)

Address: 6737 Mowry Avenue, Mowry Business Center,

Building 2, Newark, CA 94560, USA

General Fax: +1-510-608-4555

General Email: [email protected]

Technical Support

Support Fax: +1-510-608-4555

General Support: +1-502-995-0883

Web Site: www.asus.com

Support Email: [email protected]

ASUS COMPUTER GmbH (Europe)

Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany

General Fax: +49-2102-442066

General Email: [email protected] (for marketing requests only)

Technical Support

Support Hotline: MB/Optical Drives: +49-2102-9599-0

Notebook (Tel): +49-2102-9599-10

Support Fax: +49-2102-9599-11

Support (Email): www.asuscom.de/de/support (for online support)

Web Site: www.asuscom.de

ASUS CRW-5224A User’s Manual

Safety Information

Observe the following precautions before installing and using the ASUS

CRW-5224A Drive!

Installation Notices

Do not attempt to disassemble or

repair the drive. Opening the drive

may result to exposure to laser

radiation.

Do not use or place this device

near magnetic fields, televisions,

or radios, where there is

interference that may affect the

performance of the drive.

Do not place this device in areas

where there is direct sunlight,

high humidity, or damp condition.

Do not place this device in an

unstable position, or in one that

vibrates.

ASUS CRW-5224A User’s Manual

Using the Device

•Use of any controls, adjustments, or procedures other than those

specified in this manual may result to hazardous radiation exposure.

•Do not attempt to disassemble the drive.

•Do not move the device from a cold to a warm or hot environment.

Drastic change of temperature is harmful to the device.

•Before moving or uninstalling the drive, remove disc from it, if any.

•Prevent liquids or any metal to get into the device. If this situation

occurs, contact your retailer for help.

•Do not use any evaporating solvents to clean the device. If you

accidentally sprayed any solvent on the device, use a clean cloth to

wipe it. You may also use a neutral cleaner to dilute the solvent to

easily wipe it from the device.

•Try not to interrupt the supply of power while the device is in reading or

writing mode.

•Do not place damaged or warped discs inside the device. A warped

disc may break while in use and damage the device.

•Do not place discs into the device immediately if they came from a cold

environment, specially during cold seasons. Wait until the discs have

reached room temperature.

Safety Information

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the

following symbols used throughout this manual.

WARNING/DANGER: Information to prevent injury to yourself

when trying to complete a task.

CAUTION: Information to prevent damage to the components

when trying to complete a task.

IMPORTANT: Information that you MUST follow to complete a

task.

NOTE: Tips and additional information to aid in completing a task.

ASUS CRW-5224A User’s Manual

Package Contents

Upon opening your ASUS CRW-5224Adrive package, check if all the

following items are present and in good condition. If any of the items is

damaged or missing, contact your retailer immediately.

•ASUS CRW-5224Ainternal IDE drive

•IDE cable

•Mounting screw package

•Wire cable

•Emergency eject pin and instruction slip

•ASUS High-Speed CD-R blank disc

•ASUS High-Speed CD-RW blank disc

•User’s Manual (English and Traditional Chinese)

•Multi-language quick installation guide

•Bundled software CD

The above items are available in retail boxes only.

ASUS CRW-5224A User’s Manual

Welcome!

Thank you for buying the ASUS CRW-5224A Drive!

To ensure proper installation and use of this device, read the instructions

and other important information contained in this manual.

Product Introduction

Specifications

The CRW-5224A has the following specifications.

•Speeds 52X, 48X, 40X, 32X, 24X, 16X, 12X, 8X, 4X writes

24X, 16X, 12X, 10X, 8X, 4X, 2X rewrites

52X maximum reads

•Interface ATAPI specification

•Technology support FlextraSpeed™ Technology

FlextraLink™ Technology

Double Dynamic Suspension System II (DDSS II)

CAV Recording Techonolgy

•Data buffer size 2MB

•Application discs 12cm or 8cm diameter, 1.2mm thick

CD-Audio, CD-ROM, CD-ROM/XA, CD-I,

Mixed Mode CD-ROM, Photo CD,

CD-Extra, Video CD, CD-Text, DVCD, CD-G,

Karaoke CD, I-trax, Bootable CD

•Recording form Orange Book Part 2, 3

Disc-at-once, Track-at-once

Session-at-once, Packet write,

Overburn, DAO-RAW mode

•OS compatibility MS-Windows 98/98SE/ME/2000/XP/NT

SCO Unix, Linux, Netware, OS/2 Warp

•Power supply DC 5 x (1 +/- 5%)V

DC 12 x (1 +/- 10%)V

•Dimensions 41.5 (h) x 149.0 (w) x 197.5 (d) mm

•Mass 997 g

Refer to the section “Technical Information” on page 25 for

detailed specifications.

ASUS CRW-5224A User’s Manual

Features

The ASUS CRW-5224Ais a CD-RW drive with 52X-write, 24X-rewrite, and

52X-read capabilities. The drive complies with theATAttachment Packet

Interface (ATAPI) specification and comes equipped with the latest

innovative technologies in CD recording.

Highlighting the major characteristic of ASUS CD-RW drives, the

CRW-5224A strategically identifies the media quality at the beginning of

the recording so that it can apply the appropriate writing speeds and

ensure effective data storage. Thanks to the FlextraSpeed™and

FlextraLink™technologies developed by ASUS.

FlextraSpeed™increases accuracy and reliability when rewriting across a

broad base of certified media, while FlextraLink™prevents buffer

underrrun problems to eliminate the creation of unusable discs. The

following sub-sections describe these technologies in detail.

FlextraSpeed™Technology

The ASUS FlextraSpeed™technology provides the optimum solution to

ensure quality recording when using discs that require flexible speeds. The

CRW-5224A drive employs this technology that allows automatic recording

speed adjustment based on the recording media.

In addition to the fact that there are low and high quality recording media,

various other factors such as dye layer, temperature, humidity, dust,

fingerprints, etc., affect the recording characteristics of CD-R and CD-RW

discs. Due to these factors, some discs may not be able to stand the high-

speed capabilities of the latest CD-RW drives. The FlextraSpeed™

technology solves this problem by automatic assessment of the disc

quality and recording capability. The recording speed is based on these

factors. If you use a high quality recording disc, you can maximize the

recording capability of the drive and get the best quality output. If you use

a low quality disc, the drive speed adjusts to the level that is most

appropriate for the disc, still optimizing the disc recording capability.

The FlextraSpeed™technology also helps maintain the CD-RW drive

because of the controlled motor rotation speeds and reduced noise

caused by spindle air, thus prolonging the drive motor’s life and ensuring

high-quality recording.
