NVIDIA Jetson Xavier NX Platform

Ubuntu 18.04

BOXER-8250AI

Mar. 2021

Revision 1.0

Installation User Guide

Revision History

Revision

Date

Description

1.0

Mar. 2021

Initial release.

Contents

Revision History..............................................................................................................1

1. Preparing................................................................................................................3

1.1. Pre-requisites.............................................................................................3

1.2. In Linux Host...............................................................................................4

2. To Flash Image........................................................................................................5

2.1. Flash Image to Board .................................................................................5

1.Preparing

1.1. Pre-requisites

1. Prepare an image compressed file. Its name will be like

Ubuntu_18.04_{OS_IF}.{PLF_IF}.{PJ_IF}.{BN}.tar.gz

I. {OS_IF} is OS Information; e.g. UB1804Xwhich UB means Ubuntu, 1804 means

Ubuntu 18.04 and X means Desktop version.

II. {PLF_IF} is Platform Information; e.g.NV04

III. {PJ_IF} is Project Information; e.g. BOXER-8240AI

IV. {BN}is Build Number; e.g. 0,1,2,...,N

2. Prepare one host PC that OS is Ubuntu 16.04 or 18.04

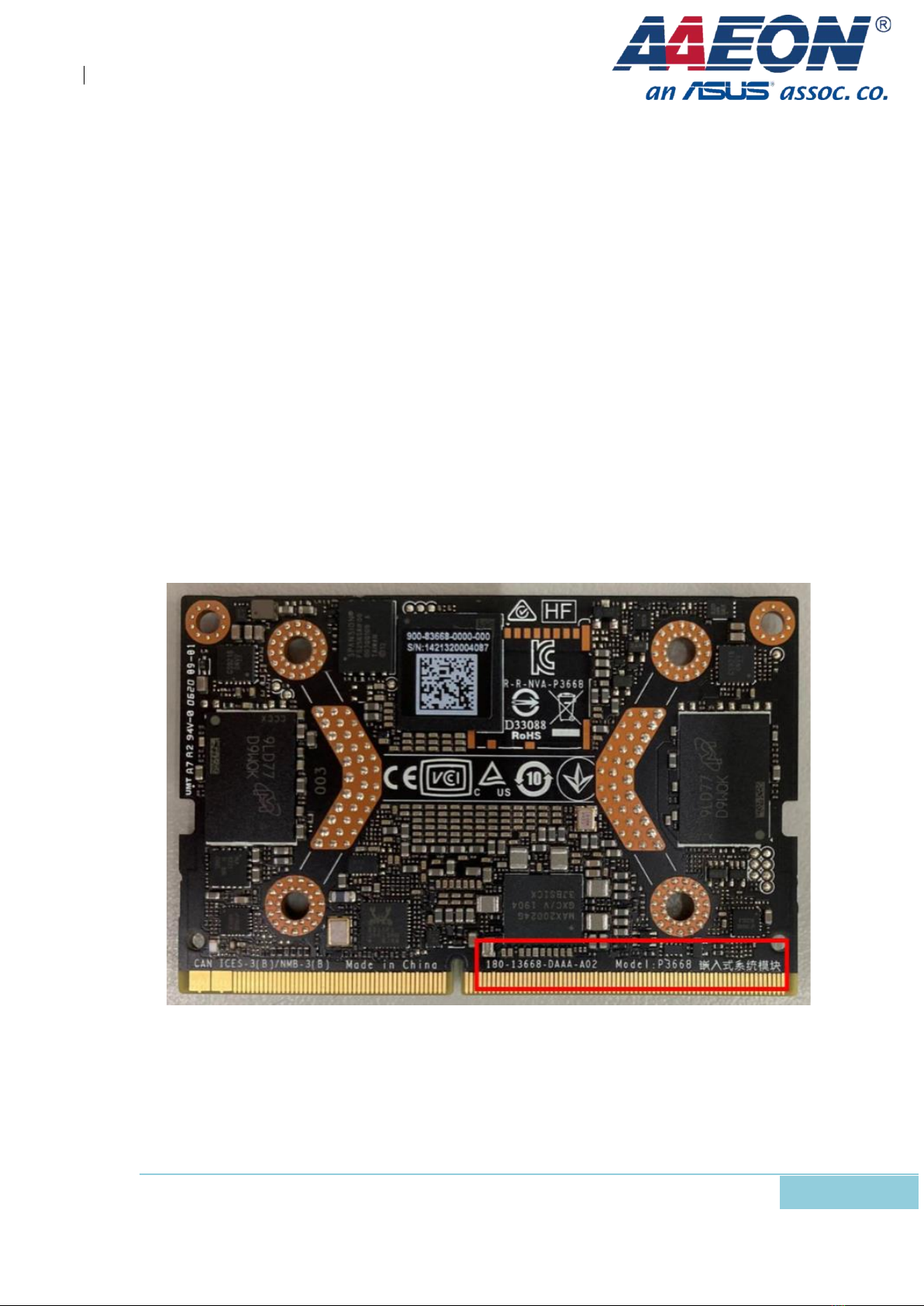

3. Prepare Jetson Xavier NX module.

1.2. In Linux Host

1. Unzip image compression file on Ubuntu Host PC.

$tar -zxvf Ubuntu_18.04_{OS_IF}.{PLF_IF}.{PJ_IF}.{BN}.tar.gz

2. Connect Host PC and BOXER-8250AI via micro USB.

3. Connect the BOXER-8250AI to power supply.

4. Press and hold down the recovery key and then press the power key.

After 2 seconds, release the recovery key. The target board should

enter recovery mode

5. If device is in recovery mode, lsusb command on host PC will list a

line of “0955:7019 NVidia Corp”

2.To Flash Image

2.1. Flash Image to Board

1. Type [Ctrl] + [Alt] + [t] to open terminal on Ubuntu Host PC.

2. Enter the bootloader folder that you unzip.

3. Execute script to flash image.

$ sudo ./flashall.sh

4. Flash image complete.
