Asus P Series Manuale utente

English

P-Series

ASUS PC (Desktop Barebone)

Installation manual

E4233

Download the latest manual from the ASUS website: www.asus.com

P2 P4

2 Installation manual

English

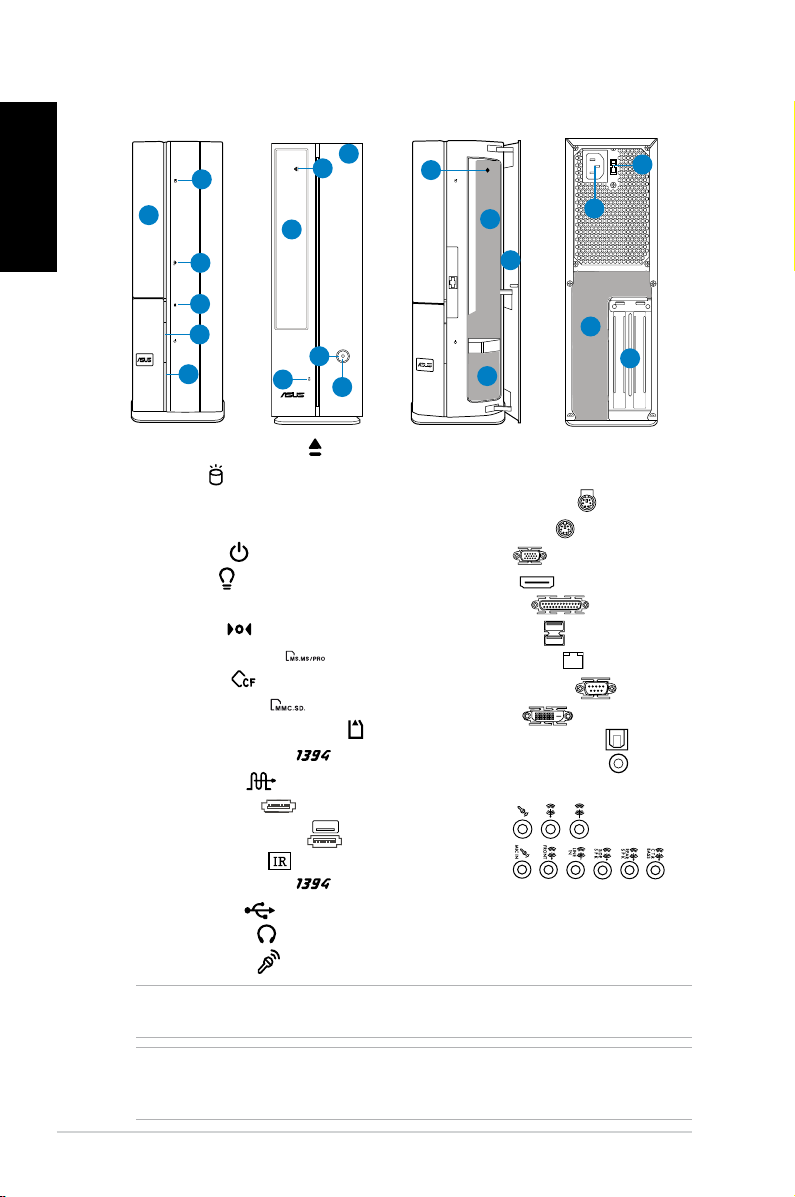

Front/Rear panel features

1. Optical drive eject button ( )

2. HDD LED ( )

3. Optical drive bay cover

4. Open the front panel cover

5. Power button ( )

6. Power LED ( )

7. Front panel cover

8. Reset button ( )

9.* • MS/MS Pro card slot ( )

• CF card slot ( )

• SD/MMC card slot ( )

• MS/MS Pro/SD/MMC card slot ( )

• 6-pin IEEE 1394a port ( )

• S/PDIF In port ( )

• ESATA/USB port ( )

• USB + ESATA/USB port ( )

• Infrared Receiver (

)

10.* • 4-pin IEEE 1394a port ( )

• USB 2.0 ports ( )

• Headphone port ( )

• Microphone port ( )

11. Power connector

12.** Voltage selector switch

13.* • PS/2 keyboard port ( )

• PS/2 mouse port ( )

• VGA port ( )

• HDMI port ( )

• Parallel port ( )

• USB 2.0 ports ( )

• LAN (RJ-45) port ( )

• Serial (COM1) port ( )

• DVI-D port ( )

• Optical S/PDIF Out port ( )

• Coaxial S/PDIF Out port ( )

 •Audioportscongurations:

• 6-channel

• 8-channel

14. Expansion slot metal brackets

P2 Front (Close) Front (Open)

NOTE: *The front/rear panel slots/ports and their locations may vary, depending on the

model of your system. For detailed descriptions, refer to the system User Guide.

NOTE: **The system’s power supply unit has a 115V / 230V voltage selector switch

located beside the power connector. Use this switch to select the appropriate system

input voltage according to the voltage supply in your area.

RearP4 Front (Close)

3Installation manual

English

Internal components

1. Front panel cover

2. 5.25-inch optical drive and

3.5-inch hard disk drive cage

3. Power supply unit

4. PCI/PCIE card riser bracket

(connected to the motherboard

PCI/PCIE slot)

5. ASUS motherboard*

6. DIMM sockets

7. CPU socket

NOTE: *Refer to the system User Guide for motherboard details.

Removing the cover

1. Remove the cover screws on the rear panel. Keep the screws for later use.

2. Pull the cover toward the rear panel.

3. Lift the cover, then set it aside.

1. Locate the front panel cover

hooks, then lift them until

they disengage from the

chasis.

2. Swing the front panel cover

to the right, remove it, and

set it aside.

Removing the front panel cover

Removing the storage drive assembly

1. Lay the system on its side,

then locate and remove

three storage drive assembly

screws.

2. Lift the storage drive

assembly, then set aside.

4 Installation manual

English

CAUTION! To prevent damage to the

socket pins, do not remove the PnP cap

unless you are installing a CPU.

Installing an Intel®CPU

1. Locate the CPU socket on the

motherboard.

2. Press the load lever with your thumb

(A), then move it to the left (B) until it

is released from the retention tab.

3. Lift the load lever in the direction of the arrow to a 135º angle.

4. Lifttheloadplatewithyourthumbandforengertoa100ºangle(4A),then

push the PnP cap from the load plate window to remove (4B).

5. Position the CPU over the socket, making sure that the gold triangle is on the

bottom-left corner of the socket. Fit the socket alignment key into the CPU

notch.

6. Close the load plate (6A), then push the load lever (6B) until it snaps into the

retention tab.

Load lever

Retention tab

Gold

triangle

mark

Alignment key

Load plate

PnP cap

4B 4A

Installing an Intel®CPU heatsink and fan

1. Place the heatsink on top of the installed CPU, making sure that the four

fasteners match the holes on the motherboard.

2. Push down two fasteners at a time in a

diagonal sequence to secure the heatsink and

fan assembly in place.

3. When the fan and heatsink assembly is in

place, connect the CPU fan cable to the

connector on the motherboard.

CAUTION. Do not forget to connect the CPU

fan connector! Hardware monitoring error can

occur if you fail to plug this connector.

5Installation manual

English

Removing an AMD CPU fan and heatsink assembly

1. Remove two screws securing the blower to the CPU fan.

2. Carefully lift each locking lever and detach its end

from the hole of the retention module.

3. Release the hook of each metal clip from the hole

of the retention module.

4. Remove the metal clips from the side rail of the

fan and heatsink assembly.

5. Disconnect the CPU fan cable from the connector

on the motherboard, then remove the fan and

heatsink assembly.

Retention module

Locking

levers 2

Installing an AMD CPU

1. Locate the CPU socket, then lift the socket lever to a 90º angle.

2. Install the CPU to the socket, making sure that the CPU corner with the gold

triangle matches the socket corner with a small triangle.

3. Push down the socket lever to secure the CPU.

1 2 3

NOTE: To reinstall AMD CPU fan and heatsink assembly, follow the instructions in

reverse order.

CAUTION: After you reinstall a fan and heatsink assembly, do not forget to connect

the CPU fan connector! Hardware monitoring error can occur if you fail to plug this

connector.

Hook

Metal clip

6 Installation manual

English

Installing an expansion card

1. Lift the PCI/PCIE riser card

assembly to remove.

4. Reinstall the PCI/PCIE riser card

assembly. Make sure that the riser

card connector sits properly on the

motherboard PCI/PCIE slot.

Installing a DIMM

1. Locate the DIMM sockets in the motherboard.

2. Unlock a DIMM socket by pressing the retaining clips outward.

3. Align a DIMM on the socket such that the notch on the DIMM matches the

break on the socket.

4. Push the DIMM to the socket until the retaining clips snap inward.

CAUTION:

• Unplug the power supply before adding or removing DIMMs. Failure to do so may

cause damage to the motherboard and/or components.

 • ADDRDIMMiskeyedwithanotchsothatittsinonlyonedirection.Donotforce

a DIMM into a socket to avoid damaging the DIMM.

2. Remove the metal cover opposite

the slot that you intend to use.

3. Insert the card connector to the

slot,thenpressthecardrmly

untilittsinplace.Securethe

card with a screw.

7Installation manual

English

Installing optical and storage drives

1. Turn the storage drive assembly upside down with the 3.5-inch bay on top of

the 5.25-inch bay.

2. Insert the optical drive upside down to the 5.25-inch bay, then secure it with

two screws on both sides.

3. Turn the storage drive assembly, insert the hard disk drive upside down to the

3.5-inch bay, then secure it with two screws on both sides.

Reinstalling the storage drive assembly

1. Connect the SATA/IDE (1A) and power (1B) plugs to connectors at the back

of the optical drive.

2. Connect the SATA/IDE (2A) and power (2B) plugs to the connectors at the

back of the SATA/IDE hard disk drives.

3. Install the storage drive assembly to the chassis.

4. Secure the storage drive assembly with three screws.

SATA IDE

2B 2A

SATA

IDE

8 Installation manual

English

NOTE: For P2 model, if your optical

drive tray fails to eject when you press

the eject button, attach the provided

stickers (0.5mm and 1.0mm) to the

location shown at the back of the front

panel cover. Make sure the sticker aligns

with the optical drive eject button.

1. Insert the foot stand hooks into

the holes on the chassis.

Installing the foot stand

2. Pull the foot stand to the direction

of the arrow until the lock snaps

in place.

NOTE: To remove the foot stand, lift the lock, then slightly push the foot stand to the

direction of the rear panel until it disengages from the chassis.

Reinstalling the cover

1. Insertthecovertothechasis.Makesurethecovertabstthechasisrails.

2. Pushthecovertowardthefrontpaneluntilittsinplace.

3. Secure the cover with two screws you removed earlier.

Reinstalling the front panel cover

NOTE: Refer to the pictures in the section “Removing the cover” on page 3 in reverse

order.

1. Insert the front panel

cover tabs to the holes

on the right side of the

chassis, then swing

the front panel cover to

the left.

2. Insert the front panel

cover hooks to the

chassis until the front

panelcovertsin

place.

Sticker

Français

P-Series

PC ASUS (Système barebone)

Manuel d’installation

F4233

Téléchargezlesderniersmanuelsd'utilisationsurlesiteWebd'ASUS:

www.asus.com

P2 P4

2 Manuel d’installation

Français

Caractéristiques du panneau avant/arrière

1. Bouton d’éjection du lecteur optique ( )

2. LED d’activité du disque dur ( )

3. Cache de la baie du lecteur optique

4. Ouvre le panneau avant

5. Bouton d’alimentation ( )

6. LED d’alimentation ( )

7. Couvercle du panneau avant

8. Bouton de réinitialisation ( )

9.* • Slot carte MS/MS Pro ( )

• Slot carte CF ( )

• Slot carte SD/MMC ( )

• Slot carte MS/MS Pro/SD/MMC ( )

• Port IEEE 1394a 6 broches ( )

• Port d’entrée S/PDIF ( )

• Port ESATA/USB ( )

• Port USB + ESATA/USB ( )

• Récepteur infrarouge (

)

10.* • Port IEEE 1394a 4 broches ( )

• Ports USB 2.0 ( )

• Prise casque ( )

• Port microphone ( )

11. Connecteur d’alimentation

12.** Interrupteur de sélection du voltage

13.* • Port clavier PS/2 ( )

• Port souris PS/2 ( )

• Port VGA ( )

• Port HDMI ( )

• Port parallèle ( )

• Ports USB 2.0 ( )

• Port LAN (RJ-45) ( )

• Port série (COM1) ( )

• Port DVI-D ( )

• Port de sortie S/PDIF optique ( )

• Port de sortie S/PDIF coaxial ( )

 •Portsaudio:

• 6 canaux

• 8 canaux

14. Caches métalliques des slots

d’extension

P2 -Avant (Fermé) Avant (Ouvert)

NOTE : *Les ports/slots du panneau avant et arrière ainsi que leur emplacement,

peuvent varier selon les modèles. Voir le manuel d’utilisation pour plus détails.

NOTE : **L’alimentation du système est équipée d’un sélecteur de tension 115 V/230 V

situé près du connecteur d’alimentation. Utilisez cet interrupteur pour choisir la bonne

tension d’entrée en fonction des standards utilisés dans votre région.

ArrièreP4 - Avant (Fermé)

Altri manuali per P Series

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Asus Scrivania

Asus

Asus Rog Tytan G30AK Manuale utente

Asus

Asus ROG Strix GA35 G35DX Manuale utente

Asus

Asus BT1AE Manuale utente

Asus

Asus P3-PH5 Manuale utente

Asus

Asus PN63-S1 Series Manuale utente

Asus

Asus BS5000 Manuale utente

Asus

Asus PL63 Manuale utente

Asus

Asus ROG Strix G16CH Manuale utente

Asus

Asus P2-P5N9300 Manuale utente

Asus

Asus Pundit P3-AE5 Manuale utente

Asus

Asus PB62 Manuale utente

Asus

Asus P4-P5G41 Manuale utente

Asus

Asus T3-P5G31A Manuale utente

Asus

Asus Zen AiO Pro Z220IC Manuale utente

Asus

Asus A31BF Manuale utente

Asus

Asus AAEON BOXER-8221AI Manuale utente

Asus

Asus Terminator Tualatin Manuale utente

Asus

Asus S2-P8H61E Manuale utente

Asus

Asus AS-D325 Manuale utente

Asus

Asus Pundit-PE3 Manuale utente

Asus

Asus A31AD Manuale utente

Asus

Asus PB50 BR072MD Manuale utente

Asus

Asus ET2700INKS Manuale utente

Asus

Asus ROG GR8 II Series Manuale di installazione e funzionamento

Manuali Scrivania popolari di altre marche

HP m9060n - Pavilion - Elite Scheda tecnica

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

HP Presario SV7000 - Desktop PC Manuale utente

HP ProDesk 400 G5 Manuale

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente

HP Z1 Manuale utente

Everex

Everex eXplora Manuale utente
