Asus P3-PH4C Manuale utente

English

Pundit P3-PH4C/P3-PH5

ASUS PC (Desktop Barebone)

Installation Manual

Download the latest manual from the ASUS website: www.asus.com

2 Installation Manual

English

Front panel features

Press to open the

front panel cover

Rear panel features

Power button

Close Open

Optical drive

eject button

Optical drive bay cover

HDD LED

Power LED

IEEE 1394a port

Headphone port

Microphone port

Card reader LED

Memory Stick®/

Pro™card slot SmartMedia®card slot

CompactFlash®

card slot Secure Digital™/

MultimediaCard slot

Front panel cover

USB 2.0 ports

PS/2 keyboard port

Cover screw Cover screw

PS/2 mouse port

Parallel port

Air vents

IEEE 1394a port

LAN (RJ-45) port

Voltage selector

Metal bracket lock

Power connector

USB 2.0 ports

6-channel audio ports

PCI slot metal brackets

Power fan vents

VGA port

P3-PH5

P3-PH4C

8-channel audio ports

ESATA port

3Installation Manual

English

Internal components

1. 5.25-inch empty optical drive bay

2. Front panel cover

3. Optical drive lock

4. Hard disk drive bays

5. Hard disk drive lock

6. Power supply unit

7. PCI Express x1 slot

8. PCI slots

9. PCI Express x16 slot

10. ASUS motherboard

11. Metal bracket lock

12. LGA775 socket

13. DIMM sockets

Selecting the voltage

The system’s power supply unit has

a 115 V/230 V voltage selector switch

located beside the power connector.

Use this switch to select the appropriate

system input voltage according to the

voltage supply in your area.

If the voltage supply in your area is

100-127 V, set the switch to 115 V.

If the voltage supply in your area is

200-240 V, set the switch to 230 V.

Rear panel features

4 Installation Manual

English

3. Pull the cover.

2. Remove the cover screws.

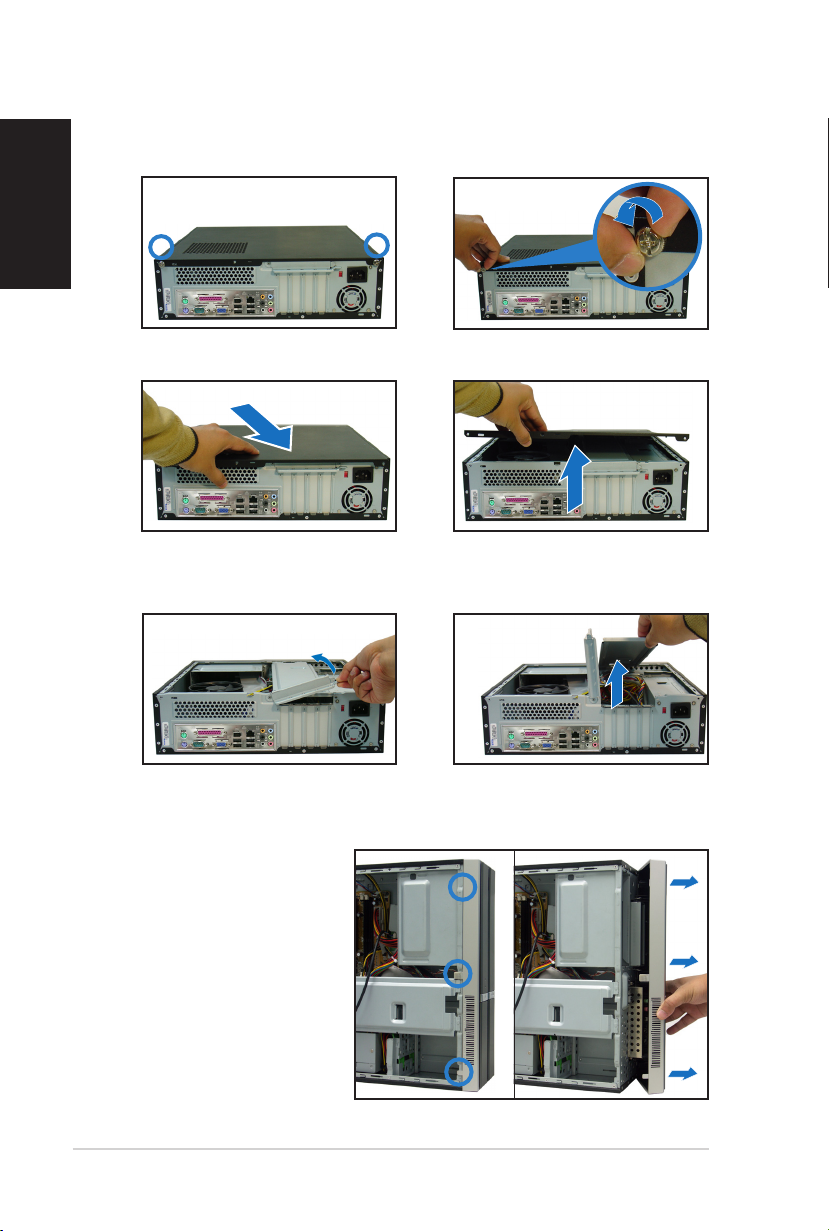

Removing the cover

1. Locate two cover screws.

4. Lift the cover, then set aside.

Removing the front panel assembly

1. Locate the front panel

assembly hooks.

2. Pull the hooks

outward to remove.

5. Lift the expansion card lock to a

90º-100º angle.

6. Lift the chassis support bracket,

then remove.

5Installation Manual

English

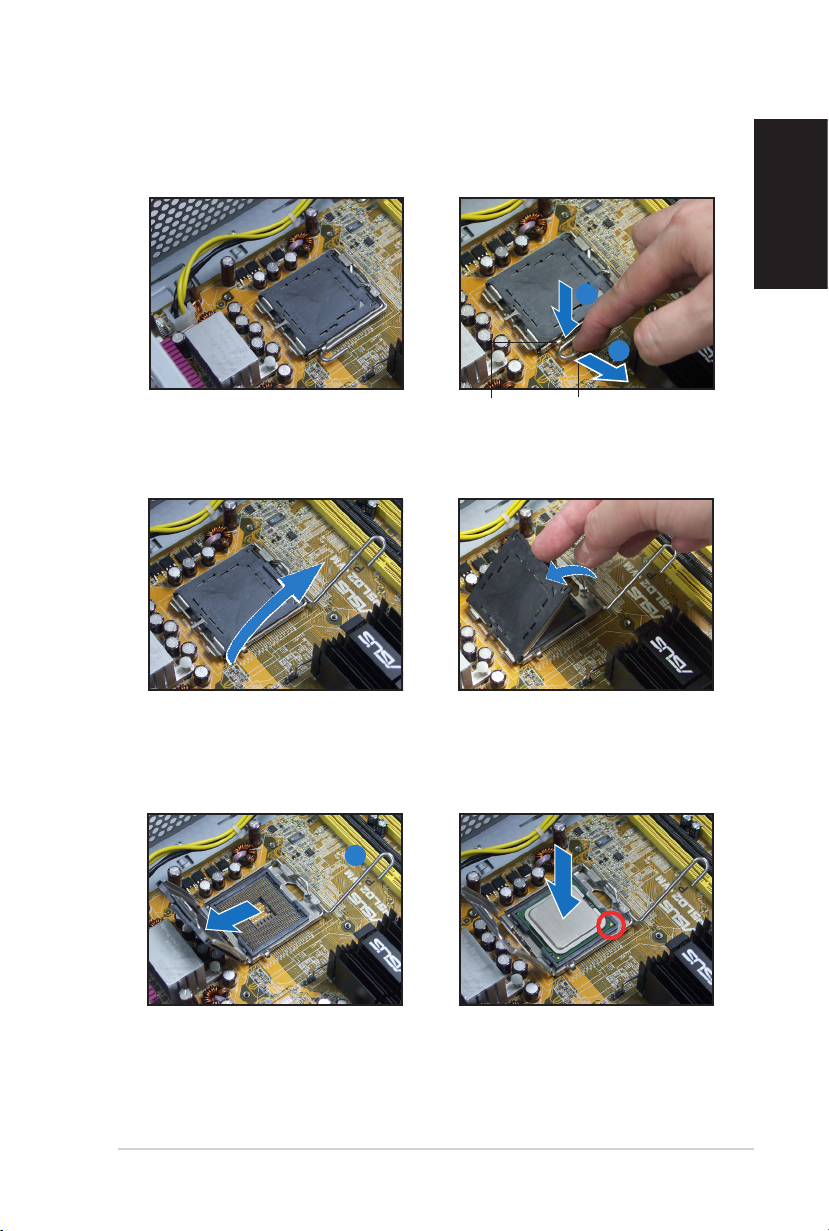

Installing a CPU

1. Locate the CPU socket. 2. Unlock the load lever.

Load leverRetention tab

5. Carefully push the PnP cap from

the load plate window to remove.

6. Install the CPU, noting the

position of the gold triangle as

shown.

3. Lift the load lever. 4. Lift the load plate.

6 Installation Manual

English

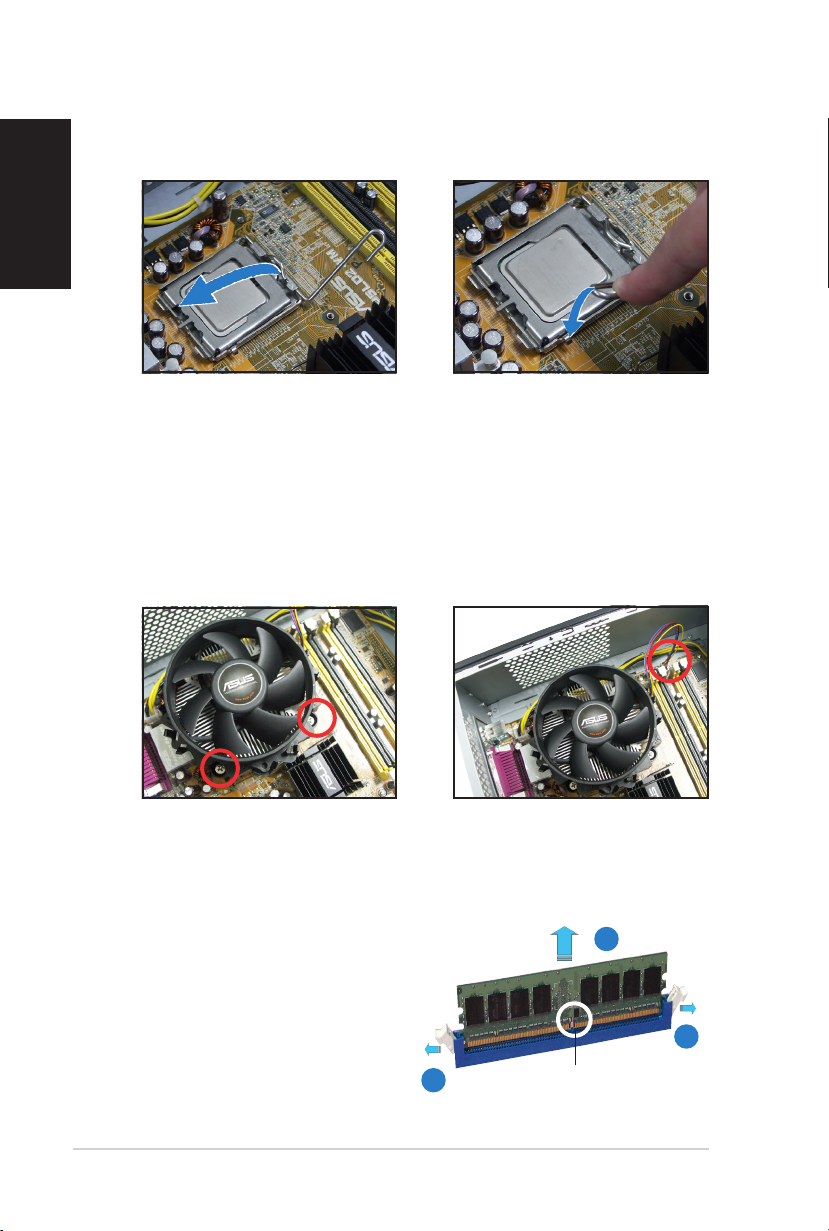

8. Lock the load lever.7. Close the load plate.

Installing the CPU fan and heatsink assembly

1. Place the heatsink on top of the

installed CPU.

2. Drive four screws into the fan

holes to secure the fan to the

motherboard.

3. Connect the CPU fan cable.

Installing a DIMM

1. Locate the DIMM sockets in the

motherboard.

2. Unlock a DIMM socket by

pressing the retaining clips

outward.

3. Align a DIMM on the socket

such that the notch on the DIMM

matches the break on the socket.

DDR2 DIMM notch

7Installation Manual

English

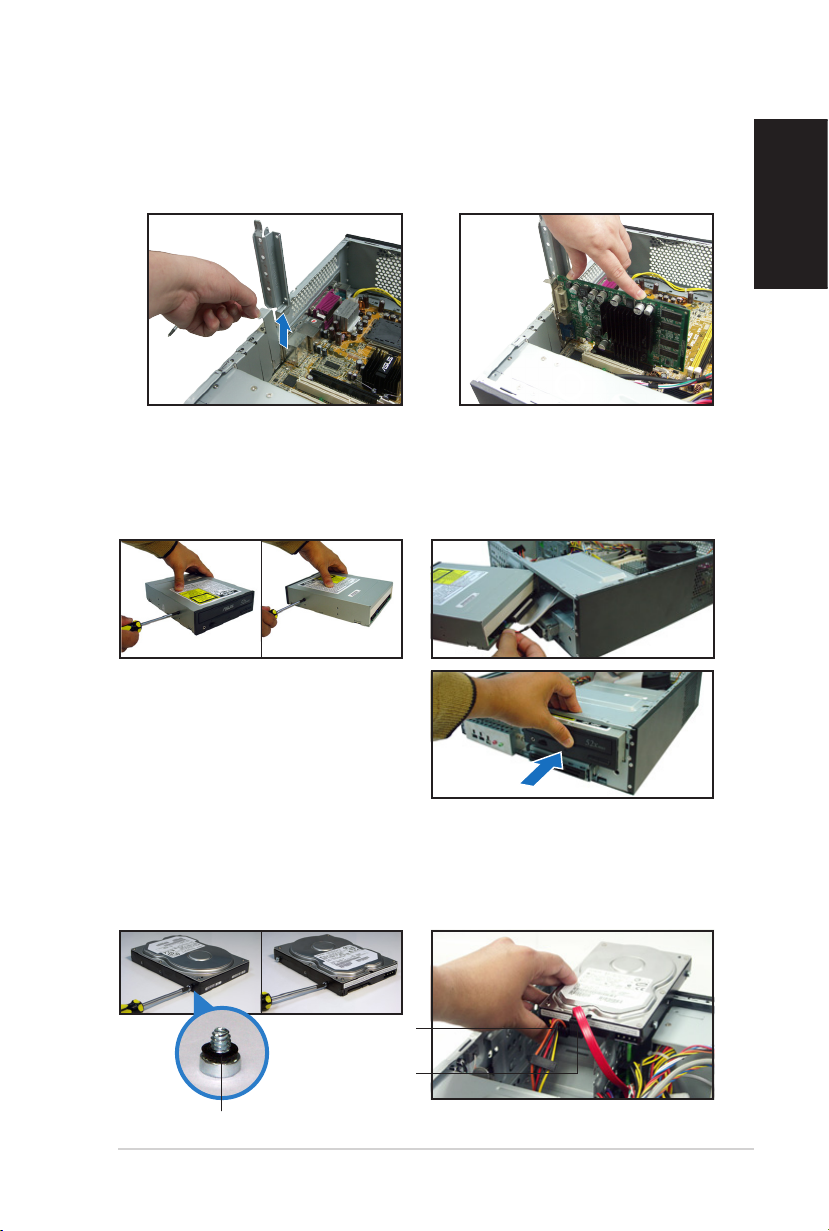

1. Remove the metal cover opposite

the slot that you intend to use.

2. Insert the card connector to the

slot, then press the card rmly

until it ts in place.

Installing an expansion card

Installing an optical drive

1. Drive a screw on the top right

screw hole on both sides of the

drive.

2. Connect the IDE and audio cable

at the back of the drive.

3. Push the drive all the way into the

bay until the drive lock clicks.

4. Connect a 4-pin power plug from

the power supply unit to the power

connector at the back of the drive.

Installing a SATA hard disk drive

1. Drive two screws with rubber

washers on both sides of the

drive.

2. Connect the SATA signal and

power plug at the back of the

drive.

Power cable

and plug

Signal cable

and plug

Rubber washer

8 Installation Manual

English

3. Place the HDD on the tray. 4. When the HDD screws align,

push the drive on the bay.

HDD screw lock

1. Replace the front panel assembly.

3. Insert the cover hooks to the

holes on the chassis side.

2. Reinstall the metal chassis

support and the expansion card

lock.

Replacing the covers

4. Push the cover to the direction of

the front panel, then replace the

cover screws.

Français

Pundit P3-PH4C/P3-PH5

ASUS PC (Système barebone)

Manuel d’installation

Téléchargez les derniers manuels depuis le site web d’ASUS: www.asus.com.

2Manuel d’installation

Français

Caractéristiques de l’arrière

Caractéristiques de la façade

Fermé Ouvert

Pressez pour

ouvrir le panneau

avant

Bouton

d’alimentation

Bouton d’éjection

du lecteur optique

Baie pour lecteur

optique

LED HDD

LED d’alimentation

Port IEEE 1394a

Port Casque

Port Microphone

LED lecteur de cartes

Slot pour cartes

Memory Stick®/Pro™

Slot pour cartes

SmartMedia®

Slot pour cartes

CompactFlash®

Slot Secure Digital™/

MultimediaCard

Panneau avant

Ports USB 2.0

Port clavier PS/2

Vis du capot

Port souris PS/2

Port parallèle

Aérations

Port IEEE 1394a

Port LAN (RJ-45)

Verrouillage des brackets

métalliques

Ports USB 2.0

Port audio 6 canaux

Brackets métalliques des ports PCI

Aération d’alimentation

Port VGA

P3-PH5

P3-PH4C

Port audio 8 canaux

Port ESATA

Vis du capot

Sélecteur de tension

Connecteur d’alimentation
