Asus Pundit P3-PE5 Manuale utente

Pundit P3-PE5/P3-AE5

ASUS PC (Desktop Barebone)

Quick Installation Guide

Download the latest manual from the ASUS website: www.asus.com.

2 Quick Installation Guide

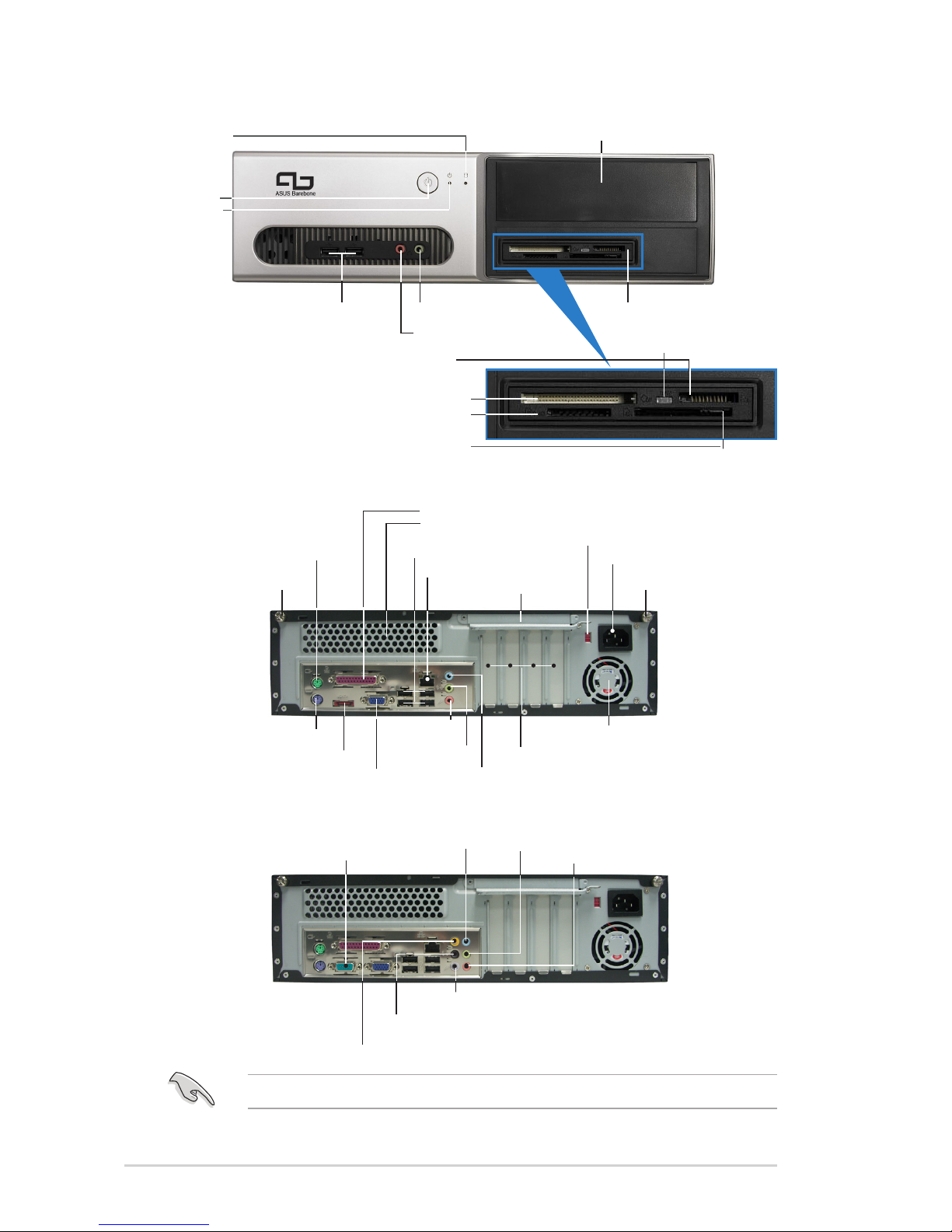

Rear panel features (P3-PE5)

Front panel features

Rear panel features (P3-AE5)

5.25-inch drive bay cover

HDD LED

USB 2.0 ports Microphone port

Headphone port

6-in-1 card reader

CompactFlash® card slot

Secure Digital™/MultimediaCard slot

SmartMedia® card slot

Card reader LED

Memory Stick/Pro™ card slot

Power

button

Power

LED

COM port

Side Surround L/R

Rear Surround L/R

Center/sub

The systems only support Low Proﬁle PCI card.

PS/2 keyboard port

Cover screw Cover screw

PS/2 mouse port

Parallel port

Line In

Voltage selector

Metal bracket lock

Power connector

VGA port

E-SATA port

USB 2.0 ports

MIC in

Line Out PCI slot metal brackets

Power fan vent

Air vents

LAN (RJ-45) port

Line In Line Out MIC in

3Quick Installation Guide

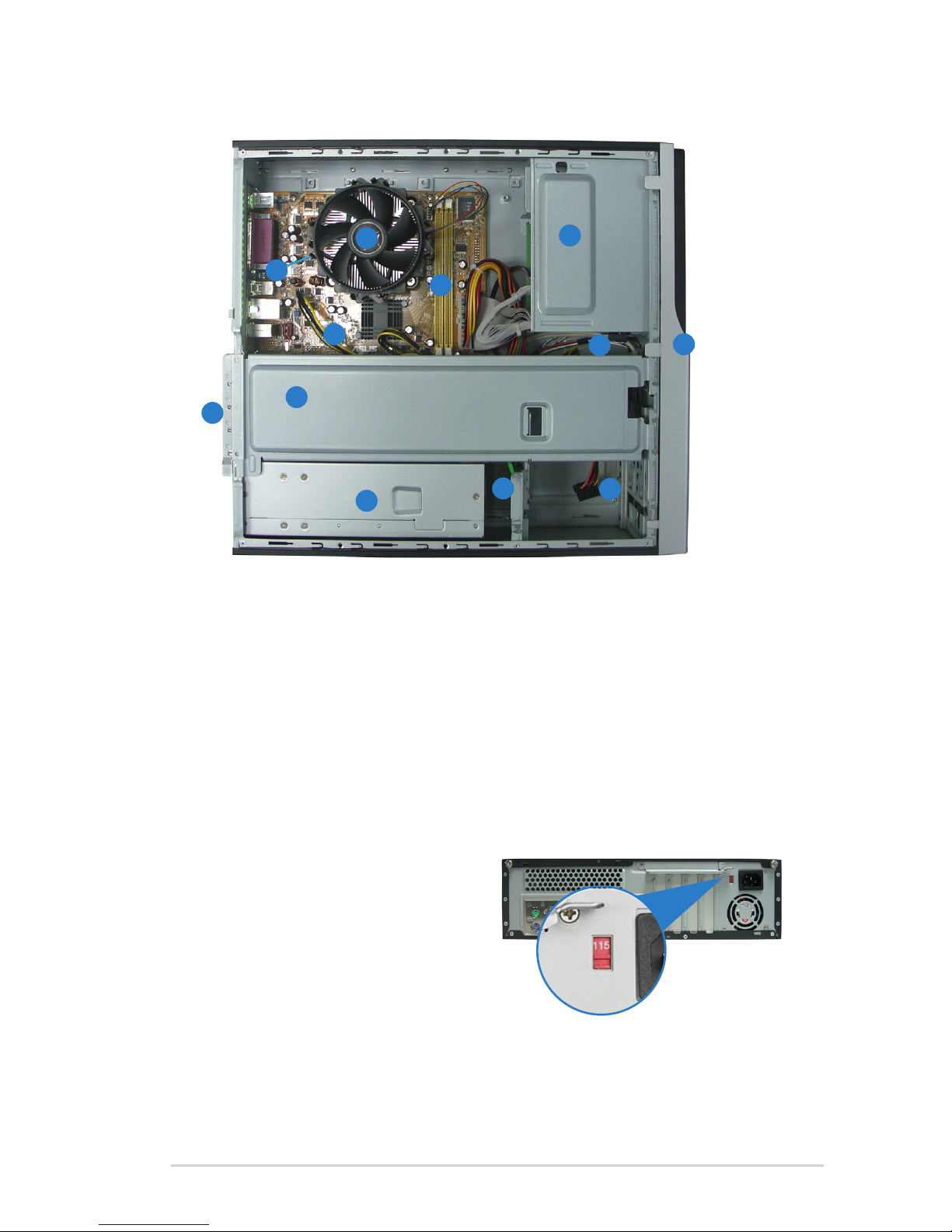

Internal components

1. 5.25-inch empty optical drive bay

2. Front panel cover

3. Optical drive lock

4. Hard disk drive bays

5. Hard disk drive lock

6. Power supply unit

7. Chassis support bracket

8. ASUS motherboard

9. Metal bracket lock

10. LGA775 socket for P3-PE5,

AM2 socket for P3-AE5 (under

the CPU fan and heatsink

assembly)

11. CPU fan and heatsink assembly

(P3-AE5 system doesnʼt

bundle with it)

12. DIMM sockets

Selecting the voltage

The systemʼs power supply unit has

a 115 V/230 V voltage selector

switch located beside the power

connector. Use this switch to select

the appropriate system input voltage

according to the voltage supply in

your area.

If the voltage supply in your area is

100-127 V, set the switch to 115 V.

If the voltage supply in your area is

200-240 V, set the switch to 230 V.

4 Quick Installation Guide

3. Pull the cover.

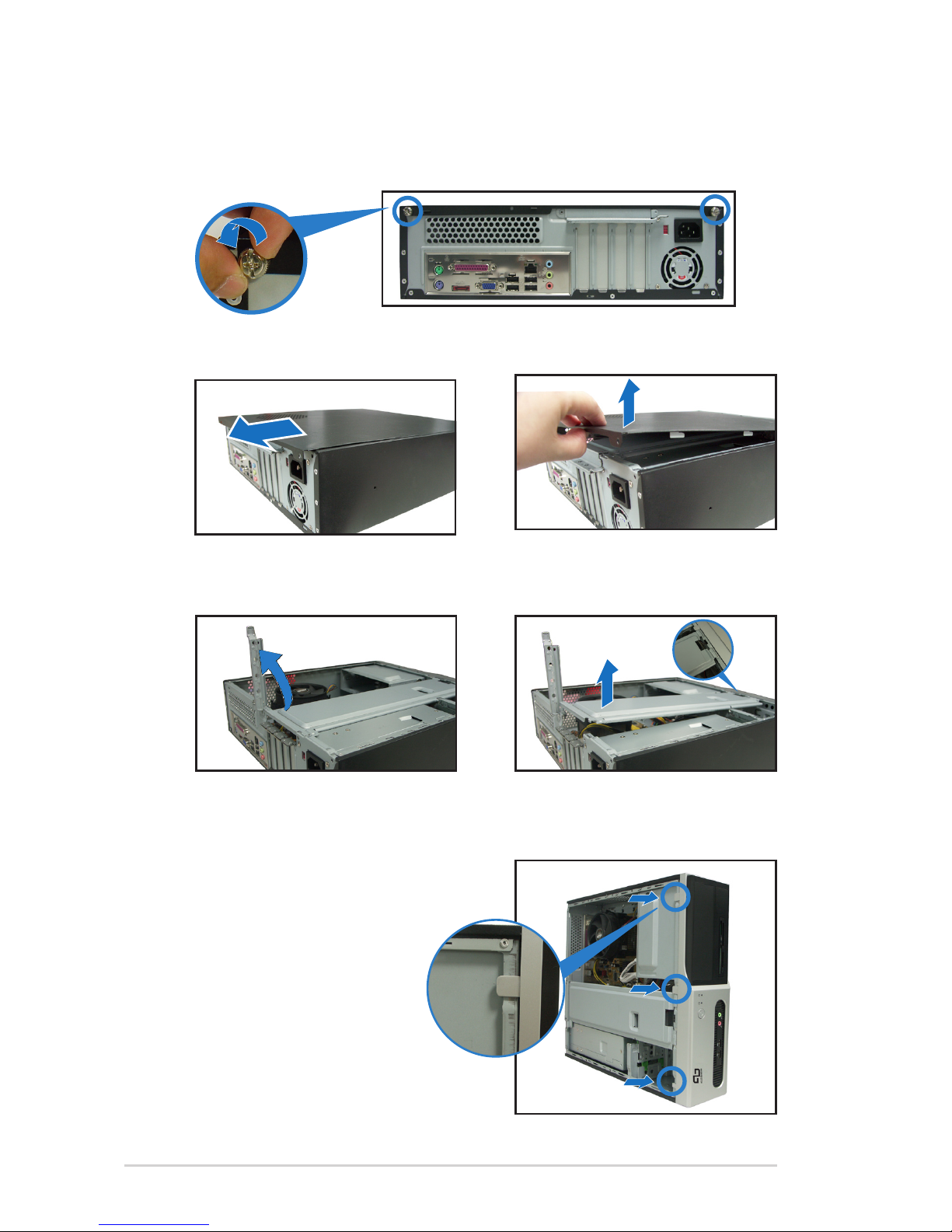

Removing the cover

1. Locate two cover screws.

2. Remove the cover screws.

4. Lift the cover, then set aside.

Removing the front panel assembly

1. Locate the front panel

assembly hooks.

2. Pull the hooks outward to

remove.

5. Lift the expansion card lock to

a 90º-100º angle.

6. Lift the chassis support

bracket, then remove.

5Quick Installation Guide

Installing a CPU (P3-PE5)

1. Locate the CPU socket, then

unlock and lift the load lever.

2. Lift the load plate (A), then

push the PnP cap from the load

plate window (B).

Retention

tab

Load

lever

Load plate

4. Close the load plate (A), then

lock the load lever (B).

3. Install the CPU.

Gold triangle

mark

Installing a CPU (P3-AE5)

1. Locate the CPU socket, then unlock the socket by pressing the lever

sideways and lift it up to a 90º angle.

2. Match the gold triangle of the CPU with the socket corner with a small

triangle, then carefully insert the CPU into the socket.

3. When the CPU is in place, push down the socket lever to secure the

CPU.

Socket

lever

Gold

triangle

Small

triangle

6 Quick Installation Guide

Installing the CPU fan and heatsink

assembly (P3-PE5)

1. Place the heatsink on top of the

installed CPU.

2. Drive four screws into the fan

holes to secure the fan to the

motherboard.

3. Connect the CPU fan cable.

P3-AE5 does not bundle

with the CPU fan and

heatsink assembly. Please

use the AMD CPU box cooler

Installing a DIMM

1. Locate the DIMM sockets in

the motherboard.

2. Unlock a DIMM socket by

pressing the retaining clips

outward.

3. Align a DIMM on the socket

such that the notch on the

DIMM matches the break on

the socket.

DDR2 DIMM notch

Installing the CPU fan and heatsink assembly

(P3-AE5)

1. Place the heatsink on top of

the installed CPU.

2. Attach one end of the

retention bracket to the

retention module base.

3. Align the other end of the

retention bracket (near the

retention bracket lock) to the

retention module base.

4. Push down the retention

bracket lock.

5. Connect the CPU fan cable to the connector on the motherboard

labeled CPU_FAN.

CPU Fan

CPU

Heatsink

Retention

bracket

Retention bracket lock

Retention

Module Base

7Quick Installation Guide

1. Remove the metal cover

opposite the slot that you

intend to use.

2. Insert the card connector to

the slot, then press the card

ﬁrmly until it ﬁts in place.

Installing an expansion card

Installing an optical drive

1. Drive a screw on the top right

screw hole on both sides of

the drive.

2. Connect the IDE and audio

cable at the back of the drive.

3. Push the drive all the way into

the bay until the drive lock clicks.

4. Connect a 4-pin power plug

from the power supply unit to

the power connector at the

back of the drive.

Installing a SATA hard disk drive

1. Drive two screws with rubber

washers on both sides of the

drive.

2. Connect the SATA signal and

power plug at the back of the

drive.

Power cable and

plug

Signal cable and

plug

Rubber washer

8 Quick Installation Guide

3. Place the HDD on the tray. 4. When the HDD screws align,

push the drive on the bay.

1. Replace the front panel

assembly. Remove the 5.25”

drive bay cover when you

installed an optical drive.

3. Insert the cover hooks to the

holes on the chassis side.

2. Reinstall the metal chassis

support and the expansion

card lock.

Replacing the covers

4. Push the cover to the direction

of the front panel, then

replace the cover screws.
