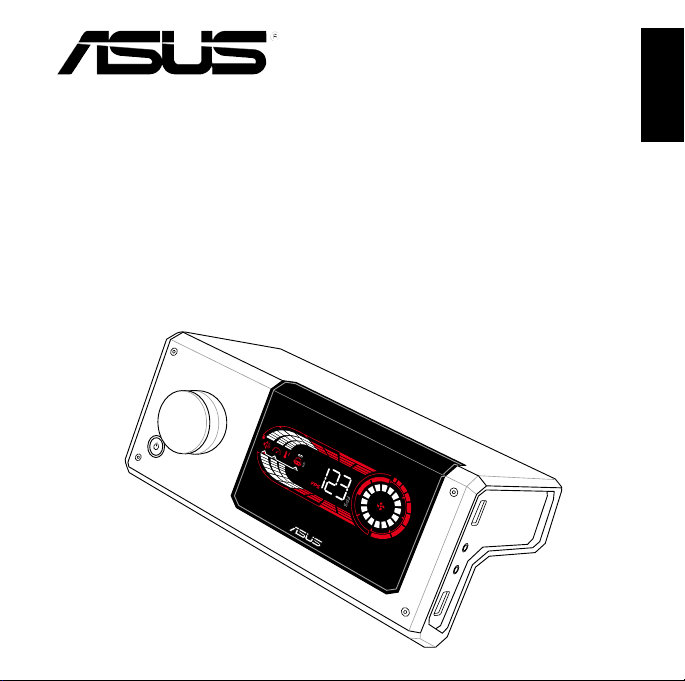

Asus XG Station Manuale utente

E3493

First Edition

January 2008

XG-Station

Quick Installation Guide

English

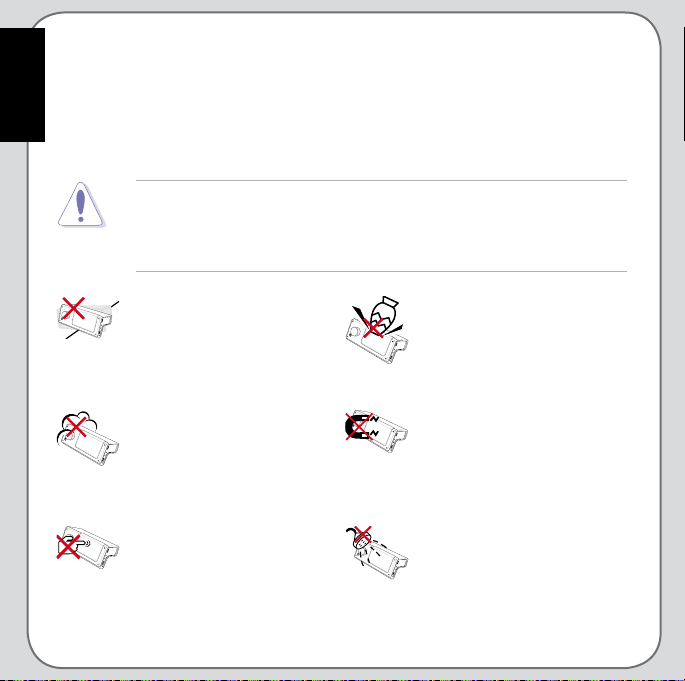

Safety Precautions

The following safety precautions will increase the life of the ASUS XG-Station.

Follow all precautions and instructions. Except as described in this manual,

refer all servicing to qualied personnel. Do not use damaged power cords,

accessories, or other peripherals. Do not use strong solvents such as thinners,

benzene, or other chemicals on or near the surface.

Disconnect the AC power before cleaning. Wipe the XG-Station using

a clean cellulose sponge or chamois cloth dampened with a solution of

nonabrasive detergent and a few drops of warm water and remove any

extra moisture with a dry cloth.

DO NOT expose to or use

near liquids, rain, or moisture.

DO NOT use the modem

during electrical storms.

DO NOT press or touch the

display panel. Do not place

together with small items

that may scratch or enter the

XG-Station.

DO NOT expose to dirty or

dusty environments. DO

NOT operate during a gas

leak.

DO NOT expose to strong

magnetic or electrical elds.

DO NOT place on uneven

or unstable work surfaces.

Seek servicing if the casing

has been damaged.

DO NOT place or drop

objects on top and do not

shove any foreign objects

into the XG-Station.

English

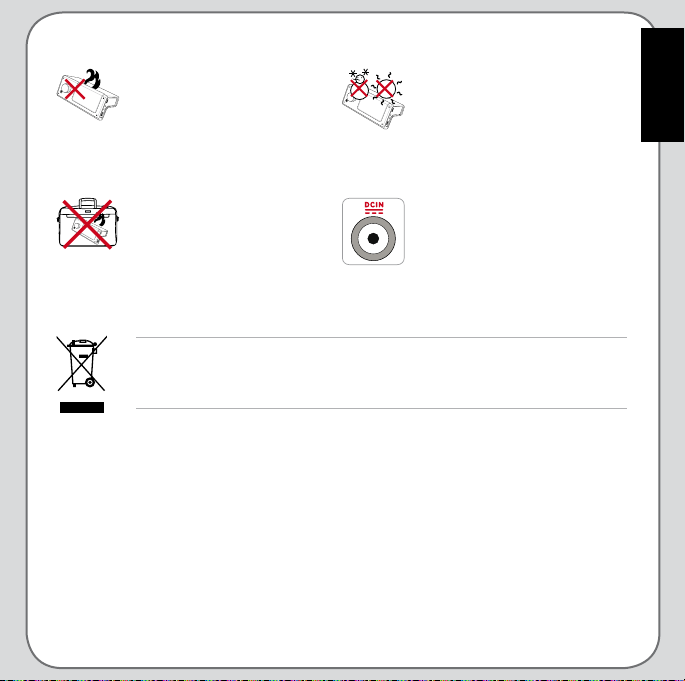

SAFE TEMP: This XG-

Station should only be used

in environments with ambient

temperatures between 5°C

(41°F) and 40°C (104°F)

DO NOT leave the XG-

Station on your lap or any

part of the body to prevent

discomfort or injury from

heat exposure.

DO NOT carry or cover a

XG-Station that is powered

ON with any materials that

will reduce air circulation

such as a carrying bag.

INPUT RATING: Refer to the

rating label on the bottom

of the XG-Station and be

sure that your power adapter

complies with the rating.

This symbol of the crossed out wheeled bin indicates that the product

(electrical and electronic equipment) should not be placed in municipal

waste. Check local regulations for disposal of electronic products.

English

1. Installation requirements

To ensure a successful installation of the ASUS XG-Station, your computer must

meet the following requirements:

• A notebook computer with one empty PCI Express compatible card slot

• Microsoft® Windows®Vista/XP (32 bit)

• > 256 MB DRAM system memory

• > 312 MB available HDD space for driver installation package

• CD-ROM drive (or DVD-ROM drive) for software installation

2. Specicationssummary

VGA ASUS EN8600GT

I/O ports 1 x TV-out

2 x DVI-I out ports

2 x USB 2.0 ports

1 x Microphone port

1 x Headphone port supporting S/PDIF out

1 x DC in

1 x Express card connector

English

3. Hardware introduction

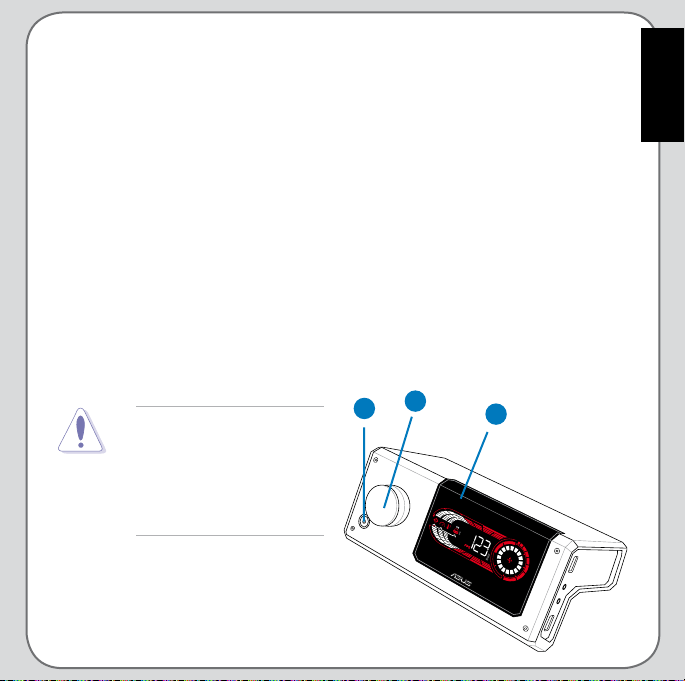

Front view

1. Display: shows the options of volume, GPU clock, GPU temperature,

frames per second (FPS), Dolby Headphone support, and fan speed.

When an option is selected, a red dot appears below the option. The red

bars stand for high values, orange for medium, and yellow for low.

2. Control knob: press to switch menu options including volume, GPUpress to switch menu options including volume, GPU

clock, and fan speed. Rotate to adjust volume, GPU clock, and fan speed.volume, GPU clock, and fan speed.

3. Power button: once connected to your notebook computer, the XG-

Station turns on automatically when you start up your computer. In case

the XG-Station does not start up, press the power button during POST.

In addition, if the XG-Station does not turn off after you shut down the

computer, press and hold the power button for 5 seconds to turn off the

XG-Station.

ASUS XG-Station is NOT a

hot-swappable device. DO

NOT turn OFF or detach the

XG-Station during system

operation. Doing so may

cause system failure!

English

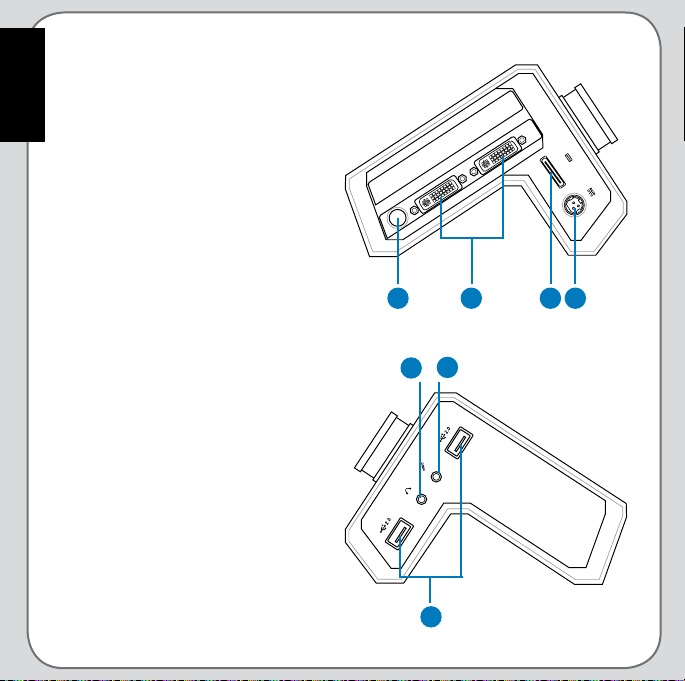

Left view

4. DCIN: connects to the external

AC adaptor.

5. Express card connector:

connects the XG-Station to the

express card slot on the notebook

PC.

6. DVI-I out ports: connects to any

DVI-I compatible device.

7. TV-out port: connects to a TV

or projector through a S-Video

cable. 4567

Right view

8. Microphone port: connects to a

microphone.

9. Headphone port: connects to

a headphone or 2/2.1 channel

speakers. In S/PDIF mode,

connects to external digital

decoder or digital speaker

systems.

10. USB 2.0 ports: connects to any

USB 2.0 device.

English

4. Hardware installation

To install the ASUS XG-Station:

1. Power OFF the notebook PC

and all other peripheral devices

connected to it.

2. Align the express card groove

to the tenon of the express card

holder as shown in the picture.

3. Attach the express card to the

card holder.

4. Attach the express card cable to

the express card with the PUSH

button facing up.

5. Insert the express card to an

empty express card slot on the

notebook PC until you hear a

click sound.

6. Follow the direction shown in the

picture to lock the express card

holder.

English

7. Attach the other end of the

express card cable to the express

card connector on the XG-

Station.

8. Attach the AC adaptor to the XG-

Station.

9. Connect the XG-Station to an

external display device using the

DVI-I out ports or the TV-out port.

10. Power on the external display

device then the notebook

computer. The XG-Station will

start up automatically.

ASUS XG-Station is NOT a hot-swappable device. DO NOT turn OFF

or detach the XG-Station during system operation. Doing so may cause

system failure!

English

If you have already installed the ASUS XG-Station, the Found New Hardware

Wizard window may pop up before or during driver installation.

To install the device driver:

1. Click Cancel from the Found New Hardware wizard window.

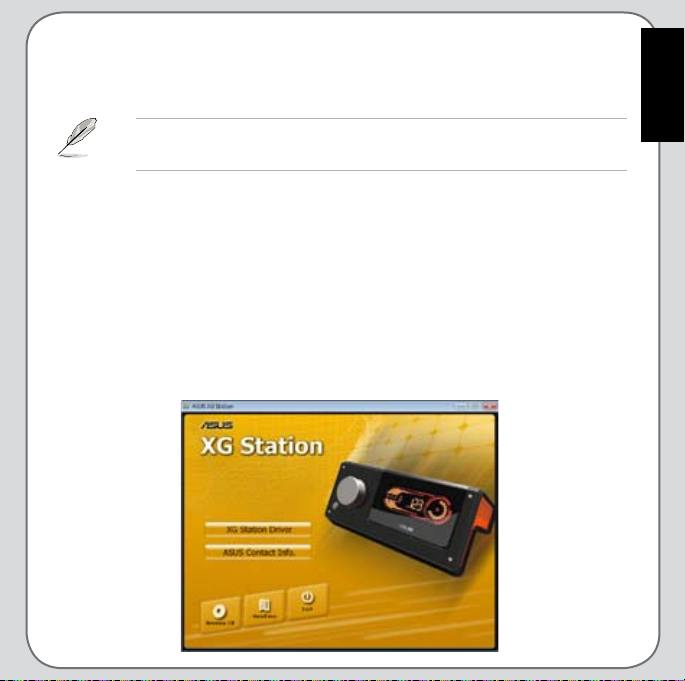

2. Insert the ASUS XG-Station support CD into your optical drive.

If autorun is enabled, the ASUS XG-Station Driver screen appears

automatically. See gure below. Go to step 5.

If Autorun is not enabled in your computer, perform step 3.

5. Driver installation

After installing the XG-Station on your computer, you need to install the device

driver that enables the XG-Station to work with Windows operating system.

The version and content of the driver CD are subject to change without

notice.

English

3. Click My Computer on your desktop and double-click the optical drive

icon.

4. Double-click the setup.exe icon located on the optical drive.

5. Follow the on-screen instructions to complete the installation. Read the

“END USER LICENSE AGREEMENT” in the process and make sure that

you understand and accept it before continuing the installation.

6. When the installation nishes, you may be prompted to restart your

computer. You can choose to restart the computer later if desired.
