DISASSEMBLY PROCEDURE Chapter

Disassembly Procedure

Please follow the information provided in this section to perform the complete

disassembly procedure of the notebook. Be sure to use proper tools

described before.

SUS M6000 Series Notebook consists of various modules. This chapter describes the

procedures for the complete notebook disassembly. In addition, in between procedures,

the detailed disassembly procedure of individual modules will be provided for your

service needs.

The disassembly procedure consists of the following steps:

• Battery Module

• Optical Drive Module

• HDD Module

• Second Memory Module

• CPU Module

• Keyboard Module

• First Memory Module

• Mini PCI Module

• LCD Module

• Top Case Module

• Motherboard Module

• Bottom Case Module

3 - 1

DISASSEMBLY PROCEDURE

Battery Module

BATTERY

The illustration below shows how to remove the battery module.

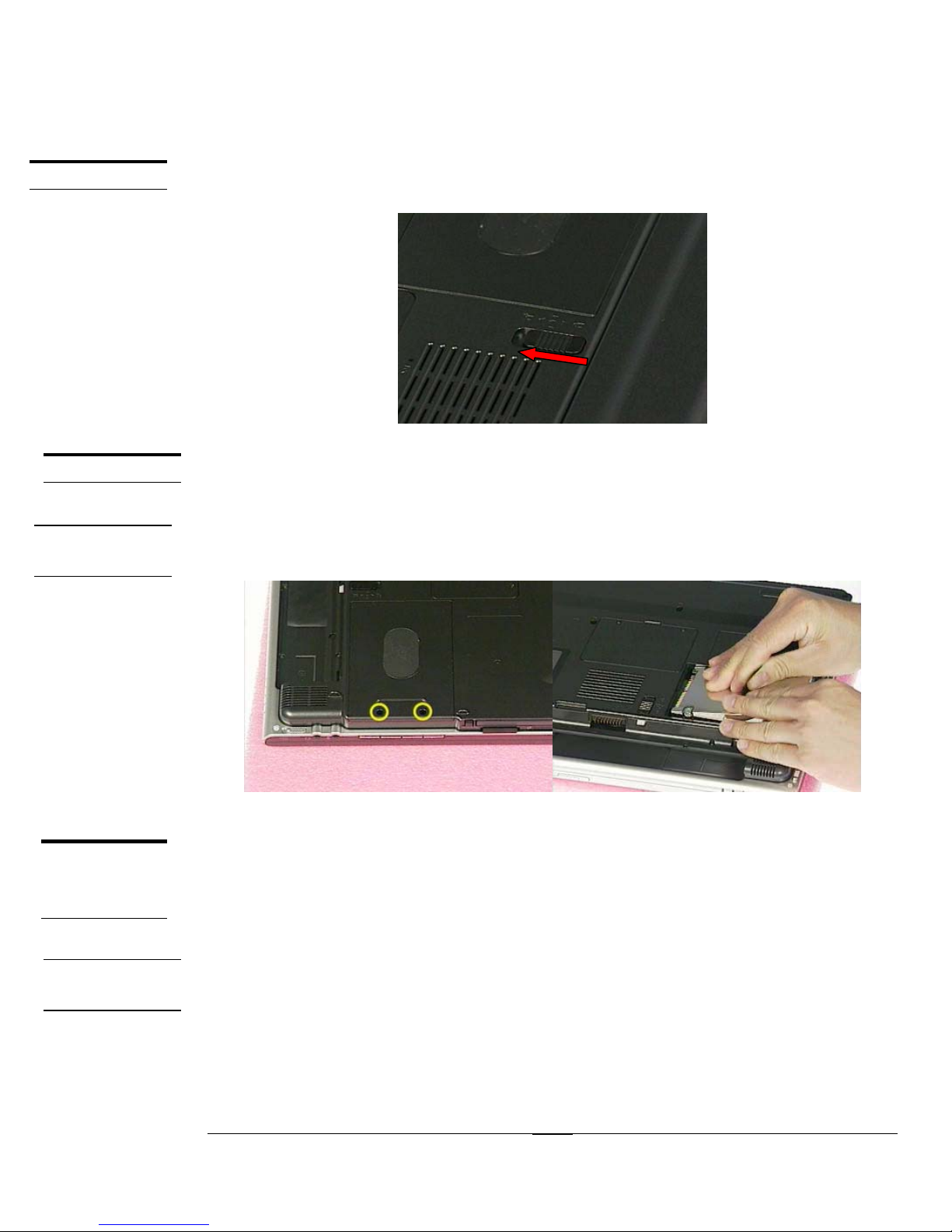

1. Press latch to open the battery module, then lift battery module away from the system.

HDD Module

The illustrations below show how to remove the HDD module from the notebook.

Removing HDD Module

Remove 2 screws(M2*6L(K)), then remove the HDD cover and pull the hard disk module toward

the direction of the arrow and lift it up and take it out.

Second Memory Module

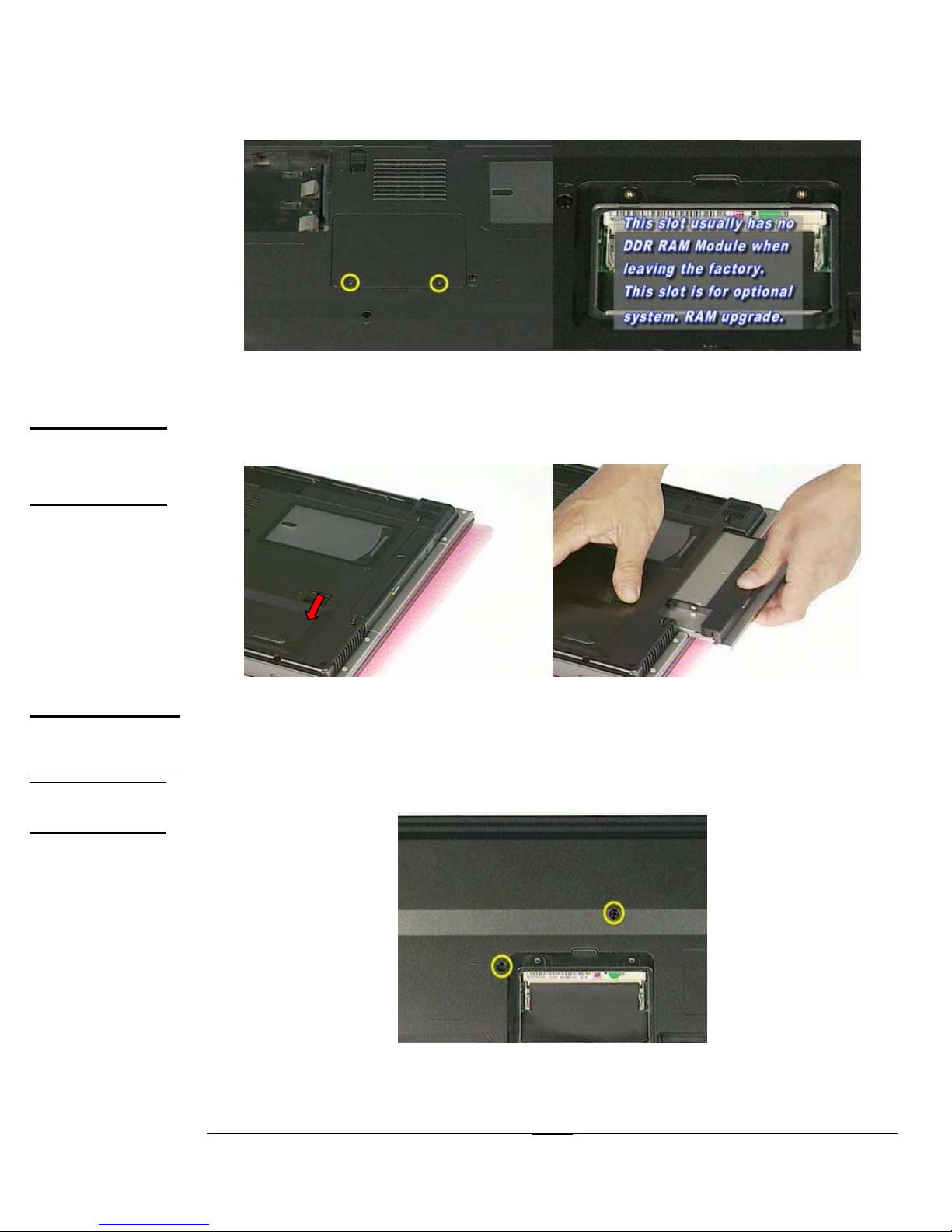

The M6000 Series Notebook do not have onboard RAM. There are two SO-DIMM

sockets for installing SO-DIMM RAM. It can upgrade the total memory size up to 2GB

with a 1GB module on each socket.

Removing Memory module

1. Remove 2 screws(M2*3L(K) ) , then take the memory DIMM cover away.

HDD MODULE

REMOVAL

SECOND

MEMORY

MODULE

MEMORY

REMOVAL

M2*6L

3 - 2

DISASSEMBLY PROCEDURE

M2*3L

Optical Drive Module

OPTICAL

DRIVE

REMOVAL

Press latch here then pull it out.

Keyboard Module

The illustration of below shows how to remove the keyboard

Removing Keyboard Cover

1. Remove 2 screws (M2.5*6L(K)) on the bottom case.

KEYBOARD

DISASSEMBLY

K/B COVER

REMOVAL

M2.5*6L

3 - 3

DISASSEMBLY PROCEDURE

2. Unlock 3 keyboard latches then pull out the keyboard forward and lay the keyboard on the

front side .

3. Remove 2 screws on the keyboard cover , then use tweezers to disconnect the keyboard two

covers and lift it up.

M2*3L

4. Loosen the switch board cable and take the keyboard cover away , then remove the switch cable

5. Remove 7 screws and take the switch board away.

3 - 4

DISASSEMBLY PROCEDURE

M2*3L

CPU Module

CPU MODULE

REMOVAL The illustrations below show how to remove the CPU module from the notebook.

Removing CPU

CPU

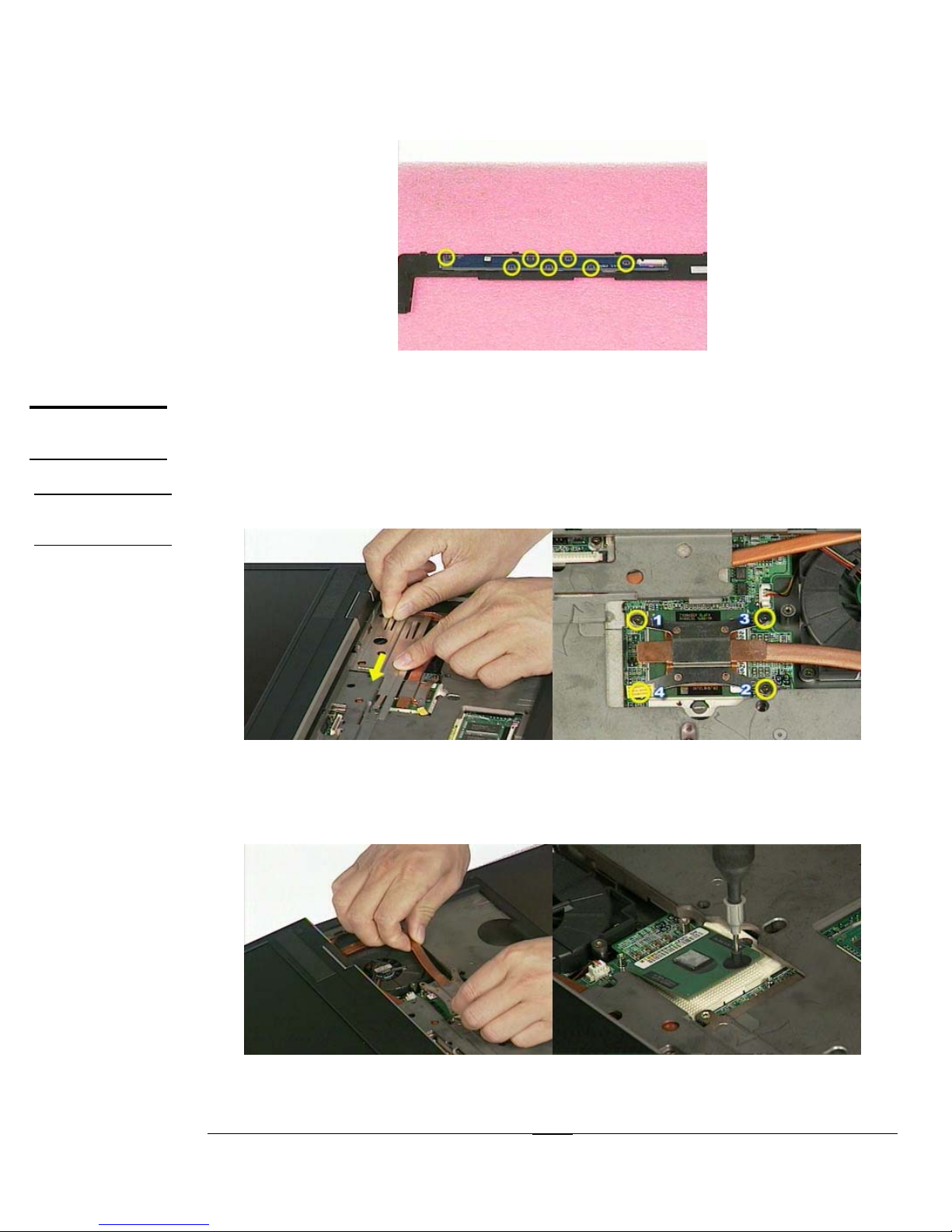

REMOVAL 1. Take the Fan bracket away then remove 4 screws (M2*6L(K)).

M2*6L

2. Remove Thermal module and open the CPU Socket’s latch to loosen the CPU.(The use the

CPU vacuum hand pump to “suck up” the CPU and lift the CPU away.)

3 - 5

DISASSEMBLY PROCEDURE

First Memory Module

FIRST

MEMORY

MODULE

REMOVAL

The first memory module is under keyboard. Open the two latches to pop up memory module at

45 degrees angle then pull it out .

Mini PCI Module

WIRELESS

LAN MODULE

This slot usually has Wireless LAN module when leaving the factory, this slot is for

optional system upgrade.

Removing Wireless LAN Module

WIRELESS

LAN

REMOVAL

1. Remove 1 screw(M2*3L(K)), then take the mini-PCI cover off.

M2*3L

2. Disconnect 2 antenna cables, then open two latches to pop up wireless LAN module at 45

degrees angle and pull it out.

3 - 6

DISASSEMBLY PROCEDURE

LCD Module

LCD

MODULE The illustrations below show how to remove and disassemble the LCD module. The

module contains LCD panel, Inverter board, LCD Hinge bracket, Hinge cover, LCD

front cover, LCD back cover

Removing LCD Module

LCD REMOVAL

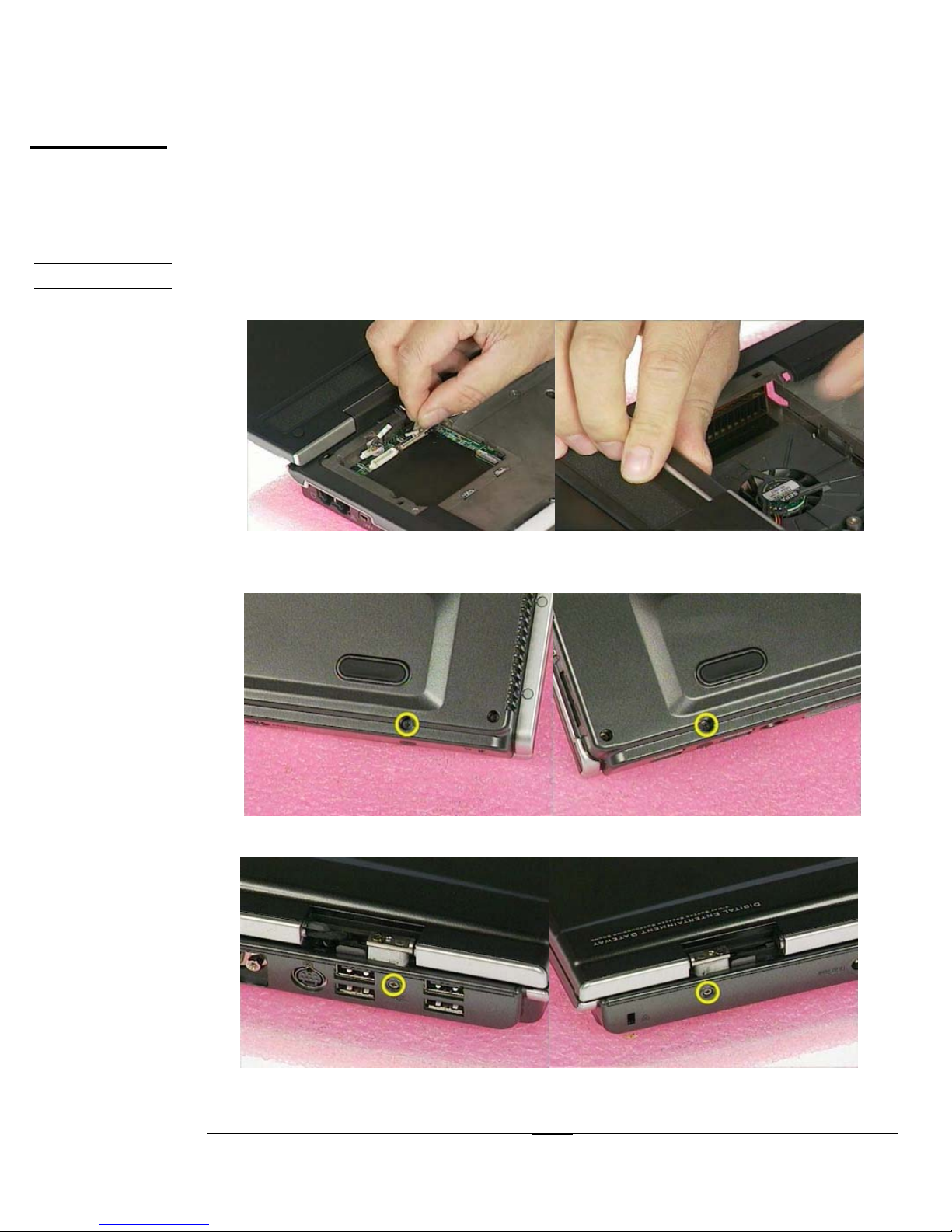

1. Disconnect LCD coaxial cable and Inverter cable , then detach the left hinge cover and the right

hinge cover.

2. Remove 2 screws (M2.5*6L(K)) at bottom case.

M2.5

M2.5*6L

3. Remove 2 pads and 2 screws (M2*3L(K)) at rear side.

M2*3L M2*3L

3 - 7

DISASSEMBLY PROCEDURE

4. Remove 2 screws(M2.5*6L(K)) at top side, then lift the LCD module away from the system.

M2.5*6L

Disassembling LCD Module

LCD

DISASSEMBLY

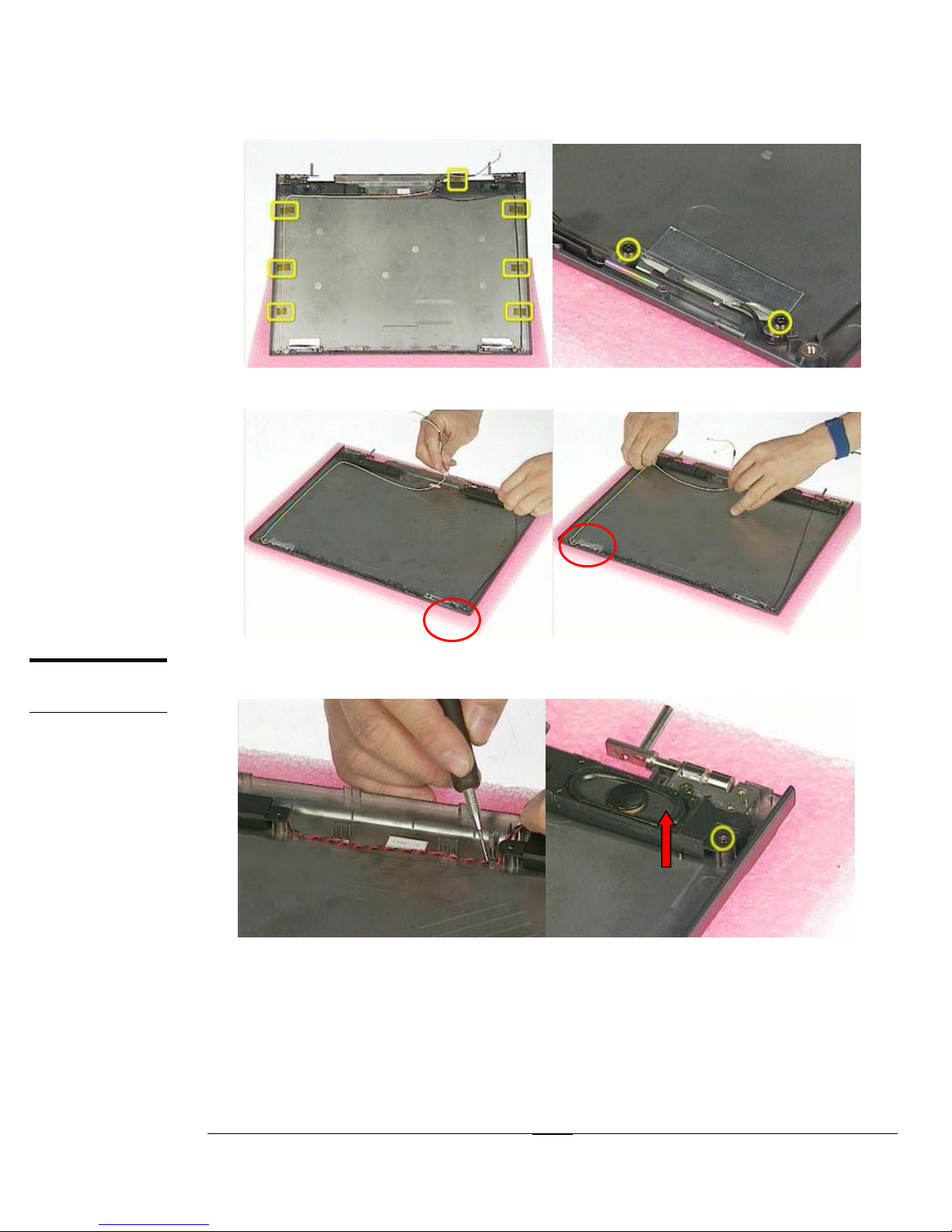

1. Remove 4 rubber pads and 4 screws(M2.5*6L(K)) from LCD module.

M2.5*6L

2. Prying the inside edges of the top front bezel, then separate it from LCD back cover and

take LCD front bezel away.

3. Remove 1tape and the other tape here.

3 - 8

DISASSEMBLY PROCEDURE

4. Disconnect the speaker cable and LCD cable then take Inverter board off.

5. Remove 8 screws (M2*3L(K) x 4 ,(M2*6L(K) x2 ,(M2.5*4L(K) x 2) and 2 fixed

slices off , then take the LCD Bracket away.

M2.5*4L

6. Remove 7 tapes、2 screws and 2 screws(M2*3L(K)) on the other side.

3 - 9

DISASSEMBLY PROCEDURE

M2*3L

7. Detach the right & left antenna and its cable.

8. Reomve the speaker cable, then remove 1screw(M2*3L(K)) and 1 screw on the other

side.Then take two speaker s away

TOP CASE

MODULE

M2*3L

eaker

9. Detach the LCD hooker and spring then take it away.

3 - 10
