Asus N73JF Manuale utente

Notebook PC User Manual

April 2010

E5458

Notebook PC User Manual

Table of Contents

Safety Precautions ............................................................................................. 3

Preparing your Notebook PC......................................................................... 5

Using the Touchpad .......................................................................................... 7

Knowing the Parts.............................................................................................. 8

Right Side ............................................................................................................ 8

Left Side .............................................................................................................11

Rear Side ............................................................................................................12

Recovering Your Notebook PC ....................................................................13

Using Recovery Partition ............................................................................13

Using Recovery DVD (on selected models)...........................................14

Declarations and Safety Statements .........................................................16

Federal Communications Commission Statement.............................16

FCC Radio Frequency (RF) Exposure Caution Statement.................17

Declaration of Conformity(R&TTE directive 1999/5/EC)...................17

CE Marking........................................................................................................18

IC Radiation Exposure Statement for Canada ......................................18

Wireless Operation Channel for Different Domains...........................19

France Restricted Wireless Frequency Bands .......................................19

Power Safety Requirement .........................................................................20

TV Tuner Notices.............................................................................................20

REACH .............................................................................................................20

UL Safety Notices............................................................................................21

Nordic Lithium Cautions (for lithium-ion batteries)...........................22

European Union Eco-label...........................................................................23

Global Environmental Regulation Compliance and Declaration .24

Takeback Services...........................................................................................24

Notebook PC User Manual

Safety Precautions

The following safety precautions will increase the life of the

Notebook PC. Follow all precautions and instructions. Except as

described in this manual, refer all servicing to qualiﬁed personnel.

Battery safety warning:

DO NOT throw the

battery in ﬁre. DO NOT

short circuit the contacts.

DO NOT disassemble the

battery.

DO NOT leave the

Notebook PC on your lap

or any part of the body

to prevent discomfort

or injury from heat

exposure.

DO NOT expose to dirty

or dusty environments.

DO NOT operate during a

gas leak.

DO NOT expose to

strong magnetic or

electrical ﬁelds.

DO NOT expose to or

use near liquids, rain,

or moisture. DO NOT

use the modem during

electrical storms.

DO NOT press or touch

the display panel. Do not

place together with small

items that may scratch or

enter the Notebook PC.

DO NOT place on

uneven or unstable work

surfaces. Seek servicing

if the casing has been

damaged.

DO NOT place or drop

objects on top and

do not shove any

foreign objects into the

Notebook PC.

Disconnect the AC power and remove the battery pack(s) before

cleaning.Wipe the Notebook PC using a clean cellulose sponge

or chamois cloth dampened with a solution of nonabrasive

detergent and a few drops of warm water and remove any extra

moisture with a dry cloth.

Notebook PC User Manual

SAFE TEMP:This

Notebook PC should

only be used in

environments with

ambient temperatures

between 10°C (50°F) and

35°C (95°F).

DO NOT carry or cover

a Notebook PC that

is powered ON with

any materials that will

reduce air circulation

such as a carrying bag.

DO NOT throw the Notebook PC in municipal waste.This

product has been designed to enable proper reuse of parts

and recycling.The symbol of the crossed out wheeled bin

indicates that the product (electrical, electronic equipment

and mercury-containing button cell battery) should not

be placed in municipal waste. Check local regulations for

disposal of electronic products.

DO NOT throw the battery in municipal waste.The symbol

of the crossed out wheeled bin indicates that the battery

should not be placed in municipal waste.

INPUT RATING: Refer to

the rating label on the

bottom of the Notebook

PC and be sure that your

power adapter complies

with the rating.

Incorrect installation

of battery may cause

explosion and damage

the Notebook PC.

DO NOT use damaged

power cords, accessories,

or other peripherals.

DO NOT use strong

solvents such as

thinners, benzene, or

other chemicals on or

near the surface.

Notebook PC User Manual

Preparing your Notebook PC

These are only quick instructions for using your Notebook PC.

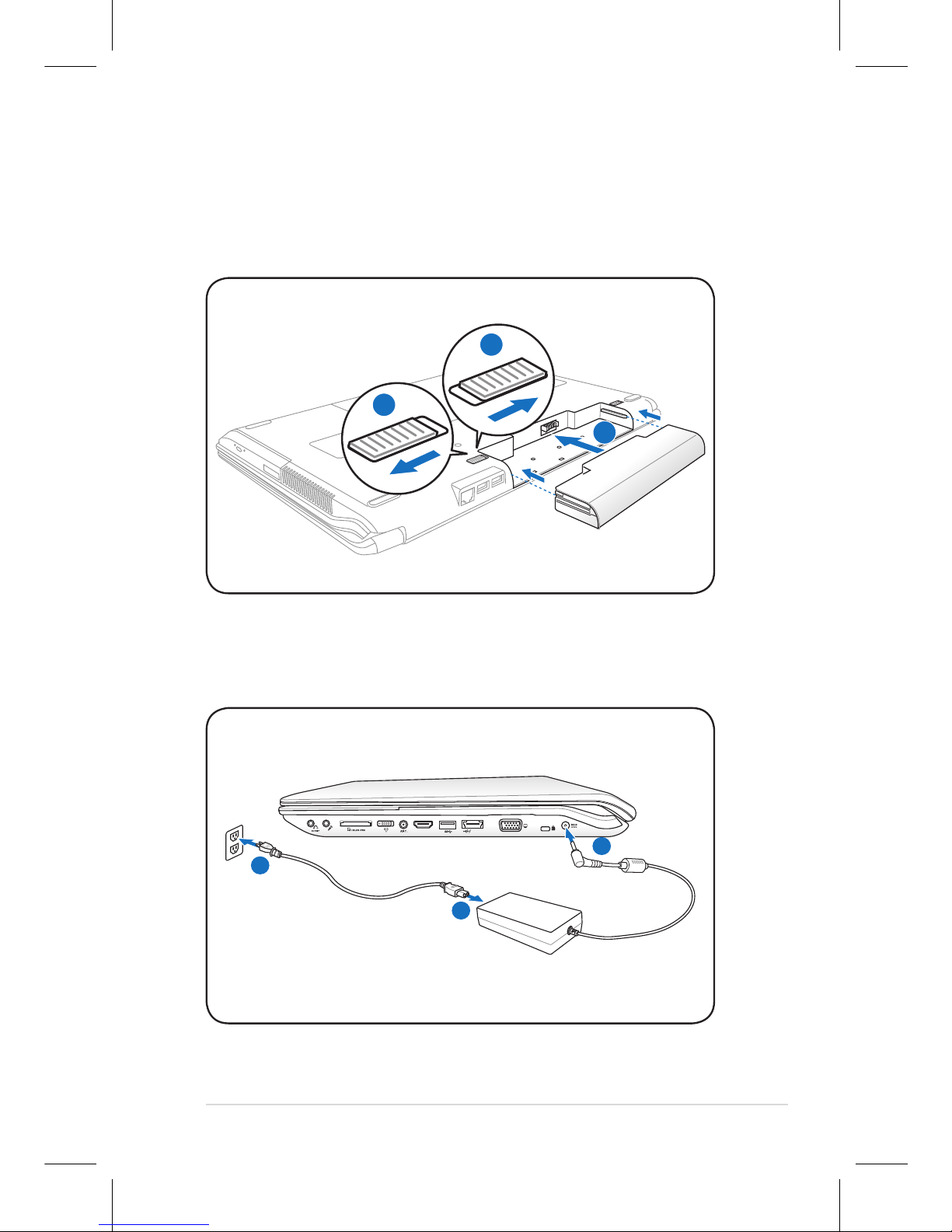

Installing the Battery Pack

Connecting the Power Adapter

HDMI

OFF ON

E-SATA

110V-220V

Notebook PC User Manual

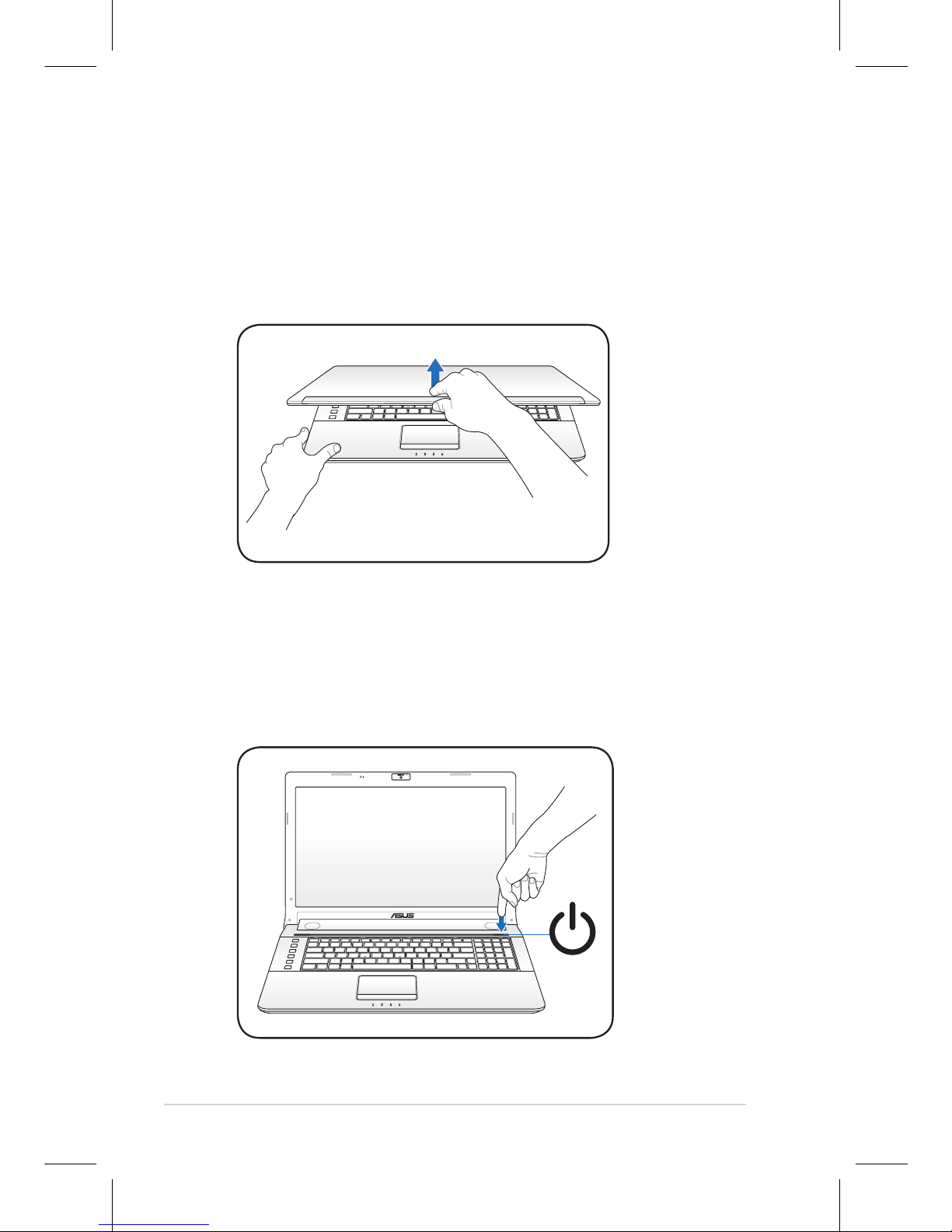

Opening the LCD display panel

1. Carefully lift up the display panel with your thumb.

2. Slowly tilt the display panel forward or backward to a

comfortable viewing angle.

OFF ON

Turning on the Power

1. Push and release the power button located beneath the LCD

display panel.

2. Use [Fn]+[F5] or [Fn]+[F6] to adjust the LCD brightness.

Notebook PC User Manual

Using the Touchpad

Left button

Right button

A. Slide your ﬁnger across the touchpad to move the pointer.You

can also hold the left button and slide your ﬁnger to drag the

selected item.

B. Use the left and right buttons like a standard mouse.

C. Use two ﬁngertips to slide up/down/left/right on the touchpad

to scroll a window up/down/left/right.

D. Use three ﬁngers to tap the touchpad.This action mimics the

right-click function of a mouse.

DCustomize the touchpad’s

behavior in Windows

Control Panel > Mouse

Properties > Elantech >

Options....

Left button

Right button

Notebook PC User Manual

Knowing the Parts

Right Side

HDMI

OFF ON

E-SATA

21 3 4 5 6 7 8 9 10 11

SPDIF Output Jack

This jack provides connection to SPDIF (Sony/Philips Digital

Interface) compliant devices for digital audio output. Use

this feature to turn the Notebook PC into a hi-ﬁ home

entertainment system.

Headphone Output Jack

The stereo headphone jack (1/8 inch) is used to connect

the Notebook PC’s audio out signal to ampliﬁed speakers

or headphones. Using this jack automatically disables the

built-in speakers.

Microphone Input Jack

The mono microphone jack (1/8 inch) can be used to

connect an external microphone or output signals from

audio devices. Using this jack automatically disables the

built-in microphone. Use this feature for video conferencing,

voice narrations, or simple audio recordings.

Flash Memory Slot

Normally an external memory card reader must be

purchased separately in order to use memory cards from

devices such as digital cameras, MP3 players, mobile

phones, and PDAs.This Notebook PC has a built-in

high-speed memory card reader that can conveniently read

from and write to many ﬂash memory cards.

Combo

Notebook PC User Manual

Wireless Switch

Enables or disables the built-in wireless LAN and Bluetooth

(selected models).When enabled, the wireless status

indicator will light.Windows software settings are necessary

before use.

Antenna Input (on selected models)

The antenna input is for TV frequency signal and for

use with the provided digital TV antenna or input from

subscription television services.

HDMI

HDMI Port

HDMI (High-Deﬁnition Multimedia Interface) is an

uncompressed all-digital audio/video interface between

any audio/video source, such as a set-top box, DVD player,

and A/V receiver and an audio and/or video monitor, such

as a digital television (DTV). Supports standard, enhanced,

or high-deﬁnition video, plus multi-channel digital audio

on a single cable. It transmits all ATSC HDTV standards and

supports 8-channel digital audio, with bandwidth to spare

to accommodate future enhancements or requirements.

USB Port (3.0) (on selected models)

The USB (Universal Serial Bus) port is compatible with USB

3.0, 2.0, or USB 1.1 devices such as keyboards, pointing

devices, cameras, hard disk drives, printers, and scanners

connected in a series up to 4.8Gbits/sec (USB 3.0),

480Mbits/sec (USB 2.0), and 12Mbits/sec (USB 1.1). USB

allows many devices to run simultaneously on a single

computer, with some peripherals acting as additional

plug-in sites or hubs. USB supports hot-swapping of devices

so that most peripherals can be connected or disconnected

without restarting the computer.

Notebook PC User Manual

E-SATA

E-SATA Port & USB Combo Port

External SATA or eSATA allows external connection of Serial-

ATA devices originally designed for use inside the computer.

It is up to six times faster than existing USB 2.0, & 1394 for

external storage solutions and is also hot pluggable using

shielded cables and connectors up to two meters. See USB

Port for description.

Display (Monitor) Output

The 15-pin D-sub monitor port supports a standard

VGA-compatible device such as a monitor or projector to

allow viewing on a larger external display.

Kensington® Lock Port

The Kensington® lock port allows the Notebook PC to

be secured using Kensington® compatible Notebook PC

security products.These security products usually include

a metal cable and lock that prevent the Notebook PC to

be removed from a ﬁxed object. Some may also include a

motion detector to sound an alarm when moved.

Power (DC) Input

The supplied power adapter converts AC power to DC

power for use with this jack. Power supplied through this

jack supplies power to the Notebook PC and charges the

internal battery pack.To prevent damage to the Notebook

PC and battery pack, always use the supplied power

adapter.

The adapter may become warm to hot when in use. Ensure

not to cover the adapter and keep it away from your body.
