Asus UL80AG Manuale utente

Notebook PC User Manual

June 2009

E4873

Notebook PC User Manual

Table of Contents

Table of Contents ............................................................................................... 2

Safety Precautions ............................................................................................. 3

Preparing your Notebook PC......................................................................... 5

Using the Touchpad .......................................................................................... 7

Knowing the Parts.............................................................................................. 8

Right Side ............................................................................................................ 8

Left Side .............................................................................................................10

Rear Side ............................................................................................................12

Front Side ..........................................................................................................12

Recovering Your Notebook PC ....................................................................13

Using Recovery Partition ............................................................................13

Using Recovery DVD (on selected models)...........................................14

Declarations and Safety Statements .........................................................16

Notebook PC User Manual

Safety Precautions

The following safety precautions will increase the life of the

Notebook PC. Follow all precautions and instructions. Except as

described in this manual, refer all servicing to qualiﬁed personnel.

Battery safety warning:

DO NOT throw the

battery in ﬁre. DO NOT

short circuit the contacts.

DO NOT disassemble the

battery.

DO NOT leave the

Notebook PC on your lap

or any part of the body

to prevent discomfort

or injury from heat

exposure.

DO NOT expose to dirty

or dusty environments.

DO NOT operate during

a gas leak.

DO NOT expose to

strong magnetic or

electrical ﬁelds.

DO NOT expose to or

use near liquids, rain,

or moisture. DO NOT

use the modem during

electrical storms.

DO NOT press or touch

the display panel. Do

not place together with

small items that may

scratch or enter the

Notebook PC.

DO NOT place on

uneven or unstable work

surfaces. Seek servicing

if the casing has been

damaged.

DO NOT place or drop

objects on top and

do not shove any

foreign objects into the

Notebook PC.

Disconnect the AC power and remove the battery pack(s) before

cleaning.Wipe the Notebook PC using a clean cellulose sponge

or chamois cloth dampened with a solution of nonabrasive

detergent and a few drops of warm water and remove any extra

moisture with a dry cloth.

Notebook PC User Manual

DO NOT throw the Notebook PC in municipal waste.This

product has been designed to enable proper reuse of parts

and recycling.The symbol of the crossed out wheeled bin

indicates that the product (electrical, electronic equipment

and mercury-containing button cell battery) should not

be placed in municipal waste. Check local regulations for

disposal of electronic products.

DO NOT throw the battery in municipal waste.The symbol

of the crossed out wheeled bin indicates that the battery

should not be placed in municipal waste.

SAFE TEMP:This

Notebook PC should

only be used in

environments with

ambient temperatures

between 10°C (50°F) and

35°C (95°F)

INPUT RATING: Refer to

the rating label on the

bottom of the Notebook

PC and be sure that your

power adapter complies

with the rating.

Incorrect installation

of battery may cause

explosion and damage

the Notebook PC.

DO NOT use damaged

power cords, accessories,

or other peripherals.

DO NOT carry or cover

a Notebook PC that

is powered ON with

any materials that will

reduce air circulation

such as a carrying bag.

DO NOT use strong

solvents such as

thinners, benzene, or

other chemicals on or

near the surface.

Notebook PC User Manual

Preparing your Notebook PC

These are only quick instructions for using your Notebook PC.

Installing the Battery Pack

Connecting the Power Adapter

110V-220V

Notebook PC User Manual

Opening the LCD display panel

1. Carefully lift up the display panel with your thumb.

2. Slowly tilt the display panel forward or backward to a

comfortable viewing angle.

Turning on the Power

1. Push and release the power button located beneath the LCD

display panel.

2. Use [Fn]+[F5] or [Fn]+[F6] to adjust the LCD brightness.

Notebook PC User Manual

Left button

Right button

Left button

Right button

Using the Touchpad

A. Slide your ﬁnger across the touchpad to move the pointer.You

can also hold the left button and slide your ﬁnger to drag the

selected item.

B. Use the left and right buttons like a standard mouse.

C. Use two ﬁngertips to slide up/down/left/right on the touchpad

to scroll a window up/down/left/right.

D. Use three ﬁngers to tap the touchpad.This action mimics the

right-click function of a mouse.

Customize the

touchpad’s behavior in

Windows Control Panel

> Mouse Properties >

Elantech > Options....

Notebook PC User Manual

Knowing the Parts

Right Side

2 3 4 51

Optical Drive

The Notebook PC comes in various models with different

optical drives.The Notebook PC’s optical drive may support

compact discs (CD) and/or digital video discs (DVD) and

may have recordable (R) or re-writable (RW) capabilities.

See the marketing speciﬁcations for details on each model.

Optical Drive Electronic Eject

The optical drive eject has an electronic eject button for

opening the tray.You can also eject the optical drive tray

through any software player or by right-clicking the optical

drive in Windows™ Computer and select Eject.

Flash Memory Slot

Normally an external memory card reader must be

purchased separately in order to use memory cards from

devices such as digital cameras, MP3 players, mobile

phones, and PDAs.This Notebook PC has a built-in high-

speed memory card reader that can conveniently read from

and write to many ﬂash memory cards.

USB Port (2.0/1.1)

The USB (Universal Serial Bus) port is compatible with USB

2.0 or USB 1.1 devices such as keyboards, pointing devices,

cameras, hard disk drives, printers, and scanners connected

in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec

(USB 2.0). USB allows many devices to run simultaneously

on a single computer, with some peripherals acting as

additional plug-in sites or hubs.USB supports hot-swapping

of devices so that most peripherals can be connected or

disconnected without restarting the computer.

Notebook PC User Manual

LAN Port

The RJ-45 LAN port with eight pins is larger than the RJ-11

modem port and supports a standard Ethernet cable for

connection to a local network.The built-in connector allows

convenient use without additional adapters.

Notebook PC User Manual

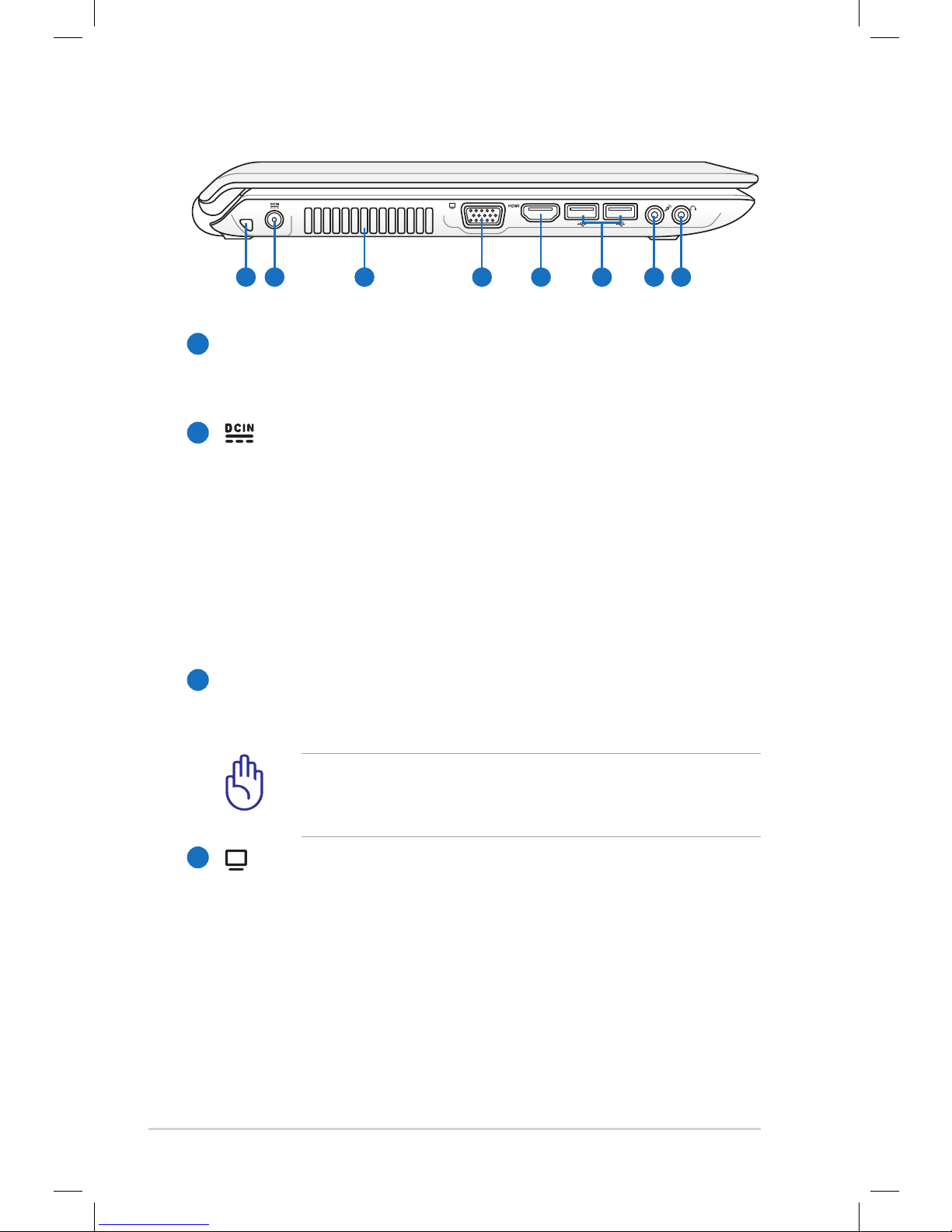

Left Side

1 2 43 5 76 8

Security Port

The security port allows the Notebook PC to be secured to

a ﬁxed object with a 2 mm metal cable.

Power (DC) Input

The supplied power adapter converts AC power to DC

power for use with this jack. Power supplied through this

jack supplies power to the Notebook PC and charges the

internal battery pack.To prevent damage to the Notebook

PC and battery pack, always use the supplied power

adapter. CAUTION: MAY BECOME WARM TO HOT WHEN IN

USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT

AWAY FROM YOUR BODY.

Air Vents

The air vents allow cool air to enter and warm air to exit the

Notebook PC.

Ensure that paper, books, clothing, cables, or other objects

do not block any of the air vents or else overheating may

occur.

Display (Monitor) Output

The 15-pin D-sub monitor port supports a standard VGA-

compatible device such as a monitor or projector to allow

viewing on a larger external display.
