Asus VK221 Series Manuale utente

Safety information

• Before setting up the monitor, carefully read all the documentation that came

with the package.

• To prevent re or shock hazard, never expose the monitor to rain or moisture.

• Never try to open the monitor cabinet. The dangerous high voltages inside the

monitor may result in serious physical injury.

• If the power supply is broken, do not try to x it by yourself. Contact a qualied

service technician or your retailer.

• Before using the product, make sure all cables are correctly connected and the

power cables are not damaged. If you detect any damage, contact your dealer

immediately.

• The monitor should be operated only from the type of power source indicated

on the label. If you are not sure of the type of power supply to your home,

consult your dealer or local power company.

Assembling the monitor base

To assemble the monitor base:

1. Connect the base with the monitor. A click indicates that the base has been

connected successfully.

2. Adjust the monitor to the angle that is most comfortable for you.

We recommend that you cover the table surface with soft cloth to prevent

damage to the monitor.

ASUS LCD Monitor VK221/VK222 Series

English

1Monitor

introduction

1.1 Front of the LCD monitor

1. button:

• Automatically adjust the image to its optimized position, clock, and phase

by long pressing this button for 2-4 seconds (for VGA mode only).

• Use this hotkey to switch from five video preset modes (Game

Mode, Night View Mode, Scenery Mode, Standard Mode, Theater Mode)

with SPLENDID™ Video Enhancement Technology.

• Exit the OSD menu or go back to the previous menu as the OSD

menu is active.

2. Button:

• Press this button to decrease the value of the function selected

or move to the next fuction.

• This is also a hotkey for Volume adjustment.

3. MENU Button:

• Press this button to enter/select the icon (function) highlighted

while the OSD menu is activated.

4. Button:

• Press this button to increase the value of the function selected

or move to the previous fuction.

• This is also a hotkey for Brightness adjustment.

457

1 2 3

1.1.1 VK222H/VK222U

6. Power button

• Press this button to turn the monitor on/off.

(for some models)

5. Input Select Button

Use this hotkey to switch from VGA,DVI,HDMI input signal.

7. Power indicator



• Thecolordenitionofthepowerindicatorisasthebelowtable.

ASUS LCD Monitor VK221/VK222 Series

English

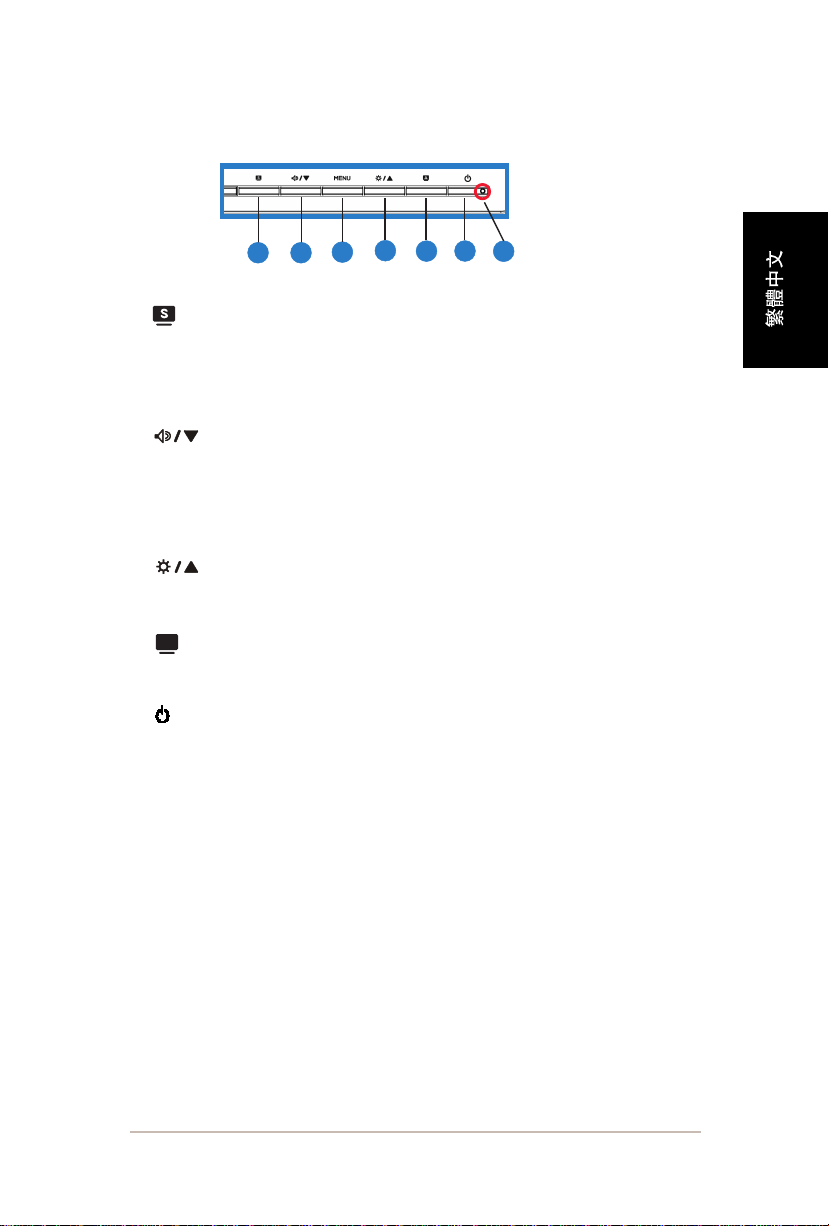

1.1.2

457

1 2 3

1. button:

• Use this hotkey to switch from five video preset modes (Game

Mode, Night View Mode, Scenery Mode, Standard Mode, Theater Mode)

with SPLENDID™ Video Enhancement Technology.

• Exit the OSD menu or go back to the previous menu as the OSD

menu is active.

2. Button:

• Press this button to decrease the value of the function selected

or move to the next fuction.

• This is also a hotkey for Volume adjustment.

3. MENU Button:

• Press this button to enter/select the icon (function) highlighted

while the OSD menu is activated.

4. Button:

• Press this button to increase the value of the function selected

or move to the previous fuction.

• This is also a hotkey for Brightness adjustment.

6. Power button

• Press this button to turn the monitor on/off.

7. Power indicator

• Thecolordenitionofthepowerindicatorisasthebelowtable.

• Automatically adjust the image to its optimized position, clock, and phase

by long pressing this button (for VGA mode only).

button:

VK221S/VK222S

ASUS LCD Monitor VK221/VK222 Series

English

Status Description

Blue ON

Amber Standby mode

OFF OFF

4. Button:

• Press this button to increase the value of the function selected

or move to the previous fuction.

•

This is also a hotkey for Brightness adjustment.

6. Power button

• Press this button to turn the monitor on/off.

7. Power indicator

• Thecolordenitionofthepowerindicatorisasthebelowtable.

•

Automatically adjust the image to its optimized position, clock, and phase

by long pressing this button (for VGA mode only).

button:

1.1.3 VK221D

457

1 2 3

• Use this hotkey to switch from five video preset modes (Game

Mode, Night View Mode, Scenery Mode, Standard Mode, Theater Mode)

with SPLENDID™ Video Enhancement Technology.

• Exit the OSD menu or go back to the previous menu as the OSD

menu is active.

2. Button:

• Press this button to decrease the value of the function selected

or move to the next fuction.

This is also a hotkey for Contrast Ratio adjustment.

3. MENU Button:

• Press this button to enter/select the icon (function) highlighted

while the OSD menu is activated.

1. button:

•

ASUS LCD Monitor VK221/VK222 Series

English

2. Audio-in port. This port connects PC audio source by the bundled audio

cable.(Only for some models)

1.2.2 VK222U/VK222S/VK221S/VK221D

1. AC-IN port. This port connects the power connector from the bundled power

cord.

3. DVI port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal

connection. (Only for some models)

4. VGA port. This 15-pin port is for PC VGA connection.

This port connects the Web-cam .

5. USB-IN port.

1.2 Rear of the LCD monitor

Rear connectors

Rear

connectors

(from

left

right)

1. AC-IN port. This port connects the power connector from the bundled power

cord.

3. DVI port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal

connection.

4. VGA port. This 15-pin port is for PC VGA connection.

Screw holes for

VESA Wall Mount

1.2.1 VK222H

2.HDMI-IN port.This port connects the HDMI source .

7. USB-IN port.This port connects the Web-cam .

6. Earphone-out Port. This port connects earphone or stand alone speakers.

Audio-in port. This port connects PC audio source by the bundled audio

cable.

ASUS LCD Monitor VK221/VK222 Series

English

2Install Life-Frame 2 software



with the webcam,allowing users to create their own photos or video clips.

• LifeFrame 2 only supports Microsoft Windows Vista/XP Service Pack 2

operating systems.

The LifeFrame 2 software is bundled in the support CD.

•

Installation instructions

1. Close all other applications.

2. Insert the support CD into the optical drive and run the LifeFrame 2 program.

3. Follow the on-screen instructions to complete the installation.

work

ASUS VK221/VK222 series provides the easy-to-use LifeFrame 2 software that can

ASUS LCD Monitor VK221/VK222 Series

English

安全資訊

‧ 設定本顯示器前，請詳讀產品包裝內的說明文件。

‧ 為避免起火或觸電，請勿將顯示器暴露在下雨或潮溼的環境中。

‧ 切勿嘗試打開顯示器機殼。顯示器內的高壓電可能會造成人員嚴重受傷。

‧ 若電源中斷，切勿嘗試自行修復。請向專業的維修技師或您的零售商洽詢。

‧ 使用本產品前，請確定已正確連接所有纜線，且電源線沒有損壞。若發現任

何損壞，請立刻向您的經銷商洽詢。

‧ 本顯示器只能在標籤指示的電源類型下運作。若您不確定府上的電源類型，

請洽詢您的經銷商或當地的電力公司。

組合顯示器底座

組合顯示器底座：

1. 連接底座與顯示器。發出「喀」一聲時，表示已成功連接底座。

2. 將顯示器調整到最適合觀看的角度。

建議您使用軟布覆蓋桌面，避免損壞顯示器。

系列ASUS 液晶顯示器 VK221/VK222 1

1.1

457

1 2 3

1.1.1 VK222H/VK222U

顯示器簡介

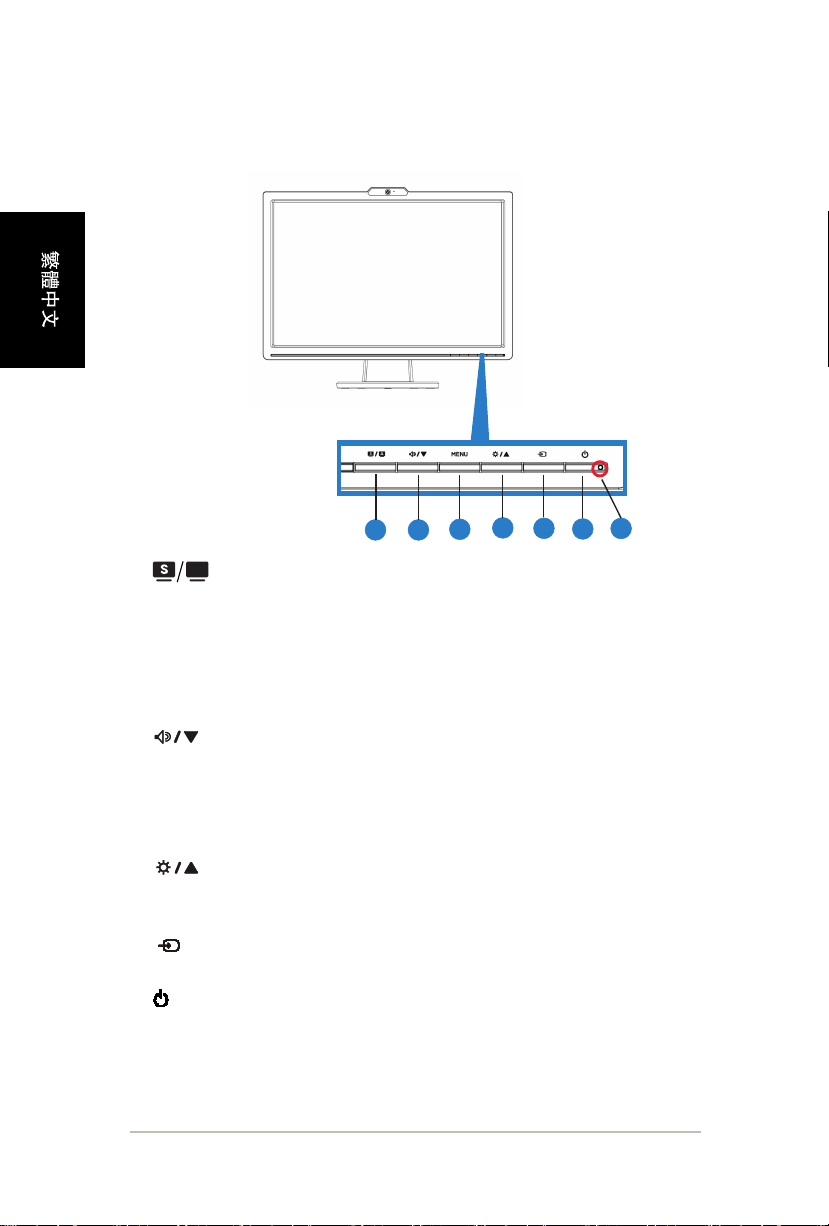

液晶顯示器正面

1. 按鈕：

‧ 按住此按鈕 2到4秒，自動調整影像至最佳位置、時脈和相位

（僅限 VGA 模式）。

‧ 使用此快速鍵，在五個擁有 SPLENDID™影像增強技術的預

設影像顯示模式（遊戲模式、夜視模式、風景模式、標準模式、

劇院模式）間進行切換。

‧ 啟用 OSD 時，退出 OSD 選單，或返回上一個選單。

2. 按鈕：

‧

‧ 此按鈕同時為音量調整快速鍵。

3. 選單按鈕：

‧ 啟用 OSD 時，按下此按鈕進入/選取反白的圖示（功能）。

4. 按鈕：

‧

‧ 此按鈕同時為亮度調整快速鍵。

按下此鈕減少所選功能的數值，或移至下一個功能。

按下此鈕增加所選功能的數值，或移至下一個功能。

5. 輸入選擇鈕

使用此快速鍵可切換為VGA、DVI、HDMI輸入訊號。(適用部分型號)

‧

電源按鈕

‧ 按下此按鈕開啟/關閉顯示器電源。

電源指示燈

‧ 電源指示燈的顏色定義如下表所示。

系列 ASUS 液晶顯示器 VK221/VK222

：

1. 按鈕：

‧ 使用此快速鍵，在五個擁有 SPLENDID™影像增強技術的預

設影像顯示模式（遊戲模式、夜視模式、風景模式、標準模式、

劇院模式）間進行切換。

‧ 啟用 OSD 時，退出 OSD 選單，或返回上一個選單。

2. 按鈕：

‧

‧ 此按鈕同時為音量調整快速鍵。

3. 選單按鈕：

‧ 啟用 OSD 時，按下此按鈕進入/選取反白的圖示（功能）。

4. 按鈕：

‧

‧ 此按鈕同時為亮度調整快速鍵。

按下此鈕減少所選功能的數值，或移至下一個功能。

按下此鈕增加所選功能的數值，或移至下一個功能。

電源按鈕

‧ 按下此按鈕開啟/關閉顯示器電源。

電源指示燈

‧ 電源指示燈的顏色定義如下表所示。

1.1.2

457

1 2 36

VK221S/VK222S

‧ 自動調整影像至最佳位置、時脈和相位

（僅限 VGA 模式）。

按鈕：

系列 ASUS 液晶顯示器 VK221/VK222

：

狀態

說明

藍色電源開啟

黃色待機模式

關閉電源關閉

1. 按鈕：

‧ 使用此快速鍵，在五個擁有 SPLENDID™影像增強技術的預

設影像顯示模式（遊戲模式、夜視模式、風景模式、標準模式、

劇院模式）間進行切換。

‧ 啟用 OSD 時，退出 OSD 選單，或返回上一個選單。

2. 按鈕：

‧

3. 選單按鈕：

‧ 啟用 OSD 時，按下此按鈕進入/選取反白的圖示（功能）。

4. 按鈕：

‧

‧ 此按鈕同時為亮度調整快速鍵。

按下此鈕減少所選功能的數值，或移至下一個功能。

按下此鈕增加所選功能的數值，或移至下一個功能。

電源按鈕

‧ 按下此按鈕開啟/關閉顯示器電源。

電源指示燈

‧ 電源指示燈的顏色定義如下表所示。

‧ 自動調整影像至最佳位置、時脈和相位

（僅限 VGA 模式）。

按鈕：

1.1.3 VK221D

457

1 2 36

此鍵亦為對比調整的快速鍵。

系列 ASUS 液晶顯示器 VK221/VK222

：
