Asus 4G-AC53U Manuale utente

Quick Start Guide

U14710-1 / Second Edition / August 2018

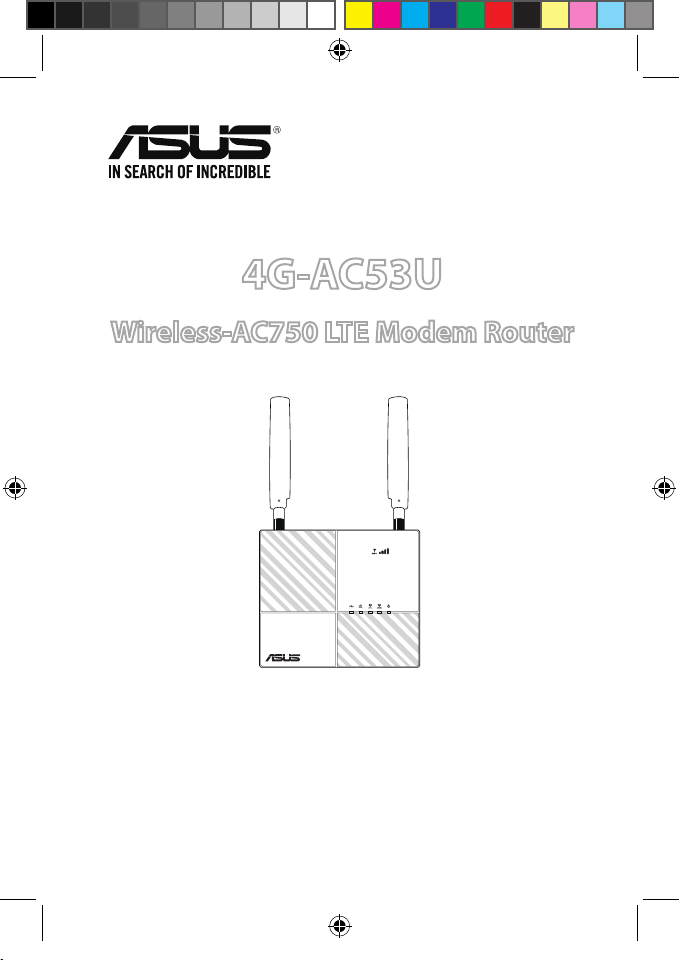

4G-AC53U

Wireless-AC750 LTE Modem Router

U14710-2_4G-AC53U_QSG_105x145mm_V2.indb 1 2018/9/11 14:35:17

Table of contents

This QSG contains these languages:

English

Dansk

Suomi

Ελληνικά

Norsk

Svenska

Package contents .......................................................................................................3

A quick look at your 4G-AC53U.............................................................................3

Installing your router ................................................................................................5

1 Prepare the setup requirements ....................................................................5

2 Set up your LTE wireless router ......................................................................6

Remembering your wireless router settings ...................................................7

FAQ ..................................................................................................................................7

Safety Notices..............................................................................................................8

Networks Global Hotline Information.............................................................. 40

U14710-2_4G-AC53U_QSG_105x145mm_V2.indb 2 2018/9/11 14:35:17

ENGLISH

NOTE: If any of the items is damaged or missing, contact your

retailer.

Package contents

4G-AC53U Wireless Router Power adapter

Network cable (RJ-45) Quick Start Guide

2 x 3G/4G antennas

A quick look at your 4G-AC53U

U14710-2_4G-AC53U_QSG_105x145mm_V2.indb 3 2018/9/11 14:35:18

ENGLISH

1. USB LED 8. Power (DC-IN) port

2. LAN LED 9. LAN ports

3. 5GHz LED 10. WPS button

4. 2.4GHz LED 11. Reset button

5. Power LED 12. USB 2.0 port

6. 3G/4G signal LED 13. Mini SIM card slot

7. Detachable LTE antennas

•Antenna 1 (Dipole Antenna):

1.9dBi/0.7-0.96GHz, 4.0dBi/1.71-2.17GHz, 2.8dBi/2.3-2.69GHz

50Ω, L=135.6mm

• Antenna2(DipoleAntenna):

1.9dBi/0.7-0.96GHz, 4.0dBi/1.71-2.17GHz, 2.8dBi/2.3-2.69GHz

50Ω, L=135.6mm

U14710-2_4G-AC53U_QSG_105x145mm_V2.indb 4 2018/9/11 14:35:19

ENGLISH

Installing your router

1. Prepare the setup requirements.

To set up your wireless network, you need to meet the

following requirements:

• AminiSIM/USIMcardwithWCDMAandLTEsubscription

NOTE: A standard SIM/USIM card is a standard mini SIM card.

IMPORTANT! Ensure that your mini SIM/USIM card is

subscribed to WCDMA and LTE services. Contact your mobile

service provider about these services.

CAUTION! Use only a standard mini SIM/USIM card on your

router. Using a dierent form of SIM card, such a micro or

nano SIM card, may damage your router.

• AcomputerwithEthernetRJ-45(LAN)port(10Base-

T/100Base-TX) or a Wi-Fi-enabled device with a 2.4 GHz

802.11 b/g/n wireless interface

• WebbrowsersuchasInternetExplorer,Firefox,Safari,or

Google Chrome

Mini SIM card Micro SIM card Nano SIM card

U14710-2_4G-AC53U_QSG_105x145mm_V2.indb 5 2018/9/11 14:35:19

ENGLISH

2. Set up your LTE wireless router.

1. Insert your mini SIM card and install the LTE antennas before

powering on your router. Connect the network cable from

your computer to the yellow Ethernet port on your router.

Wall Power Outlet

Power 3

Laptop

LAN

U14710-2_4G-AC53U_QSG_105x145mm_V2.indb 6 2018/9/11 14:35:19

ENGLISH

2. The web GUI launches automatically when you open a web

browser. If it does not auto-launch, enter http://router.asus.

com

3. Set up a password for your router to prevent unauthorized

access.

Remember your wireless settings as you complete the

router setup.

Router Name: Password:

2.4 GHz network SSID: Password:

5G Hz network SSID: Password:

FAQ

1. Where can I nd more information about the wireless

router?

• OnlineFAQsite:http://support.asus.com/faq

• Technicalsupportsite:https://www.asus.com/support

• Customerhotline:refertotheNetworks Global Hotline

Information section in this Quick Start Guide

U14710-2_4G-AC53U_QSG_105x145mm_V2.indb 7 2018/9/11 14:35:19

ENGLISH

Safety Notices

• Usethisproductinenvironmentswithambient

temperatures between 0°C(32°F) and 40°C(104°F).

• Refertotheratinglabelonthebottomofyourproductand

ensure your power adapter complies with this rating.

• DONOTplaceonunevenorunstableworksurfaces.Seek

servicing if the casing has been damaged.

• DONOTplaceordropobjectsontopanddonotshoveany

foreignobjectsintotheproduct.

• DONOTexposetoorusenearliquids,rain,ormoisture.DO

NOTusethemodemduringelectricalstorms.

• DONOTcovertheventsontheproducttopreventthe

system from getting overheated.

• DONOTusedamagedpowercords,accessories,orother

peripherals.

• Iftheadapterisbroken,donottrytoxitbyyourself.

Contact a qualied service technician or your retailer.

• Topreventelectricalshockhazard,disconnectthepower

cable from the electrical outlet before relocating the system.

DC Power adapter DCOutput:+12Vwithmax.2Acurrent

Operating Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

U14710-2_4G-AC53U_QSG_105x145mm_V2.indb 8 2018/9/11 14:35:19

DANSK

BEMÆRK: Du bedes venligst kontakte din forhandler, hvis

nogen af delene mangler eller er beskadiget.

Pakkens indhold

4G-AC53U Strømadapter

Netværkskabel (RJ-45) Kvikstartguide

2 * 3G/4G-antenner

Et hurtigt kik på din 4G-AC53U

U14710-2_4G-AC53U_QSG_105x145mm_V2.indb 9 2018/9/11 14:35:20

DANSK

1. USB LED 8. Strøm (DC-IN) port

2. LAN LED 9. LAN porte

3. 5GHz LED 10. WPS knap

4. 2.4GHz LED 11. Nulstillingsknap

5. Strøm LED 12. USB 2.0 port

6. 3G/4G-signalindikator 13. Stik til mini SIM-kort

7. Aftagelige LTE-antenner

•Antenne 1 (dipolantenne):

1.9dBi/0.7-0.96GHz, 4.0dBi/1.71-2.17GHz, 2.8dBi/2.3-

2.69GHz

50Ω, L=135.6mm

• Antenne2(dipolantenne):

1.9dBi/0.7-0.96GHz, 4.0dBi/1.71-2.17GHz, 2.8dBi/2.3-

2.69GHz

50Ω, L=135.6mm

U14710-2_4G-AC53U_QSG_105x145mm_V2.indb 10 2018/9/11 14:35:20
