Asus AM602 Manuale utente

User Manual

E4048 / July 2008

ADSL 2/2+ Ethernet/USB Combo Router

WL-AM602

LAN USBACTSTATUS

POWER

ASUS Contact Information

ASUSTeK COMPUTER INC.

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259

Telephone +886-2-2894-3447

Fax +886-2-2890-7798

E-mail [email protected]

Web site www.asus.com.tw

Technical Support

Telephone +86-21-38429911

Online support support.asus.com

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA

Fax +1-510-608-4555

Web site usa.asus.com

Technical Support

Telephone +1-812-282-2787

Support fax +1-812-284-0883

Online support support.asus.com

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkortstr. 21-23, 40880 Ratingen, Germany

Telephone +49-01805-010923

Fax +49-02102-9599-11

Web site www.asus.de

Online contact www.asus.de/sales

Technical Support

Telephone +49-01805-010923

Support Fax +49-02102-9599-11

Online support support.asus.com

WL-AM602 Combo Router User Manual

LAN USBACTSTATUS

POWER

Table of contents

Package contents...........................................................................3

Safety information..........................................................................3

Hardware overview.........................................................................4

Front panel ....................................................................................... 4

Back panel ....................................................................................... 5

Hardware connections ..................................................................... 6

Mounting the router........................................................................7

USB driver installation...................................................................8

Conguring your computer.........................................................11

Windows®2000 .............................................................................. 11

Windows®XP ................................................................................. 12

Log into the router........................................................................12

Device Info ....................................................................................13

Summary........................................................................................ 13

WAN .............................................................................................. 13

Statistics......................................................................................... 14

Route.............................................................................................. 16

ARP ............................................................................................... 17

DHCP ............................................................................................. 17

Quick Setup...................................................................................18

Advanced Setup ...........................................................................21

WAN ............................................................................................... 21

LAN ............................................................................................... 24

NAT ............................................................................................... 25

WL-AM602 Combo Router User Manual

LAN USBACTSTATUS

POWER

Firewall........................................................................................... 27

Quality of Service ........................................................................... 31

Routing........................................................................................... 32

DNS ............................................................................................... 34

ADSL.............................................................................................. 36

Port Mapping

(Function not available for 1-port ADSL Router)....................... 37

Diagnostics ...................................................................................38

Management..................................................................................39

Settings .......................................................................................... 39

System Log .................................................................................... 41

Internet Time .................................................................................. 42

Access Control ............................................................................... 43

Update Software ............................................................................ 45

Reboot Router................................................................................ 46

WL-AM602 Combo Router User Manual

LAN USBACTSTATUS

POWER

Package contents

• WL-AM602 Combo Router

• AC power adapter

• USB cable

• RJ-11 telephone cable

• RJ-45 Ethernet cable

• Splitter

• User Manual

• Quick Start Guide

Safety information

• Place your router on a flat surface close to the cables in a well-ventilated area.

• To prevent overheating, do not block the ventilation openings of the router.

• Plug this equipment into a surge protector to reduce the risk of damage from

power surges and lightning strikes.

• Operate this equipment only from an electrical outlet with the correct power

source as indicated on the adapter.

• Do not open the cover of this equipment. Opening the cover will void any

warranties on the equipment.

• Unplug the equipment first before cleaning. A damp cloth can be used to clean

the equipment. Do not use liquid / aerosol cleaners or magnetic / static cleaning

devices.

WL-AM602 Combo Router User Manual

LAN USBACTSTATUS

POWER

Front panel

LED Mode Description

POWER Solid The router is ON.

No light The router is OFF.

STATUS Solid Connection is established. The router is able to

communicate with your ISP via ADSL.

Flashing The router is trying to connect to your ISP.

ACT Flashing Data is being sent or received.

LAN Solid A successful connection is established between the

router and PC through an Ethernet cable.

Flashing Data is being sent or received.

USB Solid A successful connection is established between the

router and PC through a USB cable.

Flashing Data is being sent or received.

Hardware overview

The WL-AM602 Combo Router front panel contains LED indicators which show the

status of the router.

LAN USBACTSTATUS

POWER

WL-AM602 Combo Router User Manual

LAN USBACTSTATUS

POWER

Back panel

Label Description

LINE RJ-11 cable connects to the splitter provided.

USB USB cable connects to the PC.

LAN RJ-45 cable connects to an Ethernet device such as a PC or a switch.

RESET Press to restore the router to its default settings.

CONSOLE NOTE: To be used by maintenance professionals only for diagnostic

purposes.

POWER Connects to an AC power adapter.

ON / OFF Press to turn the router on and off.

LINE

RESET CONSOLE POWER

ON/OFF

USB

WL-AM602 Combo Router User Manual

LAN USBACTSTATUS

POWER

Hardware connections

ADSL connection

Use the ADSL splitter supplied in the package to split the ADSL signal and telephone

service. Connect your ASUS WL-AM602 Combo Router to the DSL port of the splitter

with the telephone cable supplied in the package. Use another telephone cable to

connect your telephone to the Phone port of the ADSL splitter.

Ethernet connection

You can use either the Ethernet cable or the USB cable supplied in the package for

Ethernet connection. The WL-AM602 Combo Router has an integrated auto-crossover

function. You can use either a straight-through or a crossover cable for Ethernet

connection.

To establish a connection using an Ethernet cable, plug one end of the Ethernet cable to

the LAN port on the router rear panel and the other end to the Ethernet port on your PC.

To establish a connection using a USB cable, plug one end of the USB cable to the

USB port on the router rear panel and the other end to a free USB port on your PC. The

Found New Hardware window appears. Refer to USB driver installation for details.

If your LAN has more than one PC, you can connect one end of an Ethernet cable to a

hub or switch and the other end to the LAN port on the router rear panel.

Power connection

To power on the router:

1. Connect the AC power cord to the AC adapter.

2. Connect the DC output plug on the AC adapter to the POWER port on the

rear panel of your router.

3. Plug the AC power cord into a power outlet.

WL-AM602 Combo Router User Manual

LAN USBACTSTATUS

POWER

The router can be mounted on the wall with two screws. Mounting can be done on wall

material including concrete, wood, or drywall. Select an appropriate location free from

obstructions or any possible interference. Ensure that the cables can be easily attached

to the router without strain. The illustration below shows how to mount the router

horizontally on a wall.

Mounting the router

WL-AM602 Combo Router User Manual

LAN USBACTSTATUS

POWER

USB driver installation

The following instructions guide you through the installation of the USB driver.

1. Connect one end of the USB cable to the USB port on the router rear panel

and the other end to a free USB port on your PC.

2. Turn on the router. The system is detecting the new hardware device.

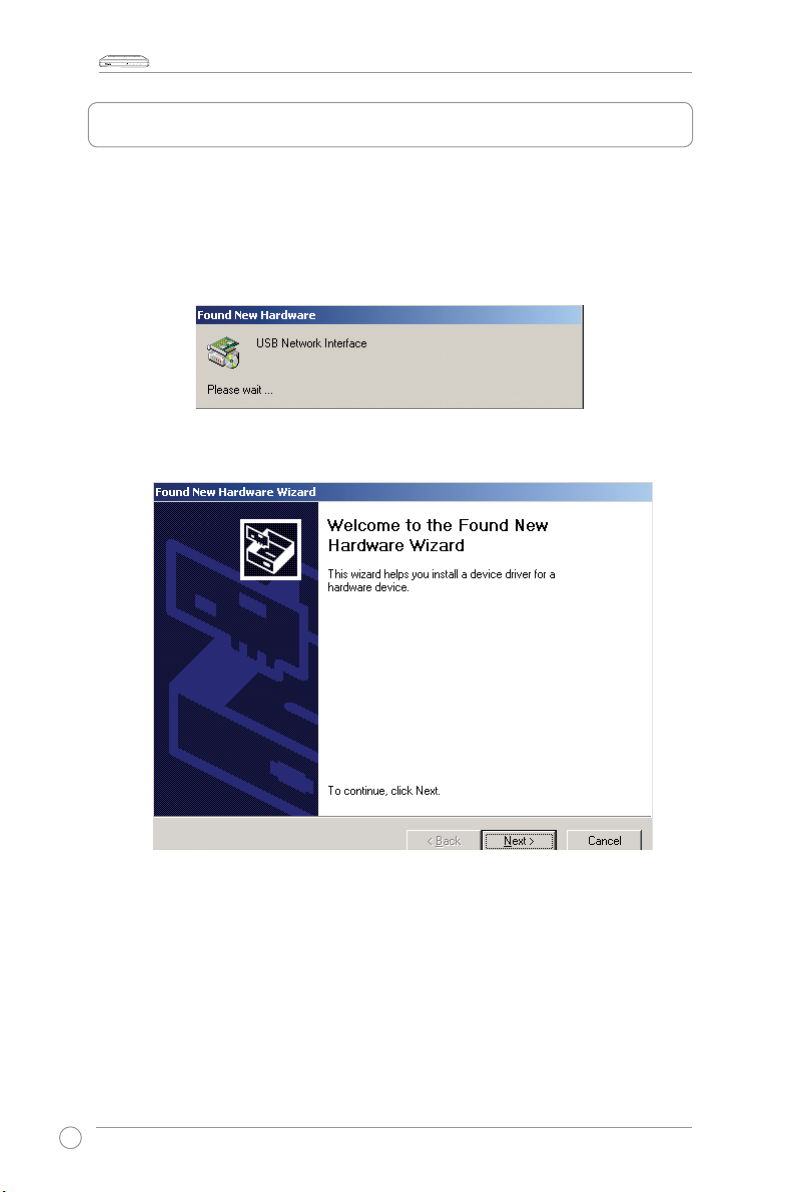

3. A Found New Hardware Wizard window appears.
