Asus DSL-N55U Manuale utente

Quick Start Guide

DSL-N55U

Dual-band WiFi ADSL Modem Router

Table of contents

U6972 / First Edition / October 2011

English.........................................................................................................................5

Français .......................................................................................................................10

Deutsch.......................................................................................................................15

Italiano ........................................................................................................................20

Русский.......................................................................................................................25

Български..................................................................................................................30

Čeština.........................................................................................................................35

Nederlands ................................................................................................................40

Eesti..............................................................................................................................45

Suomi...........................................................................................................................50

Ελληνικά......................................................................................................................55

Magyar ........................................................................................................................60

Latviski ........................................................................................................................65

Lietuvių .......................................................................................................................70

Polski............................................................................................................................75

Português...................................................................................................................80

Română.......................................................................................................................85

Slovensky....................................................................................................................90

Español........................................................................................................................95

Türkçe ..........................................................................................................................100

Українська.................................................................................................................105

NOTE

• For more details, refer to the user manual included in the support CD.

• Pour plus de détails, consultez le manuel de l'utilisateur contenu

dans le CD de support.

• Weitere Details nden Sie im Benutzerhandbuch auf derWeitere Details nden Sie im Benutzerhandbuch auf der

Support-CD.

• Per approfondimenti. consultare il manuale utente nel CD di

supporto.

• Для получения дополнительной информации обратитесь кДля получения дополнительной информации обратитесь к

руководству пользователя на компакт-диске.

•

За повече информация, вижте ръководството на потребителя,

намиращо се на помощния CD диск.

• Podrobnější informace viz uživatelská příručka na podpůrném

disku CD.

• Für weitere Details beziehen Sie sich auf das Handbuch auf derFür weitere Details beziehen Sie sich auf das Handbuch auf der

Support-CD.

• Täpsemat teavet leiate seadmega kaasnenud tugijuhendi CD-lt.

• Katso lisätietoja tuki-CD-levyllä olevasta käyttöoppaasta.

• Για περισσότερε λεπτοέρειε, ανατρέξτε στο εγχειρίδιο χρήστη

που περιλαβάνεται στο CD υποστήριξη.

• A további részleteket illetően tekintse meg a támogató CD-n

lévő felhasználói útmutatót.

• Detalizētāku informāciju meklējiet atbalsta CD esošajā lietotāja

rokasgrāmatā.

• Išsamiau žr. vartotojo vadovą, esantį šiame pagalbos

kompaktiniame (CD) diske.

• Dalsze szczegółowe informacje znajdują się w podręczniku

użytkownika na pomocniczym dysku CD.

• Para mais detalhes, consulte o manual do utilizador incluído no

CD de suporte.

•

Pentru mai multe detalii, consultaţi manualul de utilizare inclus pe CD-

ul suport.

• Viac podrobností nájdete v návode na obsluhu na CD s

podporou.

• Para obtener más detalles, consulte el manual del usuario

incluido en el CD de soporte.

• Daha fazla ayrıntı için destek CD'sinde bulunan kullanıcı

kılavuzuna bakın.

• Детальніше див. посібник користувача на компакт-диску

підтримки.

English

A quick look

11 12 13

1) Power LED 6) ADSL port 11) WPS button

2) ADSL LED 7) Power (DC-In) port 12) LAN 1~4 ports

3) WAN LED 8) Power switch 13) Reset button

4) LAN LED 9) WiFi switch

5) 2.4GHz &

5GHz LEDs 10) USB 2.0 ports

NOTES:

• USB External HDD/Flash disk:

• The wireless router works with most USB HDDs/Flash disks

and supports read-write access for FAT16, FAT32, EXT2, EXT3,

and NTFS.

• To safely remove the USB disk, launch the web GUI

(http://192.168.1.1), click the USB icon in the Network Map

page’s middle part, and click Remove in the Safely Remove

disk eld on the right side of the Network Map page.

• Incorrect removal of the USB disk, such as during video/music

streaming or le downloading, may cause data corruption.

• For the list of le system and hard disk partitions that the

wireless router supports, visit

http://event.asus.com/networks/disksupport

• For the list of printers that the wireless router supports, visit

http://event.asus.com/2009/networks/printersupport/dsl-

n55u.htm

Package contents

DSL-N55U Warranty card

Network cable Quick Start Guide

AC adapter Support CD (User Manual/utilities)

Phone cable Splitter (varies with regions)

NOTE: If any of the items is damaged or missing, contact

your retailer.

English

Positioning your wireless router

For the best wireless signal transmission between the wireless router

and the network devices connected to it, ensure that you:

• Place the wireless router in a centralized area for a maximum

wireless coverage for the network devices.

• Keep the device away from metal obstructions and away from direct

sunlight.

• Keep the device away from 802.11g or 20MHz only Wi-Fi devices,

2.4GHz computer peripherals, Bluetooth devices, cordless phones,

transformers, heavy-duty motors, uorescent lights, microwave

ovens, refrigerators, and other industrial equipment to prevent

signal interference or loss.

• To ensure the best wireless signal, orient the three detachable

antennas as shown in the drawing below.

• For optimum performance, adjust the internal cooling system. Refer

to the user manual for details.

• Always update to the latest rmware. Visit the ASUS website at

http://www.asus.com to get the latest rmware updates.

450

900

English

Before you proceed

1. Connect your devices.

2. Before starting ADSL setting procedure, ensure that the ADSL

indicator on DSL-N55U front panel become solid.

Network

cable

Wall power outlet

English

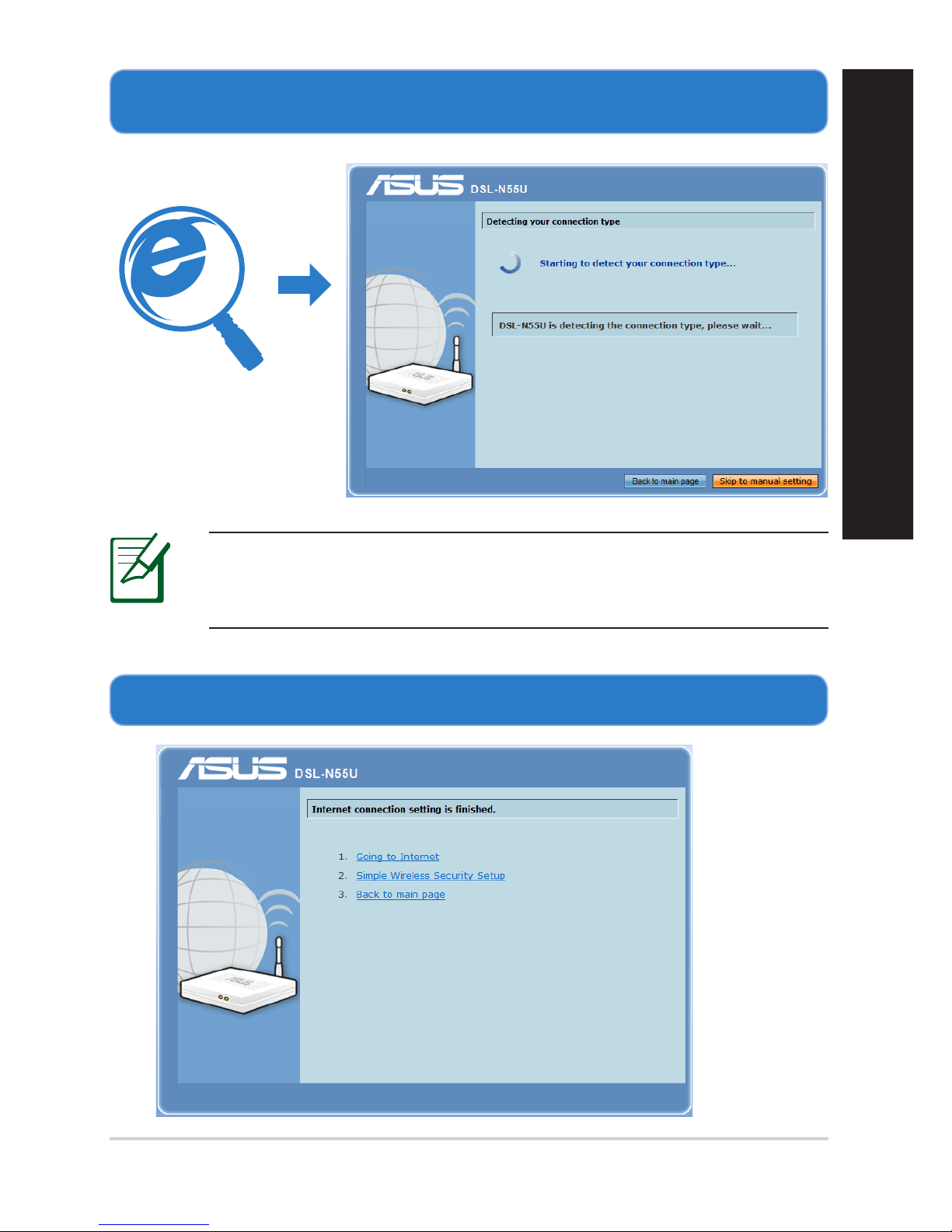

3. Launch the web browser and follow the Quick Internet Setup

(QIS) steps.

NOTE: If the QIS web page does not appear after you

launched the web browser, disable the proxy settings on

the web browser.

4. Setup is completed.

English

Caractéristiques matérielles

11 12 13

1) LED

d’alimentation 6) Port ADSL 11) Bouton WPS

2) LED ADSL 7) Prise d’alimentation

(CC) 12) Ports LAN 1 à 4

3) LED de

réseau étendu 8) Interrupteur

Marche/Arrêt 13) Bouton de réini-

tialisation

4) LED de

réseau local 9) Interrupteur Wi-Fi

5) LED 2.4GHz

et 5GHz 10) Ports USB 2.0

Français
