ASUS GigaX 1016D

GigaX 1016D

Desktop Fast Ethernet Switch

English

Quick Installation Guide

English

2ASUS GigaX 1016D

ThankyouforbuyingtheASUSGigaX1016DDesktopFastEthernetSwitch!ASUS

GigaX 1016D switch provides non-blocking, wire-speed performance to meet your

intensive network needs. This switch comes with 16 Fast Ethernet ports with auto-

sensing and auto MDI/MDIX capabilities. With easy connectivity and flow control,

GigaX 1016D is guaranteed to enhance your network performance and productivity.

Features

• 16 10/100 Mbps RJ-45 ports

• Up to 200Mbps for all ports in full duplex mode.

• Plug-and-play:Auto MDI/MDIX and auto-sensing for speed and duplex

mode on all ports.

• Flow control schemes (802.3x in full duplex mode) to support zero loss

under temporary network congestion.

• 4K MAC address learning and aging

• Easy to read indicators provide quick indication of link status.

Package Content

Before installing the GigaX 1016D switch, check your package for the following

items. Contact your retailer if any of items is damaged or missing.

• GigaX 1016D

• Power Adaptor

• Quick Installation Guide

• ASUS Networking Sticker

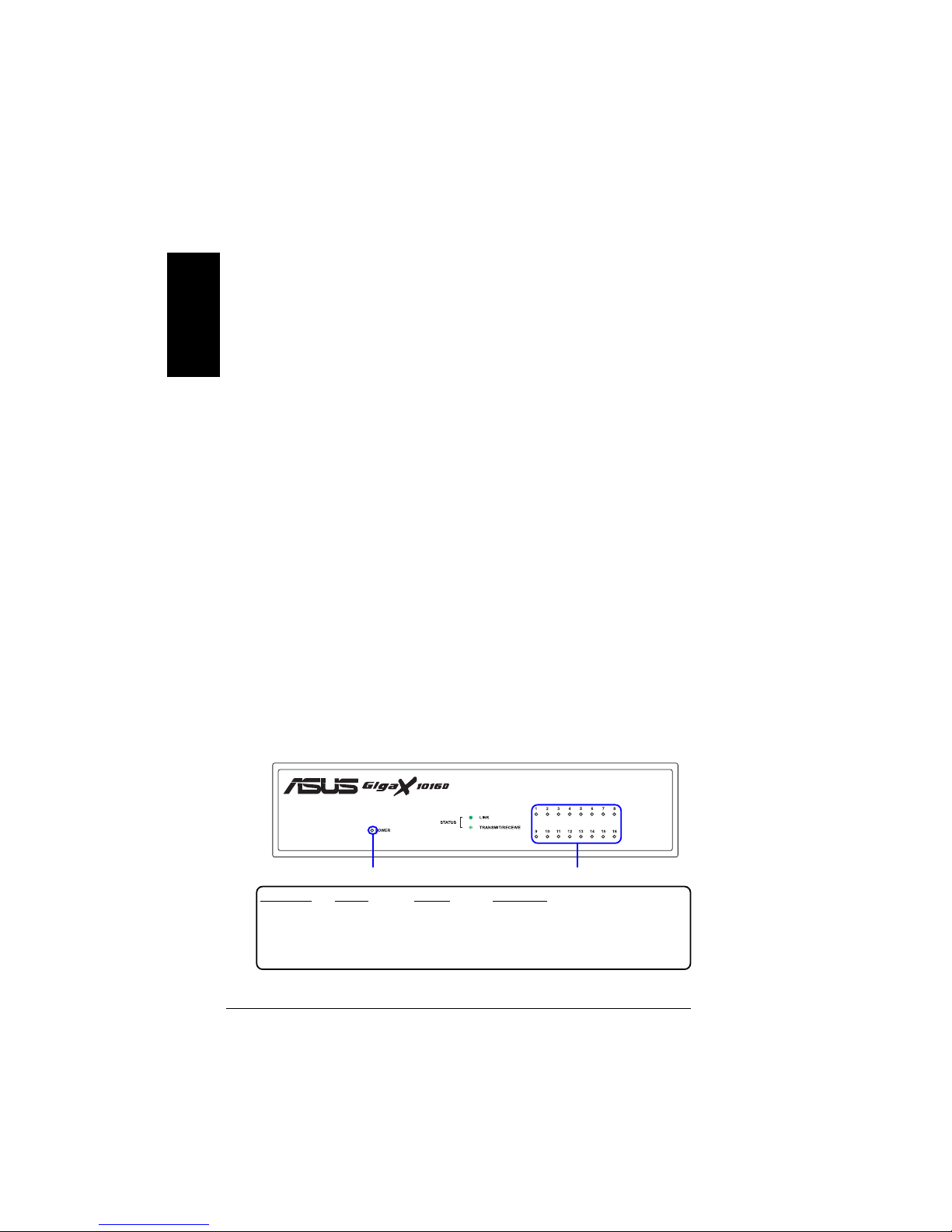

Front panel

Power Indicator Status Indicator

INDICATOR COLOR STATUS INDICATION

POWER GREEN ON The switch is powered on.

OFF The switch is powered off.

STATUS GREEN ON A link is established.

BLINKING Receiving or transmitting data packets.

Introduction

ASUS GigaX 1016D

Rear panel

Connecting Network Devices

To connect network devices to the GigaX 1016D switch.

1. Connect one end of the Ethernet cable to an Ethernet port on the back of

the switch. Connect the other end to the Ethernet port on the network

device. Repeat this step to connect additional network devices.

Note: Use Category 5 Ethernet straight-through cables to ensure proper connection between

the switch and the other network devices.

Note: The Ethernet ports on the switch may be used as uplink ports to other switches, hubs,

bridges, or repeater. The switch is capable of detecting and adjusting either cross-over or

straight-through cables.

2. Plug the AC adaptor to an electrical outlet, then plug the other end to the

power connector on the back of the switch.

3. The power indicator and active port indicators will light up indicating

that the device is turned ON and in use.

Placing the switch on a flat surface

Place the switch on a flat surface that can support the weight of the switch and its

accessories. Make sure the surface meets the operating environment specifications.

NOTE: The length of the UTP Category 5 cable should not exceed 100 meters.

Placement options

RJ-45 Ethernet

Connectors

AC Power Input

AC IN

English

4ASUS GigaX 1016D

Troubleshooting

This troubleshooting guide provides answers to some common problems that you

may encounter while installing and/or using the switch. These problems require

somesimpletroubleshootingthatyoucanperformbyyourself.Contactyourretailer

if you encounter problems that are not mentioned here.

The POWER indicator does not light up.

• Check if the power cable is properly connected to the switch, and to an

electrical outlet with the correct voltage output.

The STATUS indicator does not light up even after an Ethernet cable is

connected.

• Check if the Ethernet cable is properly connected to the switch and to the

network device.

• Make sure that the switch and your network devices are turned ON.

• Check if the Ethernet cable supports your network speed. Make sure you

are using at least Category 5 cables. You can use lower quality cables if

your network speed is only 10 Mbps.

Technical specifications

Physical dimensions 185mm (H) x 124 mm (W) x 44mm (D)

Environmental ranges Operating Storage

Temperature 0º to 55º C -20º to 70º C

Humidity 20 to 95%5 to 95%

Altitude up to 15,000 ft up to 40,000 ft

(4,500 m) (12,000 m)

Power Input 9V, 1.5A

Certification EMC: CE, FCC, VCCI, C-Tick, CCC, MIC

Safety: UL, CCC
