ASUS® PhysXTM
Installation Guide
ii
ASUS PhysXTM Installation Guide
Copyright © 2006 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form
or by any means, except documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE
OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME
WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY
ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.

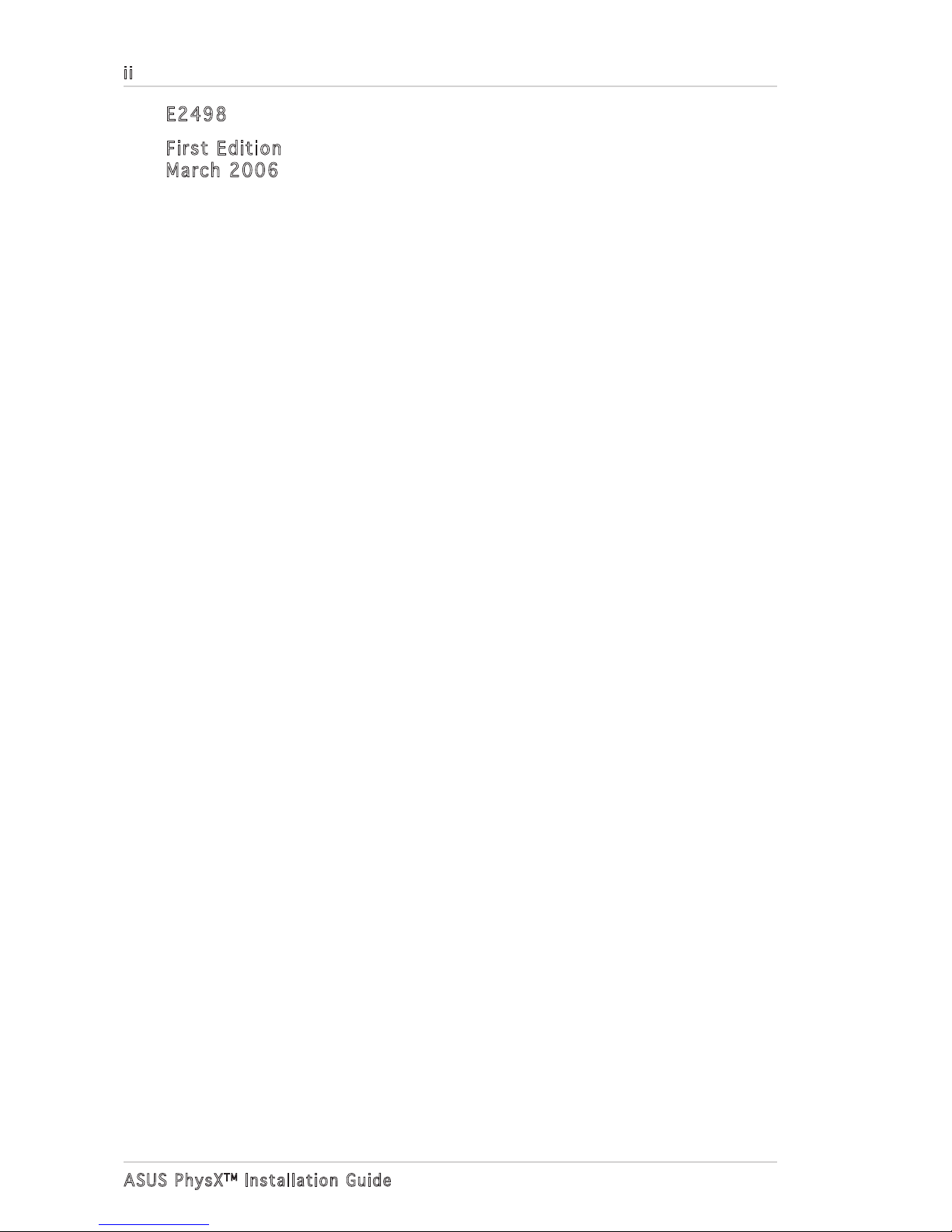

E2498
First Edition
March 2006
iii
ASUS PhysXTM Installation Guide
Contents
Notices ................................................................................................ iv
Safety information ............................................................................... v
1. ASUS® PhysXTM installation 1
1.1 Installation requirements ....................................................1
1.2 Card Installation .................................................................1
1.3 Driver Installation ...............................................................3
2. PhysXTM control panel 6
2.1 Lanuching PhysX Control Panel ..........................................6
2.2 Info ....................................................................................7
2.3 Demo .................................................................................7
2.4 Settings .............................................................................8
2.5 Help ...................................................................................8
3. Troubleshooting 9
3.1 Problems and solutions table .............................................9
3.2 Verifying the PhysXTM Card ...............................................10
3.3 Verifying the PhysXTM Driver .............................................11
4. Uninstalling the Driver and Utilities 12
iv
ASUS PhysXTM Installation Guide
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
•
This device may not cause harmful interference, and
•
This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
manufacturerʼs instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian
ICES-003.
The use of shielded cables for connection of the monitor to the graphics
card is required to assure compliance with FCC regulations. Changes
or modifications to this unit not expressly approved by the party
responsible for compliance could void the userʼs authority to operate
this equipment.
v
ASUS PhysXTM Installation Guide
Safety information
Electrical safety
•
To prevent electrical shock hazard, disconnect the power cable from
the electrical outlet before relocating the system.
•
When adding or removing devices to or from the system, ensure that
the power cables for the devices are unplugged before the signal
cables are connected. If possible, disconnect all power cables from the
existing system before you add a device.
•
Before connecting or removing signal cables from a motherboard,
ensure that all power cables are unplugged.
•
Make sure that your power supply is set to the correct voltage in your
area. If you are not sure about the voltage of the electrical outlet you
are using, contact your local power company.
•
If the power supply is broken, do not try to fix it by yourself. Contact
a qualified service technician or your retailer.
Operation safety
•
Before installing devices on your motherboard, carefully read all the
manuals that came with the package.
•
Before using the product, make sure all cables are correctly connected
and the power cables are not damaged. If you detect any damage,
contact your dealer immediately.
•
To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.
•
Avoid dust, humidity, and temperature extremes. Do not place the
product in any area where it may become wet.
•
Place the product on a stable surface.
•
If you encounter technical problems with the product, contact a
qualified service technician or your retailer.
The symbol of the crossed out wheeled bin indicates that the product
(electrical and electronic equipment) should not be placed in municipal
waste. Check local regulations for disposal of electronic products.
1
ASUS PhysXTM Installation Guide
1. ASUS® PhysXTM installation
1.1 Installation requirements
To ensure a successful installation of the PhysX card, your computer must
meet the following requirements:
(Note: The games the customers may buy may have higher specifications. The
specifications below are subject to change without notice.)
• Intel® Pentium® 4, Intel® Celeron® or higher, AMD® AthlonTM 64, AMD®
SempronTM or AMD® AthlonTM XP or higher
• Microsoft® Windows® XP/Professional/Home (32bit Edition), with SP1
or later upgrade
• 256MB system memory or higer
• Geforce6800, Radeon X800 graphic card or higher is recommended for
most games
• 50MB free hard disk space or greater
• PCI Slot revision 2.2 or later, 3.3V
• Free 4-pin Peripheral Power Cable
Before the installation, check your ASUS PhysX card package for the
following items:
• ASUS PhysXTM PPU card
• ASUS PhysXTM PPU support CD
• Product serial number
• CD serial number
When the above items are ready, you can begin the installation that
includes two steps: (1) card installation, and (2) driver installation.
1.2 Card installation
To install ASUS PhysX card:
1. Touch the metal back or side panel of the computer to avoid static
electricity.
2. Power OFF the computer, the monitor, and all other peripheral devices
connected to your computer.
3. Unplug the computer power cord from your computer and power outlet.
4. Remove the chassis cover.
5. Locate an empty PCI slot on the motherboard.
2
ASUS PhysXTM Installation Guide

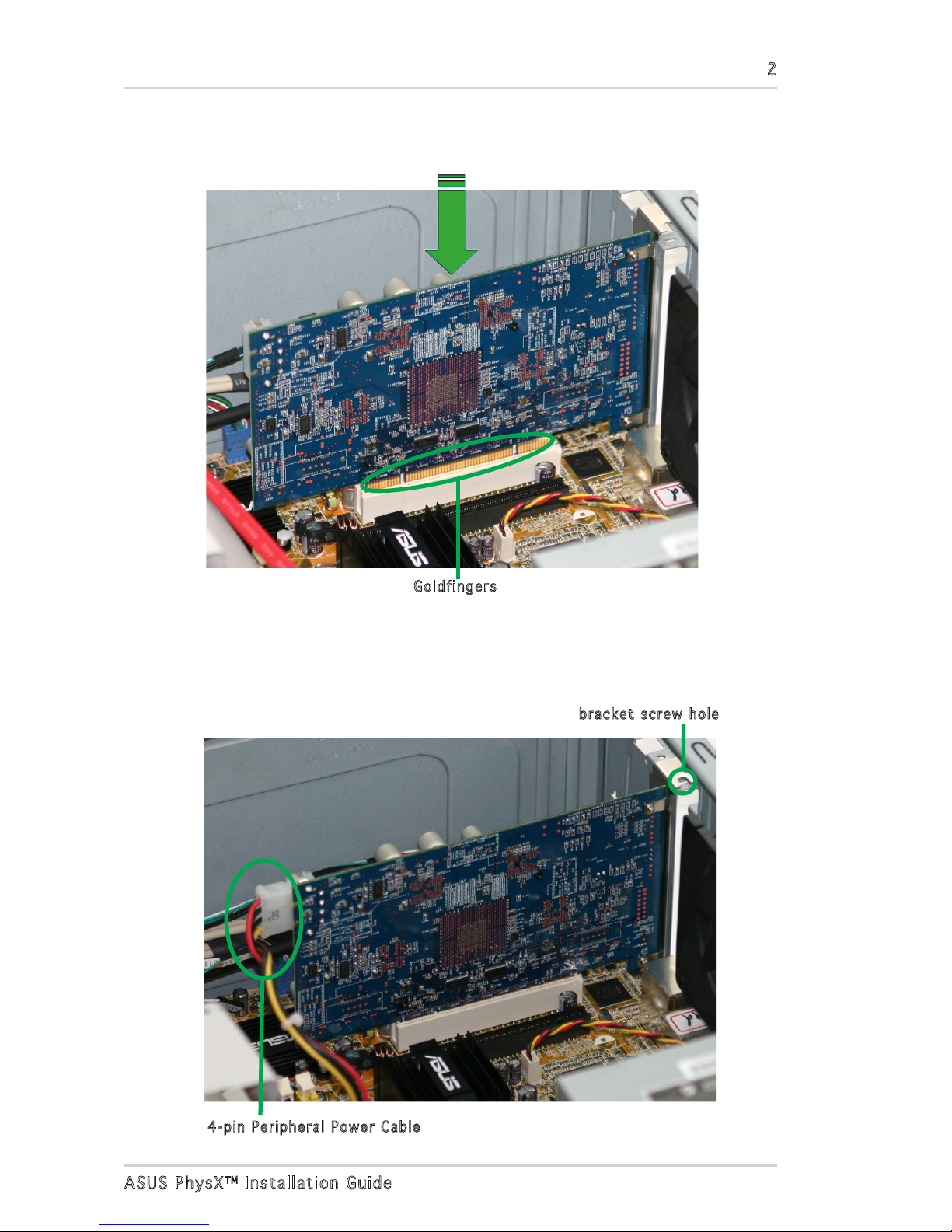

7. Secure the bracket screw that holds the PhysX card in place. Refer to
the picture below for the barcket screw hole.
8. Connect one 4-pin Peripheral Power Cable to the power connector on
the card as shown below.
Goldfingers
bracket screw hole
4-pin Peripheral Power Cable
6. Align and insert the PhysX card into the PCI slot until it seats in
place. Make sure the goldfingers are properly inserted to the slot.
3
ASUS PhysXTM Installation Guide
9. Put back the chassis cover.
10. Reconnect all cables.
11. Plug the power cord to the computer and to a wall socket & power strip.
12. Power ON the computer.
After installing the PhysX card on your computer, you need to install the
device driver that enables the PhysX card to work with Windows operating
system.

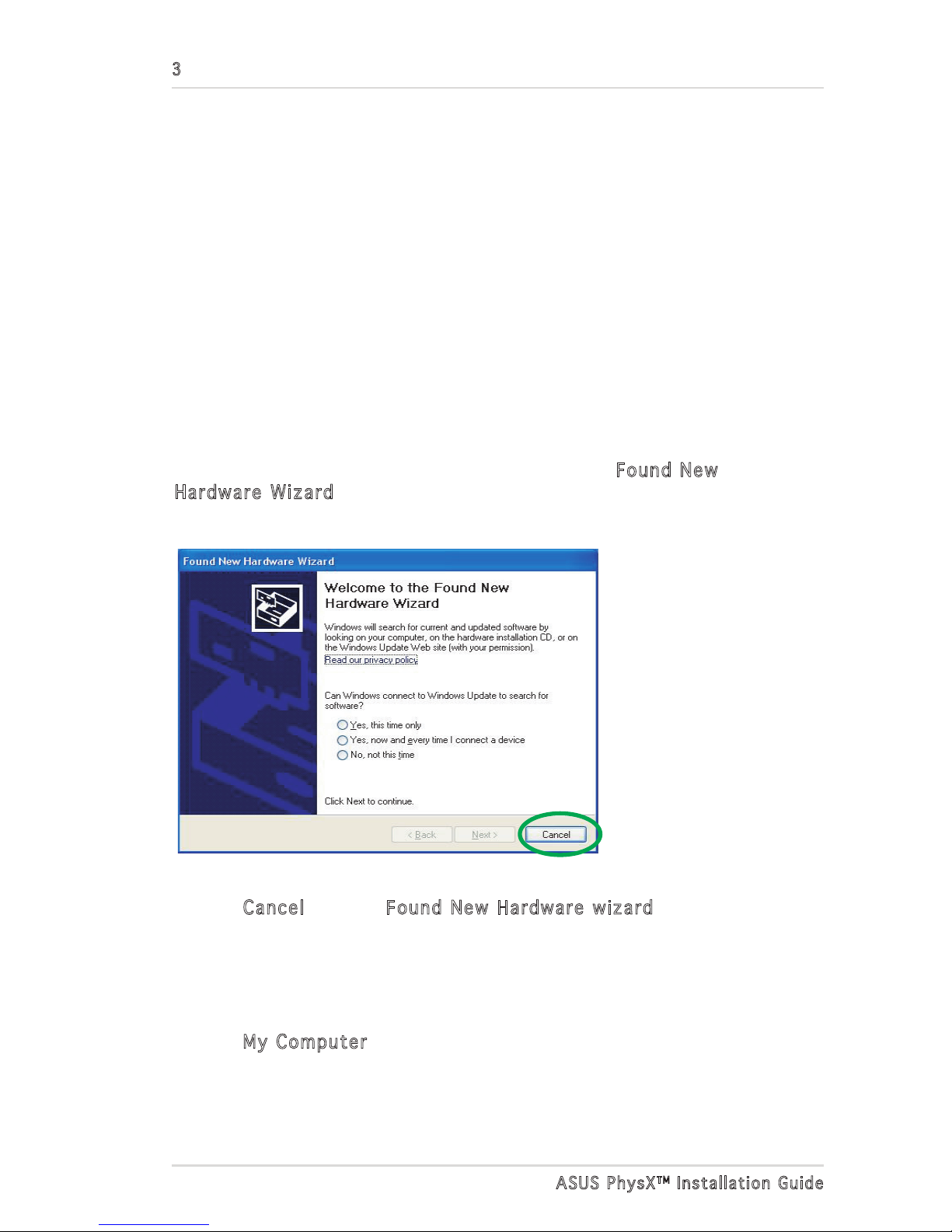

If you have already installed the ASUS PhysX card, the Found New
Hardware Wizard window may pop up before or during driver installation.
See figure below.
1.3 Driver installation
To install the device driver:
1. Click Cancel from the Found New Hardware wizard window.
2. Insert the ASUS PhysX support CD into your optical drive.
If autorun is enabled, the ASUS PhysX Card Driver screen appears
automatically. Go to step 5.
If Autorun is not enabled in your computer, perform step 3.
3. Click My Computer on your desktop.
(Note: The version and content of the driver CD are subject to change without
notice.)
4
ASUS PhysXTM Installation Guide
4. Double click
the optical
drive icon.
The ASUS
PhysX Card
Driver screen
appears.

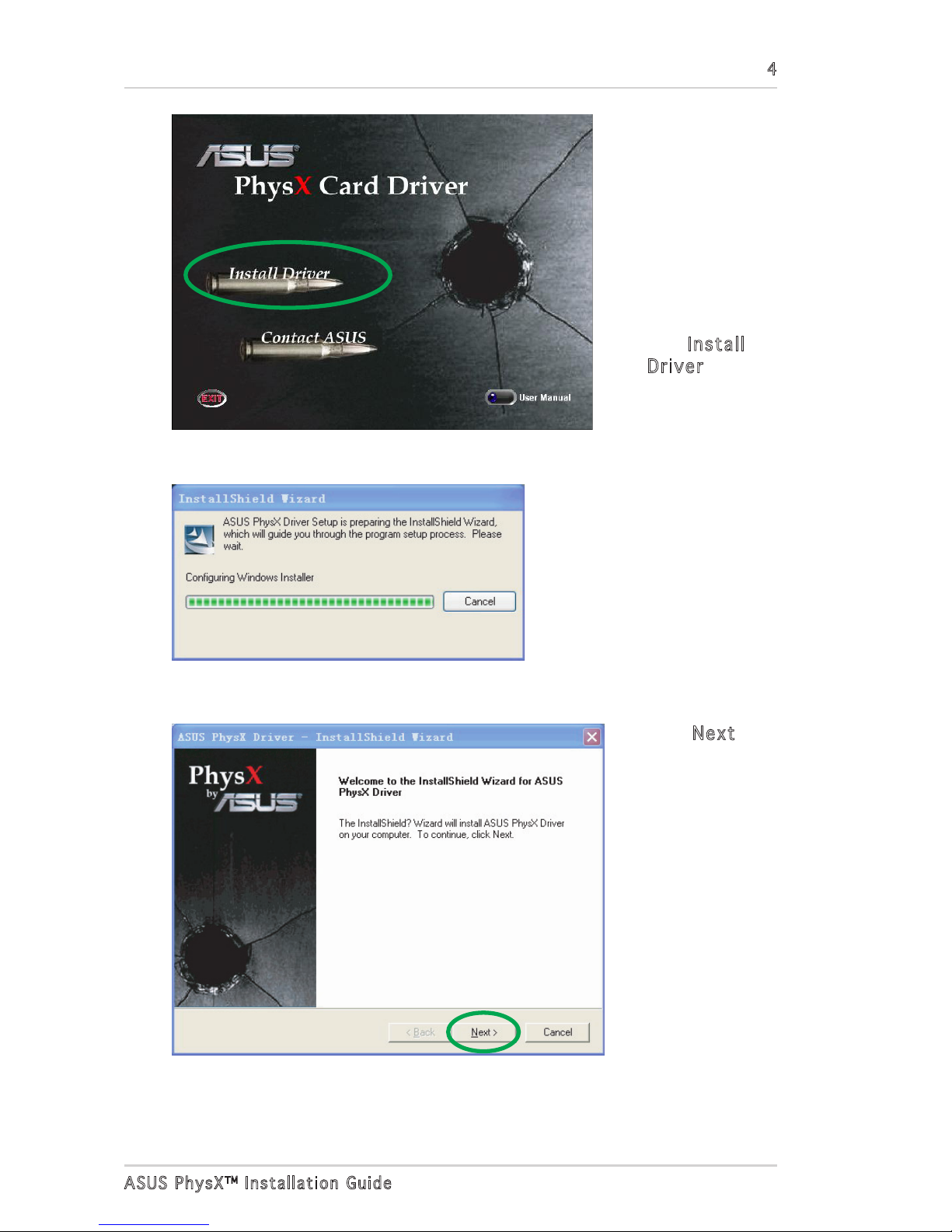

5. From the ASUS
Card Driver
screen, double
click Install
Driver.
The Setup
prepares the
InstallShield
Wizard which
will guide you
through the
program setup
process.
6. Click Next
on the
Welcome
to the
InstallShield
Wizard
screen.
5
ASUS PhysXTM Installation Guide

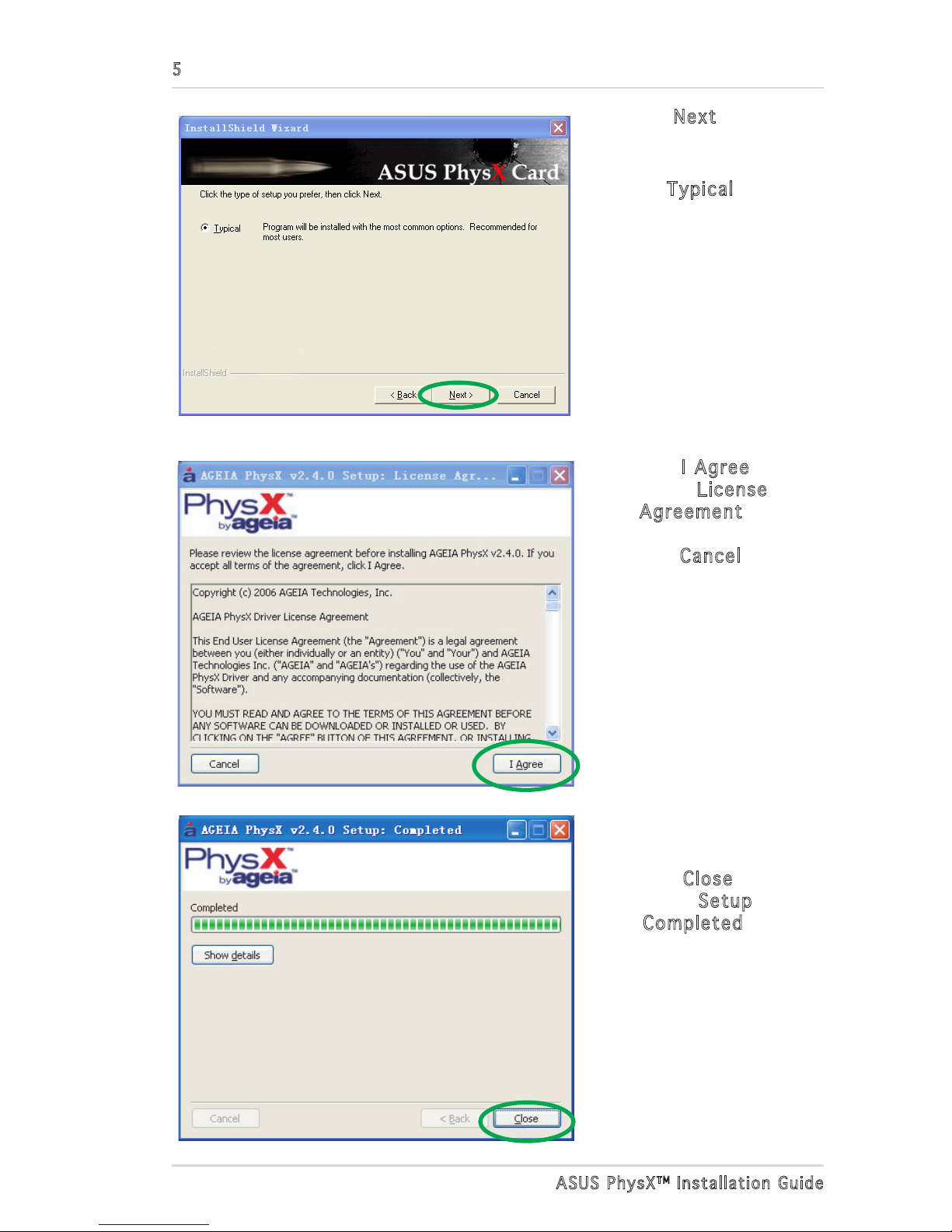

7. Click Next from
the InstallShield
Wizard window.
The Typical
installation type
is selected by
default.
8. Click I Agree
on the License
Agreement
window, or
click Cancel
to exit the
installation
program.
The ASUS PhysX
device drivers
are copied onto
your system.
The installation
may take several
minutes to
complete.
9. Click Close
on the Setup
Completed
window to exit
the ASUS
PhysX Installer
and complete
the installation.
Altri manuali per PhysX P1
2
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Asus Scheda video
Asus
Asus GeForce GTX 1650 OC 4GB Manuale utente
Asus
Asus Asus Graphics Card EN210SILENTDI1GD3V2LP Manuale utente
Asus
Asus V9950 Ultra / Delux / TVD / 256M Manuale utente
Asus
Asus AGP-V264GT3 Manuale utente
Asus
Asus AGP-V7700 Deluxe Manuale utente
Asus
Asus PCI-V775V2C Manuale utente
Asus
Asus Splendid HD Manuale utente
Asus
Asus EN8400GS SILENT/DI/512MD2(LP) Istruzioni per il montaggio
Asus
Asus STRIX GTX1080 A8G GAMING Manuale utente
Asus
Asus MA3850 Manuale utente
Asus
Asus AGP-V3000 Manuale utente
Asus
Asus G series Manuale utente
Asus
Asus NVIDIA GeForce GTX 1060 6 GB ROG STRIX... Guida all'installazione
Asus
Asus AGP-V6600 MX Manuale utente
Asus
Asus V8200 Pure Manuale utente
Asus
Asus AGP-V3005 Manuale utente
Asus
Asus GeForce GTX 1660 TUF Gaming 6GB Manuale utente
Asus
Asus V9520 Home Theater Manuale utente
Asus
Asus 3DP-V264GT Manuale utente
Asus
Asus V8170 PRO/T/64M Manuale di istruzioni
Manuali Scheda video popolari di altre marche
Gainward
Gainward GeForce GTX 690 4GB Manuale utente
ATI Technologies
ATI Technologies RADEON 137-40225-20 Manuale utente
MSI
MSI N220GT series Manuale utente
ATI Technologies
ATI Technologies RADEON 7000 MAC EDITION Manuale utente
SIIG
SIIG aurora Manuale utente
ClearSpeed
ClearSpeed ClearSpeed Advance e720 Manuale utente
