ASUS WL-330gE Setup

Jason at NSS reserved MAC Addresses for Robots and ASUS Bridges:

1463EB1

oASUS Bridge

MAC: E0-CB-4E-5D-E6-EA

IP: 172.18.63.1

oRobot:

MAC:00-80-2f-11-e0-29

IP: 172.18.63.22

Name: ese-robot-1463eb1.wufi.wustl.edu

1587CFD (14BCCCF/ MAC: 00:80:2f:11:f6:c4 sent in for repairs and was

replaced with this one)

oASUS Bridge

MAC: E0-CB-4E-1B-95-1A

IP: 172.18.63.3

oRobot

MAC: 00:80:2F:12:AE:70

IP: 172.18.63.2

Name: ese-robot-14BCCCF.wufi.wustl.edu

148CCC1

oASUS Bridge

MAC: E0-CB-4E-5D-E2-50

IP: 172.18.63.5

oRobot

MAC: 00:80:2f:11:f6:b6

IP: 172.18.63.4

Name: ese-robot-.wufi.wustl.edu

15BEF64 (1463EAB/ MAC: 00:80:2f:11:e0:21 sent in for repairs and was

replaced with this one)

oASUS Bridge

MAC: E0-CB-4E-5D-E2-EB

IP: 172.18.63.7

oRobot

MAC: 00:80:2f:12:d4:03

IP: 172.18.63.6

Name: ese-robot-15BEF64.wufi.wustl.edu

14BCCC5

oASUS Bridge

MAC: E0-CB-4E-5D-E2-10

IP: 172.18.63.9

oRobot

MAC: 00:80:2f:11:f6:ba

IP: 172.18.63.8

Name: ese-robot-14BCCC5.wufi.wustl.edu

159F58E (15EA4A2 sent for repairs. When the shipped it back it had the same

sbRIO but new serial number.)

oASUS Bridge

MAC: F4-6D-04-94-EB-22

IP: 172.18.63.11

SN: 4739

oRobot

MAC: 00:80:2f:12:B8:67

IP: 172.18.63.12

Name: ese-robot-15EA4A2.wufi.wustl.edu

Configuration Instructions for WUFI

1. Reset device by holding the reset button for 10 seconds. Then turn off for 10

seconds and plug Ethernet cable into PC and turn on.

2. Browse to 192.168.1.220

a. Username: admin

b. Password: admin

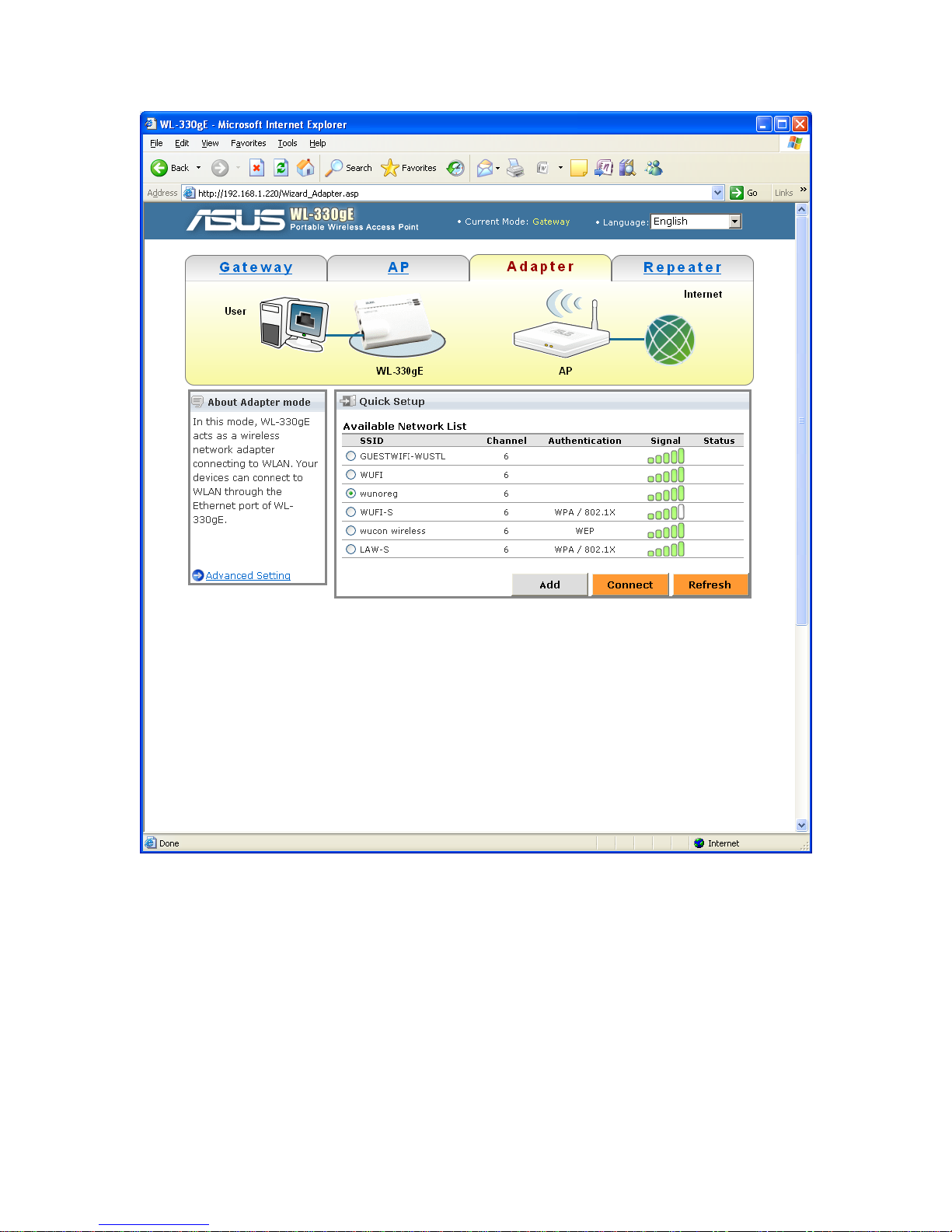

3. Select wunoreg and click on Connect. You will lose the connection to the ASUS

at this point. The MAC addresses are in the QIP tables, so the IP will be

automatically assigned according to the table above.

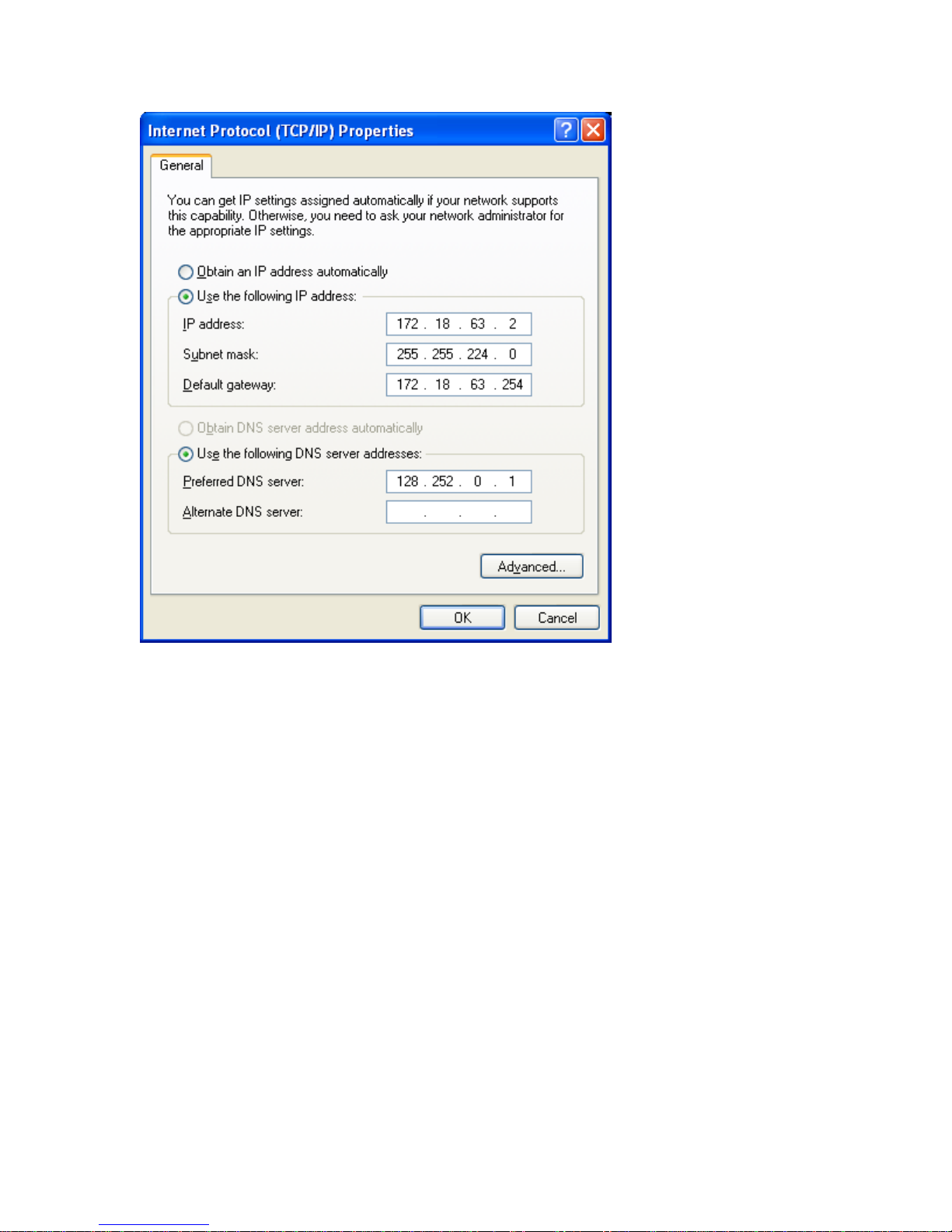

4. To test, change the network settings –Use the IP of the robot you are going to

connect the bridge to. Make sure it is off the network.

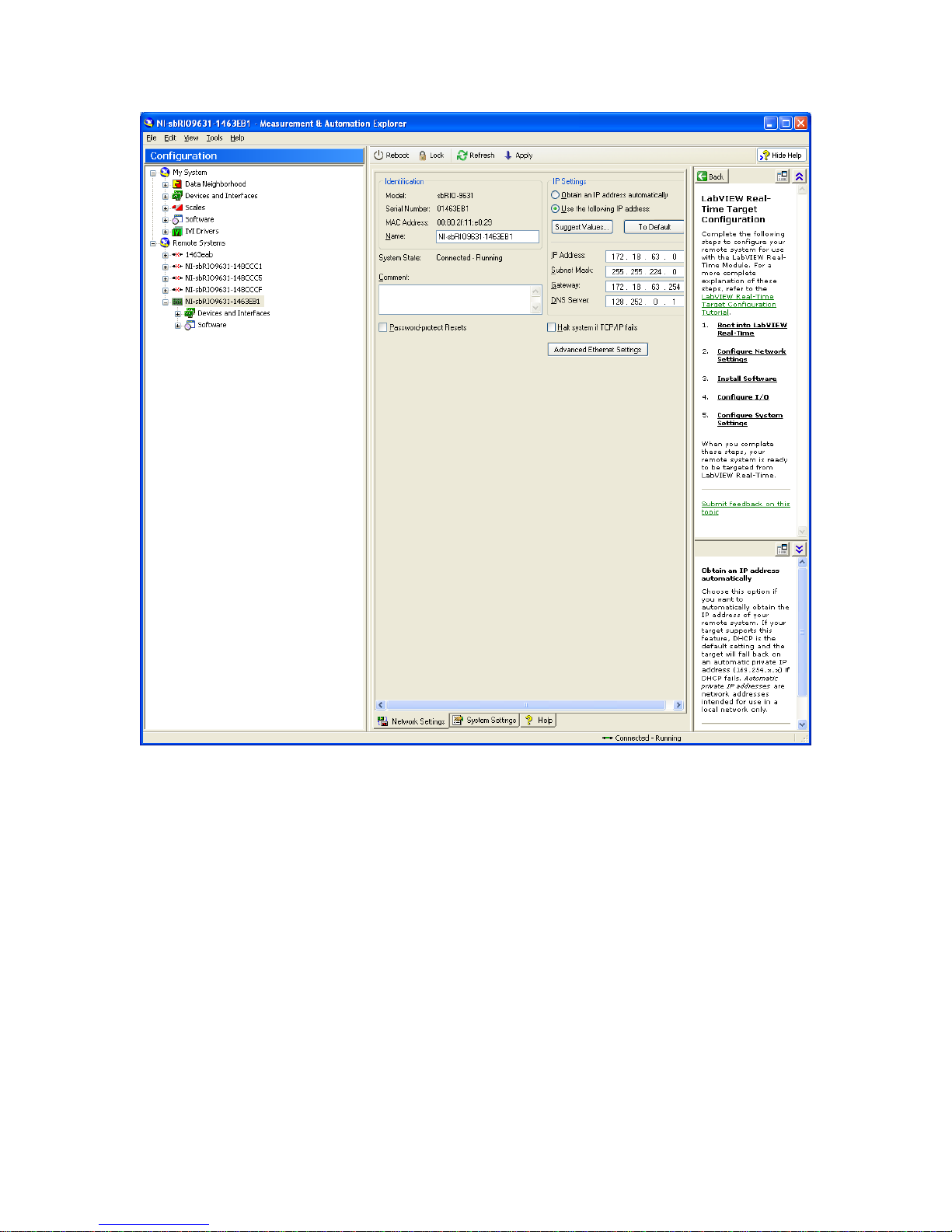

5. Now configure the robot to use the IP from the table above. If you do not know

the IP of the robot, then you need to reset the IP. Do this by by turning ON

(Down) DipSwitch -3 and pressing the Reset switch. Then hit refresh in MAX.

Configuration Instructions for WEP Wireless Network

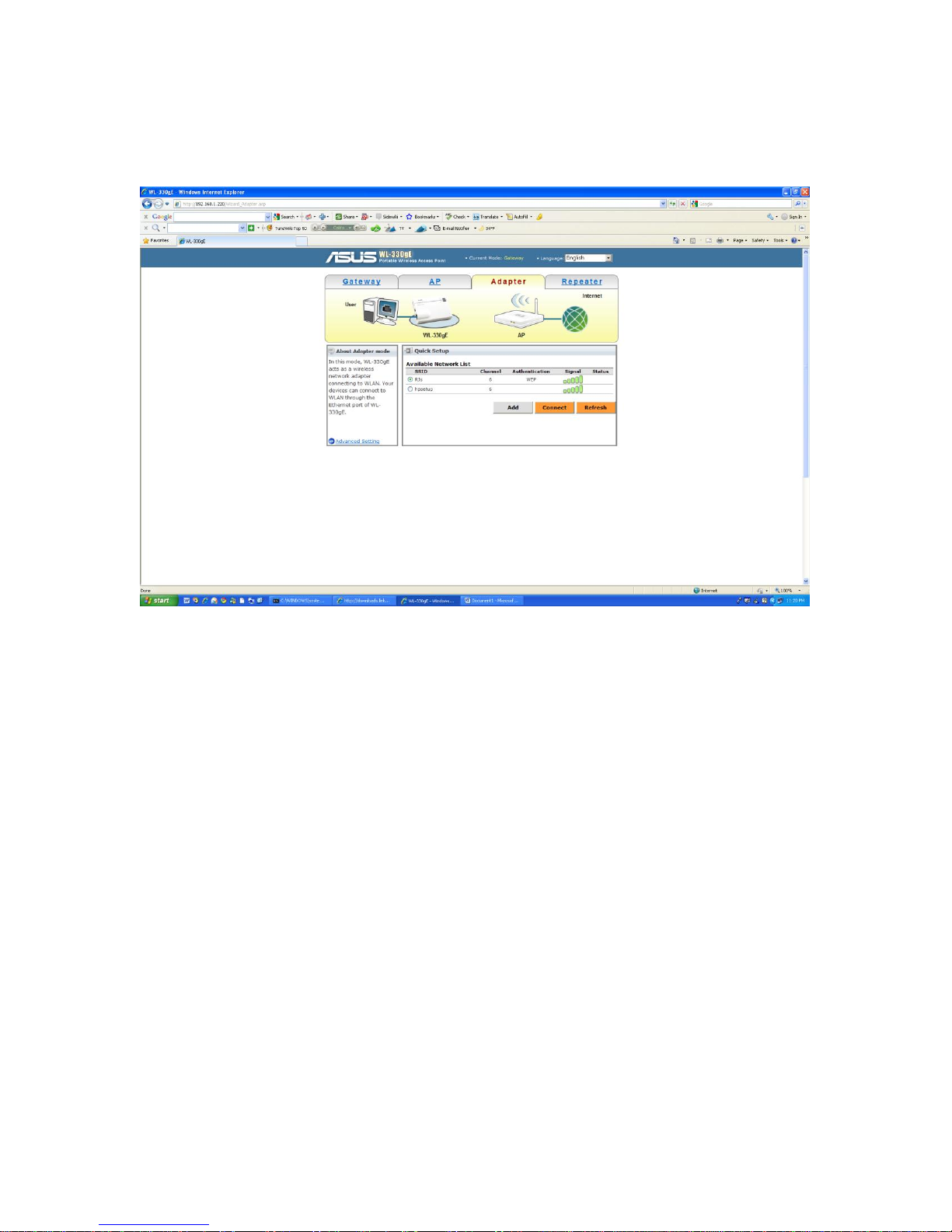

1. Click on the Adapter tab, select the SSID and Click Connect. Enter the WEP

password if prompted. However, this doesn’t seem to work so you have to add it

again on the Advanced Settings page.

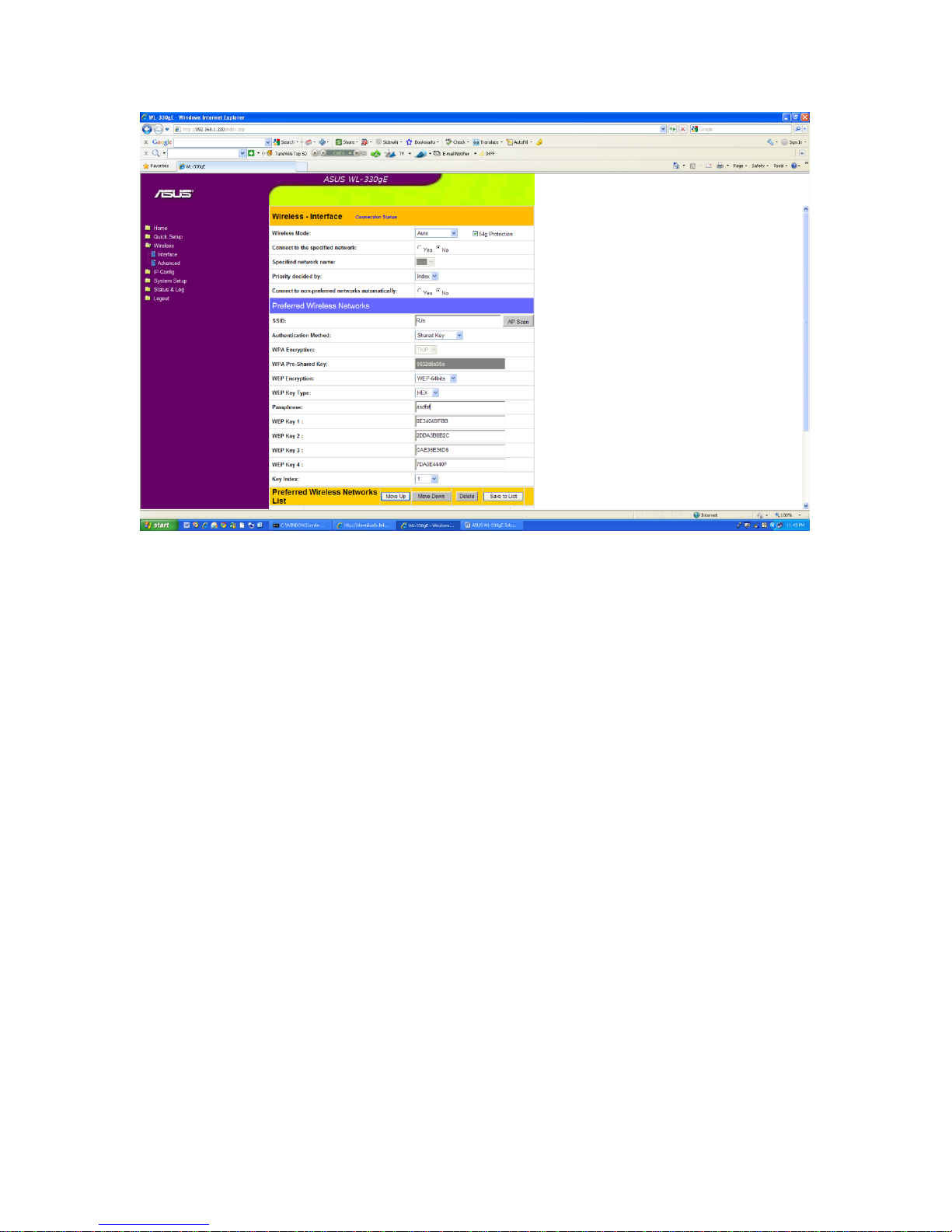

2. Click on Advanced -> Wireless -> Interface. Click on AP Scan

3. Click Select for the correct SSID.

4. Enter either passphrase or WEP key directly and click Save to List and Apply.
