INSTRUCTIONS FOR USE

WINE CLIMATE CABINET

KU8574K2C

KU8571K2C

3Introduction ................................................

3Welcome to our growing Atag family! ..........

4Safety instructions .....................................

4Safety of children and vulnerable people .....

5General safety ..............................................

6Installation ....................................................

6Electrical connection ...................................

7Use ...............................................................

8Care and cleaning .......................................

8Disposal .......................................................

9Installation and connection ......................

9Selecting the location ..................................

9Appliance placement ...................................

11Connecting the appliance ...........................

Before using the appliance for the first

time ..............................................................

Before you use the appliance for the first

time ..............................................................

12Energy-saving advice ..................................

13Storing wine ...............................................

13Wine storage tips .........................................

14Storing bottles ..............................................

15Description of the appliance .....................

Humidity box (separate accessory, not

included) ......................................................

23Operation ....................................................

23Control panel ...............................................

24First use .......................................................

26Main displays ...............................................

28Appliance Display Standby .........................

28Key lock .......................................................

29Lock settings ................................................

29Alarms ..........................................................

31SETTINGS MENU .........................................

34Software update ...........................................

35Wi-Fi function ...............................................

36Charcoal filter countdown and notification ...

36Sabbath mode .............................................

37Eco mode .....................................................

38Maintenance ...............................................

38Defrosting the appliance .............................

38Cleaning the appliance ................................

39Reversing the door opening direction .....

46Installation of the appliance ......................

55Solving problems .......................................

55Tips & Tricks ................................................

56Error notifications .........................................

58Other display warnings ................................

59General problems ........................................

60Environmental aspects ..............................

60Disposal of packaging and appliance .........

Contents

Welcome to our growing Atag family!

We are proud of our appliances. We hope that this appliance will be an appreciated and dependable

aid for many years to come.

Please read the operating instructions before use. They include general tips, information about the

settings and adjustments you can make, and the best way to take care of your appliance.

Link to the EU EPREL database

The QR code on the energy label supplied with the appliance provides a web link to the registration

of this appliance in the EU EPREL database. Keep the energy label for reference together with the

user manual and all other documents provided with this appliance.

It is possible to find information related to the performance of the product in the EU EPREL database

using the link https://eprel.ec.europa.eu and the model name and product number that you can find

on the rating plate of the appliance.

For more detailed information about the energy label, visit www.theenergylabel.eu.

The following symbols are used throughout the manual and they have the following meanings:

INFORMATION!

Information, advice, tip, or recommendation

WARNING!

Warning –general danger

ELECTRIC SHOCK!

Warning –danger of electric shock

DANGER OF FIRE!

Warning –danger of fire

Introduction

Before the installation and use of the appliance, carefully read the

supplied instructions. The manufacturer is not responsible if an

incorrect installation and use causes injuries and damages. Always

keep the instructions with the appliance for future reference.

WARNING!

If the appliance is installed at an altitude of over 1000 m above

sea level, there is a danger of glass cracking due to air pressure.

In such case, glass fragments could cause injury.

Safety of children and vulnerable people

•The appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

•Children should be supervised to ensure that they do not play

with the appliance.

•Cleaning and user maintenance shall not be made by children

without supervision.

•Keep all packaging away from children.

For European markets only

•This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

•Children shall not play with the appliance.

•Cleaning and user maintenance shall not be made by children

without supervision.

•Children aged from 3 to 8 years are not allowed to load and unload

the appliance.

Safety instructions

General safety

•Illumination in the appliance is only suitable for illumination of this

appliance and not for household room illumination.

•WARNING! This appliance is intended to be used in household

and similar applications such as:

- staff kitchen areas in shops, offices and other working

environments;

- farm houses and by clients in hotels, motels and other

residential type environments;

- catering and similar non-retail applications.

WARNING!

Keep ventilation openings, in the appliance enclosure or in the

built-in structure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the

manufacturer.

Do not damage the refrigerant circuit.

Do not use water spray and steam to clean the appliance.

Clean the appliance with a moist soft cloth. Only use neutral

detergents. Do not use abrasive products, abrasive cleaning pads,

solvents or metal objects.

Do not store explosive substances such as aerosol cans with a

flammable propellant in this appliance.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in

order to avoid a hazard.

To avoid a hazard due to instability of the appliance, it must be

fixed in accordance with the instructions.

Safety instructions

Installation

•Remove all the packaging.

•Do not install or use a damaged appliance.

•Obey the installation instruction supplied with the appliance.

•Always be careful when you move the appliance because it is

heavy. Always wear safety gloves.

•Make sure the air can circulate around the appliance.

•After you place the appliance, wait at least 4 hours before

connecting the appliance to the power supply. This is to allow the

oil to flow back in the compressor.

•Do not install the appliance close to radiators or cookers, oven

or hobs.

•Do not install the appliance where there is direct sunlight.

•Do not install this appliance in areas that are too humid or too

cold, such as the construction appendices, garages or cellars.

ELECTRIC SHOCK!

WARNING! When positioning the appliance, ensure the supply

cord is not trapped or damaged.

Electrical connection

ELECTRIC SHOCK!

WARNING! Risk of fire and electrical shock.

•The appliance must be earthed.

•All electrical connections should be made by a qualified

electrician.

•Make sure that the electrical information on the rating plate agrees

with the power supply. If not, contact an electrician.

•Always use a correctly installed shockproof socket.

•Do not use multi-plug adapters and extension cables.

Safety instructions

•Make sure not to cause damage to the electrical components

(e.g. mains plug, mains cable, compressor). Contact the Service

or an electrician to change the electrical components.

•The mains cable must stay below the level of the mains plug.

•Connect the mains plug to the mains socket only at the end of

the installation. Make sure that there is access to the mains plug

after the installation.

•Do not pull the mains cable to disconnect the appliance. Always

pull the mains plug.

WARNING!

Do not locate multiple portable socket-outlets or portable power

supplies at the rear of the appliance

Use

WARNING!

Risk of injury, burns, electrical shock or fire.

•Do not change the specification of this appliance.

•Do not put electrical appliances (e.g. ice cream makers) in the

appliance unless they are stated applicable by the manufacturer.

•Be careful not to cause damage to the refrigerant circuit. It

contains isobutene (R600a), a natural gas with a high level of

environmental compatibility. This gas is flammable.

•If damage occurs to the refrigerant circuit, make sure that there

are no flames and sources of ignition in the room. Ventilate the

room.

•Do not let hot items to touch the plastic parts of the appliance.

•Do not store flammable gas and liquid in the appliance.

•Do not put flammable products or items that are wet with

flammable products in, near or on the appliance.

•Do not touch the compressor or the condenser. They are hot.

Safety instructions

Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

•Before maintenance, deactivate the appliance and disconnect

the mains plug from the mains socket.

•This appliance contains hydrocarbons in the cooling unit. Only a

qualified person must do the maintenance and the recharging of

the unit.

Disposal

WARNING!

Risk of injury or suffocation.

•Disconnect the appliance from the mains supply.

•Cut off the mains cable and discard it.

•Remove the door to prevent children and pets to be closed inside

of the appliance.

•The refrigerant circuit and the insulation materials of this appliance

are ozone friendly.

•The insulation foam contains flammable gas. Contact your

municipal authority for information on how to discard the appliance

correctly.

•Do not cause damage to the part of the cooling unit that is near

the heat exchanger.

Safety instructions

Selecting the location

Place the appliance in a dry and well aired

room. The permitted ambient temperature

range for the appliance depends on the

appliance’s climate class, which is shown on

the type plate.

WARNING!

Do not place the appliance in a room where the temperature can fall below 5 °C: the appliance

may not work properly or become defective!

Relative humidityAmbient temperature range °CClassDescription

≤75%

+10 to +32SNExtended temperate

+16 to +32NTemperate

+16 to +38STSubtropical

+16 to +43TTropical

•In environments with high humidity level, condensate droplets may appear on the appliance’s

exterior surfaces.

WARNING!

Install the appliance in a room with an adequate amount of air. There should be at least 1 m3of

air per every 8 grams of refrigerant. The amount of refrigerant is indicated on the rating plate

inside the appliance.

WARNING!

Do not place the appliance in a room where temperature can drop to below 5°C. In such

environment, the appliance may not operate correctly, or it may become defective.

Appliance placement

In order to safely install the appliance and for the appliance to operate correctly, it is important to

place it onto a surface with adequate load-bearing capacity. If necessary, consult an architect/

structural engineer. The surface should be smooth and level with the floor in the room.

When the appliance is placed on the intended surface, it should be completely level in order to

decrease vibration.

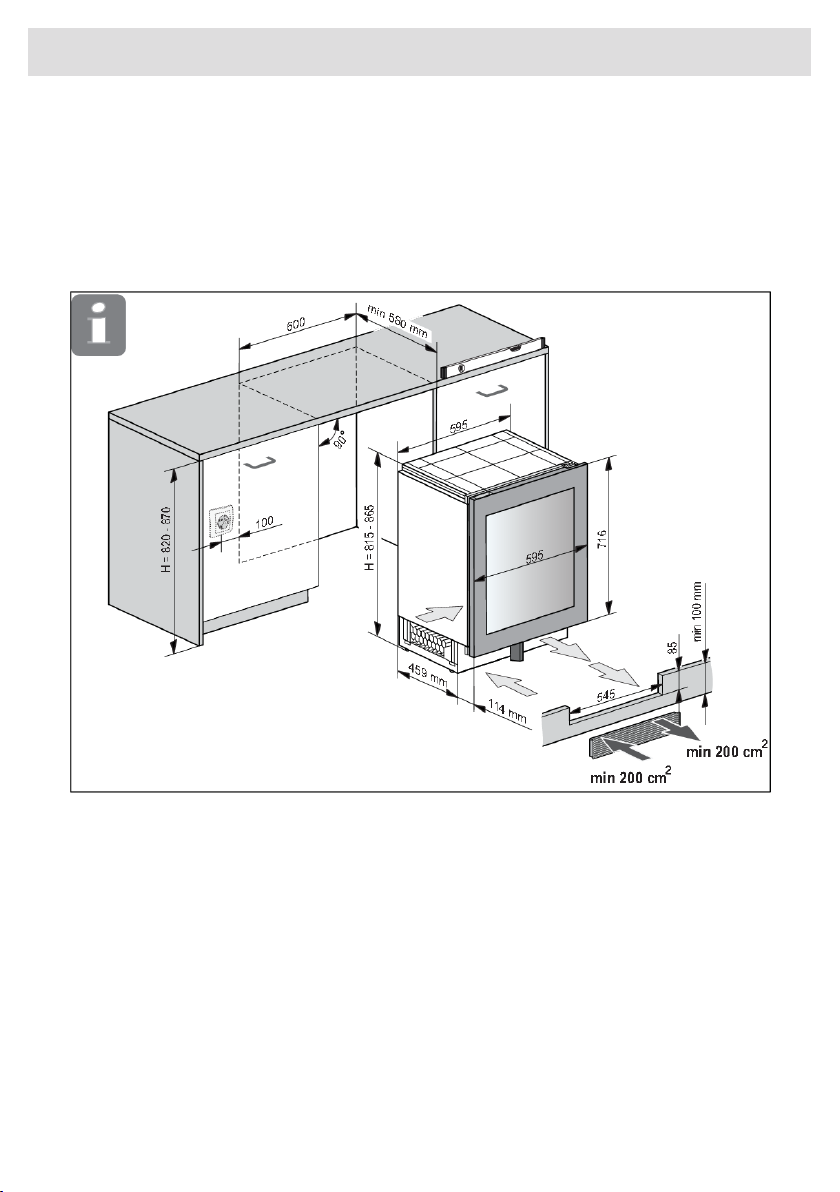

Installation and connection

•Place the appliance at least 50 mm away from an electric or gas stove, and at least 300 mm

away from a heat source (e.g. a radiator or a heater). If such clearance is not possible, then

install an insulation panel.

•Do not expose the appliance to direct sunlight.

•At the base of the kitchen unit intended for building in the integrated appliance, there should be

at least 400 cm2free space, for adequate air circulation. Ventilation openings must not be covered

in any case!

Installation and connection

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Atag Refrigeratore per vino

Atag

Atag KF8178WDL/A01 Manuale utente

Manuali Refrigeratore per vino popolari di altre marche

U-Line

U-Line Echelon Wine Captain 2075WC Manuale del proprietario

Haier

Haier WS50GA Manuale utente

Cavist

Cavist 62 Manuale utente

Kenmore

Kenmore 461.99130 Manuale utente

Miele

Miele KWT 6422 iG Manuale utente

Danby

Danby DWC113BLSDB Manuale utente

Caple

Caple Wi6128 Manuale utente

Avanti

Avanti WC1001 Manuale utente

Frigidaire

Frigidaire FFWC38F6LS Manuale utente

Titan

Titan TT-W2454SZ Manuale di installazione

Klarstein

Klarstein Botella 166 Uno Manuale utente

Costway

Costway FP10130WL Manuale utente

Lemair

Lemair LWC59 Manuale utente

Haier

Haier JC-125GEA Manuale utente

Caple

Caple WCi46B Manuale utente

Climadiff

Climadiff CLI24 Guida rapida

Viking

Viking VCWB301LSS Manuale utente

Caple

Caple WC6511 Manuale utente
