Installation and operating manual
Sun Ray RF
Control Pack
Installation Instructions
Type 1: Gateway
Type 2: Power Monitor
E1400276 · 20190311v03
by
Index
Introduction.......................................... 3
Preliminary considerations ........................ 4
Tevolve System Elements .......................... 5
Installation instructions............................ 6
Gateway ..................................................................... 6
Power Monitor.............................................................. 7
Registering the Gateway in the web portal .......................... 9
Pairing ..................................................................... 10
Technical characteristics .........................13
Gateway ................................................................... 13
Power Monitor............................................................ 13
3
Introduction
Congratulations on acquiring the ATC SunRay RF
Control Pack. With it you will be able to control
and program the temperature of your home and
know your total electricity consumption at any
time. Also, you will be able to carry out all these
functions from anywhere and consult statistics
and reports on your consumption, in terms of both
electricity and heating.
Introduction
4
Preliminary considerations

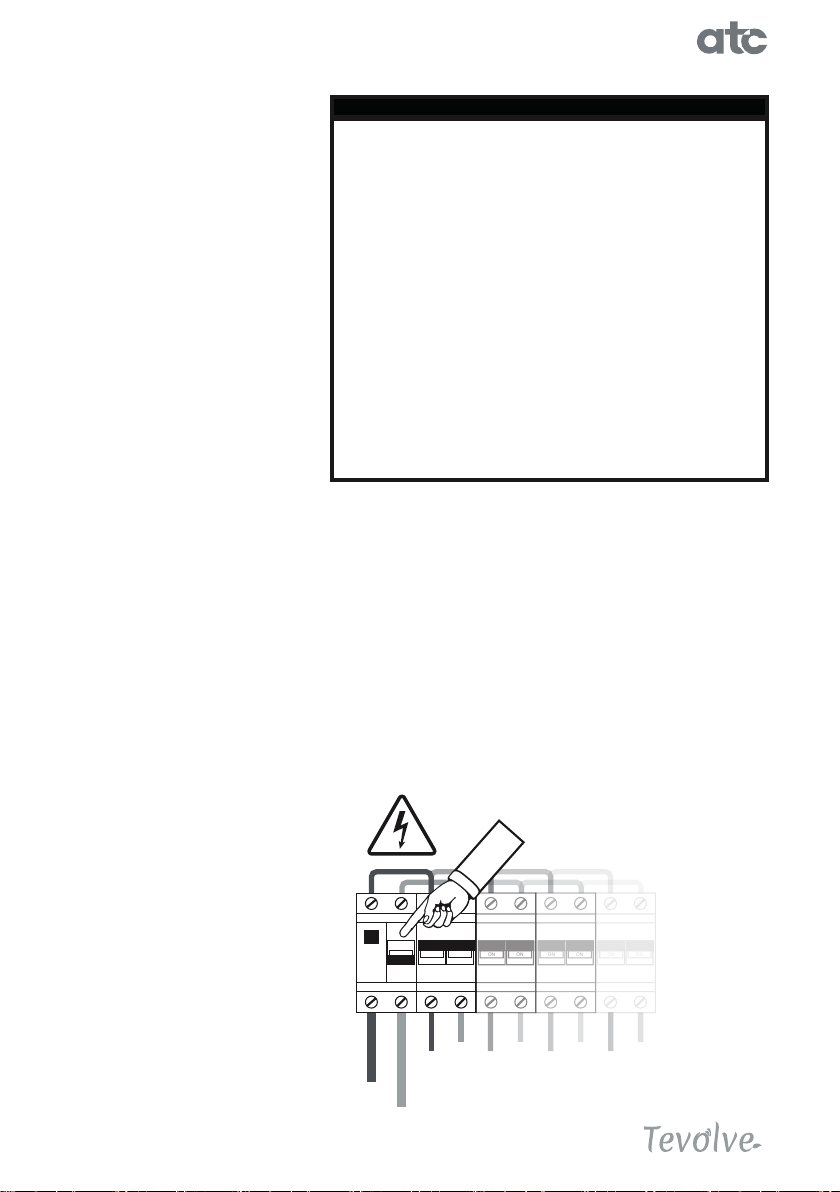

Disconnect the mains power in your home
before installing the electrical Power Meter.
It must be possible to isolate the electric
power supply circuit of the electric Power Monitor
by a 2 pole switch where the distance between
contacts must be a minimum of 3mm.
These instructions have been written as a
guide for most of the existing home installations. If
you have a non-standard electrical installation, or
if you are not sure about installing some of these
elements, please consult an electrician.
Preliminary considerations
This warning safety symbol means
PAY ATTENTION!
5
Elements of the Tevolve
SunRay RF Control Pack.

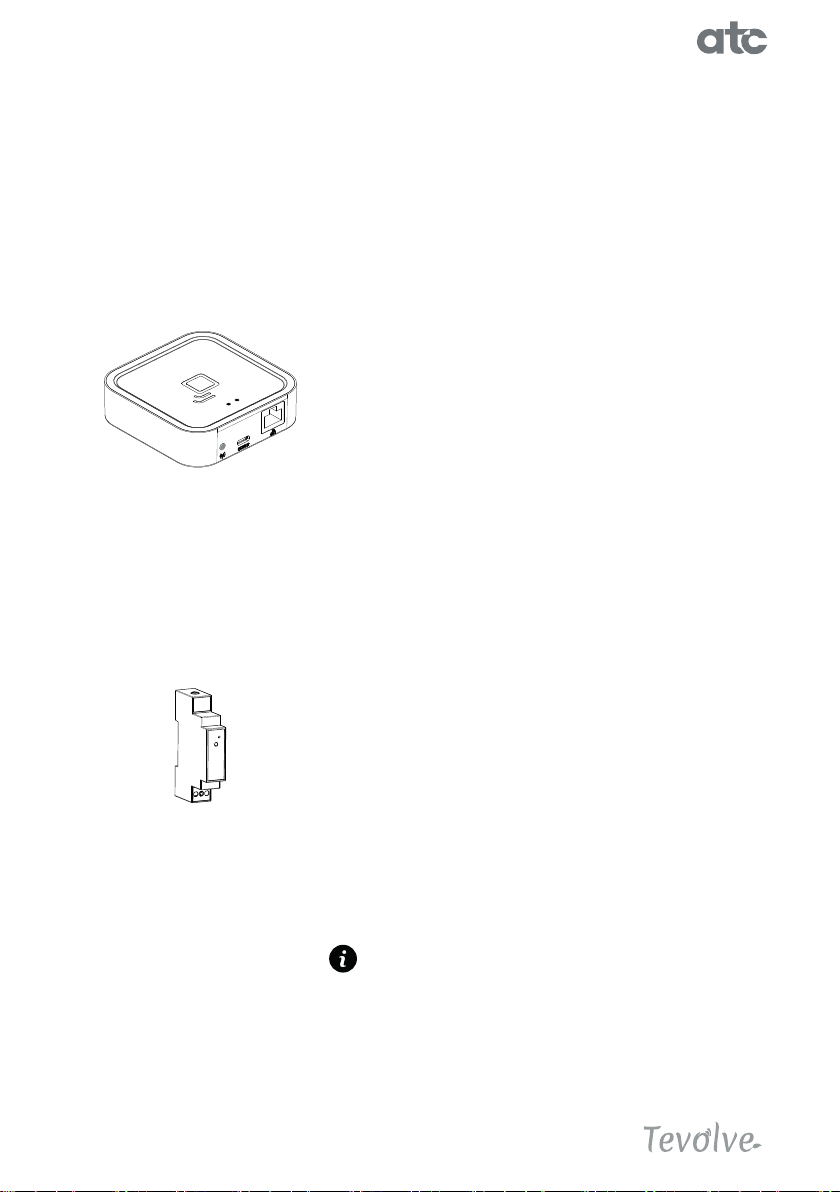

Tevolve Gateway: The centre of your Tevolve
System, links your devices wirelessly and connects
to the Internet via your router. This allows you to
control your devices from anywhere in the world
via the web portal or our mobile apps.
Google Playstore: search Tevolve
Apple Appstore: search Tevolve
Power Monitor: Measures the electricity
consumption in your home. It helps you see how
and when you are using electricity, so that you can
control your consumption level. Sold Separately,
Requires the Sun Ray RF Gateway to function.
SunRay RF Control System is distributed in
different packs with some or all of the devices.
Follow the instructions for installing the elements
that you have acquired.
Tevolve System Elements
6
Installation instructions
Gateway
Connect the gateway to the router
using the Ethernet cable
1
Connect the USB cable
2
to the
Gateway and the power supply
supplied.
Wait two minutes and use the
Gateway LED lights to check that
it is communicating correctly with
the router.
It is preferable to register the
Gateway before installing it.
https://tevolve.termoweb.net
If it is registered after installation,
it may take a few minutes to be
accessible from the web page, if
you do not want to wait, disconnect
and connect the power supply to
the Gateway.
micro USB
ethernet
green
orange
The Gateway status is indicated via its LED lights:
Green off, orange ashing one second:
discovery status (device pairing).
Orange on, green ashing 0.2 seconds: the
router has not assigned an IP address to the
Gateway.
Orange on constantly, green ashing briey
every 5 seconds: the router has assigned an IP
address to the Gateway correctly, but there is no
communication with the server.
Orange on, alternating with green ashing
briey every 5 seconds: the Gateway has
connected to router correctly and has internet
connection.
Status of Gateway lights
Installation instructions
7
Power Monitor
Installation (Must be performed by an electrician)
Switch off the power supply to your control panel.
If you have various circuits, disconnect the
circuit breaker where you are going to make the
connection.
•To operate correctly the Gateway needs an Internet
connection via a broadband router. The equipment can
operate with broadband networks, cables and others, and in
most cases, no set up in the router is necessary.
•If there are any connection problems or if operating in
a corporate network, check with an IT technician that the
following requirements are met. As a general rule it is not
necessary to modify these parameters in a domestic router:
»The DHCP server in the router must be activated.
»There must be a direct Internet connection, without
passing through a proxy.
»The output ports must be open:
˃123 UDP
˃5000 TCP
Requirements for correct operation
Installation instructions
TEST
OFF
ON ON
ON ON
ON ON
ON ON
8
Connect the power supply cable to the terminals
Land Nof the Power Monitor. Remember to
disconnect the power supply from the circuit
breaker where the Power Monitor will be
connected.
Place the Power Monitor in the DIN rail on your
control panel where there is available space.
1
Connect the other two ends of the cable to the
output of a circuit breaker switch, preferably a
lighting type, minimum 5A/230V,
2
The said
circuit breaker must be arranged so that it is easy
to access and it must be marked so that it can
be recognised as the equipment disconnection
device.
Connect the jack connector of the Power Monitor
measurement clamp to the connector on the top of
the Power Monitor.
3
Open the clamp as indicated below and place it
around the main power supply cable from the
main safety switch on the control panel.
4
Installation instructions
L N
TESTTEST
Power
Monitor
Link
short press
LED status
OFF · not linked
Blink 3s.· Linked
Blink 0.5s.· Lost
L N
3
1
2
4
9
Registering the Gateway in the
web portal
Once all the system components you have are
installed, access the web portal at the following
url: https://tevolve.termoweb.net and select
create a new account.
Fillintheeldsindicatedintheform:
User: enter your e-mail address.
Password: enter a password for accessing the
systemandconrmitinthefollowingeld.
Serial No.: this appears at the bottom of
the Gateway and on the packaging, and contains
4 digits.
Once the data registration is complete, press
REGISTER. In a few minutes you will receive an
e-mail conrming the account. If this does not
occur, check your SPAM folder and conrm the
link supplied.
Access to the web/app with your validated
username / password.
Follow instructions on the web/app to register
gateway(home). Be sure your phone/tablet/
computer is connected to same gateway
network.
Device No.: this also appears on the
packaging and at the bottom of the Gateway and
contains 18 alphanumeric characters.
Location: this will help us determine the
equipment time, time zone and location for
weather forecasts.
Installation instructions
10
Pairing
Gateway
Once the Gateway is
connected to the Internet and
registered in the web portal,
the devices must be paired to
it. To do this, put the Gateway
in discovery status press the
Link button for 3 seconds.
3
.
TheorangeLEDstartstoash.
Once the pairing button has been pressed, you
have one minute to add a device: for each new
device, the time available increases.
Power Meter
To pair the Power Meter, press with a clip
(supplied) on the small push button on the top of
the Power Meter. Look at the Power Meter LED
to check that it is paired.
• Not paired: LED off
• Paired correctly: the LED ashes once every two and a half
seconds.
• Paired but lost: theLEDashesonceeveryhalfasecond.This
happens when the Gateway is disconnected, for example. Once
communication with the Gateway is possible again, the Power
Meter will connect again automatically.
Status of the Power Meter LED
Installation instructions
orange
green
