D2SW/D3SW Series Quick Start Guide
1 / 9
D2SW/D3SW Series Quick Start Guide
Version：1.1
2022-11-9
D2SW/D3SW Series Quick Start Guide
2 / 9
Content
D2SW/D3SW Series Quick Start Guide ............................................................................................................................. 1
1. Packaging ........................................................................................................................................................................ 3
2. Installation ....................................................................................................................................................................... 3
3. Power up ......................................................................................................................................................................... 7
4. Network Connection ....................................................................................................................................................... 7
5. Phone Configuration ....................................................................................................................................................... 7
6. Call function .................................................................................................................................................................... 8
D2SW/D3SW Series Quick Start Guide
3 / 9
1. Packaging
In the packaging box, we can see one IP phone, one handset, one bracket, one network cable,
one handset cable, and one 5V,0.6A power adapter.
2. Installation
2.1. Connecting port introduction

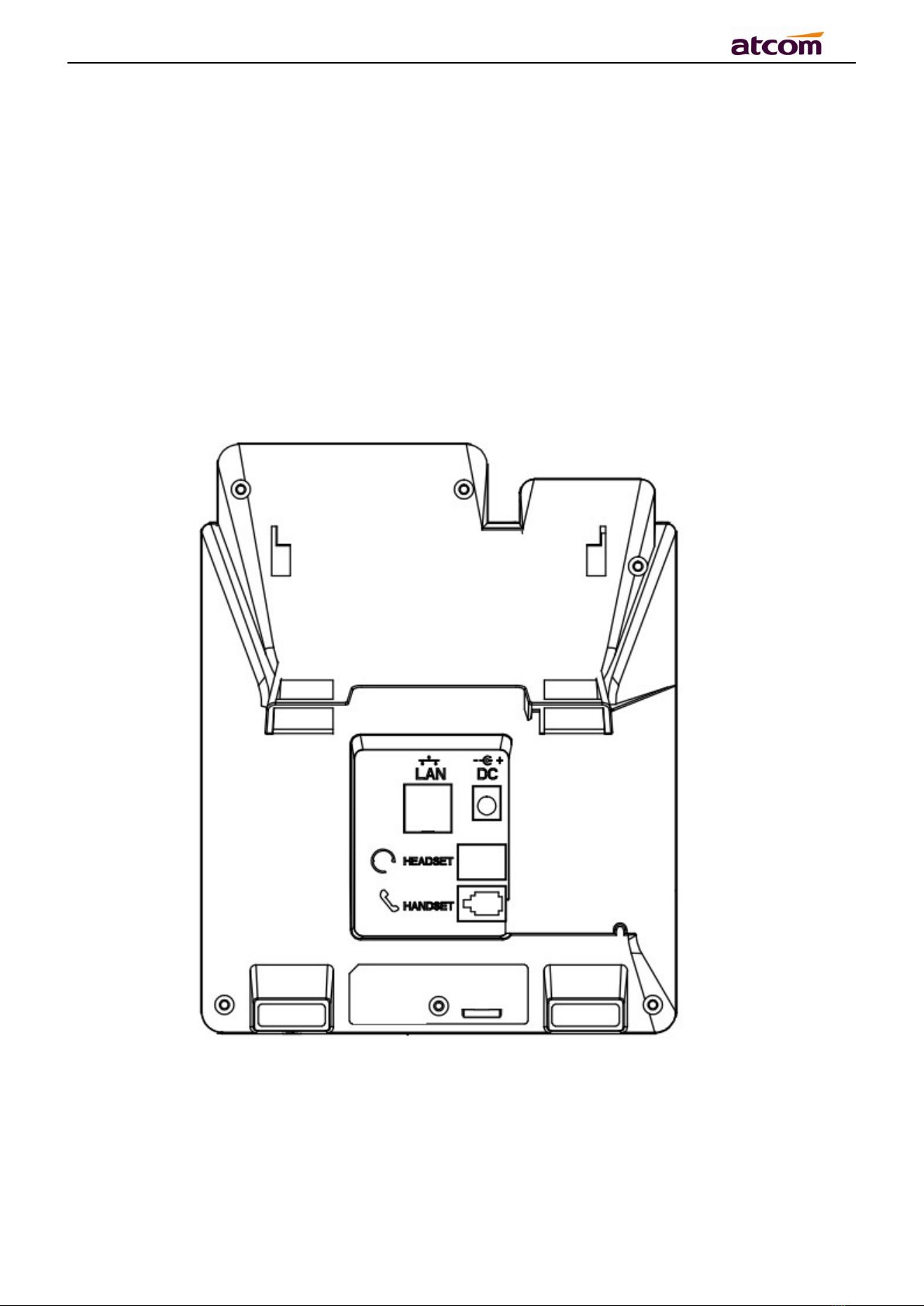

From as below picture show the connecting port
2.2. Keypad introduction,
Please check the following picture of D2SW:
D2SW/D3SW Series Quick Start Guide
4 / 9
Please check the following picture of D3SW:
D2SW/D3SW Series Quick Start Guide
5 / 9
2.3 Installation instruction
A. Bottom up the IP phone, press the joints of stand bracket into the slots and push it to
the right to fasten:
D2SW/D3SW Series Quick Start Guide
6 / 9
B. After installation, the picture is as below:
C. Remove the stand bracket:
Push the joint of stand to left and pull the stand according to the direction of the arrow.
When the joints are pulled out of the slot, you can take off the stand bracket
D2SW/D3SW Series Quick Start Guide
7 / 9
3. Power up
3.1. Connect to DC 5V/0.6A power adapter
3.2. The status indicator will be on during power-on, and the Welcome dialog will appear on
the LCD.
3.3. After boot up finished, User can select the Language time zone manually and Wi-Fi.
4. Network Connection
4.1. Connect to LAN network
The phone from the LAN port to get the network
4.2. Connect to Wi-Fi network
Wi-Fi network card mode
Please press Menu→Wi-Fi Settings, select the Wi-Fi SSID and input the password, then
press the Connect button, the phone would connect the Wi-Fi and the LCD would show
the icon
4.3. Network Instruction
The phone enabled the Wi-Fi in default:
1) After plug into the network cable, the Wi-Fi will disable by automatically. (Noted: if
need use the Wi-Fi, please enable the Wi-Fi setting in manual)
2) Then the phone plug off the network cable, the Wi-Fi will connected by automatically
5. Phone Configuration
5.1. Configuration via WEB
5.1.1 Access the phone WEB via LAN port or Wi-Fi
D2SW/D3SW Series Quick Start Guide
8 / 9
After the computer obtains the network through the LAN port or Wi-Fi hotspot, then
press the status (√) button → press the navigation down button to view the
current IP address, enter the IP address in the browser to access the Web.
5.1.2 In the web interface, enter the default user name and password to login
User Name Password Description
admin admin For Administrators
user user For General Users
5.2. Configuration via LCD
On the phone LCD status, press the Menu button, enter the Main Menu mode to
configure the phone feature.
6. Call function
Register a SIP account through the Web or LCD. After the registration is successful, you
can use the SIP account to make SIP calls.
6.3.1. WEB configuration
Refer to Section 5.1 above to access the phone web, click the Account→Basics, and
then configure phone accounts
6.3.2. LCD configuration
D2SW/D3SW Series Quick Start Guide
9 / 9
Press Menu →Settings →Advanced Settings (default password is admin) →
Account, then input the phone account information
