ATEN CE-110 Manuale utente

User Manual

CE-110 / CE-120

Read this guide thoroughly and follow the installation and

operation procedures carefully in order to prevent any damage to

the units and/or any devices that connect to them.

This package contains:

1 CE-110 or CE-120 Console Extender

1 Power Adapter

1 User Manual

If anything is damaged or missing, contact your dealer.

Manual Part No. PAPE-1086-100

Printing Date: 11/2006

ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. Allrights

reserved. All other trademarks are the property of their respective owners.

ce110120.fm Page -1 Thursday, November 9, 2006 10:20 AM

Warning!!! This equipment generates, uses and can

radiate radio frequency energy, and if not installed and

used in accordance with the instruction manual, may

cause interference to radio communications. It has been

tested and found to comply with the limits for a Class A

computing device, pursuant to Subpart J of Part 15 of the

FCC Rules, which are designed to provide reasonable

protection against such interference when operated in a

commercialenvironment.Operationofthisequipmentina

residential area is likely to cause interference in which

case the user at his own expense will be required to take

whatever measures may be required to correct the

interference.

This product is RoHS compliant.

ce110120.fm Page 0 Thursday, November 9, 2006 10:20 AM

- 1 -

Overview

Console extenders allow users to increase the distance between

the computer’s system box and the user’s console (keyboard,

monitor, and mouse). It is perfect for any type of installation

where the console needs to be in a conveniently accessible

location, but you want the system equipment to reside in a safe

place - away from dust, dirt, and harsh environmental influences.

The CE-110 and CE-120 are fundamentally similar - except that

the CE-110 is for use with PC/AT type computers, whereas the

CE-120 is for use with PS/2 type computers.

Features

Supports SVGA, VGA, and Multisync monitors

Automatic power saving mode turns off the console when the

computer is off

Transmission distance of up to 80m (262ft)

CE-110 for PC/AT computers

CE-120 for PS/2 computer

ce110120.fm Page 1 Thursday, November 9, 2006 10:20 AM

- 2 -

Cables

Although it is possible to use standard KVM cables to link

computers to the console extender, for optimum signal integrity

and to simplify the layout, we strongly recommend that you use

high quality CS Custom3-in-1 KVM Cables. To purchase cables,

contact your dealer.

CE-110 Cables

1. To computer ports:1.8m (6ft)SL-1001A

2. To console:10m (33ft)SL-1010A20m (66ft)SL-1020A

CE-120 Cables

1.To computer ports:1.8m (6ft)SL-1001P

2.To console:10m (33ft)SL-1010P20m (66ft)SL-1020P

Connection Diagram

Remote

CE-110

CE-120

6'262'

80 m 1.8 m

ce110120.fm Page 2 Thursday, November 9, 2006 10:20 AM

- 3 -

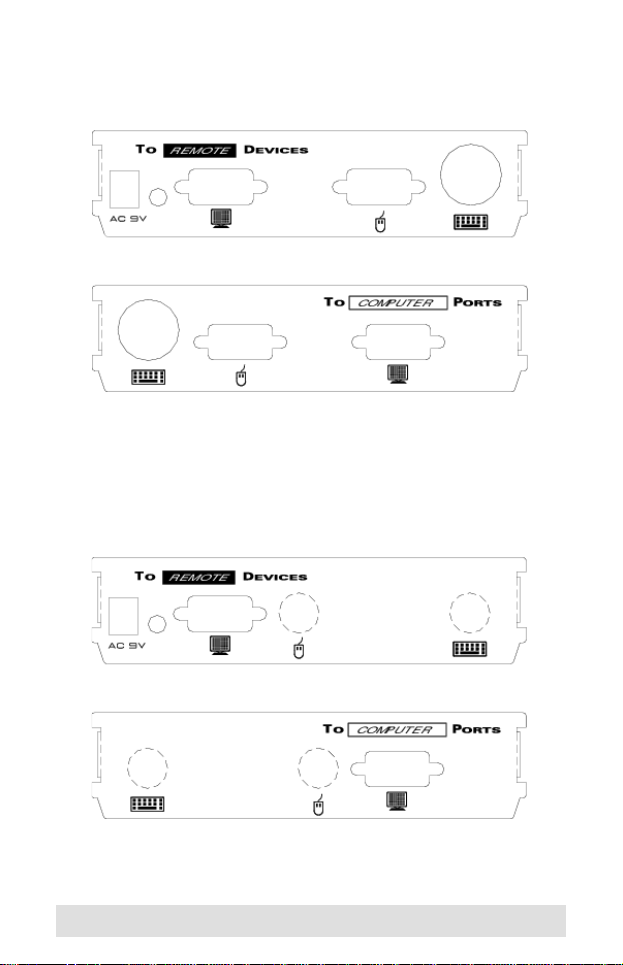

CE110 (for PC/AT)

Front and Rear Panels

CE120 (for PS/2)

Front and Rear Panels

ce110120.fm Page 3 Thursday, November 9, 2006 10:20 AM

- 4 -

Installation

The CE-110 and CE-120 have identical installation procedures.

Therefore, the steps described below apply to both of them.

Setting up the Console Extender is simply a matter of plugging in

the cables:

1. Make sure that all the equipment to be connected up is pow-

ered Off.

2. Plug the cables from the console devices (mouse, keyboard,

monitor), into their ports on the Remote Devices side of the

Console Extender. Each port and connector is marked with

an appropriate icon to indicate which it is.

3. Plug the appropriate connectors on one end of the KVM cable

(see Cables on p. 2 for details) into the Computer Ports side

of the Console Extender. Each port and connector is marked

with an appropriate icon to indicate which it is.

Note: The female monitor connector is the one that plugs into

the Console Extender.

4. Plug the connectors on the other end of the cable into the

appropriate ports on the computer system. Each connector is

marked with an appropriate icon to indicate which it is.

5. Plug the power adapter (supplied with this package) into an

AC source; plug the adapter’s power cable into the Console

Extender’s AC 9V Power Jack.

6. Turn on the power to your equipment.

This completes the installation.

ce110120.fm Page 4 Thursday, November 9, 2006 10:20 AM

- 5 -

Specifications

Troubleshooting

Function CE-110 CE-120

Computer Type PC/AT PS/2

Connectors Keyboard 1 x 5-pin DIN 1 x 6-pin Mini-DIN

Monitor 1 x HD-15

Mouse 1 x 9-pin D 1 x 6-pin Mini-DIN

LEDs 1 x Power

Power Consumption AC 9 V; 300 mA (max.)

Cable Length 1.8 m to computer

80 m to KVM console

Physical

Properties Housing Metal

Weight 0.27 kg

Dimensions (L x W x H) 13.7 x 10.3 x 3.4 cm

Problem Action

No video Make sure that all cables are securely plugged

into their sockets.

Poor video quality. The video quality can be improved by reducing

the refresh rate.

ce110120.fm Page 5 Thursday, November 9, 2006 10:20 AM

- 6 -

Limited Warranty

IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE

PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE

OF THE PRODUCT, DISK OR ITS DOCUMENTATION.

The direct vendor makes no warranty or representation, expressed, implied, or

statutory with respect to the contents or use of this documentation, and specially

disclaims its quality, performance, merchantability, or fitness for any particular

purpose.

The direct vendor also reserves the right to revise or update the device or

documentation without obligation to notify any individual or entity of such revisions,

or update. For further inquires please contact your direct vendor.
