IC164 Non-Powered / High Speed Parallel Data Extender
Installation Guide
MISC10000023 04/2021 V1.0
Package Contents
Qty
Description
1
IC164 Non-Powered / High Speed Parallel Data Extender
1
RJ-11 4-wire telephone cable
1
user instructions

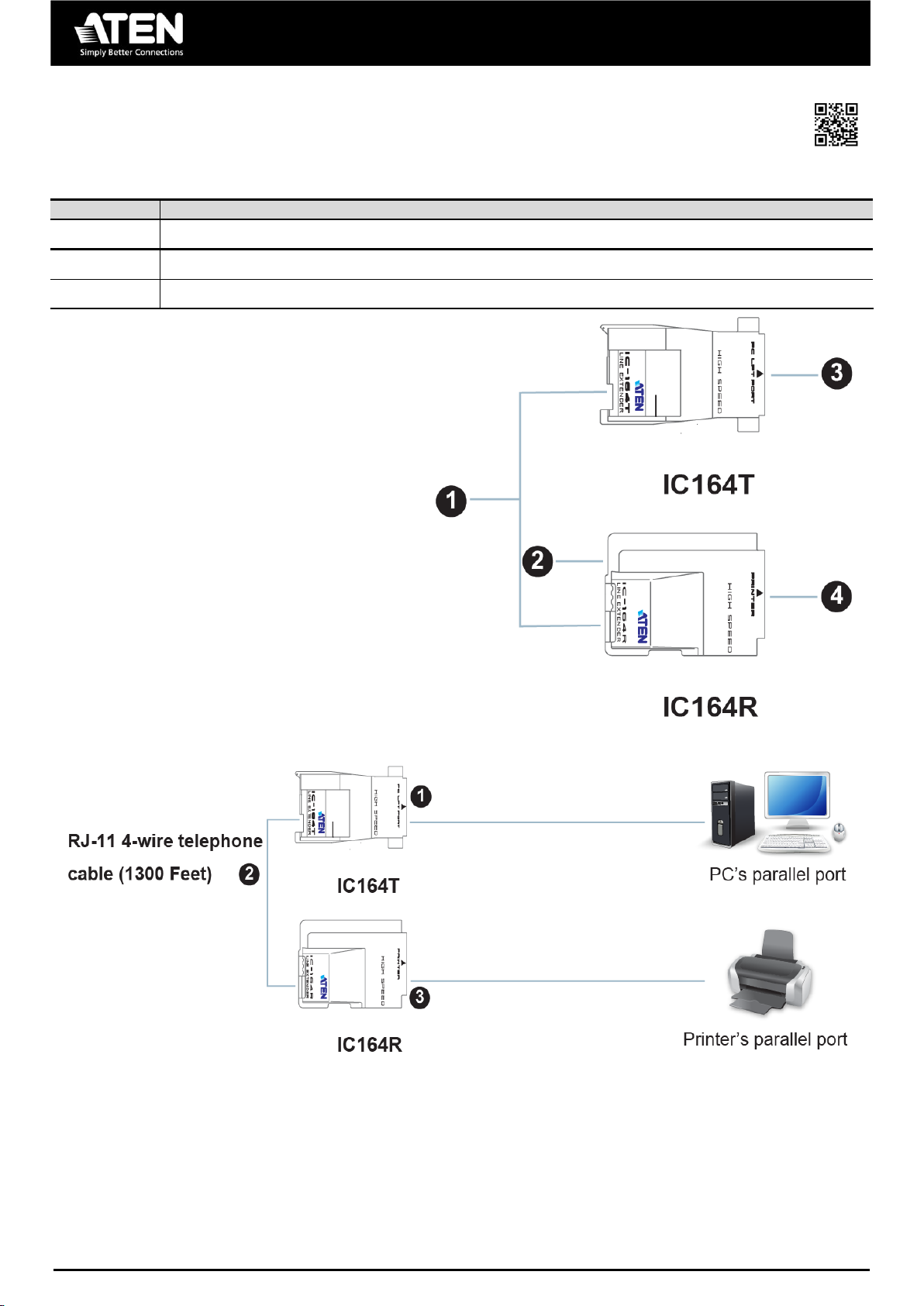

Hardware Overview
1. RJ-11 port
2. power jack
3. DB-25 male connector (PC)
4. Centronics 36-pin male connector (printer)
Installation
1. Connect the IC164T’s DB-25 male connector to the PC’s parallel port.
2. Connect one end of the RJ-11 4-wire telephone cable to the RJ-11 port of the IC164T, and then connect the other
end to the RJ-11 port of the IC164R.
3. Connect the IC164R’s Centronics 36-pin male connector to the printer’s parallel port.
4. Power on the printer and PC, and the IC164T and IC164R are now ready to use.
All information, documentation and specifications contained in this media are subject to change without prior notice by the manufacturer.
Please visit our website to find the most up-to-date version.
Troubleshooting
Problem
Resolution
Failure of data transmission
1. Make sure the RJ-11 4-wire telephone cable is firmly connected to the IC164T
and IC164R.
2. Make sure the printer is powered on and ready to use.
3. The IC164 only extends data transmission from PC to printer. Make sure the
interface of PC and printer are compatible, and use appropriate adapters for
interface conversion if required.
4. The IC164 devices may not have sufficient power supply. Plug a power adapter
of 9V DC, 50mA (min) with positive polarity to the power jack on
the IC164R.
Note: The power adapter is not provided in the package.
5. The problem may be caused by an improper printer reset. Please reset the
IC164R by re-plugging the IC164R from the printer and RJ-11 4-wire telephone
cable from the IC164R.
