Package Contents
The VM0404H 4x4 HDMI Matrix Switch package contains the
following items:
1 VM0404H 4x4 HDMI Matrix Switch
1 IR Remote Control Unit
1 Power Adapter
1 Rack Mount Kit
1 User Manual*
1 Quick Start Guide
Check to make sure that all the components are present and that
nothing got damaged in shipping. If you encounter a problem,
contact your dealer.
Read this manual thoroughly and follow the installation and
operation procedures carefully to prevent any damage to the unit,
and/or any of the devices connected to it.
*Features may have been added to the VM0404H since this
manual was printed. Please visit our website to download the
most up-to-date version of the manual.
Copyright © 2009–2010 ATEN® International Co., Ltd.
Manual Part No. PAPE-1340-AT1G
Manual Date: 2010-06-10
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights
reserved. All other trademarks are the property of their respective owners.
- 5 -
Overview
With more and more HDMI devices entering the market, the need
for simultaneous access to different HDMI sources is becoming
increasingly important. Now, the VM0404H 4x4 HDMI Matrix
Switch offers an easy and affordable way to add extra HDMI
capabilities to your installation by allowing you to switch easily
between four HDMI sources and four HDMI displays.
The VM0404H is a 4x4 HDMI Matrix Switch that provides a
convenient way to route high definition video and audio from any
of four HDMI sources to any of four HDMI displays. The
VM0404H allows you to connect four HDMI devices (such as an
HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray
player, home theater PC, stand-alone streaming media player,
gaming console, etc.) to four HDMI monitors, displays, projectors
or TVs at the same time. The remote control and convenient front
panel pushbuttons allow you to quickly and easily cycle through
HDMI sources and displays, while the front panel LEDs indicate
the source device for each display at a glance.
Furthermore, for complete system and install integration, RS-232
control is standard through the VM0404H’s built-in bi-directional
RS-232 serial remote port that allows the switch to be controlled
through a high-end controller, PC, and/or home automation /
home theater software package.
- 6 -
Features
Connects any of four HDMI sources to any of four HDMI
displays
Switch between HDMI sources and displays using remote
control or front panel pushbuttons
Cascade via other VM0404Hs to provide up to 64 HDMI
sources/displays for digital signage systems
Supports high-resolution video – HDTV resolutions of 480p,
720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA
(1600x1200), and WUXGA (1920 x 1200)
HDMI 1.3b and HDCP 1.1 compliant
HDMI CEC Compliant
Supports 12-bit Deep Color for HDMI formats
Supports Dolby True HD and DTS HD Master Audio
Up to 60 Hz refresh rate
Long-distance transmission – up to 20 m (24 AWG) and 15 m
(28 AWG)
Built-in bi-directional RS-232 serial remote port for high-end
system control
Power On Detection – if one HDMI source is powered off, the
VM0404H will automatically switch to the next powered-on
source.
DDC compatible
Signaling rates up to 2.25 Gbits in support of 1080p display.
All-metal casing
Easy and affordable way to add four HDMI inputs to your
multiscreen home theater systems
- 7 -
System Requirements
Source Devices
HDMI Type A output connector(s)
Note: A DVI/HDMI adapter is required when connecting a DVI
source device.
Display Devices
Display devices or receivers with an HDMI Type A input
connector
Cables
1 HDMI cable for each source device you will be connecting.
1 HDMI cable for each display device you will be connecting.
Note: 1. No cables are included in this package. We strongly
recommend that you purchase high-quality cables of
appropriate length since this will affect the quality of the
audio and video display. Contact your dealer to
purchase the correct cable sets.
2. If you wish to utilize the VM0404H’s high-end serial
controller function, you need to purchase an
appropriate RS-232 cable. See Installing the RS-232
Controller, page 11.
- 8 -
Components
VM0404H Front View
No. Component Function
1 Output Port Selection
Pushbuttons
Pressing a port selection pushbutton
cycles through the four HDMI input
sources (Source A, B, C, or D) to be
displayed on the display device
attached to the corresponding output
port (Display 1, 2, 3, or 4).
2 Input Port LEDs The LEDs (A, B, C, and D) light to
indicate that the HDMI source
attached to the corresponding input
port is routed to the display device
attached to the corresponding output
port .
3 IR Receiver This receives signals from the IR
remote control.
2 3
1234
AB
CD
AB
CD
AB
CD
AB
CD
1
- 9 -
VM0404H Rear View
No. Component Function
1 Power Jack The power adapter cable plugs in
here.
2 HDMI Out Ports The cables from your HDMI display
devices plug into these ports.
3 HDMI In Ports The cables from your HDMI source
devices plug into these ports.
4 RS-232 Serial Port This serial remote port is for input
source selection and high-end system
control.
HDMI IN RS-232
2
13 4
HDMI IN HDMI IN HDMI IN
HDMI OUT HDMI OUT HDMI OUT HDMI OUT
34 21 DA
CB
- 10 -

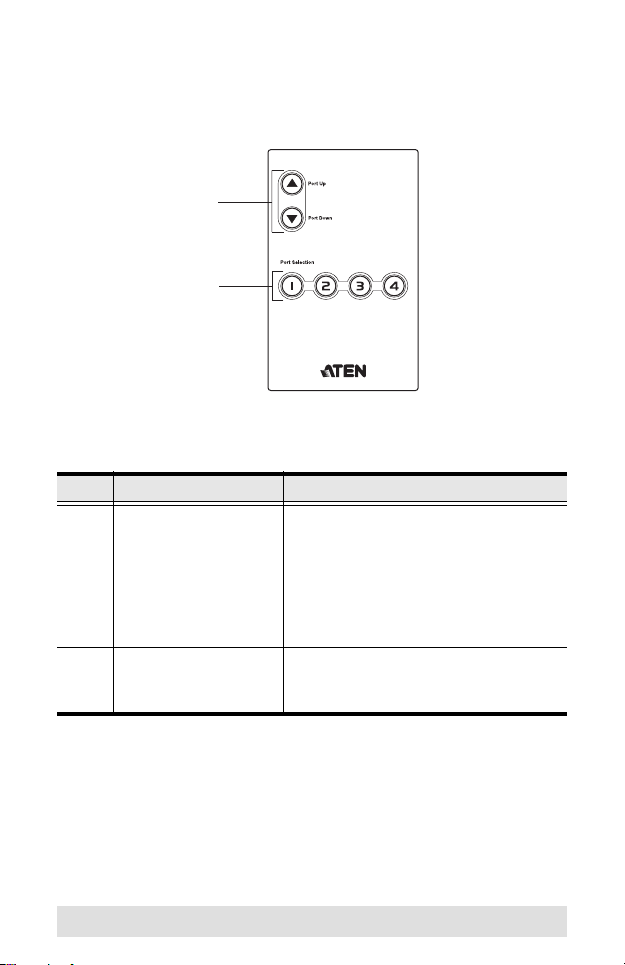

IR Remote Control
No. Component Function
1 Input Port Selection
Buttons
Press the Port Up button to cycle
forward through the HDMI source
devices (A to B; B to C; C to D; D to
A).
Press the Port Down button to cycle
backward through the HDMI source
devices (A to D; D to C; C to B; B to A)
2 Output Port Selection
Buttons
Press a button to bring the focus
directly to the display device attached
to its corresponding port.
1
2
