The “ePod”®
INSTALLATION MANUAL
(Application: 02’- 06’ Subaru WRX/Sti)
Welcome to the world of Auto-Tech Interiors, Inc. (ATI®), and congratulations on your
new purchase. At ATI, we make revolutionary and quality products based on extensive
research and development, dealer and customer feedback, the finest production processes,
and materials proven to work. The “ePod”is the first of its kind, a revolutionary design
featuring full rotational positioning for custom viewing angles and capable of housing
BOTH 52mm AND 60mm gauges.
To install this new product properly, please follow these instructions. Failure to follow
these instructions may result in injury or damage to the product and vehicle.
COMPONENTS
6 Items
(1) Instrument panel base replacement
(2) “ePod” gauge cups
(2) “ePod” 52mm/60mm conversion sleeves (Universal only)
(2) “ePod” 52mm OR 60mm insert sleeves
(1) Hex key
(1) Extra set of screws, nuts, and socket key
SPECIFICATIONS
Application
02’- 06’ Subaru WRX/Sti
Material
Injection molded ABS plastic with UV protection
Surface
Surface treated to match interior
Compatible gauges
52mm (Universal: 52mm AND/OR 60mm gauges)
ATI-25EJ2-EPOD-52/60
INSTALLATION

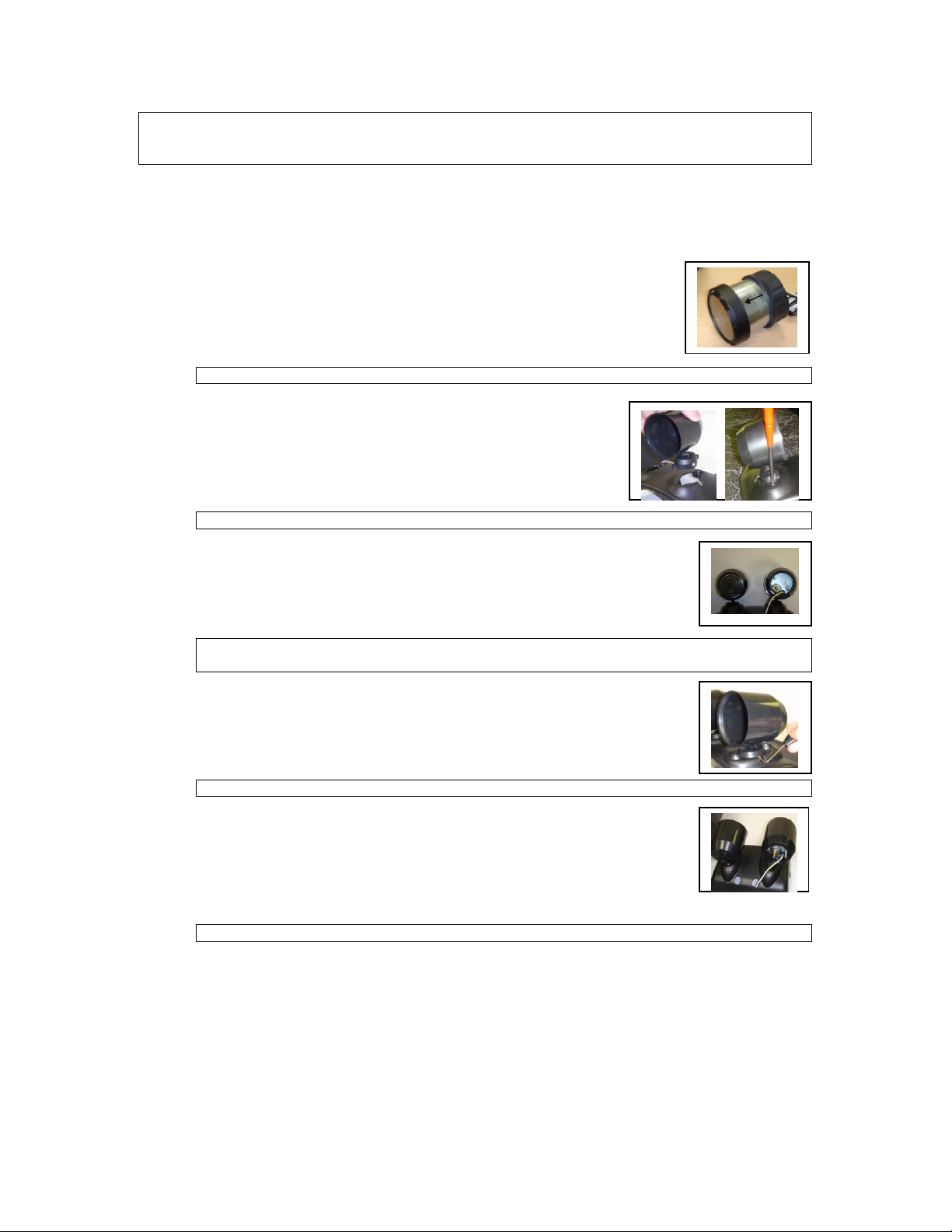

1. Remove the screws from the bottom steering column cover.
2. Pull the top steering column cover up and then pull forward to slide off.
3. The “ePod” comes with two pre-inserted sleeves in each cup
(four sleeves for the “Universal ePod”). Remove the 52mm
insert sleeve and slide it over the gauge cylinder. (If you have
the “Universal ePod” use the 60mm insert sleeve for 60mm
gauges or the 52/60mm conversion sleeve for 52mm gauges).
CAUTION!! –DO NOT INSERT THE GAUGES INTO THE CUPS AT THIS POINT
4. Install the two “ePod”cups. Place the cups on the base plate
and secure them (7mm socket key is included). Be sure the
cups are facing frontward so the company lettering is visible.
CAUTION!! –DO NOT OVER TIGHTEN THE SCREWS
5. Insert the gauges into the “ePod” assembly. The rear of the
cups is designed to allow proper clearance for lines/wires. Clip
the rear rings as needed.
CAUTION!! –USE SMALL PLIERS AND ALWAYS CLIP A SMALLER RING THAN REQUIRED.
INCREASE THE SIZE AS NEEDED
6. Use the hex key (provided) and secure in the desired position.
CAUTION!! –DO NOT OVER TIGHTEN THE HEX SCREW
7. Insert any cables or wires into Cable Management System on
the “ePod” base. These wires will go under the steering
column cover to keep them secure and from being scene.
8. Place the “ePod” on the steering column and secure with the original two screws.
CAUTION!! –DO NOT OVER TIGHTEN THE SCREW
9. If further adjustment is needed, loosen the hex screw and adjust the position of the gauges to your
desired position. Tighten to secure final position.
AUTO-TECH INTERIORS, INC. DOES NOT WARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS REGARDING THE USE, OR
THE RESULTS OF USE, OF THIS PRODUCT. NEITHER AUTO-TECH INTERIORS, INC. NOR ANYONE ELSE WHO HAS BEEN INVOLVED
IN THE CREATION, PRODUCTION OR DELIVERY OF THIS PRODUCT SHALL BE LIABLE FOR ANY DIRECT, INDIRECT,
CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE SUCH PRODUCT. WE RESERVE THE
RIGHT TO CHANGE THE CONTENTS, PRICE, PACKAGING, AND OTHER ASPECTS OF THIS PRODUCT WITHOUT PRIOR
NOTIFICATION.
