Getting Started...

• Installing Your ATI Graphics Accelerator Card

• Installing Enhanced Drivers for Windows® 95

and Windows® 98

• Installing Enhanced Drivers for Windows® NT

• Multiple Display Support in Windows® 98

• Troubleshooting Tips

• Using the Online Manual

ATI’s graphics accelerators are the most advanced on the market today. They

improve the performance of your system and display exceptional graphics.

Your ATI graphics accelerator comes complete with enhanced drivers and

comprehensive award-winning software utilities designed to make you more

productive. Please read this guide before attempting to install your card.

Preparing Your Computer

If you are using Windows®NT, you need to update your operating system to

Service Pack 3 (SP3) or later before installing your ATI graphics accelerator.

Additionally, if your current system configuration uses special drivers that are

not 640x480 VGA, you may encounter conflicts with the card. We recommend

that you first reconfigure your operating system to use a VGA driver supplied

with your operating system before installing the card. For more information

about changing your operating system configuration, see your operating system

documentation.

Turn off the power to your system and discharge your body’s static

electric charge by touching a grounded surface—for example, the metal

surface of the power supply—before performing any hardware procedure.

The manufacturer assumes no liability for any damage, caused directly or

indirectly, by improper installation of any components by unauthorized

service personnel. If you do not feel comfortable performing the

installation, consult a qualified computer technician.

Damage to system components, the accelerator card, and injury to

yourself may result if power is applied during installation.

E FIRST

RAGE™ 128 Version 2.0

Getting Started... 2

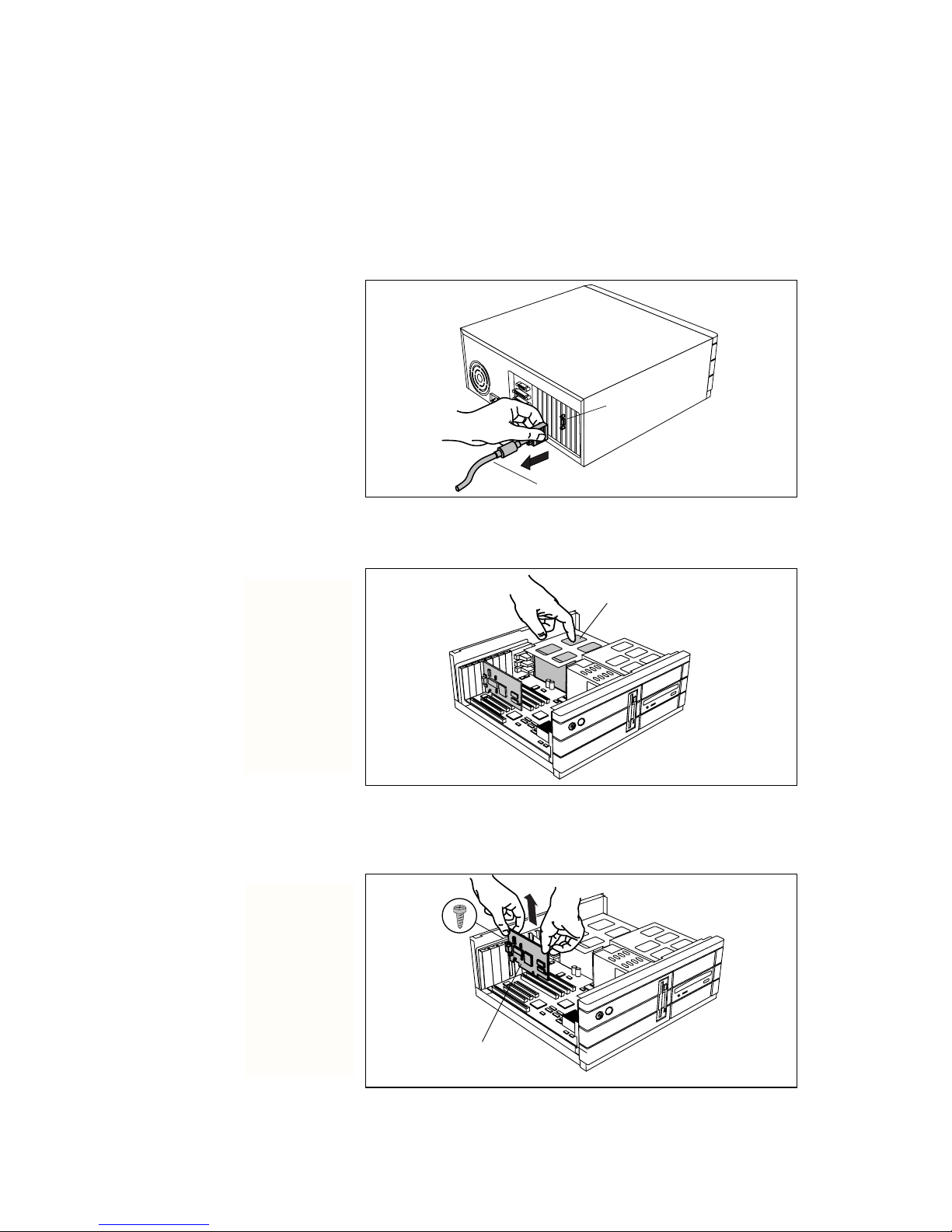

Installing Your ATI Graphics Accelerator Card

Now that you have prepared your computer, you are ready to install your

graphics accelerator card.

To install your graphics accelerator card

Power off the computer and monitor, then disconnect the display

cable from the back of your computer.

Remove the computer cover. If necessary, consult your computer’s

manual for help in removing the cover.

If you intend to run multiple displays with Windows®98 (see page 6),

then proceed to step 4. Otherwise, remove any existing graphics card

from your computer.

Or, if your computer has any on-board graphics capability, you may need to

disable it on the motherboard. For more information, see your computer

documentation.

DISPLAY CABLE

VIDEO OUTPUT

CONNECTOR

POWER SUPPLY

Remember to

discharge your

body’s static

electricity by

touching the

metal surface

of the

computer

chassis.

SCREW

EXISTING GRAPHICS CARD

If the old

graphics card

sticks, rock it

gently from

end to end.

Remember to

save the

screw.

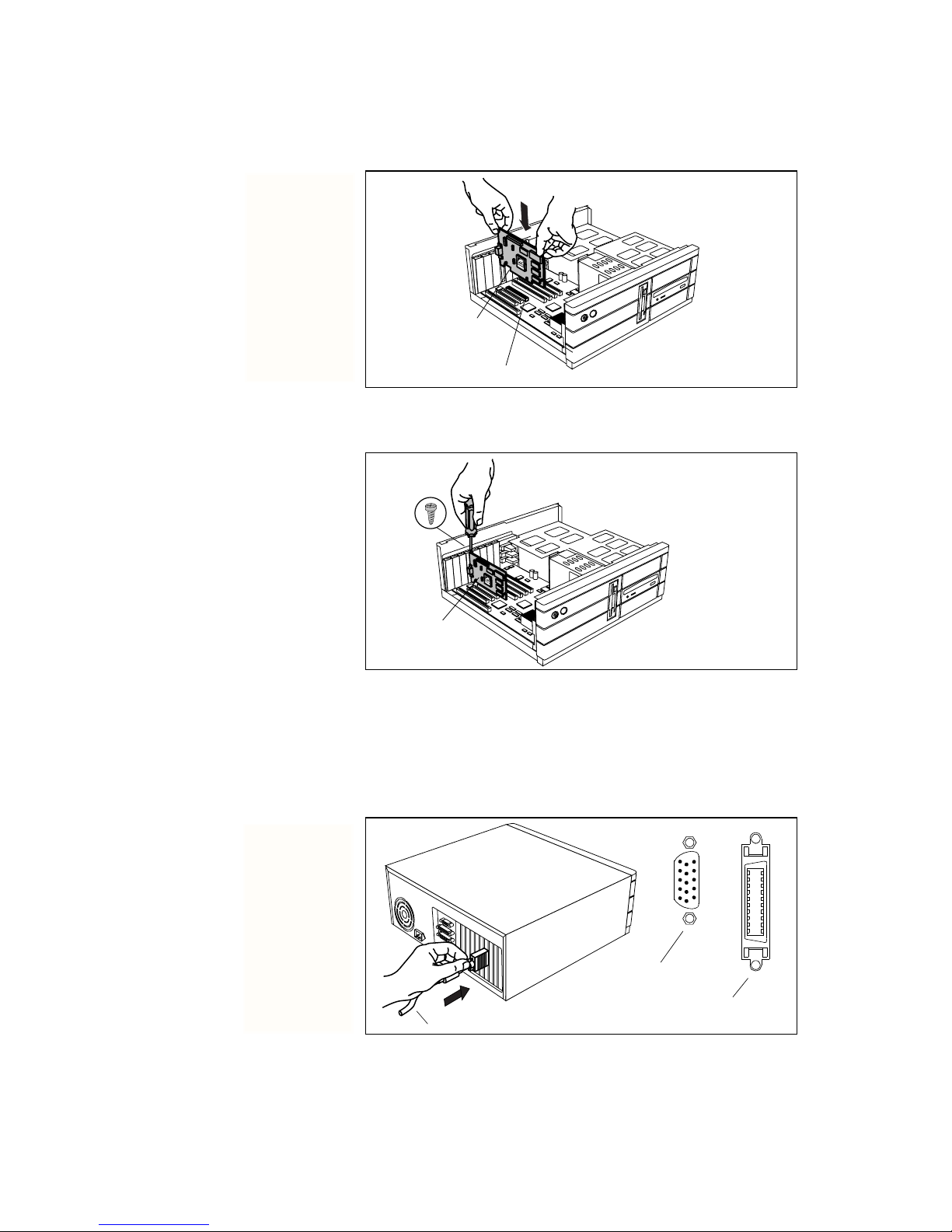

Getting Started... 3

If necessary, remove the metal cover from the empty expansion slot that

you select (PCI card use a PCI slot; AGP cards use an AGP slot); then

align your new card with the expansion slot, and press it in firmly

until the card is fully seated.

Replace the screw to fasten the card in place, and replace the

computer cover.

Plug the display cable into your card; then turn on the computer and

display device. For cards with a Digital Flat Panel (DFP) connector,

connect your monitor or flat panel display (or both) to the appropriate

connector, as shown. Next, reboot your system.

You are now ready to proceed with the installation of ATI’s enhanced drivers.

For detailed instructions, select your operating system from the list below:

•Windows

®95/98, see Windows® “New Hardware Found” on page 4.

•Windows

®NT, see page 6.

ATI3DGRAPHICSCARD

CORRESPONDING EXPANSION SLOT

(PCI OR AGP)

Grasp the new

card by the top

edge and

carefully seatit

into the

appropriate

expansion slot

(PCI or AGP).

Ensure that

the metal

contacts are

completely

pushed into

the slot.

SCREW

ATI 3D

GRAPHICS CARD

DISPLAY CABLE

Make sure all

cables are

securely

connected.

TOVGA MONITOR

(ALL GRAPHICS CARDS)

TO FLAT PANEL DISPLAY

(DFP-READY CARDS ONLY)

Getting Started... 4

Windows®“New Hardware Found”

If you are running Windows® 95 or Windows®98, new hardware may be detected

after you restart your computer. Follow the step-by-step instructions below to

allow Windows®to correctly identify your new hardware.

To identify new hardware in Windows®95

1Windows®95 briefly displays the “New Hardware Found” dialog before

launching the “Update Device Driver Wizard”.

If the wizard does not appear, proceed directly to Installing Enhanced Drivers

for Windows® 95 and Windows® 98 on page 5.

2Click Next.

3Click Finish.

4Insert your Windows®95 CD-ROM into your CD-ROM drive.

5Click OK.

6Type the following:

D:\WIN95

(If Dis not your CD-ROM drive, substitute Dwith the correct drive letter.)

7Click OK.

8Click Yes to restart your computer.

You are now ready to install your ATI enhanced drivers. Proceed to Installing

Enhanced Drivers for Windows® 95 and Windows® 98 on page 5, and

follow the step-by-step instructions to complete the installation.

To identify new hardware in Windows®98

After restarting your system, Windows®98 will briefly display the “New

Hardware Found” dialog. Depending on your new hardware, you will either be

prompted to insert your Windows®98 CD-ROM or Windows®98 will launch

the “Add New Hardware Wizard”.

If Windows®98 automatically begins installing drivers for your new hardware,

click Yes to restart your computer when prompted; then proceed to Installing

Enhanced Drivers for Windows® 95 and Windows® 98 on page 5.

To identify new hardware using Windows®98 CD-ROM

1Insert your Windows®98 CD-ROM.

2Click OK.

3Type the following:

D:\WIN98

(If Dis not your CD-ROM drive, substitute D with the correct drive letter.)

4Click OK.

5Click Yes to restart your computer.

Getting Started... 5

You are now ready to install your ATI enhanced drivers. Proceed to Installing

Enhanced Drivers for Windows® 95 and Windows® 98 on page 5, and

follow the step-by-step instructions to complete the installation.

To identify new hardware using “Add New Hardware Wizard”

1Windows®98 launches the “Add New Hardware Wizard” which prompts you

to search for the Standard PCI Graphics Adapter (VGA).

2Click Next to continue.

3Select Search for the best driver for your device.

4Click Next to continue.

5Click Next to start the driver search.

6Click Next to install the Standard PCI Graphics Adapter (VGA).

7Click Finish.

8Click Yes to restart your computer.

You are now ready to install your ATI enhanced drivers. Proceed to Installing

Enhanced Drivers for Windows® 95 and Windows® 98 on page 5, and

follow the step-by-step instructions to complete the installation.

Installing Enhanced Drivers for Windows®95 and

Windows®98

With Windows®95 or Windows®98 running on your computer, you need to

install the enhanced ATI drivers to take advantage of your card’s higher

performance, resolutions, and special features.

To ensure that you install the latest drivers, install the ATI enhanced drivers

located on the CD-ROM shipped with your graphics accelerator card.

To install the ATI enhanced drivers for Windows®95 or

Windows®98

1Insert the ATI INSTALLATION CD-ROM into your CD-ROM drive.

If Windows®runs the CD-ROM automatically, proceed to step 6.

2Click Start.

3Select Run.

4Type the following:

D:\ATISETUP

(If Dis not your CD-ROM drive, substitute D with the correct drive letter.)

5Click OK.

6Click on ATI Easy Install to begin the Installation Wizard.

7Click Next.

8Click Yes.

Getting Started... 6

9Follow the Wizard’s on-screen instructions to complete the installation.

The Express installation option is recommended. If your ATI product includes a

multimedia component, the software for that component will automatically be

installed, along with the ATI enhanced drivers, by selecting this option.

Installing Enhanced Drivers for Windows®NT

Make sure that your operating system has been updated to Service Pack 3 (SP3)

or later before attempting to install your ATI graphics accelerator card. After

installing your card, Windows®NT will default to standard VGA mode (640 x

480, 16 colors).

To install the ATI enhanced drivers for Windows®NT 4.0

1Insert the ATI INSTALLATION CD-ROM into your CD-ROM drive.

If Windows®NT runs the CD-ROM automatically, proceed to step 6.

2Click Start.

3Select Run.

4Type the following:

D:\ATISETUP

(If Dis not your CD-ROM drive, substitute D with the correct drive letter.)

5Click OK.

6Click on ATI Easy Install to begin the Installation Wizard.

7Follow the Wizard’s on-screen instructions to complete the installation.

Multiple Display Support in Windows®98

IMPORTANT: Please read the Readme file on the ATI Installation CD-ROM

for the latest information regarding Multiple Display Support in Windows®98.

Windows®98 provides support for using more than one display device at a time

– you simply install a separate PCI or AGP graphics card for each additional

display you intend to use. With multiple displays, you can expand your desktop,

run different programs on separate displays, even play some newer games with

multiple views. And each display can have a different resolution and color

depth!

Note that, under Windows®98, one graphics card is automatically designated by

the system as the primary graphics card. Each additional graphics card is

designated by the system as a secondary graphics card. Certain 3D and

multimedia features are only available on the primary graphics card. The

primary graphics card is the one that displays the POST information during

startup. If you are installing more than one graphics card, you need to consider

the following:

Altri manuali per 3D XPRESSION

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ATI Technologies Scheda video

ATI Technologies

ATI Technologies 9000 - Radeon Pro Manuale utente

ATI Technologies

ATI Technologies X1900 - Radeon XTX 512 MB PCIE Video Card Manuale utente

ATI Technologies

ATI Technologies V3700 - Firepro 100-505551 256 MB PCIE Graphics... Manuale utente

ATI Technologies

ATI Technologies Radeon 9700 Series Manuale utente

ATI Technologies

ATI Technologies 100-505103 - Firegl V5000 128MB Pcie 2PORT Dvi-i... Manuale utente

ATI Technologies

ATI Technologies V7750 - Firepro Pcie 1GB DDR3 2PORT Dvi Manuale utente

ATI Technologies

ATI Technologies FIRE GL1 Manuale utente

ATI Technologies

ATI Technologies Radeon 9200 Manuale utente

ATI Technologies

ATI Technologies RADEON 7000 MAC EDITION Manuale utente

ATI Technologies

ATI Technologies RADEONX1900 - G5 Mac Edition ROHS/256MB Pcie Manuale utente

ATI Technologies

ATI Technologies 100-505531 - Firepro 2450 PCIE16 512MB 4PORT Dvi... Manuale utente

ATI Technologies

ATI Technologies 100-714127 - HD-TV Wonder Manuale utente

ATI Technologies

ATI Technologies X800 - 100-435317 Radeon XT Mac Edition Manuale utente

ATI Technologies

ATI Technologies X1800 - 100-435705 Radeon XT 512MB GDDR3 SDRAM PCI Express x16 Graphics... Manuale utente

ATI Technologies

ATI Technologies X3-256 - 100-505096 FireGL 256MB AGP 4x/8x Dual DVI Graphics... Manuale utente

ATI Technologies

ATI Technologies X1650 - AMD Radeon XT 256MB PCI-E Graphics... Manuale utente

ATI Technologies

ATI Technologies XCLAIM GA Manuale utente

ATI Technologies

ATI Technologies 9600 - Radeon XT 128 MB DDR Video Adapter Istruzioni per il montaggio

ATI Technologies

ATI Technologies Radeon Guida all'installazione

ATI Technologies

ATI Technologies V7100 - 100-505090 FireGL 256MB GDDR3 SDRAM PCI Express x16 Graphics... Manuale utente

ATI Technologies

ATI Technologies V7300 - Firegl 512MB Pcie Bulk Manuale utente

ATI Technologies

ATI Technologies Workstation x1000 Manuale utente

ATI Technologies

ATI Technologies RADEON X1950 XTX Manuale utente

ATI Technologies

ATI Technologies All-In-Wonder X1800 Series Manuale utente

Manuali Scheda video popolari di altre marche

Gainward

Gainward GeForce GTX 690 4GB Manuale utente

MSI

MSI N220GT series Manuale utente

SIIG

SIIG aurora Manuale utente

ClearSpeed

ClearSpeed ClearSpeed Advance e720 Manuale utente

MSI

MSI R7850 series Manuale utente

DVS

DVS Atomix HDMI Manuale utente

Aztech

Aztech VGS3D-AGP Manuale utente

Advoli

Advoli TB4 Standard Manuale utente

ELSA

ELSA ERAZOR III LT Manuale utente

Gigabyte

Gigabyte GV-R7500L Manuale utente

Themis

Themis TGA-7000 PMC Manuale utente

EMS

EMS XtremeRGB-Ex1 Manuale utente

Nvidia

Nvidia Quadro Workstation Manuale utente

Pioneer

Pioneer PDA-5003 Manuale utente

QDI

QDI N2 Manuale utente

NEC

NEC N8116-48 Manuale utente

MSI

MSI R7770 PoweR Edition Manuale utente

Gigabyte

Gigabyte GV-N68T256D Manuale utente
