Model 162 PBM High Performance Subwoofer

The lightning flash with arrowhead, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to

constitute a risk of electrical shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating maintenance (servicing) instructions in the

literature accompanying the appliance.

CAUTION: To reduce the risk of electric shock, do not remove the cover

(or back). No user serviceable parts inside. Refer to qualified personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose this

appliance to rain or moisture.

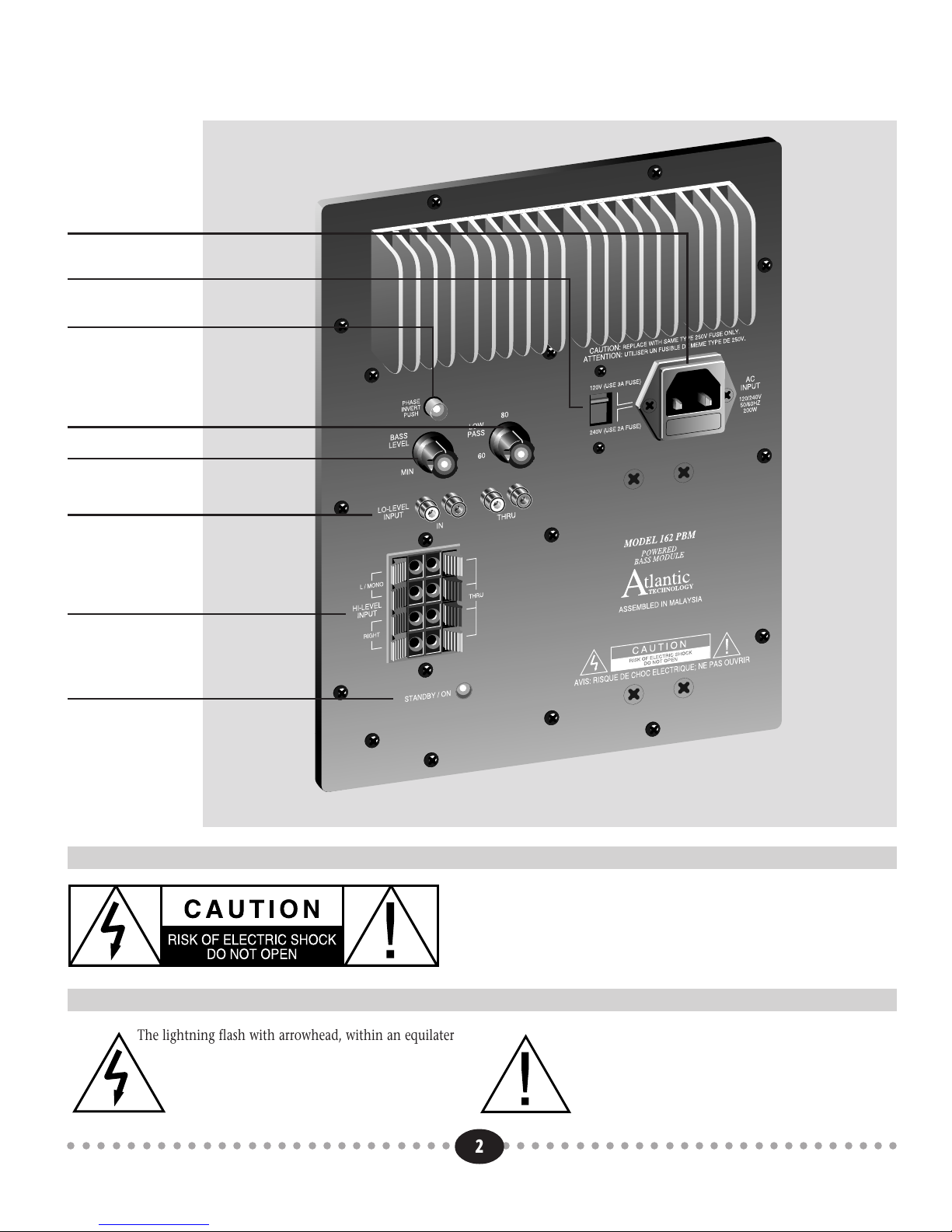

Figure 1:

Amplifier panel

and controls

for 162 PBM

Subwoofer

IEC AC power socket with

external fuse holder

Switchable 120/240 voltage

Phase switch

Continuous low pass filter

Woofer output level control

RCA line level inputs

and outputs

High level (speaker) inputs

and outputs

Auto-standby with dual-

color LED power indicator

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

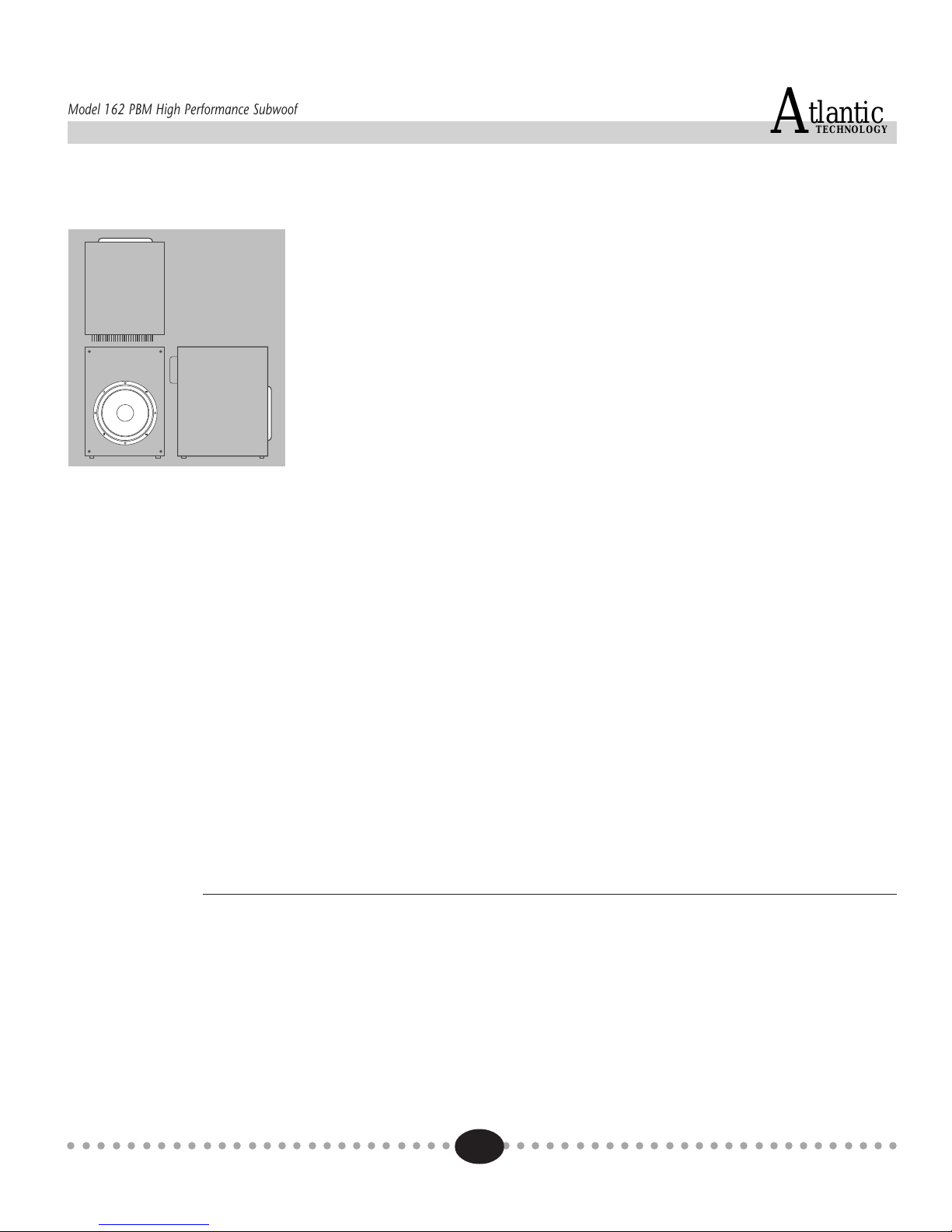

Model 162 PBM High Performance Subwoofer

Features

●

Power output rated at 75 watts

Coupled with our highly efficient driver, this subwoofer is capable of surprising

performance.

●

Working frequency range from 20Hz to 150Hz

●

Continuously adjustable low-pass filter from 60Hz to 125Hz

The slope of the low-pass filter is -24 dB/octave. This allows for flexible integration

with most any brand or type of speaker on the market.

●

Line level inputs and outputs with RCA connectors

The model 162 PBM features stereo inputs and outputs for convenient hookup,

and to provide easy “daisy-chaining” to another subwoofer, if desired.

●

High-level (Speaker Level) inputs and outputs with spring-type connectors

These provide convenient hookup to a sound source that does not have line-level

outputs for a subwoofer.

●

Phase-invert switch (+/-180 degrees)

Allows matching with systems whose output are phase inverted, and to

compensate for unusual room acoustics.

●

Woofer output level control

Matches a wide range of source levels.

●

Auto-standby function with dual-color power indicator

The 10 minute turn-off delay features a green/yellow LED for power on and

standby status indication.

●

IEC AC power socket, with detachable power cord

You can easily replace this cord with one of another length, plug style, etc.

●

120/240V AC input externally switchable, with external fuse holder

You can use it virtually anywhere and not worry about the wrong voltage.

●

Design and construction meets all UL/CSA and European safety requirements

The model 162 PBM meets all safety codes for no-worry custom installations.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Model 162 PBM High Performance Subwoofer

Atlantic Technology

Model 162 PBM High

Performance Subwoofer

Introduction

Congratulations on choosing an Atlantic Technology Powered Subwoofer. Our

subwoofers feature proprietary amplifiers and special high excursion woofers. The

sealed acoustic suspension cabinet configuration provides extended, tight, deep bass in

a compact, room-friendly design.

Connection

Atlantic Technology Powered Subwoofers are simple to hook up, offering several

connection methods for maximum flexibility. Study the system diagrams starting on

page 5. Once you have found the example which most closely matches your system,

hook up your subwoofer(s) as shown in that diagram.

Low-Level Connection

For best performance, we suggest using the low-level (RCA style jacks) subwoofer line

out or preamp outputs if your receiver/amplifier has them. Simply connect your

subwoofer with high quality shielded cables as shown in the diagrams.

High-Level Connection

Alternately, you may use the high-level (speaker) inputs. Make sure to match the type

and gauge speaker wire used to connect your main speakers. Be certain that no stray

wire strands are touching across the two terminals as this might damage your amplifier

when you turn it on.

We recommend that you connect your subwoofer using high quality wire of 16 gauge

or larger for lengths up to 25 feet. There are many manufacturers who specialize in

speaker wire and interconnects suitable for your new system. We recommend that you

consult your local audio/video specialist for more specific information.

Warning: To prevent risk of electrical shock or damage to your equipment, always unplug all

component AC cords before proceeding with speaker and component connections.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Model 162 PBM High Performance Subwoofer

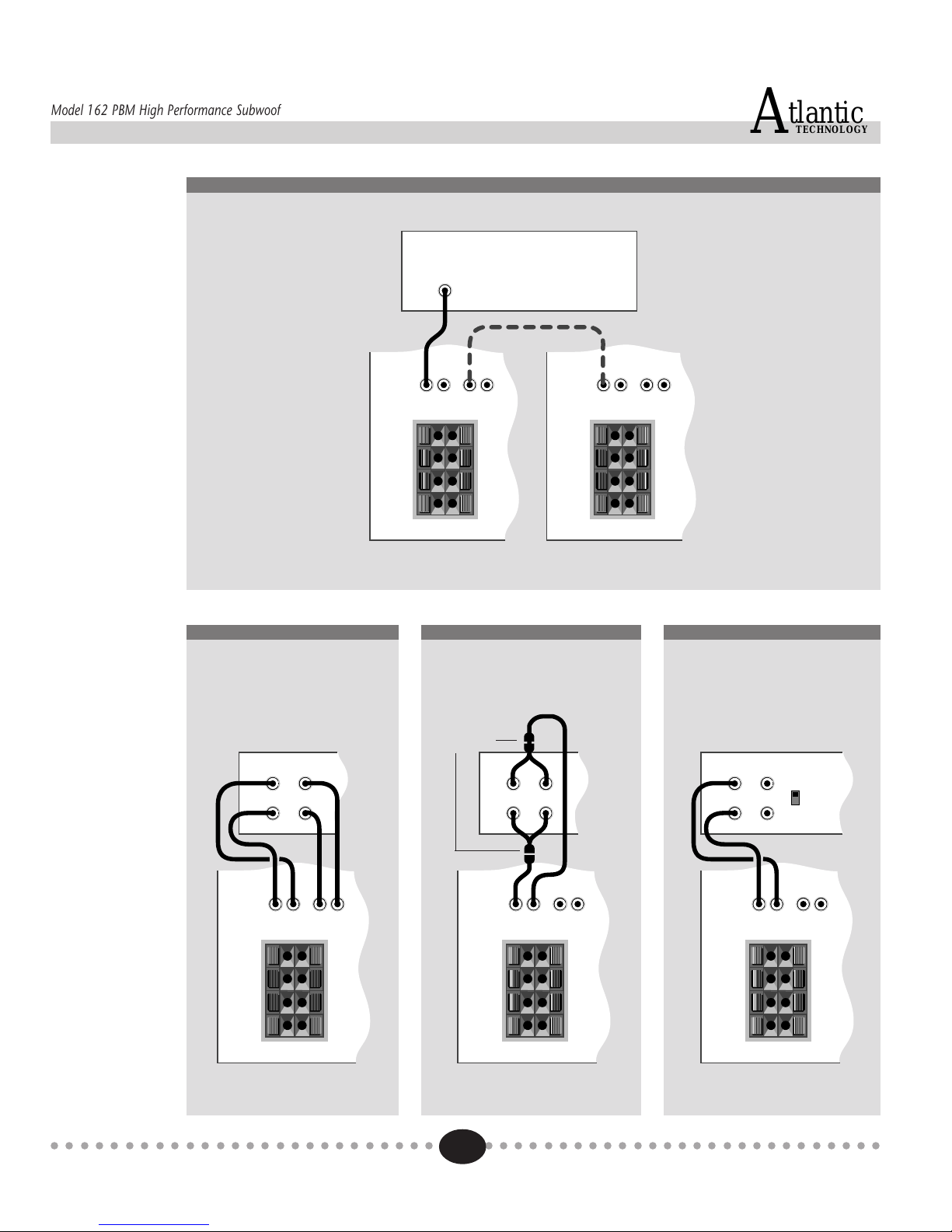

Example 1:

Subwoofer Line

Out/Low Level In

This is the most

commonly used

system connection

for systems with

Dolby Pro Logic

receivers.

Example 2:

Preamp Line

Out/Low Level In

This arrangement

is for owners of

stereo receivers/

amplifiers with

Preamp outputs.

If your receiver/

amplifier uses

jumper links be-

tween the Pre-out

and Main In, then

you must remove

them and use

option 1 or 2. If

your receiver/

amplifier uses a

switch instead of

connectors, then

use option 3.

Sub Woofer Out

Single Sub Woofer Optional Second Sub Woofer

Receiver/Amplifier

HI-LEVEL

INPUT

LO-LEVEL

INPUT

L/MONO

THRU

IN THRU

RIGHT

HI-LEVEL

INPUT

LO-LEVEL

INPUT

L/MONO

THRU

IN THRU

RIGHT

Option 1 Option 2 Option 3

Y-adapters

HI-LEVEL

INPUT

LO-LEVEL

INPUT

L/MONO

THRU

IN THRU

RIGHT

Pre Out Main In

Receiver/Amplifier

Pre Out Main In

Receiver/Amplifier Receiver/Amplifier

Pre Out Main In

Connect

Pre-Main

Separate

Sub Woofer

HI-LEVEL

INPUT

LO-LEVEL

INPUT

L/MONO

THRU

IN THRU

RIGHT

Sub Woofer

HI-LEVEL

INPUT

LO-LEVEL

INPUT

L/MONO

THRU

IN THRU

RIGHT

Sub Woofer

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Model 162 PBM High Performance Subwoofer

Example 3:

Speaker Out/

High Level In

This is the most

common method

for connecting a

subwoofer to a

system without a

dedicated sub-

woofer line out or

Preamp outputs.

Left Front Speaker

HI-LEVEL

INPUT

LO-LEVEL

INPUT

L/MONO

THRU

IN THRU

RIGHT

Left Right

Main Speakers

Receiver/Amplifier Right Front Speaker

Sub Woofer

It is important to observe polarity while making speaker connections: red (+) terminals

on the amplifier to red (+) on the speaker, black (-) on the amplifier to black (-) on the

speaker. Look carefully at the wires you are using and note that one of the wires in each

pair is marked by either a different color, printing, ridges, or a thread intertwined with

the wire strands. By convention, the marked wire is connected to the red (+) terminal.

Voltage Selection

The Atlantic Technology subwoofers operate with either 120 or 240 volts AC 50-60 Hz.

Please make sure that the voltage selector switch shows the correct voltage for your

area before plugging the unit in. The voltage can be

easily changed by moving the switch to the correct

voltage in your area and installing the proper fuse and

power cord. To change the fuse, remove the power

cord, insert a screwdriver tip into the notch in the side

of the fuseholder, and pry the fuse out. Replace with

the correct value fuse as marked next to the fuseholder,

and push back into place.

Figure 2:

The fuse is

located next

to the IEC

AC socket

Insert

screwdriver

tip here

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Model 162 PBM High Performance Subwoofer

Power Connection

Connect the power cord to an AC outlet only after making all other connections to the

subwoofer. This will avoid any chance of accidentally activating the subwoofer while

wiring. The AC cord should be plugged into its own wall outlet or into a quality power

strip. Avoid using the outlets that are provided on the rear panel of other components.

The subwoofer may require more current than these outlets can provide and perfor-

mance may suffer. Once the subwoofer is hooked up and the power cord is plugged into

an AC outlet, leave it plugged in. Automatic on/off circuitry will activate the sub-

woofer in the presence of an audio signal. After 8-10 minutes with no signal detected,

the amplifier will go into standby mode. There is no need to unplug the subwoofer or

use a switched outlet.

Placement and Adjustment

This subwoofer’s compact size allows easy placement for optimum performance. As a

general rule, corner placement gives the loudest bass output, but may tend to empha-

size one particular frequency. Moving the subwoofer away from the wall results in

flatter frequency response, but will reduce the output somewhat. Experiment with

several different positions to find the best one for your room.

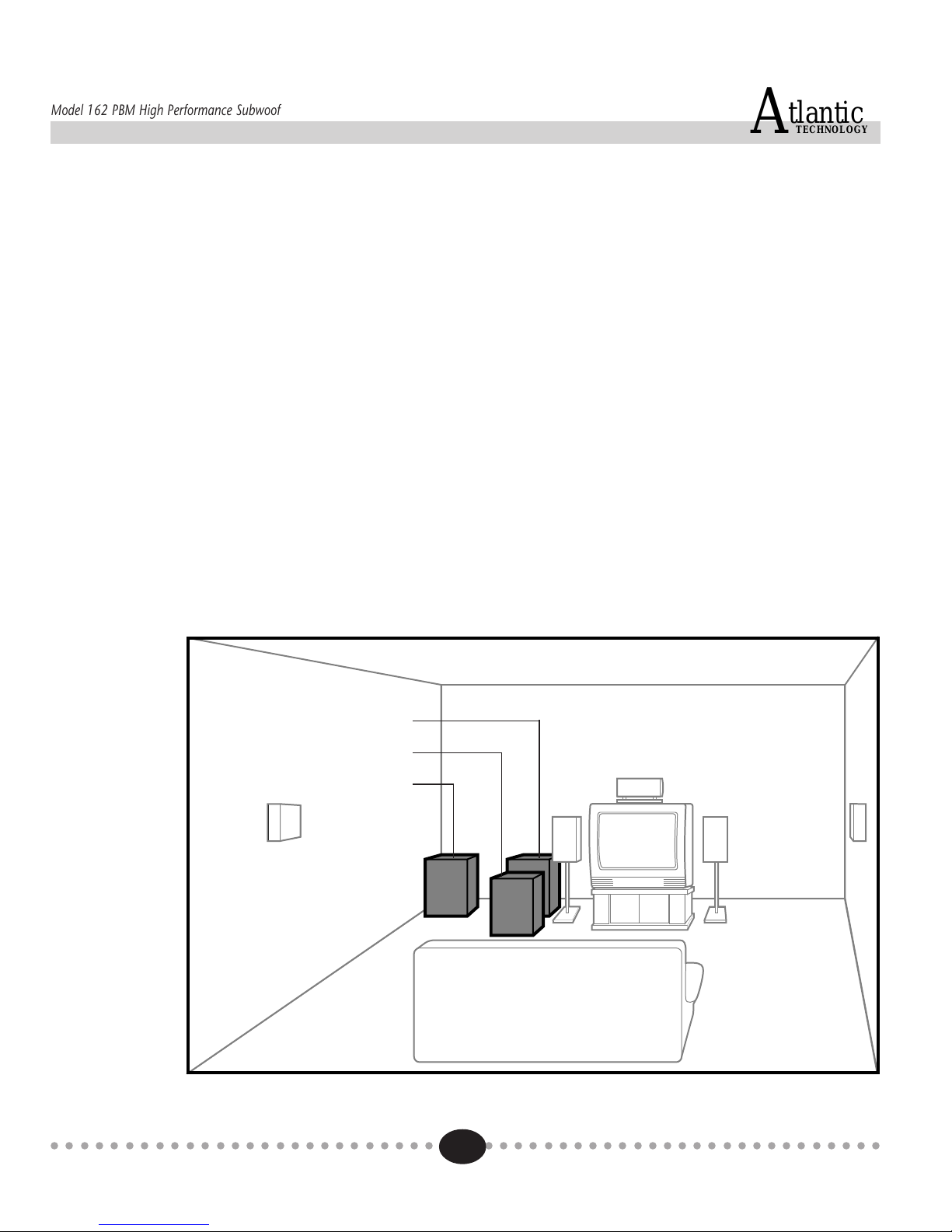

Figure 3:

Typical arrange-

ment for a single

subwoofer in a

home theater. Start here

Less Bass

More Bass

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Model 162 PBM High Performance Subwoofer

Note: Do not place the unit near a heater or forced air outlet, as this may impair the ability of

the internal amplifier to dissipate heat. It may also harm the finish.

When you’re setting things up for the first time, you will need to adjust the bass level

control to keep the bass volume the same for various subwoofer positions. The only way

that you can make sure that you’re not being impressed by more bass, instead of

smoother bass, is to keep the volume the same for all subwoofer positions.

Begin with the low pass control set to 80, adjusting a little at a time to give the

smoothest transition between the subwoofer and the main speakers as, for example, a

bass guitar or cello is played up and down the scale. Try both positions of the phase

invert switch, as unusual room acoustics may be present at the crossover frequency.

Again, some experimentation will be needed to find the best setting.

Once the controls have been adjusted so that the sound is balanced between the

subwoofer and the main speakers, you can leave them alone. Minor differences in the

source material can be compensated for with the volume and tone controls on your

audio or audio/video electronic components.

Fine Tuning

Atlantic Technology subwoofers integrate easily with virtually all other brands of

loudspeaker. The adjustable low pass filter and versatile hookup options make it a snap.

With proper placement in your room, this subwoofer will supply a solid foundation to

any audio or A/V system.

For best results, we suggest that you “tweak” the controls and cabinet position slightly

over a period of time (1-2 weeks), as you become accustomed to the sound, and have

the opportunity to hear a variety of music and/or movies. Remember that a small

adjustment may have a large overall effect.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Model 162 PBM High Performance Subwoofer

Subwoofer Troubleshooting Guide

Once your subwoofer has been set up, you should have many years of maintenance-free

enjoyment from your system. However, if you should encounter a problem, refer to the

following guide to help you find the solution. If a problem persists, you should contact

your local authorized Atlantic Technology dealer.

Problem Possible Cause Possible Solution

No bass output AC power cord unplugged or plugged into a Plug into a working outlet.

non-working outlet.

Input cables not securely connected or defective. Check all connections, then try another input cable.

Audible buzz Input cable not securely connected or defective. Check all connections, then try another input cable.

or hum Single HI LEVEL input connected to the RIGHT channel. Connect to the LEFT input channel.

Ground loop through antenna or cable TV system input. Test by disconnecting antenna and/or cable system input leads.

If hum goes away, install isolation balun(s) at that point.

More than one More than one source is playing. All the subwoofer’s inputs are active at all times. Turn off

source audible unwanted source.

Weak bass Subwoofer too far from the wall. Move the subwoofer closer to a wall or corner.

OUTPUT LEVEL CONTROL set too low. Turn control up somewhat.

Weak bass: vague

Input source connected to HI LEVEL inputs is wired Check speaker wire connections and reconnect in proper

stereo image out of phase. phase.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

TECHNOLOGY

tlantic

Model 162 PBM High Performance Subwoofer

Specifications

Bass Driver 8" high efficiency treated cone

Output Power

75W

Frequency Response (LPF at max.) 30Hz – 270Hz, ±6dB

Low Pass Filter (continuously variable) 60Hz – 125Hz, 24dB/octave

Inputs

High Level (speaker)

Left and right high level speaker

Low Level (line) Left and right low level RCA

Throughputs

High Level (speaker)

Left and right high level speaker, unity gain

Low Level (line) Left and right low level RCA, unity gain

Input Level continuously variable input gain control

Input Impedance

High Level (speaker)

1.2kΩ

Low Level (line) 10kΩ

Dimensions (W X H X D) 10 x 14.4 x 12.4in 255 x 365 x 315mm

Weight 22.75lbs 10.34kg

Power Consumption (standby mode) 18W

Power Requirements 110/240VAC 50/60Hz 200W max.

Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or designs at any time without notice.

Dolby Stereo and Dolby Pro Logic are trademarks of Dolby Laboratories Licensing Corporation.

For Future Reference

Record your speaker serial number and date of purchase here:

Model Number Serial Number Date of Purchase

The serial number is found on the back of the speaker near the connecting terminals.

Indice

Altri manuali Atlantic Technology Subwoofer

Atlantic Technology

Atlantic Technology IWTS-8 SUB Manuale utente

Atlantic Technology

Atlantic Technology 642 SB Manuale utente

Atlantic Technology

Atlantic Technology SB-800 Manuale utente

Atlantic Technology

Atlantic Technology 152 PBM Manuale utente

Atlantic Technology

Atlantic Technology M105 Manuale utente

Atlantic Technology

Atlantic Technology 222 PBM Manuale utente

Atlantic Technology

Atlantic Technology T70 PBM Manuale utente

Atlantic Technology

Atlantic Technology System 6200 Manuale utente

Atlantic Technology

Atlantic Technology 172 PBM Manuale utente

Atlantic Technology

Atlantic Technology SB-900DF Manuale utente

Atlantic Technology

Atlantic Technology FS-S65 Manuale utente

Atlantic Technology

Atlantic Technology 224 SB Manuale utente

Atlantic Technology

Atlantic Technology IWTS-8e Manuale utente

Atlantic Technology

Atlantic Technology 642e SB Manuale operativo

Atlantic Technology

Atlantic Technology SB-1000 Manuale utente

Atlantic Technology

Atlantic Technology 102 SB Manuale utente

Atlantic Technology

Atlantic Technology 10 CSB Manuale operativo

Atlantic Technology

Atlantic Technology l4.5PBM Manuale utente

Atlantic Technology

Atlantic Technology IW-28 SUB Manuale utente

Atlantic Technology

Atlantic Technology IWTS-28 SUB Manuale utente

Atlantic Technology

Atlantic Technology 372 PBM THX Manuale utente

Atlantic Technology

Atlantic Technology 272 PBM THX Manuale utente

Atlantic Technology

Atlantic Technology 452 PBM THX Manuale utente

Atlantic Technology

Atlantic Technology 10e CSB Manuale utente

Manuali Subwoofer popolari di altre marche

Sony

Sony XS-AW8 Manuale utente

Sony

Sony XS-L836 Manuale utente

B&C Speakers

B&C Speakers 15 HPL 76W Manuale utente

Velodyne

Velodyne DD-18+ Manuale utente

Sonance

Sonance Cinema Series SUB 10-150 Manuale utente

Hifonics

Hifonics HW-12 Guida rapida

Magnat Audio

Magnat Audio ADR 130 BP Manuale utente

Blitz

Blitz BZP106 Manuale utente

Technics

Technics SB-AS500 Manuale utente

Lyngdorf

Lyngdorf BW-2 Manuale utente

Lyngdorf

Lyngdorf BW-3 Manuale utente

Pyle Pro

Pyle Pro PYLE PRO PDW15125 Manuale utente

REL Acoustics

REL Acoustics Q Series Manuale utente

Pioneer

Pioneer Elite S-W1EX Manuale utente

L-Acoustics

L-Acoustics KIVA SB15M Guida rapida

B&C Speakers

B&C Speakers Woofer 12 HPL 76 Manuale utente

KEF

KEF KUBE 200 Manuale utente

Yamaha

Yamaha SW500 Manuale utente
