Atlantic EXPLORER 200L Manuale utente

IHM

HMI

ACI

ELEMENT CHAUFFANT

HEATING ELEMENT

Connecteur compresseur:

Comp. connector :

Resistance MR≈ 0 ohm,

Resistance NM≈ 5 ohm,

Resistance NR≈ 5 ohm..

U0640019 A -ET SCHEMA ELEC CETHI V4E HYB

SONDE

EVAPO. BAS

EVAPO. LOW

SENSOR

SONDE AIR

AIR SENSOR

VANNE GAZ CHAUDS

HOT GAZ VALVE

PROTECTION

MOTEUR

MOTOR

PROTECTOR

BOBINAGES

COMPRESSEUR

COMPRESSOR

WINDING

SCR

CONDENSATEUR

DEMARRAGE

COMPRESSEUR

COMPRESSOR

RUN CAPACITOR

CONTROLEUR

CONTROLER

Bobinage compresseur :

Compressor winding :

Resistance RC≈ 5 ohm,

Resistance CS≈ 6 ohm,

Resistance SR ≈ 11 ohm..

Vanne gaz chauds :

Hot gaz valve :

Resistance ≈ 1,3 kohm.

Element chauffant :

Heating element :

Resistance ≈ 29 ohm

Connecteur IHM :

HMI connector :

Tension MV≈ 5V

Voltage MV≈ 5V

Sondes de température :

Temperature sensor :

R ≈ 12 kohm (20°C).

(*) R ≈ 126 kohm (20°C).

SCR

15µF

PRESSOSTAT

HIGH PRESSURE SWITCH

SONDE

EVAPO. HAUT

EVAPO. TOP

SENSOR

N P T

SIGNAL PV / SOLAIRE (NON FOURNI) –PV / SMART GRID / SOLAR SIGNAL (NOT SUPPLIED)

SONDE EAU

WATER SENSOR ACI

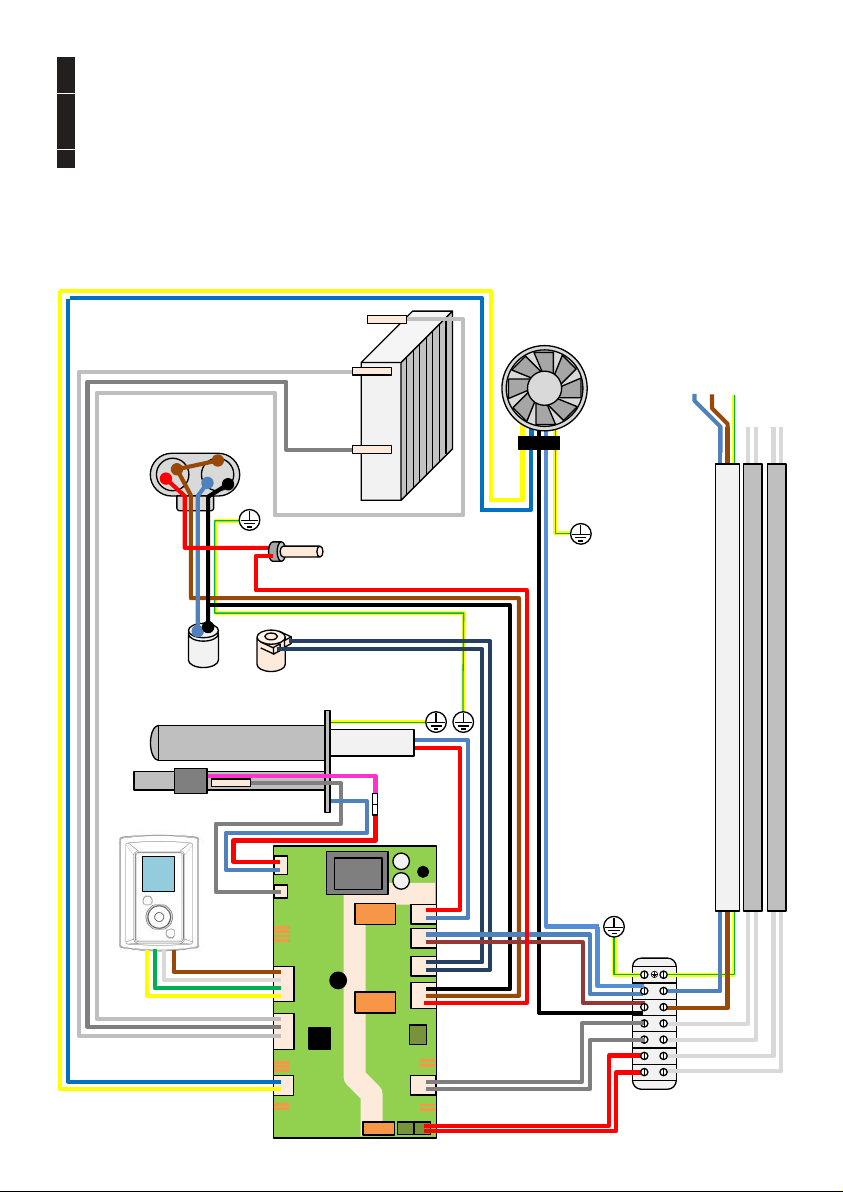

SCHEMA ELECTRIQUE

ELECTRIC DIAGRAM

CONTACT SEC CHAUDIERE (NON FOURNI) –BOILER CONTACT (NOT SUPPLIED)

ALIMENTATION GENERALE (PERMANENTE) -MAIN POWER SUPPLY (PERMANENT)

VENTILATEUR

FAN

THERMOSTAT

SCHÉMA ÉLECTRIQUE POUR LA MAINTENANCE DE VOTRE CHAUFFE-EAU THERMODYNAMIQUE

ELECTRIC DIAGRAM

SCHAKELSCHEMA VOOR DE SERVICEBEURT VAN UW THERMODYNAMISCHE WATERVERWARMER

STROMLAUFPLAN FÜR DIE WARTUNG IHRES WARMWASSERBEREITERS MIT WÄRMEPUMPE

SCHEMA ELETTRICO PER LA MANUTENZIONE DELLO SCALDACQUA TERMODINAMICO

SCHEMAT POŁĄCZEŃ ELEKTRYCZNYCH PAŃSTWA TERMODYNAMICZNEGO PODGRZEWACZA WODY

WARNINGS

This product is not intended for use by persons (including

children) whose physical, sensory or mental capacities are

reduced, or persons without experience or knowledge, unless

they have been given instructions & monitored previously when

using the appliance by a person responsible for their safety.

Children must be supervised to ensure they do not play with the

appliance.

This appliance may be used by children 8 years of age or older,

and those with reduced physical, sensory or mental capacity or

lack of experience or knowledge, if they are properly supervised

or if instructions for the safe use of the appliance have been

given to them and the risks involved are clear to them. Children

are not permitted to play with the appliance. This appliance must

not be cleaned or maintained by children without supervision.

The water heater must (in compliance with Article 20 of Standard

EN 60335-1) be fixed to the ground using the fixing bracket

provided for this purpose.

Keep the manual, even after the product has been installed.

INSTALLATION

CAUTION: This product is heavy, handle with care:

1/ Install the appliance in a frost-free room. The destruction of

the appliance by overpressure due to the blocking of the safety

device inactivates the warranty.

2/ Ensure that the bulkhead is capable of supporting the weight

of the water filled appliance.

HYDRAULIC CONNECTION

You must install a frost-free safety device (or any other pressure

relief device), which is new, with 3/4" (20/27) dimensions and 0.7

MPa (7 bar) pressure on the inlet of the water heater, which

complies with local standards.

The dimensions of the space required for the correct installation

of the appliance are specified in the figure on page 9.

A pressure reducer (not supplied) is required when the supply

pressure is greater than 0.5 MPa (5 bar) - which must be attached

to the main supply.

Connect the safety device to a drain hose, kept uncovered, in a

frost-free environment, with a continuous downward slope for

the release of excess water from the heater or if you are

emptying the water heater.

The operating pressure of the heat exchanger circuit must not

exceed 0.3 MPa (3 bar) and its temperature must not exceed

100°C.

3/ If the appliance is to be installed in a room or location where

the ambient temperature is permanently above 35°C,

provide ventilation in the room.

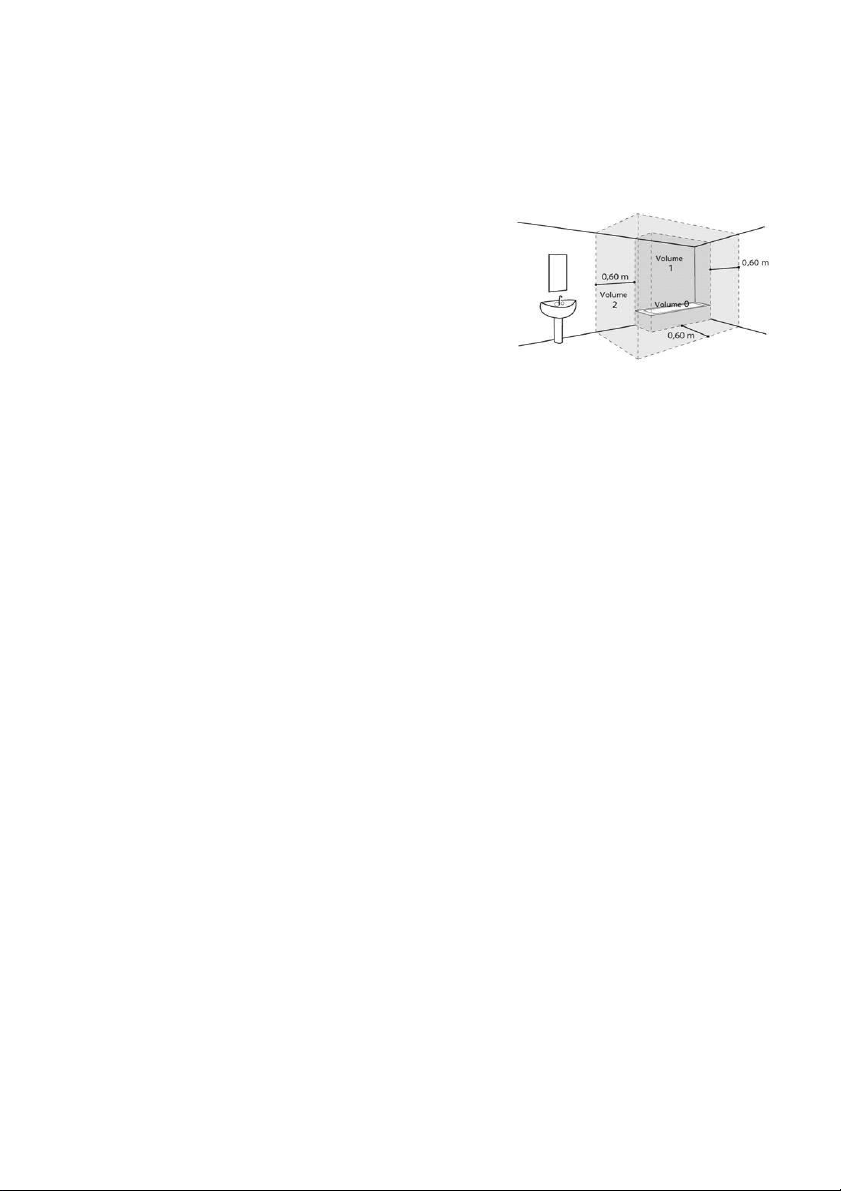

5/ Do not use volumes V0, V1 or V2

if installing this product in a bathroom.

Volume V2 can, however, be used

if the dimensions cannot accommodate

another size.

6/ Place the appliance in an accessible location.

7/ Refer to the installation illustrations

in the “Installation” section.

This product is designed to be used at a maximum altitude of

2000m.

WARNINGS

Before taking off the cover, make sure that the power is turned

off to prevent injury or electric shock.

The electrical installation must include an omnipolar cut-off

device (circuit-breaker, fuse) upstream of the appliance,

complying with local installation rules in force (30mA differential

circuit breaker). Grounding is mandatory. A special terminal

bearing a marker is provided for this purpose.

In France, it is strictly forbidden to connect a product equipped

with a cable to a socket.

ELECTRICAL CONNECTION

Draining: Turn off the power supply and cold water, open the

hot water taps and then operate the drain valve of the safety

device.

The pressure relief valve must be operated regularly to remove

scale deposits and to ensure that it is not blocked.

If the power cable is damaged, it must be replaced by the

manufacturer, their after sales service or a similarly qualified

person, in order to avoid any danger. These instructions are also

available from the customer service (contact details mentioned

on the appliance).

SERVICING - MAINTENANCE - TROUBLESHOOTING

WARNINGS

Contents

OVERVIEW

1. Important recommendations

2. Content of the packaging

3. Handling

4. Operating principle

5. Technical characteristics

6. Dimensions – structure

7. Glossary

INSTALLATION

1. Positioning the product

2. Installation in ambient configuration (without ducting)

3. Installation in ducted configuration (2 ducts)

4. Installation in semi-ducted configuration (1 discharge duct)

5. Prohibited configurations

6. Hydraulic connection

7. Air duct connection

8. Electrical connection

9. Connection of optional equipment

10. Start-up

USE

1. Control panel

2. Description of pictograms

3. The main menu

4. Operating modes

MAINTENANCE

1. Tips for the user

2. Maintenance

3. Opening the product for maintenance

4. Troubleshooting

WARRANTY

1. Scope of the warranty

2. Warranty conditions

3. Certificate of conformity

Overview Installation Use Maintenance Warranty

Product overview

1. Important recommendations

1.1. Safety instructions

Installation and service work on thermodynamic water heaters can be hazardous due to high pressures and

live parts.

Thermodynamic water heaters must be installed, commissioned and maintained by trained and qualified

personnel only.

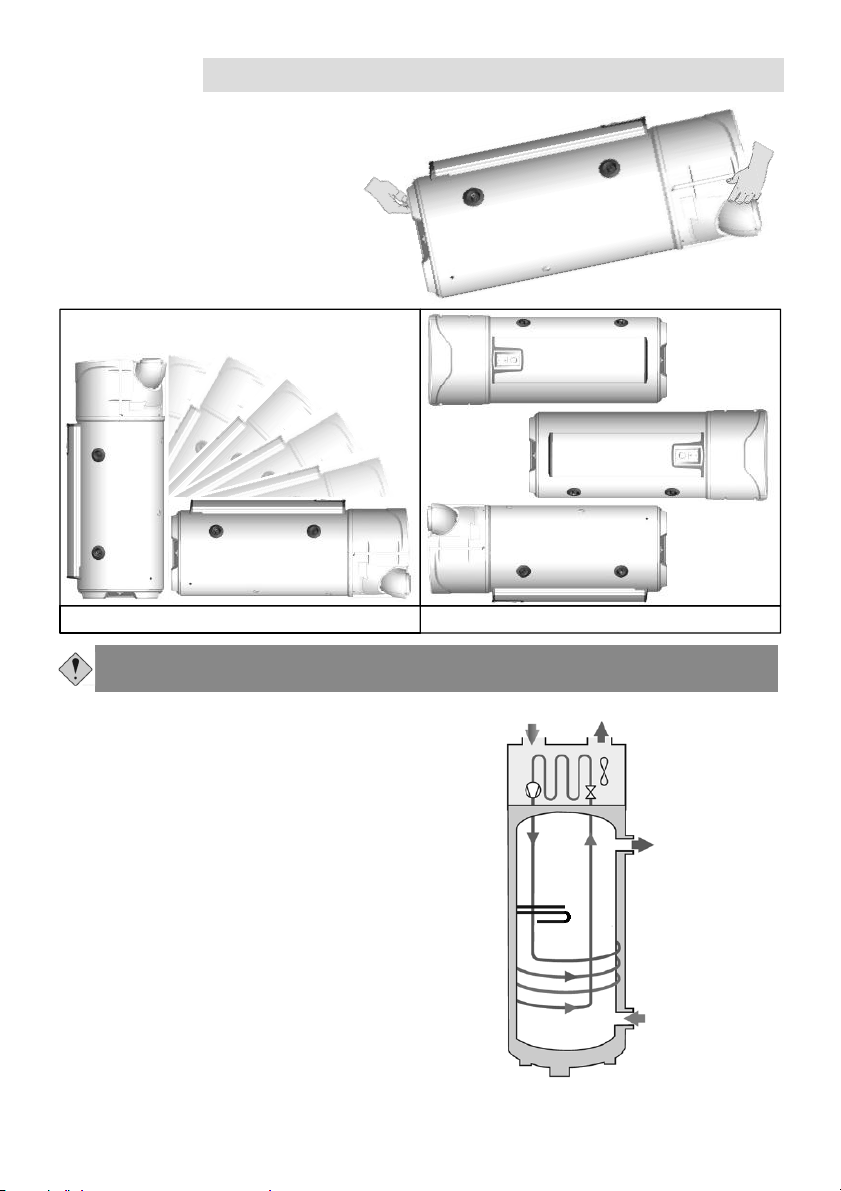

1.2. Transport and storage

One side of the product can be tilted at 90°. This side is clearly indicated on the product packaging.

Tilting the product onto the other sides is prohibited. We recommend that you pay particular

attention to these instructions. We shall not be liable for any defect of the product resulting from

transport or handling of the product contrary to our recommendations.

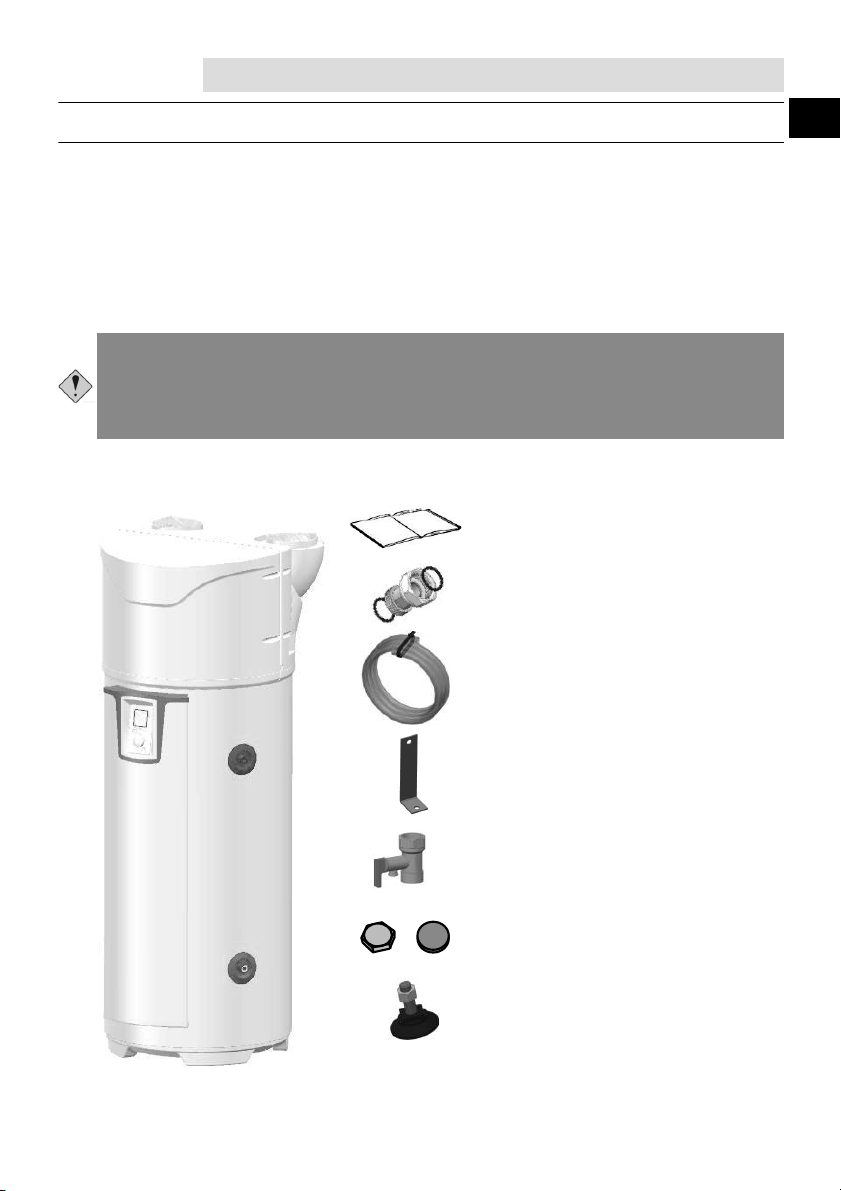

2. Content of the packaging

Water heater

1 Condensate drain pipe (2m)

1 Instructions

1 Bag each containing a dielectric connection

with 2 seals to be installed on the hot water

connection

1 ground hook with screws

1 seal + 1 ¾" brass cap

1 valve to be installed on the cold water connection

(not to be used in France and Belgium)

4 adjustable feet

Overview Installation Use Maintenance Warranty

3. Handling

The product incorporates several handles

making it easier to move to the location

where it will be installed.

To transport the water heater to the

installation location use the lower and

upper handles.

4. Operating principle

The thermodynamic water heater uses exterior air for

heating the domestic supply water.

The refrigerant contained in the heat pump carries out a

thermodynamic cycle allowing it to transfer the energy

contained in the outside air to the water of the tank.

The fan sends a stream of air into the evaporator. As it

passes through the evaporator, the refrigerant evaporates.

The compressor compresses the vapours of the fluid which

raises its temperature. This heat is transmitted by the

condenser wrapped around the tank and warms the water

tank.

The fluid then flows into the thermostatic expansion valve,

it cools and returns to its liquid form. It is then ready to

receive heat again in the evaporator.

Follow the transport and handling recommendations on the water heater's packaging.

-Acceptable position /Prohibited positions

Intake air Outlet air

Hot water outlet

Cold water inlet

Overview Installation Use Maintenance Warranty

5. Technical characteristics

Model 200L 200L C 270L 270L C

Dimensions (Height x Width x Depth) mm 1617 x 620 x 665 1957 x 620 x 665

Weight empty kg 80 97 92 111

Tank capacity L 200 197 270 263

Hot water/cold water connection - ¾ ʺ M

Anti-corrosion protection - ACI Hybrid

Rated water pressure MPa (bar) 0.8 (8)

Electrical connection (voltage/frequency) - 230V~ single phase 50 Hz

Total maximum power absorbed by the appliance W 2500

Maximum power absorbed by the heat pump W 700

Power absorbed by the electrical backup W 1800

Setting range of the water temperature set point °C 50 to 62

Operating temperature range of the heat pump °C -5 to +43

Duct diameter mm 160

Air flow (without duct) in speed 1 m3/h 310

Air flow (without duct) in speed 2 m3/h 390

Permissible load losses on the air flow Pa 25

Sound power* dB(A) 53

Refrigerant R513A kg 0.80 0.86

Refrigerant volume in equivalent tonnes T.eq.CO2 0.50 0.54

Refrigerant mass kg/L 0.0040 0.0032

Certified performance at 7°C air (CDC LCIE 103-15/C) & ducting at 30 Pa**

Coefficient of performance (COP) - 2,79 2,79 3,16 3,03

Extraction profile - L L XL XL

Absorbed power in steady state (Pes) W 32 32 28 33

Heating time (th) h.min 07:52 07:53 10:39 11:04

Reference temperature (Tref) °C 52,7 52,7 53,0 53,1

Air flow rate m3/h 320 320 320 320

* Tested in a semi-anechoic chamber in accordance with the NF 9614-2 standard.

** Performance measured for a water heater from 10°C to Tref according to the protocol of the NF Electricity Performance Mark specifications No.LCIE 103-15C, self-

heating thermodynamic water heaters (based on standard EN 16147).

These appliances comply with the 2014/30/EU Electromagnetic Compatibility Directive, the 2014/35/EU Low Voltage Directive, the 2011/65/EU RoHS 2 Directive

and the 2013/814/EU Regulation supplementing Directive 2009/125/EC for Ecodesign.

Overview Installation Use Maintenance Warranty

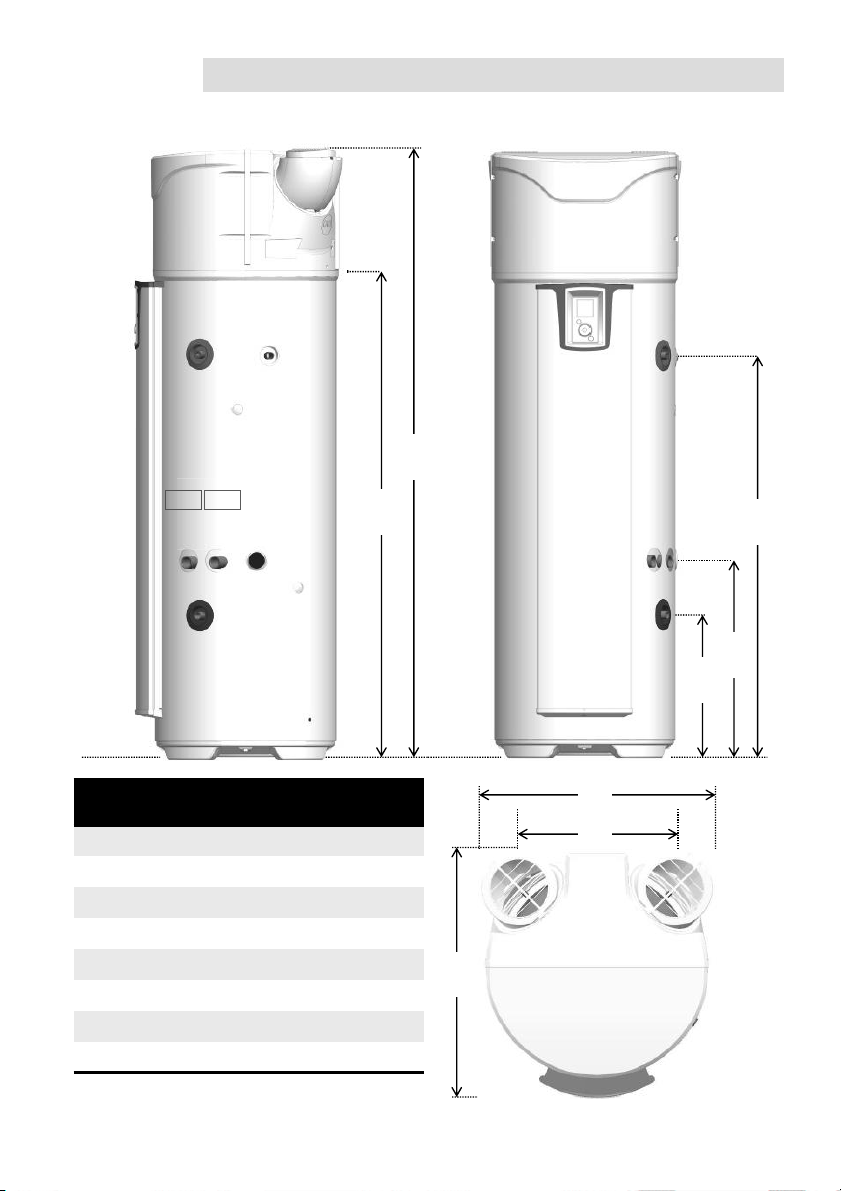

6. Dimensions/structure

60°

Dimensions in mm

Ref

MODEL 200 200

COIL

270 270

COIL

A Condensate outlet

1166

1525

B Total height

1617

1957

C Cold water inlet 304 462 304 462

D Hot water outlet 961 961

1300

E Total width 620 620 620 620

F Total depth 665 665 665 665

G Inlet dimensions 418 418 418 418

H Exchanger inlet - 640 - 640

INOUT

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Atlantic Scaldabagno

Atlantic

Atlantic CALYPSO VM Manuale utente

Atlantic

Atlantic ONDEO SWH 30 M Manuale utente

Atlantic

Atlantic Square O'Pro 15 Manuale utente

Atlantic

Atlantic ODYSSEO 2 Istruzioni per il montaggio

Atlantic

Atlantic CHAUFFEO Manuale utente

Atlantic

Atlantic CORFIRST Guida rapida

Atlantic

Atlantic TWH 200 Manuale utente

Atlantic

Atlantic Vertigo 30 Manuale utente

Atlantic

Atlantic VERTIGO 821359 Manuale del proprietario

Atlantic

Atlantic MP 025 F 220-2E-BL Manuale utente

Atlantic

Atlantic VISIO Series Manuale utente

Atlantic

Atlantic CORFLINOX 300 Guida rapida

Atlantic

Atlantic ODEO Manuale utente

Atlantic

Atlantic IAV 75 Manuale utente

Atlantic

Atlantic Vertigo Steatite 30 Manuale utente

Atlantic

Atlantic CHAUFFEO VS 500L Manuale utente

Atlantic

Atlantic PECS P300 Manuale utente

Atlantic

Atlantic Calypso FS 172L Manuale utente

Atlantic

Atlantic Steatite Cube O'Pro 15 S3S Manuale utente

Atlantic

Atlantic Flat 30 Manuale utente

Atlantic

Atlantic Zeneo 50 Manuale di istruzioni

Atlantic

Atlantic ACI Visio Manuale utente

Atlantic

Atlantic Corprimo Series Guida rapida

Atlantic

Atlantic STEATITE PREMIUM Series Guida rapida

Manuali Scaldabagno popolari di altre marche

Kenmore

Kenmore 153.582400 Manuale utente

Applimo

Applimo Edel AIR Manuale utente

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Manuale utente

clage

clage E-Mini Series Manuale utente

Toyotomi

Toyotomi Oil Miser OM-180 Manuale utente

Bradford White

Bradford White EF Series Manuale utente

Eccotemp

Eccotemp 40-H Manuale utente

Dimplex

Dimplex ECSd125-580 Guida

Dux

Dux 32FCR6N Manuale utente

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Guida alla risoluzione dei problemi

Noritz

Noritz N-132M Manuale di istruzioni

TESY

TESY GCV7/4S 10047 Scheda tecnica

A.O. Smith

A.O. Smith Gphe 50 Manuale utente

Koryo

Koryo KWHZF15Y Manuale utente

Pentair

Pentair PSC-14-4-02 Manuale utente

GE 40M06AAG Istruzioni per il montaggio

Thermor

Thermor AEROMAX SPLIT 2 Manuale utente

American Hometec

American Hometec AHQ-B03X Manuale utente
