Service Manual
AtlonA
Infrared Extender System
up to 1000ft

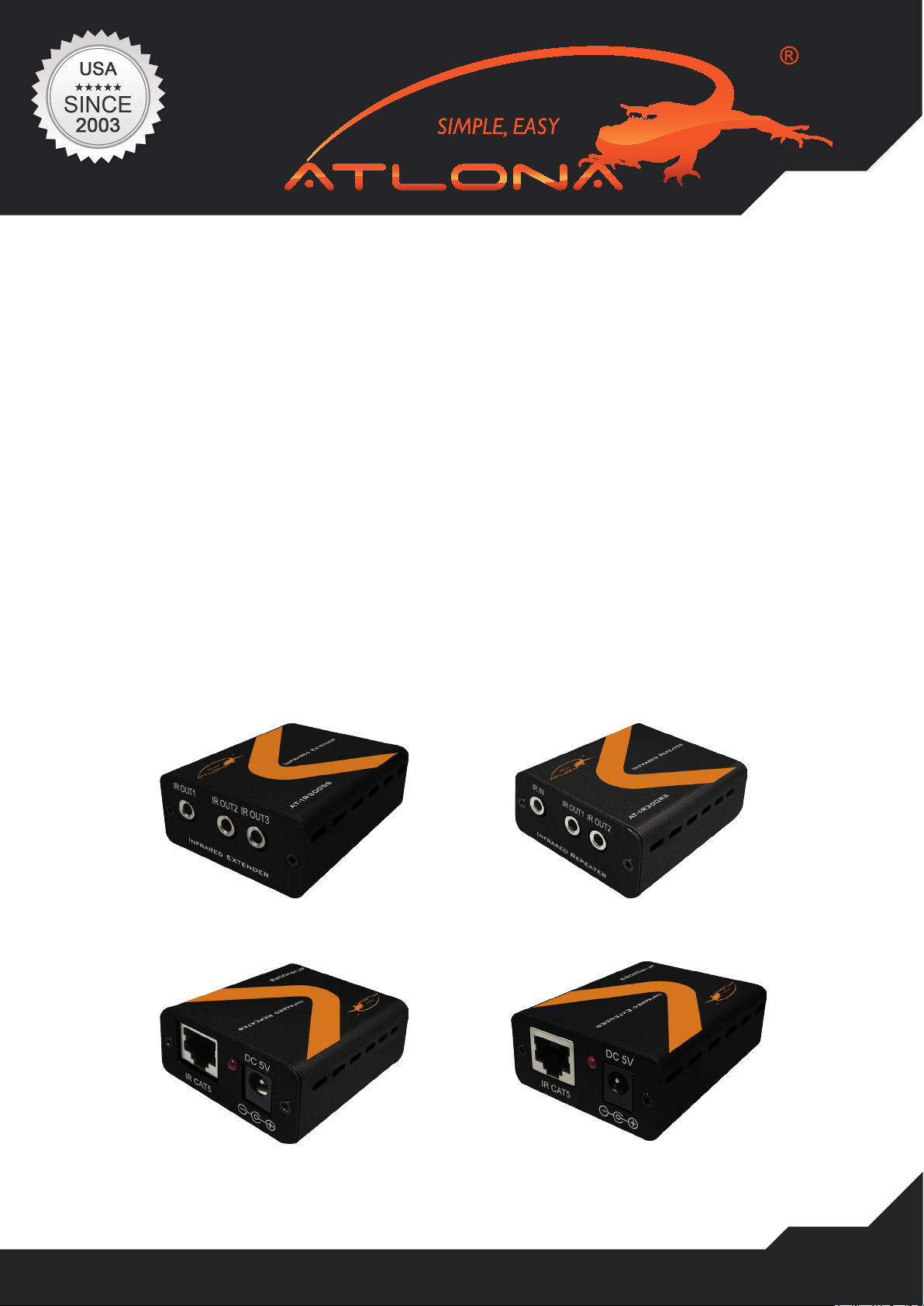

AT-IR300SRS
Front View
Rear View
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 2
TABLE OF CONTENTS
1. Setting Up CAT5e/6/7 .................................................. 3
2. No Power on the Extenders .................................................. 3
3. Connecting IR .................................................. 3
4. IR Issues .................................................. 4
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 3

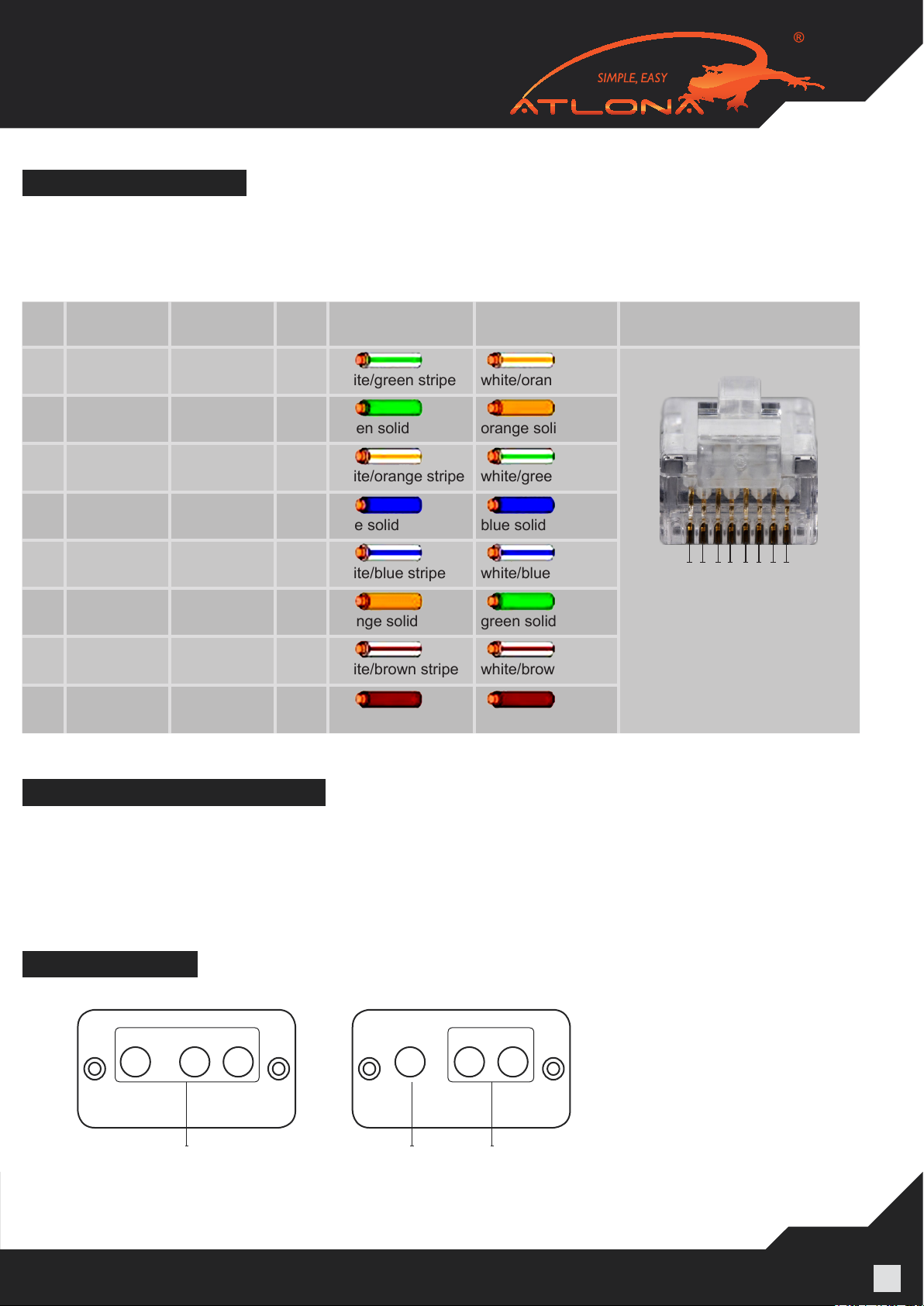

SETTING UP CAT5E/6/7
NO POWER ON THE EXTENDERS
CAT5E or higher is recommended for use withal ATLONA units. If cables are run in the walls make
sure to stay away from light xtures, electrical boxes, uorescent lights, and any or other electrical
cables to reduce and prevent signal degradation. T568B termination is recommended to be used for
this device.
Pin T568A Pair T568B Pair Wire T568A Color T568B Color Pins on plug face
(socket is reversed)
1 3 2 tip
white/green stripe white/orange stripe
2 3 2 ring
green solid orange solid
3 2 3 tip
white/orange stripe white/green stripe
4 1 1 ring
blue solid blue solid
5 1 1 tip
white/blue stripe white/blue stripe
6 2 3 ring
orange solid green solid
7 4 4 tip
white/brown stripe white/brown stripe
8 4 4 ring
brown solid brown solid
1 2 3 4 5 6 7 8
Pin Position
If the unit is not powering-on double check the surge protector/outlet that the unit is connected to. A Volt
Meter can also be used to check the power supply; it needs to be outputting 5V DC. Only one power
supply needs to be used for this system either on transmitter or receiver side.
CONNECTING IR
IR OUT1 IR INIR OUT2 IR OUT1IR OUT3 IR OUT2
1 12
AT-IR300R IR Extender AT-IR300S IR Extender
Repeater
www.atlona.com | toll free: 1-877-536-3976
For International: 1-408-962-0515 4
IR ISSUES
1. IR OUT1, 2 and 3: Place included IR cables to near your sources and connect them to the outputs of the
Extender
2. IR IN: Connect to IR Eye receiver cable (2M long) for receiving IR remote control signal.
Note: Please be very careful with plug in the blaster and receiver cables as a wrong connection will
result in cable and device burn out.

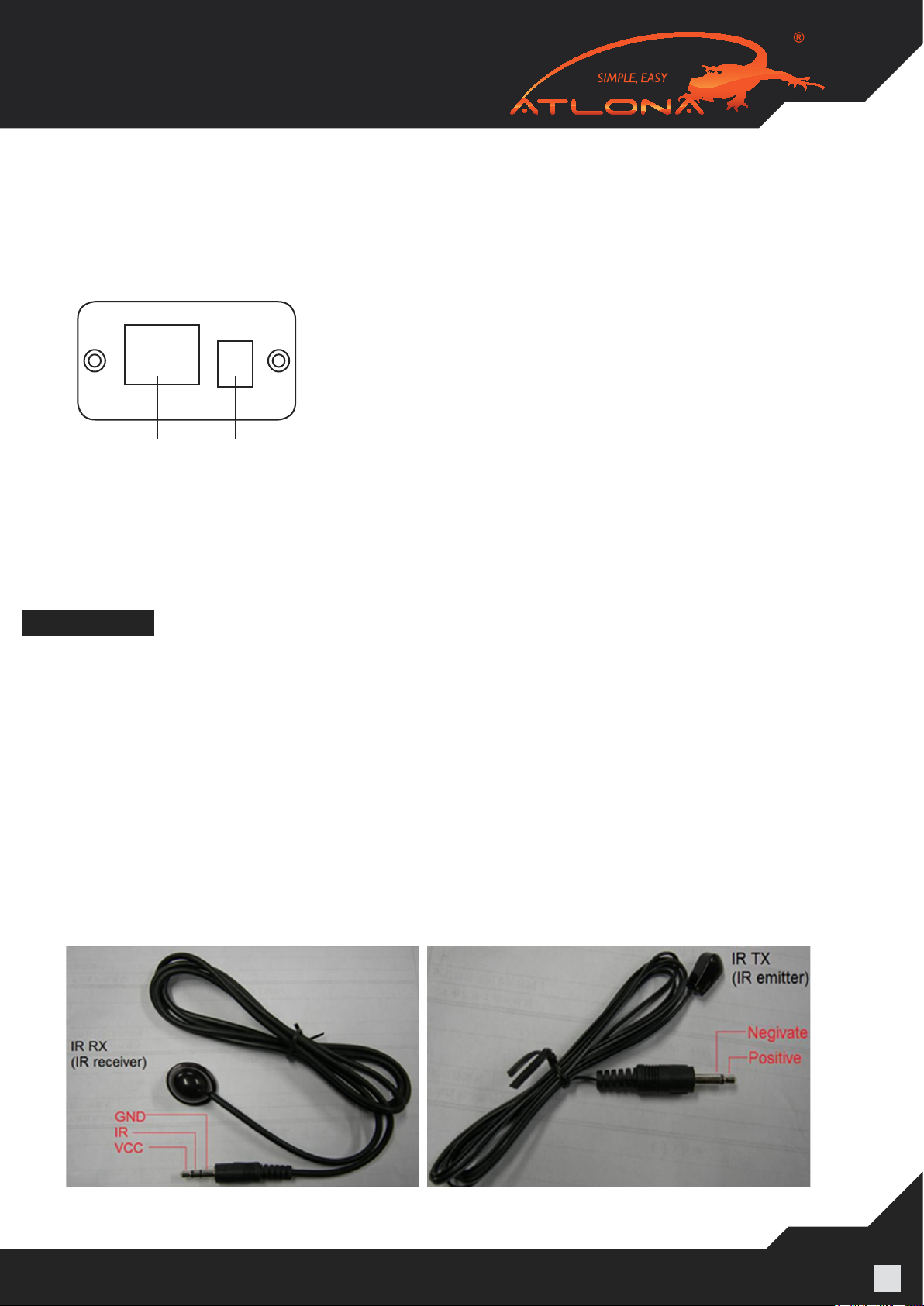

1. RJ45: Connect CAT 5/6/7 cable to next Infrared Extender Unit.
2. Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet.
Note: Only one power adapter is required, it could either be used on the Repeater or Extender Unit.
Note: IR receiver eye can take signals from up to 20 ft. away in the open distance
DC 5V
RJ 45
1 2
VERY IMPORTANT:
When connecting IR receivers and IR emitters, be very careful as if they are reversed the IR Eye will
burn-out and also may damage the IR module inside of the switch and Receiver.
When installing IR’s, the IR TX (Transmitter) is used on Sources. The eye should be placed over the
Source IR eye on most applications. If there is a signal issues e.g., device is not switching, the IR may-
be being over ooded. Place an IR TX to the side of the IR eye at 30-degree. User can also try moving
the IR up or down from the IR senson on the source to x the issue.
NOTE: the IR300SRS is designed to handle all IR signals up to 38KHz, which is acceptable for most
sources; however there are cases where the IR frequency of the certain source may be higher and in
this case, the IR300SRS will not work.
The IR RX (Receiver) should be placed in a visible location for the remote control view.
