Atomic G01889CF Manuale utente

888-996-2729-1

1353-378-668-1:XAF

moc.stropsedalacse@gameroom

ytilauqtsehgihehtfoerastcudorpruotahterusneotevirtseW

fi,revewoH.strapgnissimrostcefedgnirutcafunamfoe

erfdna

,tcudorpwenruoyhtiwsmelborpynaevahuoy

EROTSEHTOTTINRUTERTONOD ,

:@eerfllotsutcatnocesaelp

:otetirwrO

stropSedalacsE

tnemtrapeDecivreSremotsuC

988xoB.O.P

60774NI,ellivsnavE

date code (if,rebmunledomruoyedivorpesaelpstropSedalacsEgnitcatnocnehW

erasrebmunesehT.traptnemecalp

eragnitseuqerfirebmuntrapdna,)elbacilppa

.launamsrenwosihtnidna,gnigakcap,tcudorpehtnodetacol

rebmuNledoMruoY

.straptuobagniriuqninehwdate coderuoyevahesaelP

G01889CF

Date Code: 2 - G01889CF - - WJ

Purchase Date:

PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

Make sure you understand the following tips before you begin to assemble your soccer table.

1. Start all bolts by hand before tightening.

2. Some drawings or images in this manual may not look exactly like your product. Please

read and understand the text before starting each assembly step.

TWO ADULTS ARE REQUIRED TO ASSEMBLE

THIS ATOMIC GLADIATOR SOCCER TABLE

Assembly Tips

Tools Required:

READ AND FOLLOW ALL ASSEMBLY, OPERATION, AND

SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO

ADULTS ARE NEEDED TO ASSEMBLE THIS SOCCER TABLE

T1 - Allen Wrench (Included)

IMPORTANT! READ EACH STEP

IN THIS MANUAL BEFORE YOU

BEGIN THE ASSEMBLY.

Phillips Screwdriver

Furniture Polish and Cloth

ATTENTION:

FEATURING TWO GAME OPTIONS

EUROPEAN STYLE OR AMERICAN STYLE

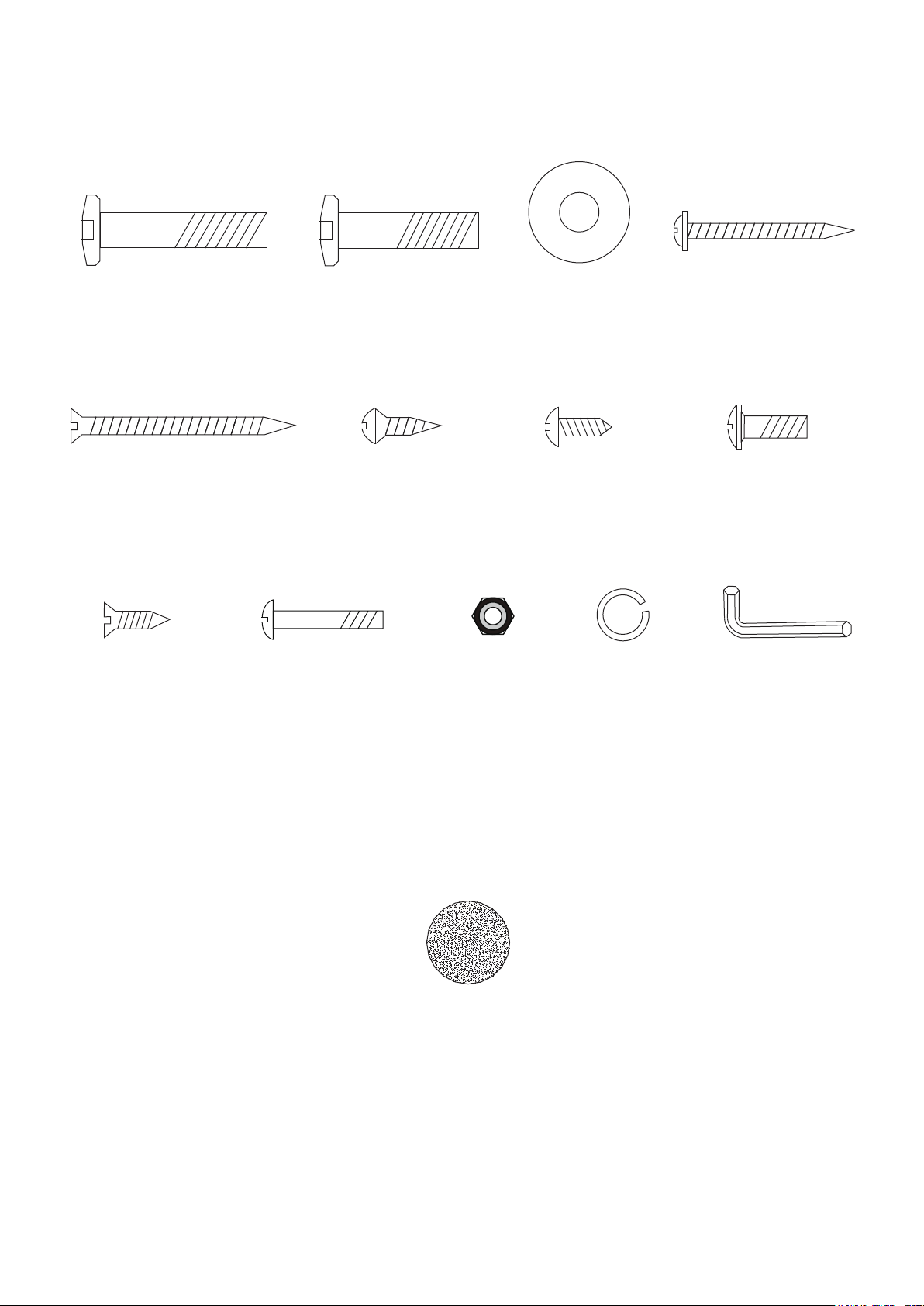

HARDWARE IDENTIFIER

( To Scale)

H1 - 5/16” x 1-1/2”

Allen Head Bolt

(8 pcs)

H2 - 5/16” x 1-1/4”

Allen Head Bolt

(16 pcs)

H3 - 5/16”

Flat Washer

(24 pcs)

H5 - #4 x 2”

Phillips Flat

Head Screw

(6 pcs)

H6 - #4 x 5/8”

Phillips Round

Head Screw

(6 pcs)

(Not to Scale)

H7 - #4 x 1/2”

Phillips Round

Head Screw

(20 pcs)

H9 - #3 x 15mm

Phillips Flat Head

Screw (8 pcs)

H10 - #4 x 1”

Phillips Round Head

Bolt (26 pcs)

T1 - Allen Wrench

(1 pc)

ACCESSORIES IDENTIFIER

( Not to Scale)

A1- Soccer Ball (4 pcs)

H4 - #3.5 x 1-1/2”

Phillips Washer

Head Screw

(12 pcs)

H8 - 3/16” x 5/8”

Phillips Round

Head Bolt

(8 pcs)

H11 - #4

Lock Nut

(26 pcs)

H12 - 5/16”

Lock Washer

(24 pcs)

PARTS IDENTIFIER

( Not to Scale)

P1 - Side Apron

(2 pcs)

P2 - End Apron

(2 pcs)

P3 - Playfield (1 pc)

P5 - Playfield Support

Brace (3 pcs)

P6 - Goal Box

(2 pcs)

P4 - Leg

(4 pcs)

P7 - Ball Catcher

(2 pcs)

P8 - Ball Return

Tube (2 pcs)

P9 - Long Playfield Trim

(2 pcs) P10 - Leg Leveler

(4 pcs)

P11 - Corner Cap

(4 pcs)

P12 - Corner Post

(4 pcs)

P13R - Scorer (2 pcs) P14 - Rod Bumper

(16 pcs)

P15 - Rod End

Cap (8 pcs)

P16 - Rod Handle

(8 pcs)

P18 - Ball Entry

Cup (2 pcs)

P19 - Red Shirt /

Black Shorts

Player (13 pcs)

P20 - Blue Shirt /

White Shorts

Player (13 pcs)

P17 - Rod Bushing

(16 pcs)

P22 - 3 Player Rod

or 1 Player Rod

(4 pcs)

P26 - One Player

Rod Stop

(4 pcs)

P25 - Corner Ramp

(4 pcs)

P23 - 5 Player Rod

(2 pcs)

P21 - 2 Player Rod

(2 pcs)

P24 - Cup Holder

(4 pcs)

(To be used for

European style only) (To be used for

European style only)

(To be used for

European style only)

P27 - Screw Cover Cap

(4 pcs)

For P25 Corner Ramp

(To be used for

European style only)

(To be used for

American style only)

P28 - Short Playfield Trim

(2 pcs)

PARTS REQUIRED:

2 pcs - P1 Side Apron

1 pc - P3 Playfield

STEP 1:

Find a clean, level place to begin the assembly of your

soccer table. We recommend building the table on the

box top to protect the parts during assembly.

It is very important to assemble table on a level and

flat surface. This will keep the end aprons and side

aprons “FLUSH” on the top and bottom edges.

Set P3 Playfield into the grooves in P1 Side

Apron as shown in FIGURE 1.

FIGURE 1

NOTE:

Graphic on this side.

Groove

PARTS REQUIRED:

8 pcs - H1 Allen Head Bolt 8 pcs - H7 Phillips Round Head Screw 2 pcs - P2 End Apron 1 pc - T1 Allen

8 pcs - H3 Flat Washer 8 pcs - H12 Lock Washer 4 pcs - P12 Corner Post Wrench

STEP 2:

Attach P2 End Aprons onto P1 Side Apron using H1 Allen Head Bolts with H12 Lock Washers and H3 Flat Washers

as shown in DETAIL A. Do not tighten H1 Bolts at this time.

Slide P12 Corner Posts onto each end of the P1 Side Apron and P2 End Apron. Center P3 Playfield and tighten H1

Bolts using T1 Allen Wrench.

Use H7 Screws to secure the P12 Corner Posts as shown in FIGURE 2. Tighten, but do not strip out H7 Screws.

THIS STEP REQUIRES TWO OR MORE ADULTS.

VERY CAREFULLY SET P3 PLAYFIELD INTO THE GROOVES

IN P1 SIDE APRONS.

DETAIL A

H7 H3

P12

FIGURE 2

THIS STEP REQUIRES TWO OR MORE ADULTS.

VERY CAREFULLY ATTACH P12 CORNER POST

ONTO EACH P1 & P2 APRON.

NOTE: P12 Corner Post

should be flush with

bottom of P1 Side and

P2 End aprons.

NOTE: Install P12 Corner Posts

with arrow pointing down.

ATTENTION:

IMPORTANT NOTE: Center P3 Playfield

before tightening H1 Bolts.

VERY IMPORTANT! DO NOT TIGHTEN H1 BOLTS AT THIS TIME.

THE P12 CORNER POSTS MUST BE INSTALLED BEFORE

TIGHTENING THE H1 BOLTS. INSTALLATION OF THE P12

CORNER POSTS WILL SQUARE UP THE SIDE AND END APRONS

FOR CORRECT ASSEMBLY.

TIGHTEN THE H1 BOLTS ONLY AFTER THE P12 CORNER POSTS

ARE CORRECTLY INSTALLED.

H12

IMPORTANT NOTE: Be sure playfield is

centered before installing any H4 Screws.

PARTS REQUIRED:

12 pcs - H4 Phillips Washer Head Screw 3 pcs - P5 Playfield

6 pcs - H5 Phillips Flat Head Screw Support Brace

STEP 3:

Center and attach the P3 Playfield into the cabinet using predrilled holes with H4 Screws as shown in FIGURE 3 .

Place each P5 Playfield Support Brace and attach using predrilled holes with H5 Screws as shown in FIGURE 3.

Important Note: Please be sure to install H4 screws and H5 screws

exactly as per FIGURE 3. Screws must be screwed straight down. FIGURE 3

PARTS REQUIRED:

16 pcs - H2 Allen Head Bolt 4 pcs - P4 Leg

16 pcs - H3 Flat Washer 4 pcs - P10 Leg Leveler

16 pcs - H12 Lock Washer 1 pc - T1 Allen Wrench

STEP 4:

Attach P4 Legs using H2 Allen Head

Bolts with H12 Lock Washers and H3 Flat

Washers as shown in FIGURE 4 &DETAIL B.

Use T1 Allen Wrench to tighten H1 Bolts.

Thread P10 Leg Levelers onto each P4 Leg

as shown in FIGURE 4.

FIGURE 4

P10

DETAIL B

H12

IMPORTANT NOTE: Center P3

Playfield before installing H4 and

H5 Screws.

If P3 playfield is not centered,

you may need to loosen H1

Bolts ( in Step 2 ) to correctly

center the P3 Playfield

- Retighten H1 Bolts once P3

Playfield is correctly centered.

PARTS REQUIRED:

12 pcs - H7 Phillips Round Head Screw 2 pcs - P7 Ball Catcher

2 pcs - P6 Goal Box 2 pcs - P8 Ball Return Tube

STEP 5:

Center the

Do not Strip out the H7 Screws.

P6 Goal Box over the opening in the end panel and attach using pilot holes with H7 Screws as

shown in FIGURE 5.

Center the P7 Ball Catcher over the opening in the side panel and attach using pilot holes with H7 Screws

as shown in FIGURE 5.

Make sure the round opening of the

Ball Catcher is towards the floor (when table is turned upright).

Repeat for both ends of the table.

Attach P8 Ball Return Tubes between P6 Goal Box and P7 Ball Catcher as shown in FIGURE 5.

FIGURE 5

NOTE: Make sure the round opening

for the ball return tube is towards the

floor (when table is turned upright)

THIS STEP REQUIRES FOUR OR MORE ADULTS.

VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON

ITS LEGS. BE CAREFUL. THE TABLE IS VERY HEAVY.

CAUTION:

NOTE: Make sure the

opening is on this side.

IMPORTANT NOTE

We provide two game options in this Soccer Table.

2. “ American Soccer Table Style ” (Three Goalies Per End)

Please Continue the assembly STEP 6 thru STEP 11,

and Skip STEP 12 thru STEP 16.

Please Skip STEP 6 thru STEP 11,

and Continue the assembly starting at STEP 12 thru STEP 16.

1. “ European Soccer Table Style ” (Only One Goalie Per End)

STEP 6:

H11

P27 Screw Cover Cap

P25 Corner Ramp

OVERHEAD VIEW

LOOKING DOWN ONTO TABLE

Attach the Corner Ramp to the playfield with one H11 Screw per Corner Ramp and then Install the P27 Screw Cover Cap

onto the P25 Corner Ramp as shown in FIGURE 6.

NOTE: P25 Corner Ramps are only used

for European Soccer Style.

NOTE: Install Screw Cover Cap

“Flush” with the Corner Ramp.

FIGURE 6

PARTS REQUIRED:

4 pcs - H11 Phillips Round Head Screw

4 pcs - P25 Corner Ramp

4 pcs - P27 Screw Cover Cap for P24 Corner Ramp

EUROPEAN

SOCCER STYLE

NOTE: Hold each Corner Ramp tightly

and flush into each corner during the

H11 Screw installation. Be careful not

to strip out H11 Screws.

PARTS REQUIRED:

6 pcs - H6 Phillips Round Head Screw 4 pcs - P11 Corner Cap 2 pcs - P18 Ball Entry Cup

8 pcs - H9 Phillips Flat Head Screw 2 pcs - P13R Scorer 4 pcs - P24 Cup Holder

16 pcs - P17 Rod Bushing

FIGURE 7

STEP 7:

Carefully peel the paper protective coating from adhesive strips from the back of the P11 Corner Caps to reveal

adhesive strips. Attach P11 Corner Caps using H9 Screws as shown in FIGURE 7.

Tighten, but do not strip out H9 Screws.

Attach P13R Scorers onto the top of P2 End Aprons as shown in FIGURE 7.

Insert P17 Rod Bushings onto both P1 Side Aprons as shown in FIGURE 7.

Please make sure to insert P17 Rod Bushings from the inner side of P1 Side Aprons for correct assembly.

Attach P18 Ball Entry Cups using H6 Screws as shown in DETAIL C.

Tighten, but do not strip out H6 Screws.

Carefully - Tap P24 Cup Holders down into P2 End Aprons as shown in FIGURE 7.

P13R

Note:

Red Bead scorer should

be on opposite side of

Ball Return.

P13

Note:

Red Bead scorer should

Pilot Holes

be on opposite side of

Ball Return.

P11

DETAIL C

P17

P18

P24

Note:

Carefully tap P24

Cup Holders down.

Rubber

Hammer

IMPORTANT NOTE: P17 Rod Bushings may require the use of a rubber hammer for installation into side apron.

With a rubber hammer, lightly tap bushing squarely into place. DO NOT USE STEEL HAMMER!

If a rubber hammer is not available, place a piece of wood squarely on bushing and lightly tap into place.

EUROPEAN

SOCCER STYLE

P28

45° Angle

Cut

Peel the adhesive strip protective coating off the underside of the P28 Short Playfield Trims, then very carefully

place them along P3 Playfield as shown in FIGURE 7.

2 pcs - P28 Short Playfield Trim

STEP 8:

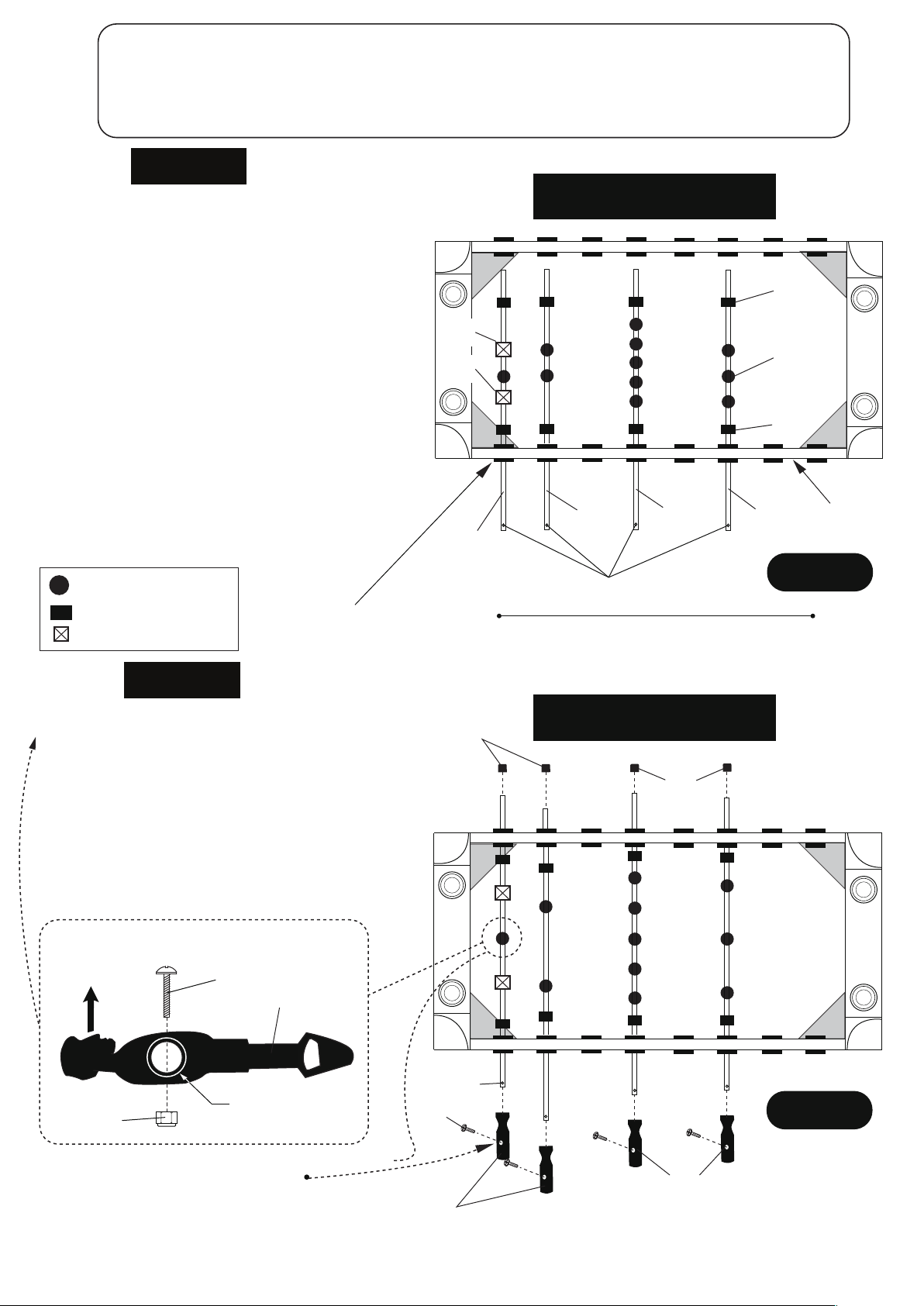

Slide P22 3 Player Rods, P23 5 Player Rod and

P21 2 Player Rod through P17 Rod Bushings of

one side of the P1 Side Apron as shown in FIGURE 8.

IMPORTANT NOTE: Please note the location

of the hole that is near one end of each rod.

This is the handle end of the rod.

Place one P14 Rod Bumper on each rod as

shown in FIGURE 8.

Place

P26 One Player Rod Stop on rods as shown

P19 Red Shirt / Black Shorts Players and

in FIGURE 8 .

IMPORTANT NOTE: The goalie should be

at your left and your team (player face)

facing to the right.

Looking ahead to Page 11 FIGURE 10 - will

help you with correct player and rod handle

assembly onto rods.

Place one P14 Rod Bumper on each rod as

shown in FIGURE 8.

PARTS REQUIRED:

4 pcs - H8 Phillips Round Head Bolt 1 pc - P21 2 Player Rod 8 pcs - P14 Rod Bumper

13 pcs - H10 Phillips Round Head Bolt 2 pcs - P22 3 Player Rod 4 pcs - P15 Rod End Cap

13 pcs - H11 Lock Nut 1 pc - P23 5 Player Rod 4 pcs - P16 Rod Handle

13 pcs - P19 Red Shirt / Black Shorts Player

FIGURE 8

STEP 9:

Align P19 Red Shirt / Black Shorts Players and

P26 One Player Rod Stop to each player hole and

attach using H10 Bolts with H11 Lock Nut as shown

in FIGURE 9 and DETAIL D.

Attach P15 Rod End Caps to the rods as shown in

FIGURE 9.

Slide P16 Rod Handles onto each rod end with the

small hole as shown in FIGURE 9.

Attach P16 Rod Handles using H8 Bolts as shown

in FIGURE 9.

Hole / Handle End

P17 Rod

Bushing

OVERHEAD VIEW

LOOKING DOWN ONTO TABLE

LEFT RIGHT

Side Apron

P22

3 Player Rod

P22

3 Player Rod

P23

5 Player Rod

P21

2 Player Rod

= P14 Rod Bumper

= P19 Red Shirt /

Black Shorts Player

P14

P19

P14

P15

Rod End Cap

P15

Rod End Cap

P16

Rod Handle

P16

Rod Handle

DETAIL D

Soccer player

facing up

Rod

H10

H11

P19

FIGURE 9

OVERHEAD VIEW

LOOKING DOWN ONTO TABLE

IMPORTANT NOTE: Soccer players should be in vertical

position while attaching P16 Handles.

NOTE:

Small Hole

Be careful not to cross thread H8 Bolts.

= P26 One Player Rod Stop

P26

2 pcs - P26 One Player Rod Stop

EUROPEAN

SOCCER STYLE

EUROPEAN

SOCCER STYLE

Indice

Altri manuali Atomic Macchina per videogiochi arcade

Atomic

Atomic G04865W Manuale utente

Manuali Macchina per videogiochi arcade popolari di altre marche

Universal Space

Universal Space COCONUT BASH Manuale utente

Bay-Tek

Bay-Tek EVOLVE Manuale utente

Global VR

Global VR America's Army Istruzioni per l'installazione e il funzionamento

Atronic

Atronic Cashline Manuale utente

Universal Space

Universal Space Checky Monkey Manuale utente

Bay-Tek

Bay-Tek Skee Ball 1908 Alley Manuale utente

Aristocrat Technologies

Aristocrat Technologies Mars X Upright Manuale utente

Family Fun Companies

Family Fun Companies Reactor Guida rapida

Universal Space

Universal Space FRUIT MANIA Extreme Manuale utente

falgas

falgas CARRUSEL FIESTA Manuale utente

Konami

Konami DanceDanceRevolution Manuale utente

Bay-Tek

Bay-Tek quik drop Manuale utente

Bandai Namco

Bandai Namco PAC-MAN BATTLE ROYALE CHOMPIONSHIP DELUXE Manuale utente

Adrenaline

Adrenaline Flying Tickets Istruzioni per l'installazione e il funzionamento

Swinks

Swinks Stern Pinball Ghostbusters Manuale utente

Innovative Concepts in Entertainment

Innovative Concepts in Entertainment MONOPOLY ROLL-N-GO Manuale utente

jakar

jakar SPEED CARS Manuale utente

Carmelli

Carmelli HAT TRICK NG1015H Manuale utente
