How to Replace Faceboards in a
3210 Furnace
Contents
Denitions................................................................................................................. 1
Tools Needed........................................................................................................... 2
How To....................................................................................................................... 3
Fitting Replacement Faceboards................................................................... 10
1

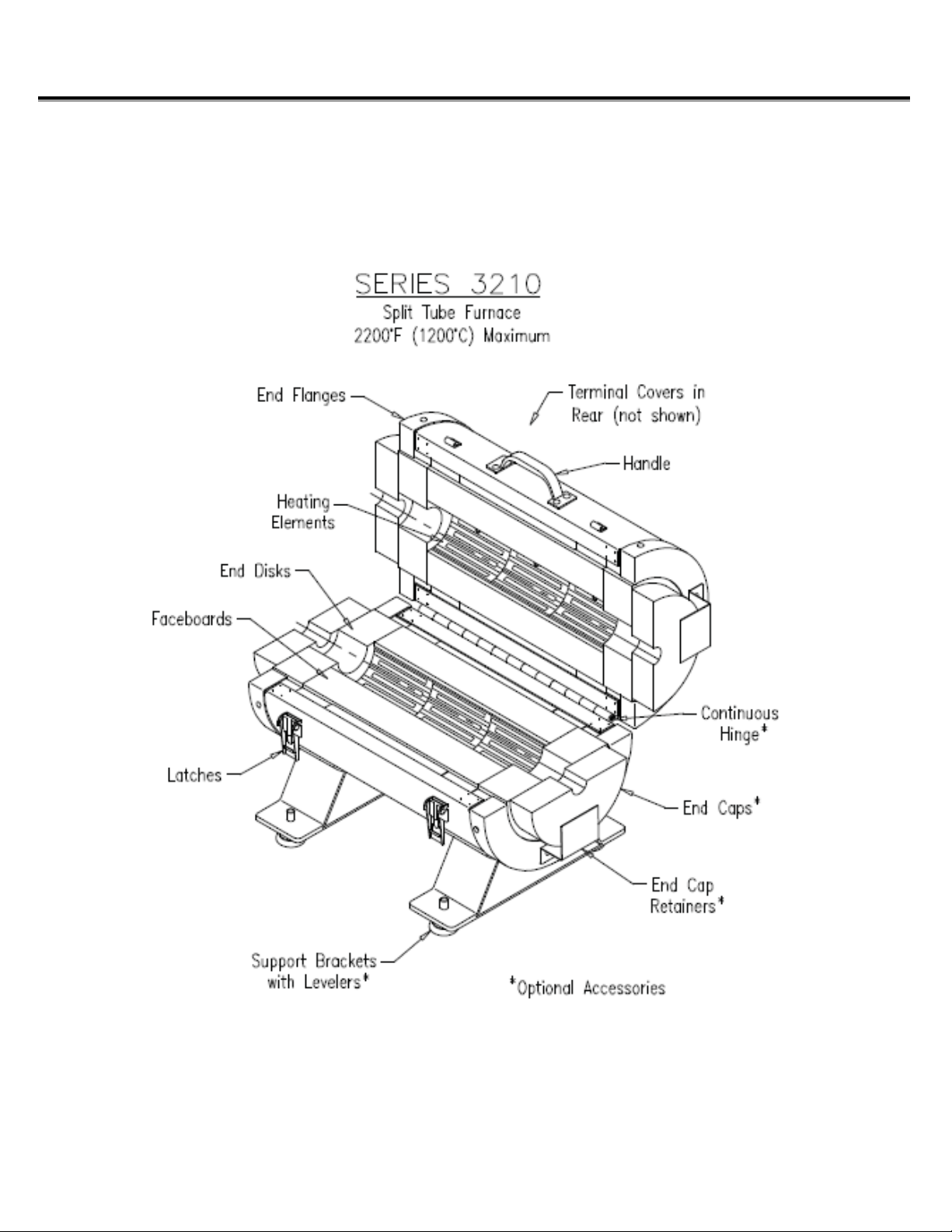

Series 3210 Denitions
2
Tools Needed
• Screw Driver
• Hammer
• Straight Edge
• Pipe Clamps
3
How To
Step 1: Lay furnace in the horizontal position. Remove furnace bar or
half of the hinge.
Step 2: Remove end anges from both ends of the furnace. A pipe clamp
should be used to remove pressure from end anges and screws.
4
Step 3: End anges are held in place by generally 3 screws. Remove
the screws completely and pull the anges o.
Step 4: Flanges can be tapped o using a straight edge.
5

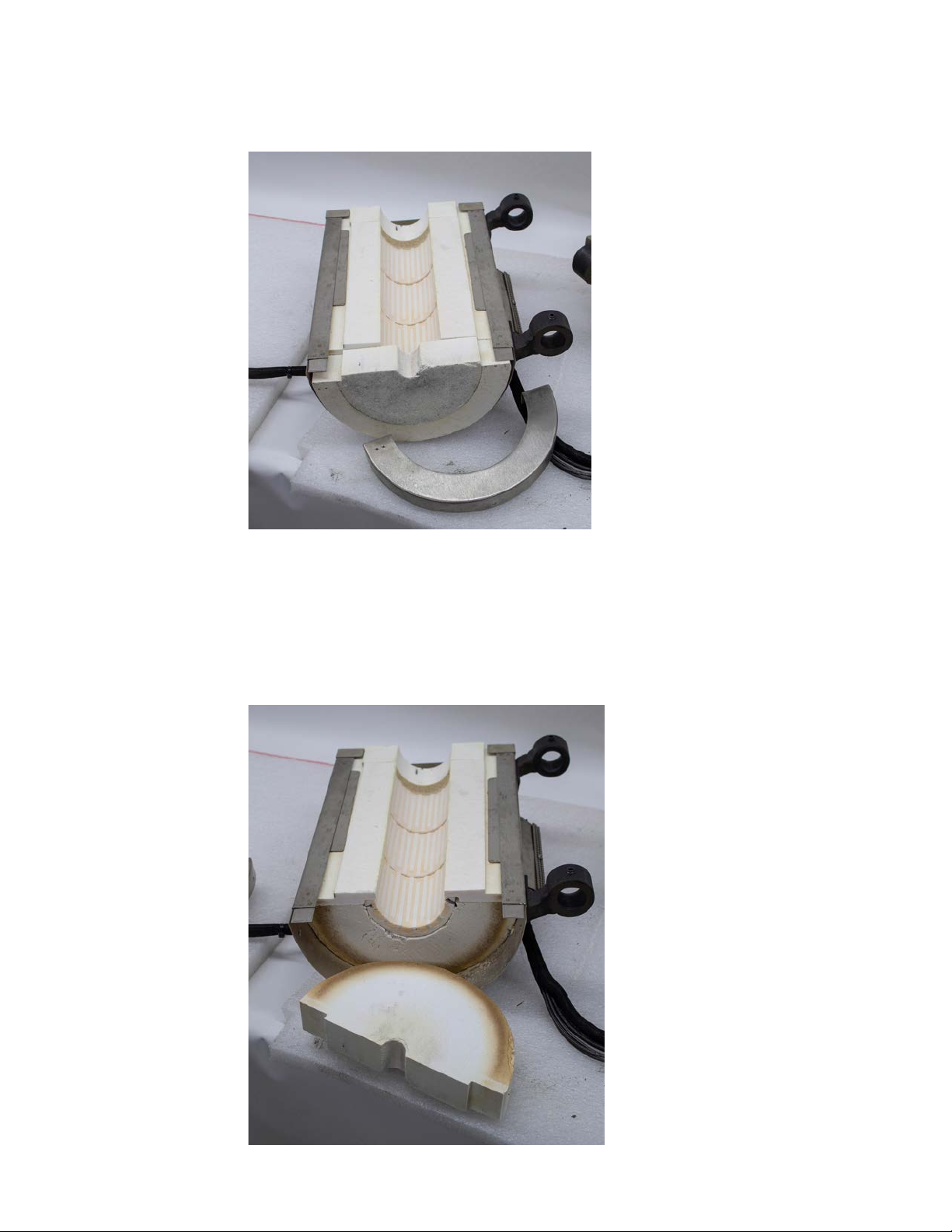

Step 5: Flanges being removed.
Gently remove the end disk from both sides of the furnace.
Step 6:
6
Step 7: Remove the faceboard retainer. Use a metal straight edge and
tap the retainer so that it comes out the other end. Retainer
may get stuck due to hitting other metal piece.
Retainer stuck by hitting
metal piece.
7
Step 8: After the retainer is out, slowly pull the faceboard out.
Step 10:
Verify that old and new paceboards are close in size.
Step 9:
Slide new faceboard back in place. Proper way is shown below.
Correct Incorrect
8
Step 11: Insert new faceboard.
Step 12:
Step 13:
Tap retainer in by using a hammer and a metal straight edge
until it is back in place.
Retainer doesn’t have to sit perfectly square.
Not perfectly square.
