INDEX
Copyright © ATSG 2002
AXOD/AXODE (AX4S)
UPDATE HANDBOOK

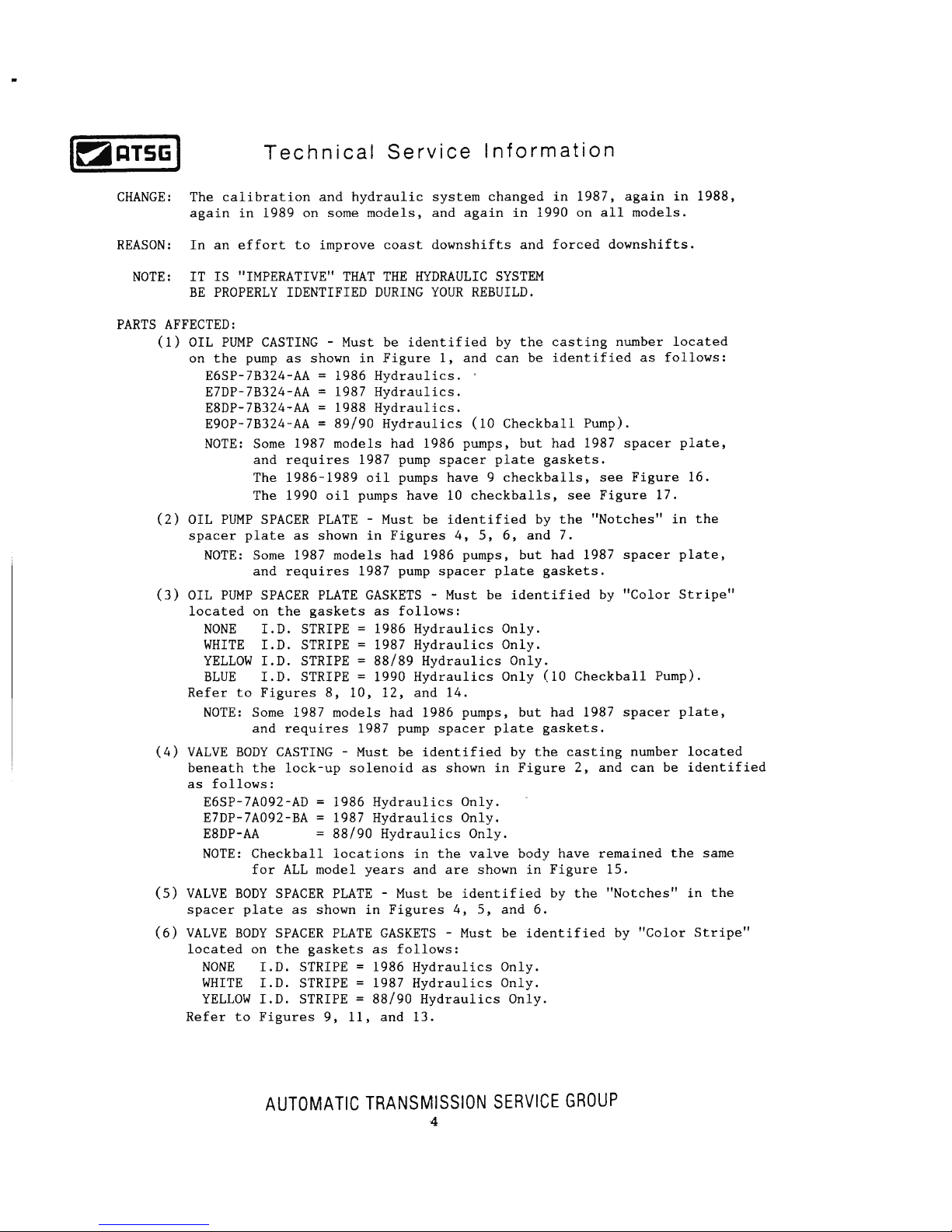

HYDRAULIC SYSTEM CHANGES .................................................................................................................. 4

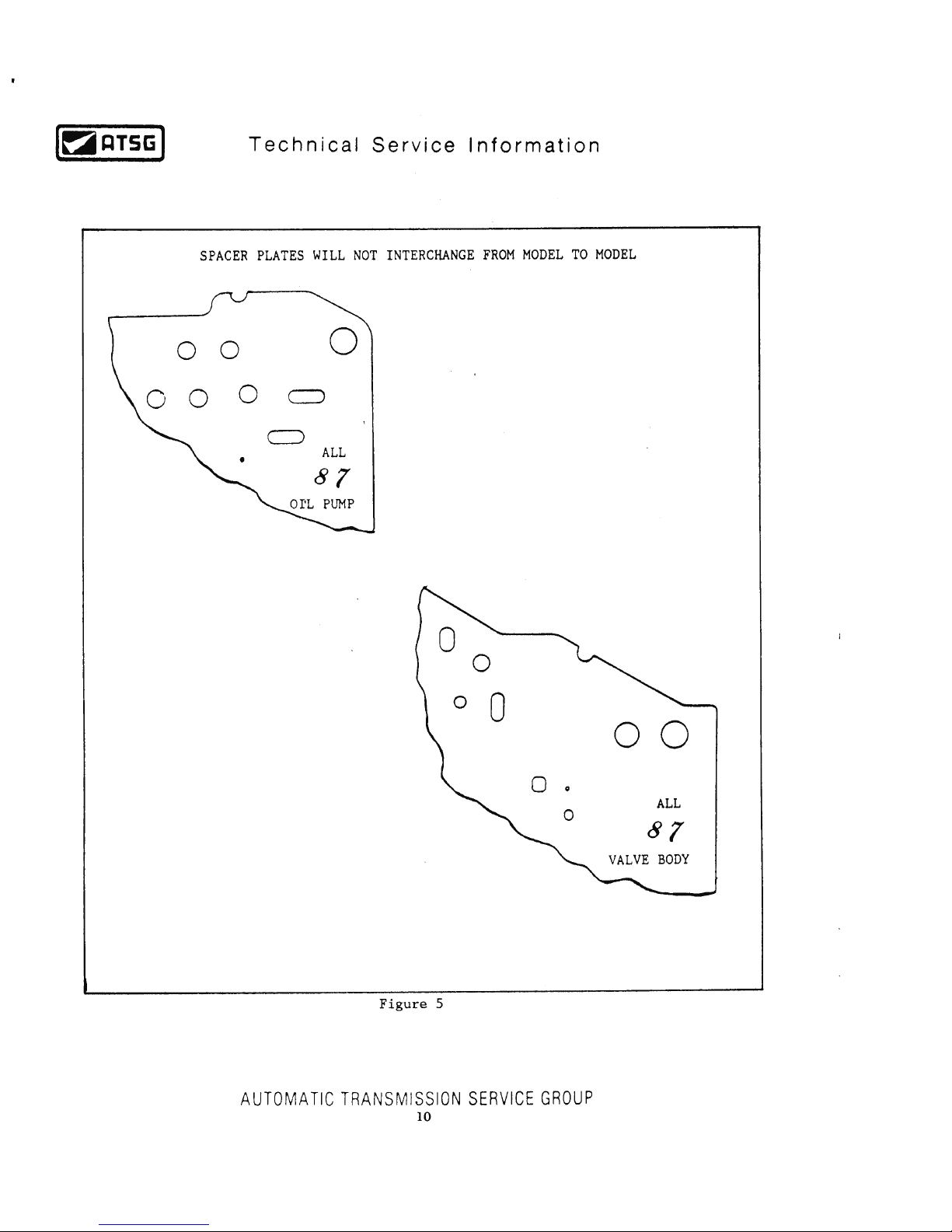

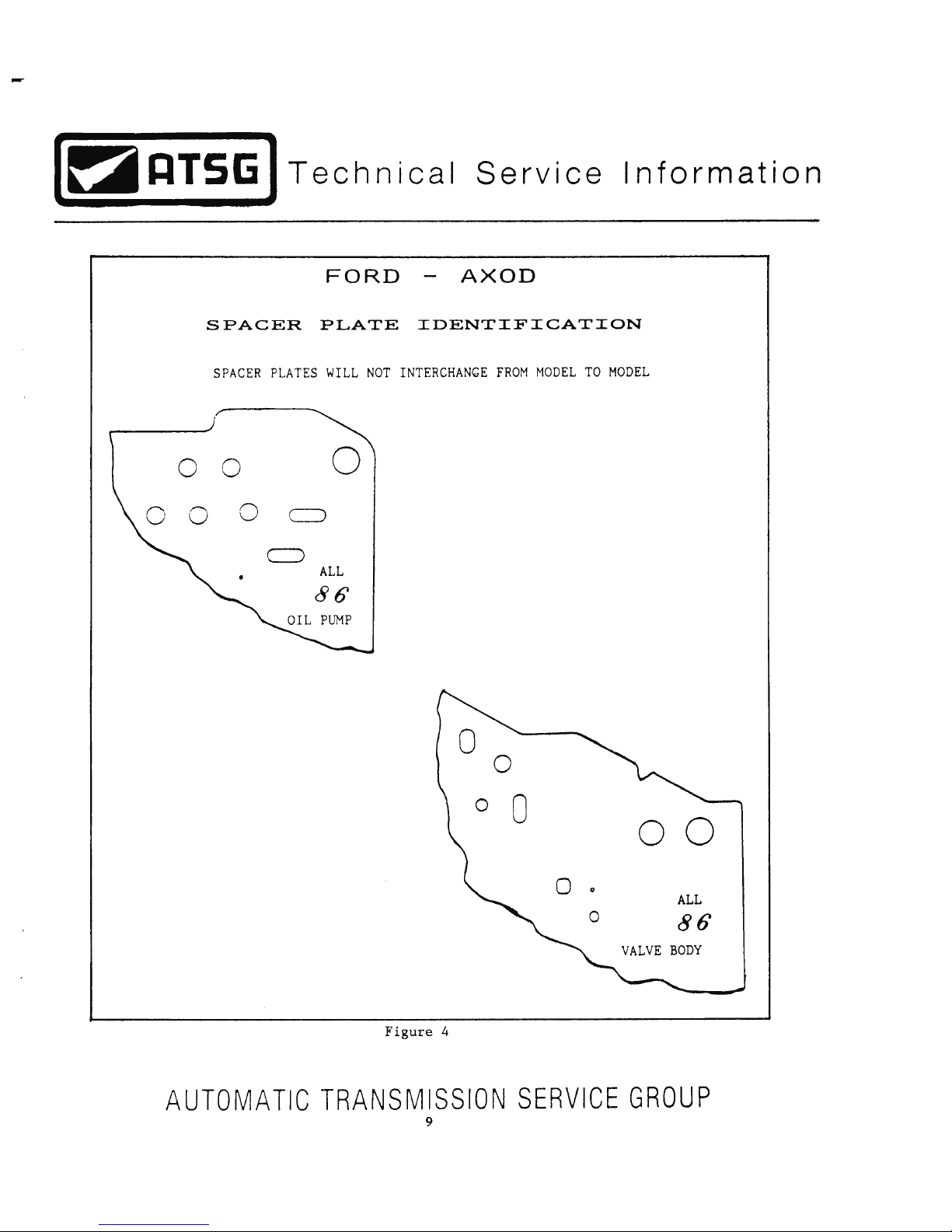

SPACER PLATE IDENTIFICATION ................................................................................................................. 9
PUMPAND VLAVE BODYGASKET IDENTIFICATION ............................................................................. 14
VALVE BODY CHECKBALLLOCATIONS ..................................................................................................... 21
OILPUMPCHECKBALLLOCATIONS .......................................................................................................... 22
VALVE BODYVALVE LOCATIONSAND IDENTIFICATION ..................................................................... 26
PREMATURE PLANETARY FAILURE ............................................................................................................ 34
INTERMEDIATE CLUTCH PACK CHANGES ............................................................................................... 40
NEW STEELFORWARD CLUTCH PISTON .................................................................................................. 48
HARSH COASTDOWN SHIFT .......................................................................................................................... 49
SPROCKET RATIO IDENTIFICATION (ALL) ............................................................................................... 51
NEW DESIGN OIL PUMPBEARING WITH INTEGRALSEAL................................................................. 56
ACCUMULATOR SPRING IDENTIFICATION (ALL) .................................................................................. 58
LOW SPRAG FREEWHEEL DIRECTION ..................................................................................................... 62
FORWARD CLUTCH WAVE PLATE CHANGE ............................................................................................. 64
FORWARD CLUTCH PACKAND LOW SPRAG OUTER RACE CHANGE ............................................. 68
NEW DESIGN INPUT PLANETARYAND SUN SHELL............................................................................... 72
NO MOVEMENT OR NO TCC .......................................................................................................................... 75
OILPUMPCHECKBALLLOCATION CHANGES ........................................................................................ 76
TORQUE CONVERTERAND TURBINE SHAFT SPLINE CHANGES ....................................................... 79
VALVE BODYVALVE LOCATIONSAND IDENTIFICATION ..................................................................... 80
VALVE BODYAND OIL PUMPSPACER PLATE IDENTIFICATION ........................................................ 88
OILPUMPAND VALVE BODY GASKET IDENTIFICATION ..................................................................... 89
VALVE BODY CHECKBALLLOCATION CHANGES .................................................................................. 92
PREMATURE PLANETARY FAILURE ............................................................................................................ 95
CHAIN COVERAND THRUSTWASHER CHANGES ................................................................................... 96
1991-1992 ELECTRICALDIAGNOSIS ........................................................................................................... 100
NEW DESIGN CHAIN COVER KIT FOR NEW CASE CONNECTOR ..................................................... 103
1993-UPELECTRICALDIAGNOSIS .............................................................................................................. 104
NEW DESIGN TCC SOLENOID ...................................................................................................................... 106
VEHICLE SPEED SENSOR CHANGES ......................................................................................................... 108
PRESSURE TAP LOCATIONS ......................................................................................................................... 111
PRESSURE CONTROLPROBLEM DIAGNOSIS ......................................................................................... 112
WINDSTARAND TAURUS SPACER PLATE IDENTIFICATION .............................................................. 116
LATEST CHAIN COVERAND GASKET CHANGE (NO REVERSE) ........................................................ 119
AXOD AND AXODE
AXODE
AUTOMATIC TRANSMISSION SERVICE GROUP
18639 S.W. 107TH AVENUE
MIAMI, FLORIDA 33157
(305) 670-4161
2
